The Vestil SBM-60-3 is in our catalogue: Finish Durable Baked in Powder Coat Blue Finish, Max Capacity 6000 LBS., Overall Width 4 1/2 inch.
ChatMRO can make mistakes, so double check it
In stock
Vestil · SBM-60-3
Economy Beam Spreader, 6000 Lb Capacity, 36 Inch Length
$ 716.71per unit · ex. VAT
Steel beam spreader with 6000 lb working load limit, adjustable spread from 21 to 33 inches, and durable powder coat blue finish. Designed for lifting uneven and awkward loads using a chain hoist. Includes two 1.5 ton swivel hooks.
Finish
Durable Baked in Powder Coat Blue Finish
Max Capacity
6000 LBS.
Overall Width
4 1/2 inch
Overall Height
18 3/16 inch
Overall Length
36 inch
FinishDurable Baked in Powder Coat Blue Finish
Max Capacity6000 LBS.
Overall Width4 1/2 inch
Overall Height18 3/16 inch
Maximum Spread33 inch
Minimum Spread21 inch
Usable Bail3 inch x 5 inch
MaterialSteel
Attachment TypeChain Hoist
IncludesIncludes (2) 1 1/2 Ton. Swivel Hooks, Spreader Adjusts 21 inch To 33 inch
SpecificationOSHA, ANSI B30.20
Product Weight60
Weight35.1 kg
Dimensions36.0" × 5.0" × 15.0"
MOQ1
Drawings

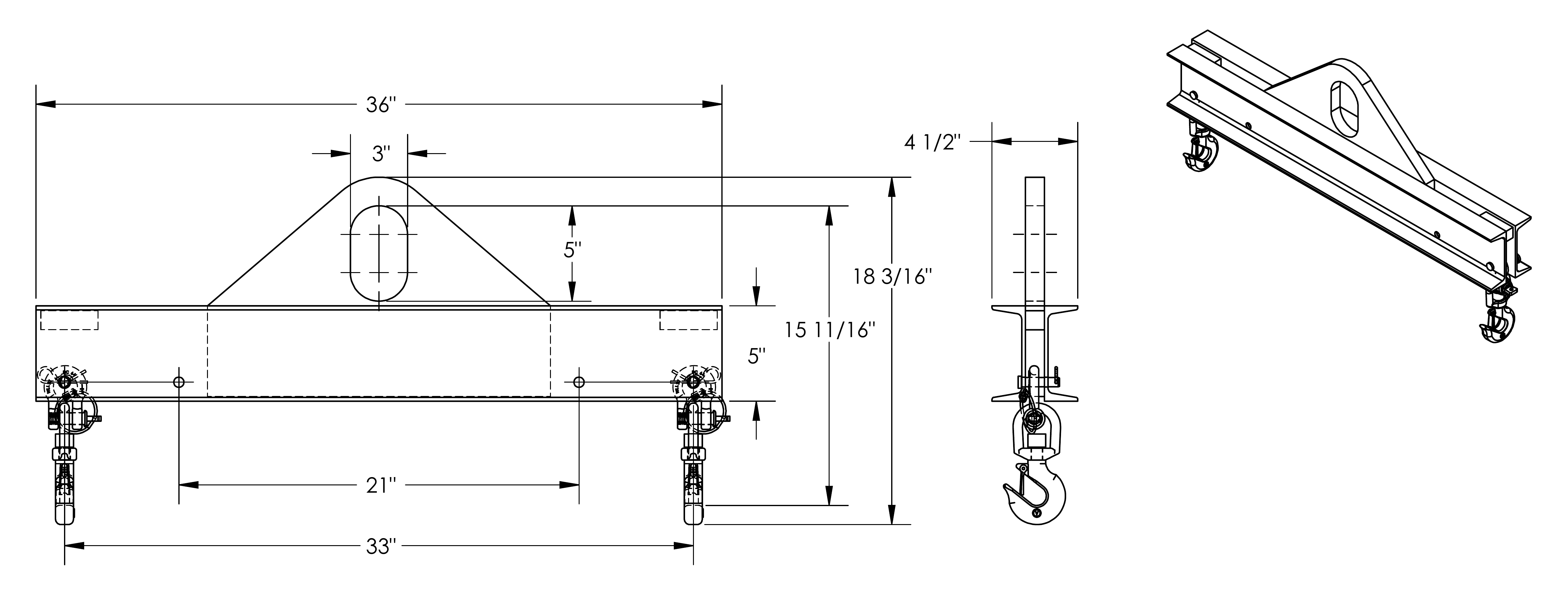

Engineering diagram of ECONOMY BEAM SPREADER - SBM-60-3 showing front, side, and isometric views with dimensions 36", 3", 5", 18 3/16", 15 11/16", 5", 21", 33", 4 1/2"
