Vestil sbm-20-4
The Vestil SBM-20-4 is in our catalogue: Capacity 2000 LB, Max Capacity 2,000 LBS., Length 48 inch.
In stock
Vestil · SBM-20-4

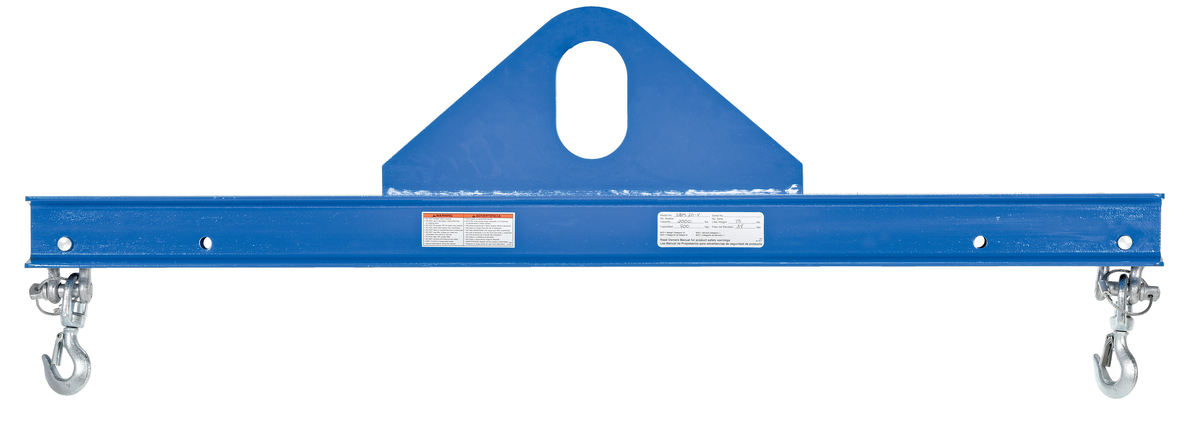

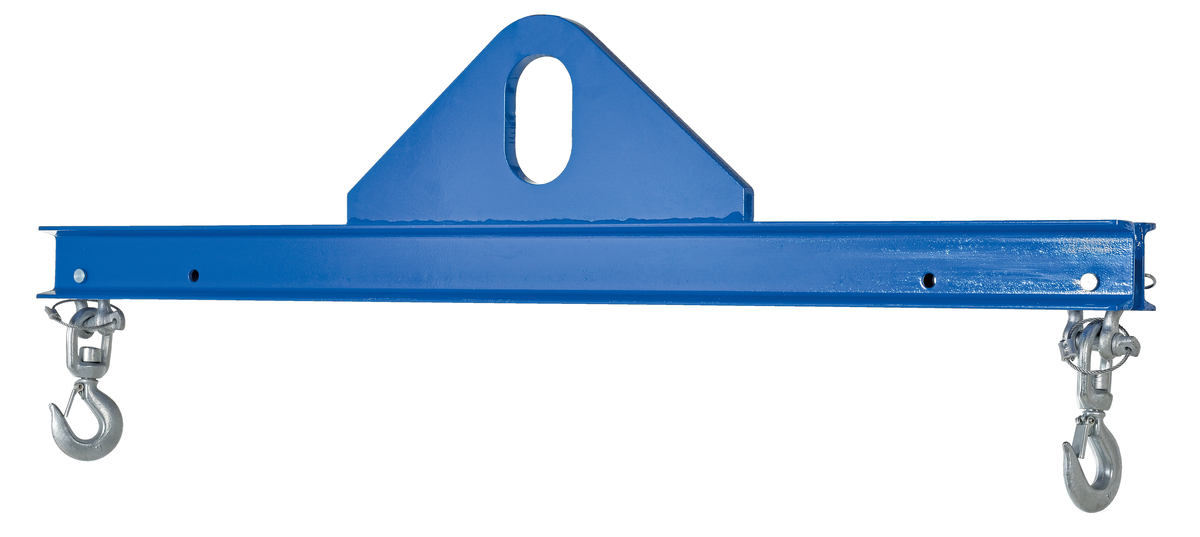

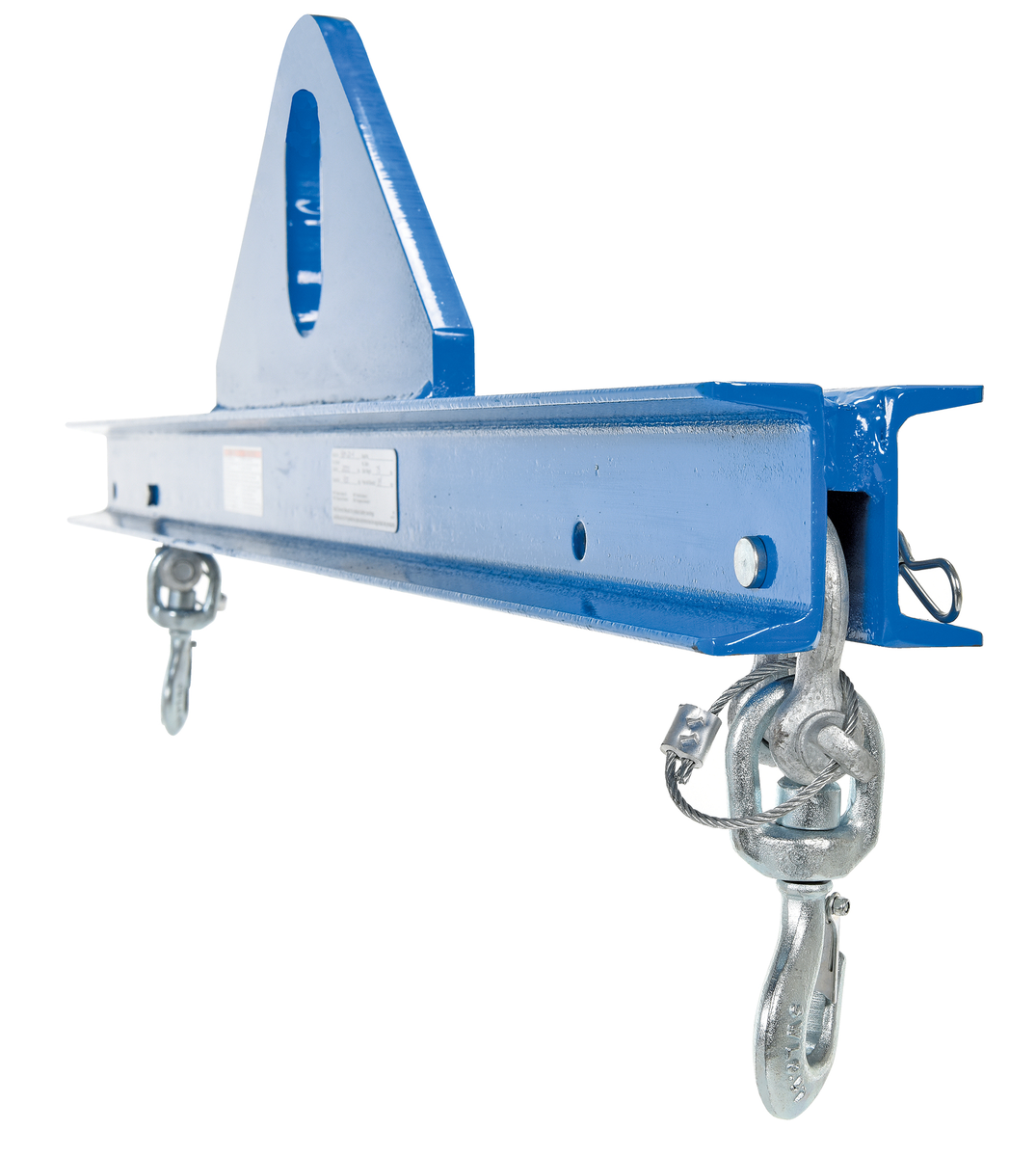

Economy Spreader Beam 2000 Lb Capacity 48 Inch Length
$ 545.21per unit · ex. VAT
Economy Spreader Beam with 2000 lb working load limit, 48 inch overall length, and adjustable spread from 33 inch to 45 inch. Features a durable powder-coated blue finish and includes two 1/2 ton swivel hooks. Complies with OSHA and ANSI B30.20 standards.
Capacity
2000 LB
Max Capacity
2,000 LBS.
Length
48 inch
Overall Length
48 inch
Assembled Depth
48 inch
Capacity2000 LB
Max Capacity2,000 LBS.
Assembled Depth48 inch
FinishDurable Baked In Powder Coated Blue Finish
ColorBlue
Headroom14 inch
Usable Bail3 inch x 5"
Overall Width3 9/16 inch
Assembled Width3 9/16 inch
Overall Height16 1/4 inch
Assembled Height16 1/4 inch
Maximum Spread45 inch
Max. Spread45 inch
Minimum Spread33 inch
Min. Spread33 inch
MaterialSteel
Bail Width3 inch
Bail Height5 inch
Bail Opening Width3 inch
Bail Opening Height5 inch
Hook Opening3 inch x 5 inch
Attachment TypeChain Hoist
SpecificationOSHA, ANSI B30.20
Swivel Hook Capacity0.5 ton.
Number of Swivel Hook2
Product Weight51
AssemblyAssembly Required
IncludesIncludes (2) 1/2 Ton. Swivel Hooks, Spreader Adjusts 33 inch To 45 inch
