The Vestil SBM-10-4 is in our catalogue: Capacity 1000 LB, Length 48 inch, Maximum Spread 45 inch.

ChatMRO can make mistakes, so double check it

In stockEconomy Spreader Beam 1000 Lb Capacity 48 Inch
Vestil · SBM-10-4

Economy Spreader Beam 1000 Lb Capacity 48 Inch

$ 509.98per unit · ex. VAT

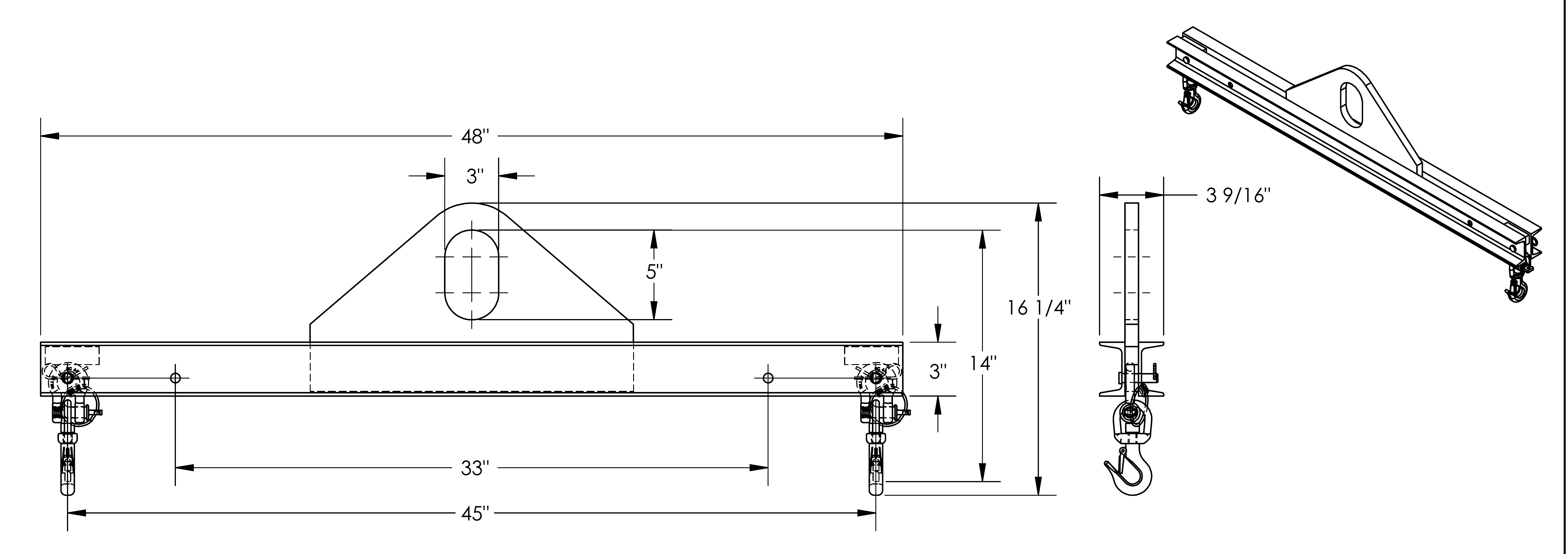

Economy Spreader Beam designed for lifting and moving uneven and awkward loads. Complies with OSHA and ANSI B30.20 standards. Constructed from steel with a 1000 lb working load limit and adjustable spread from 33 to 45 inches.
Capacity
1000 LB
Length
48 inch
Maximum Spread
45 inch
Minimum Spread
33 inch
Headroom
14 inch
Capacity1000 LB
Maximum Spread45 inch
Minimum Spread33 inch
Headroom14 inch
Overall Width3 9/16 inch
Overall Height16 1/4 inch
Usable Bail3"X5"
Approximate Weight63.61 lbs.
MaterialSteel
Attachment TypeChain Hoist
ComplianceOSHA, ANSI B30.20
IncludesIncludes (2) 1/2 Ton. Swivel Hooks, Spreader Adjusts 33 inch To 45 inch
