Vestil flad-3-ss

The Vestil FLAD-3-SS is in our catalogue: Construction Constructed of 304 Stainless Steel, Max Capacity 350 LBS., Climbing Angle 58 degree.

ChatMRO can make mistakes, so double check it

In stock

Vestil · FLAD-3-SS

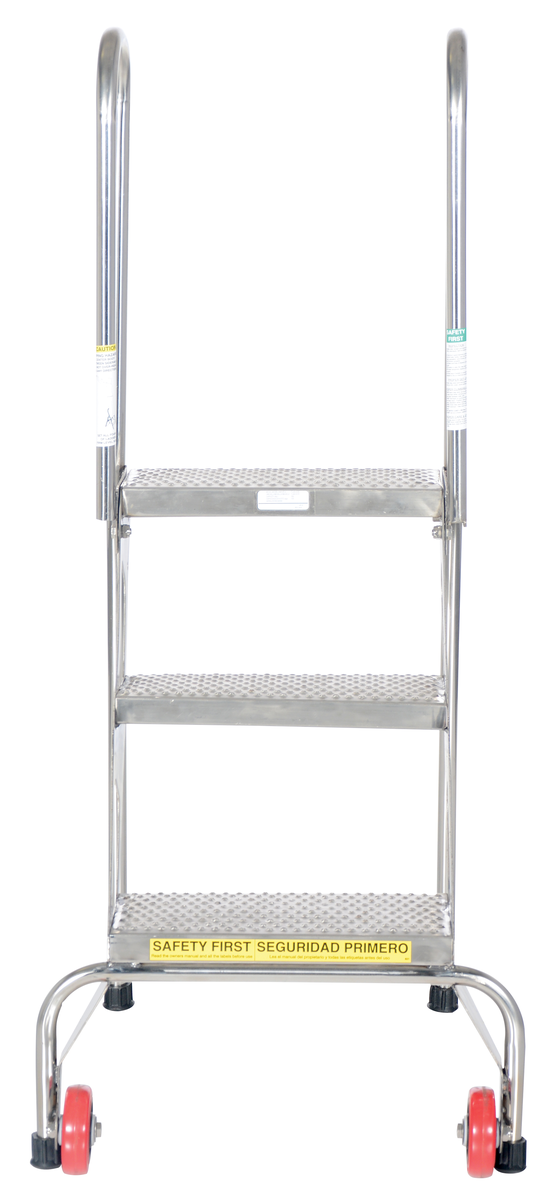

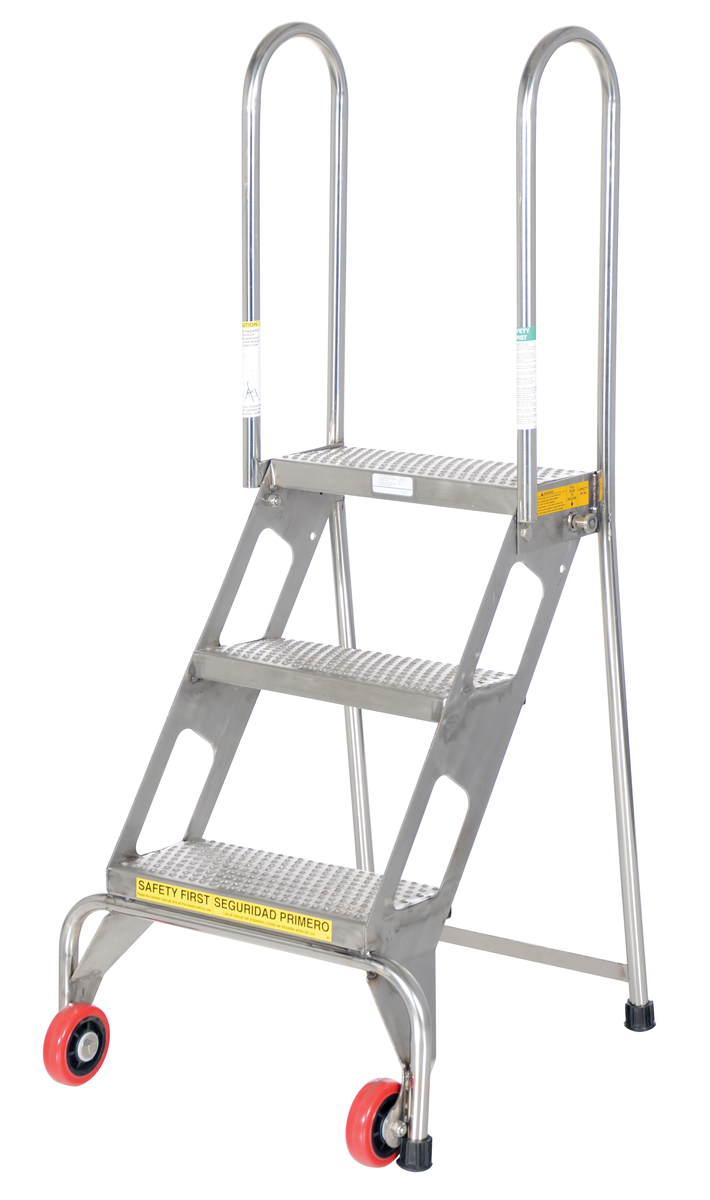

Foldable Three-Step Stainless Steel Ladder with Wheels

Name: Vestil FLAD-3-SS
Brand: Vestil
Price: 701.99 USD
Availability: InStock

$ 701.99per unit · ex. VAT

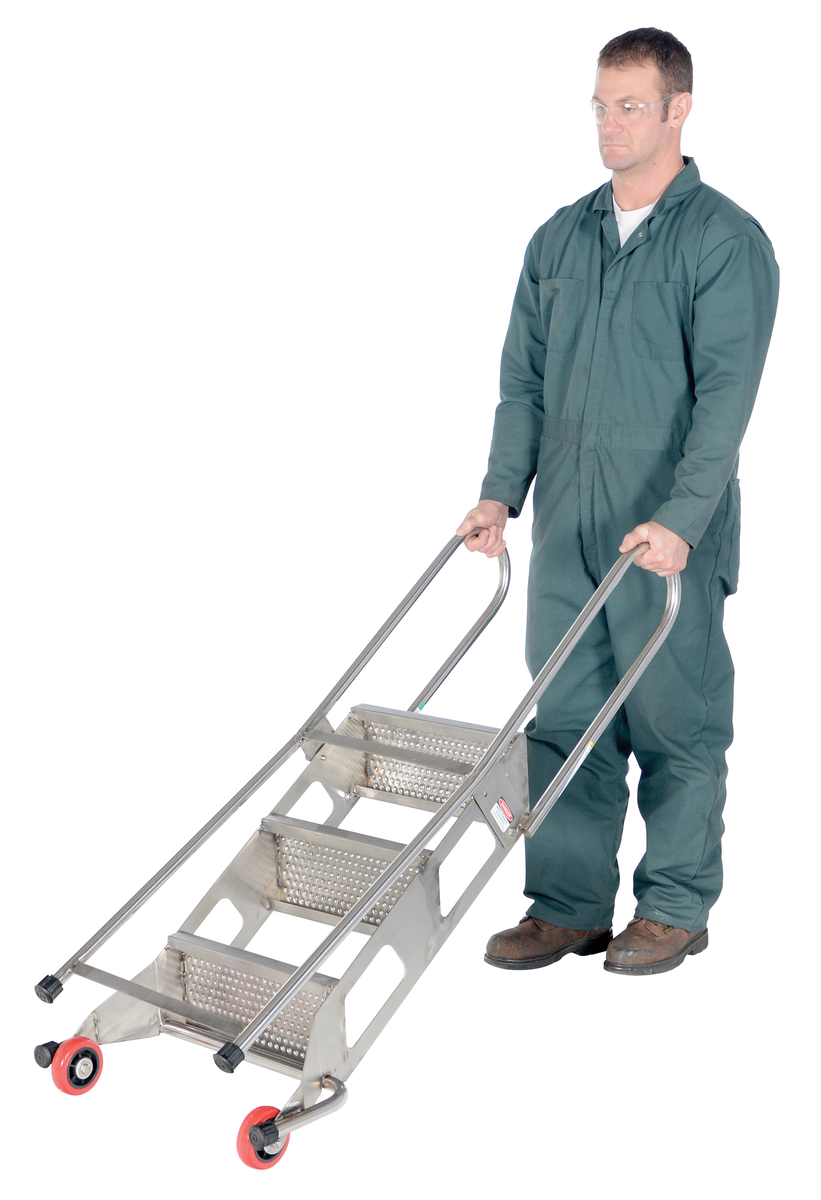

Foldable three-step ladder constructed of 304 stainless steel with poly on poly casters, 58-degree climbing angle, and 350 lb capacity. Features a locking foldable design for compact storage. Complies with ANSI 14.7 and OSHA 1910.29 standards.

Construction

Constructed of 304 Stainless Steel

Max Capacity

350 LBS.

Climbing Angle

58 degree

Usable Width

18 5/8 inch

Overall Depth

26 1/2 inch

ConstructionConstructed of 304 Stainless Steel

Max Capacity350 LBS.

Climbing Angle58 degree

Usable Width18 5/8 inch

Overall Depth26 1/2 inch

Overall Width23 3/4 inch

Overall Height52 1/2 inch

Top Step Height30 13/16 inch

Folded Dimensions23 3/4"W X 12 5/8"D X 54 7/16"H

Approximate Weight40.31 lbs.

Steps Usable Depth7 inch

WheelsØ4 inch X 2" Glass Filled Nylon Wheels

Drawings

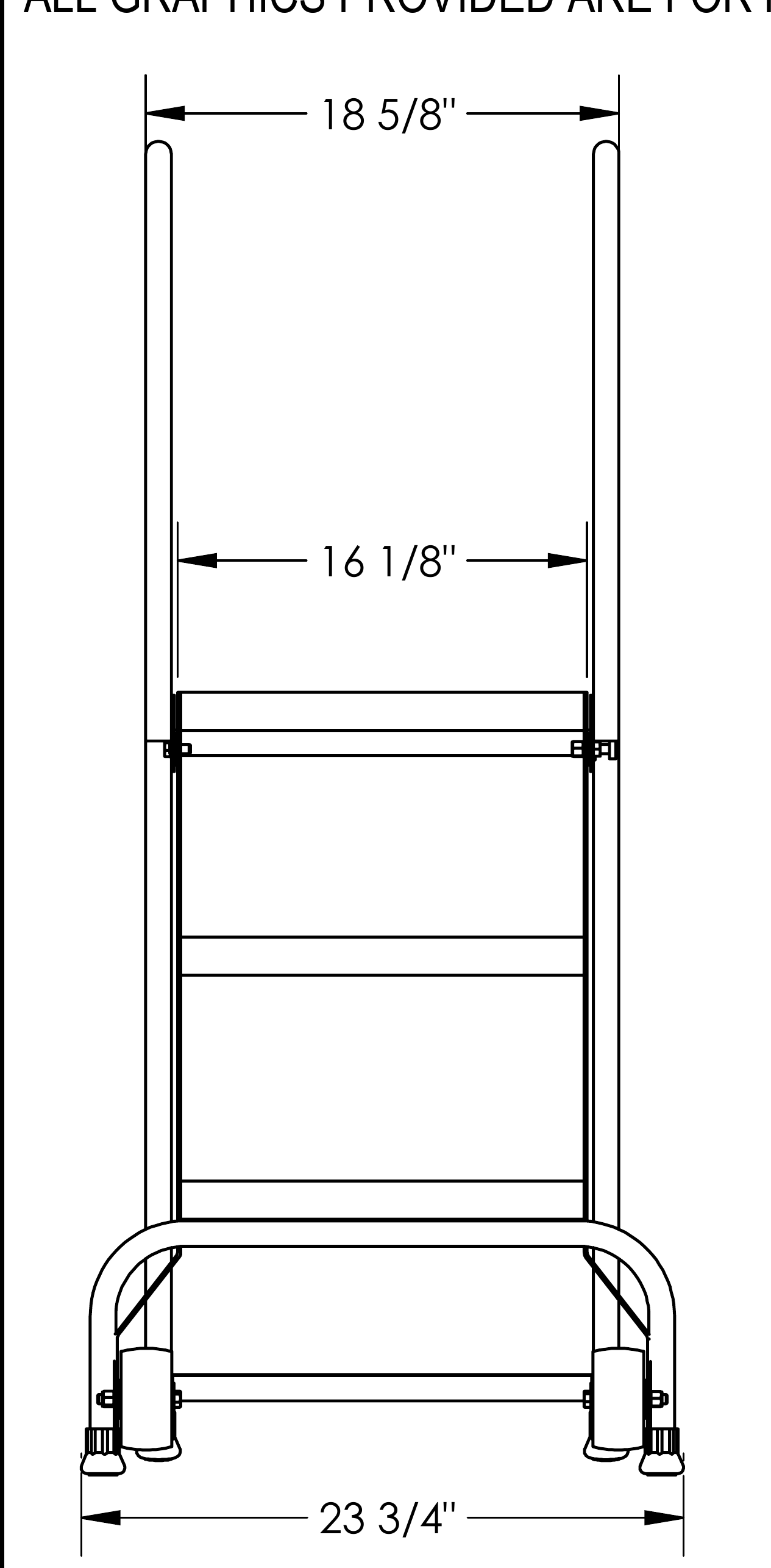

Engineering diagram showing the front view of the foldable two-step ladder with width dimensions 18 5/8", 16 1/8", and 23 3/4".

Drawings

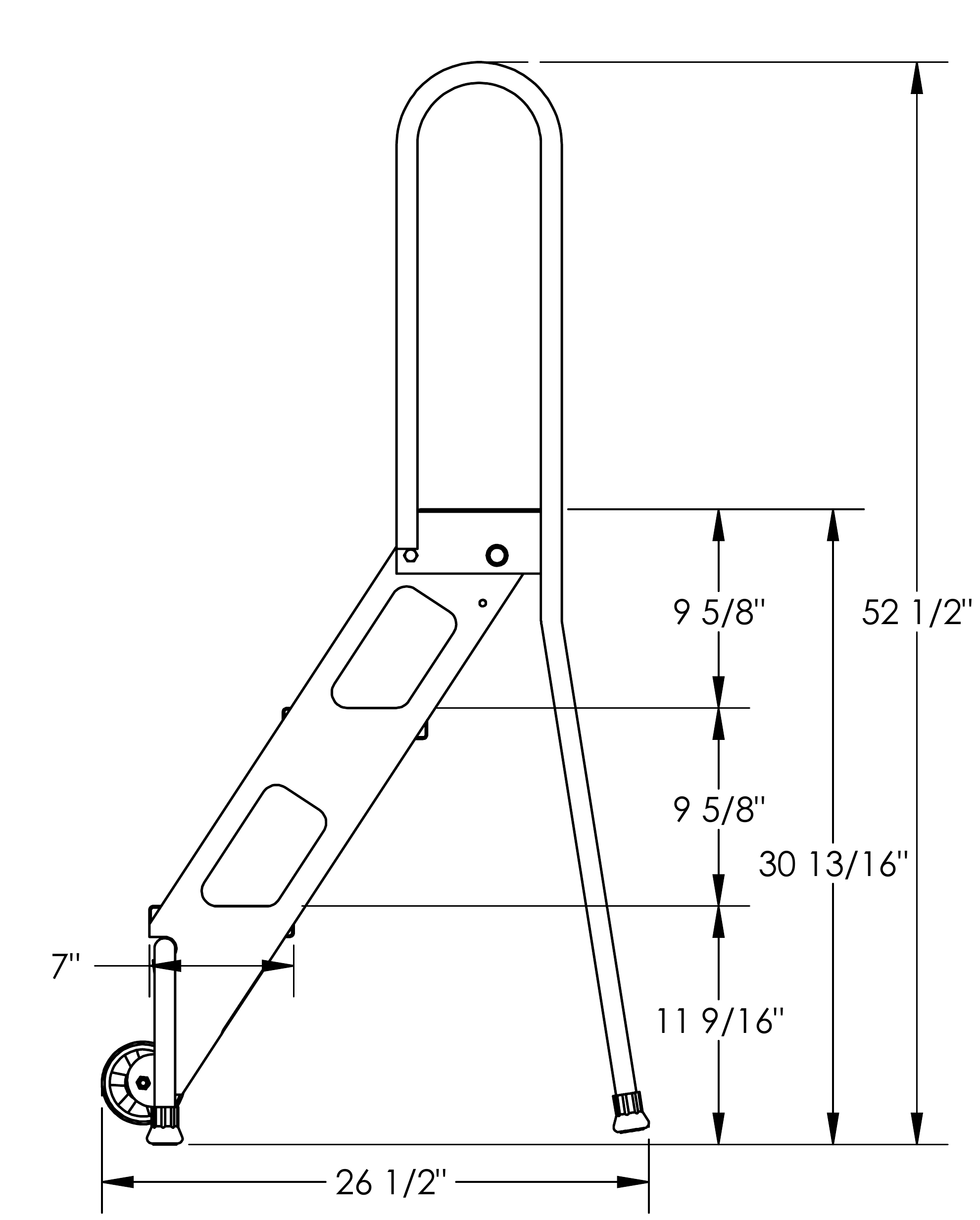

Engineering diagram showing the side view of the foldable two-step ladder with height and depth dimensions including 52 1/2", 30 13/16", 26 1/2", and 7".

Drawings

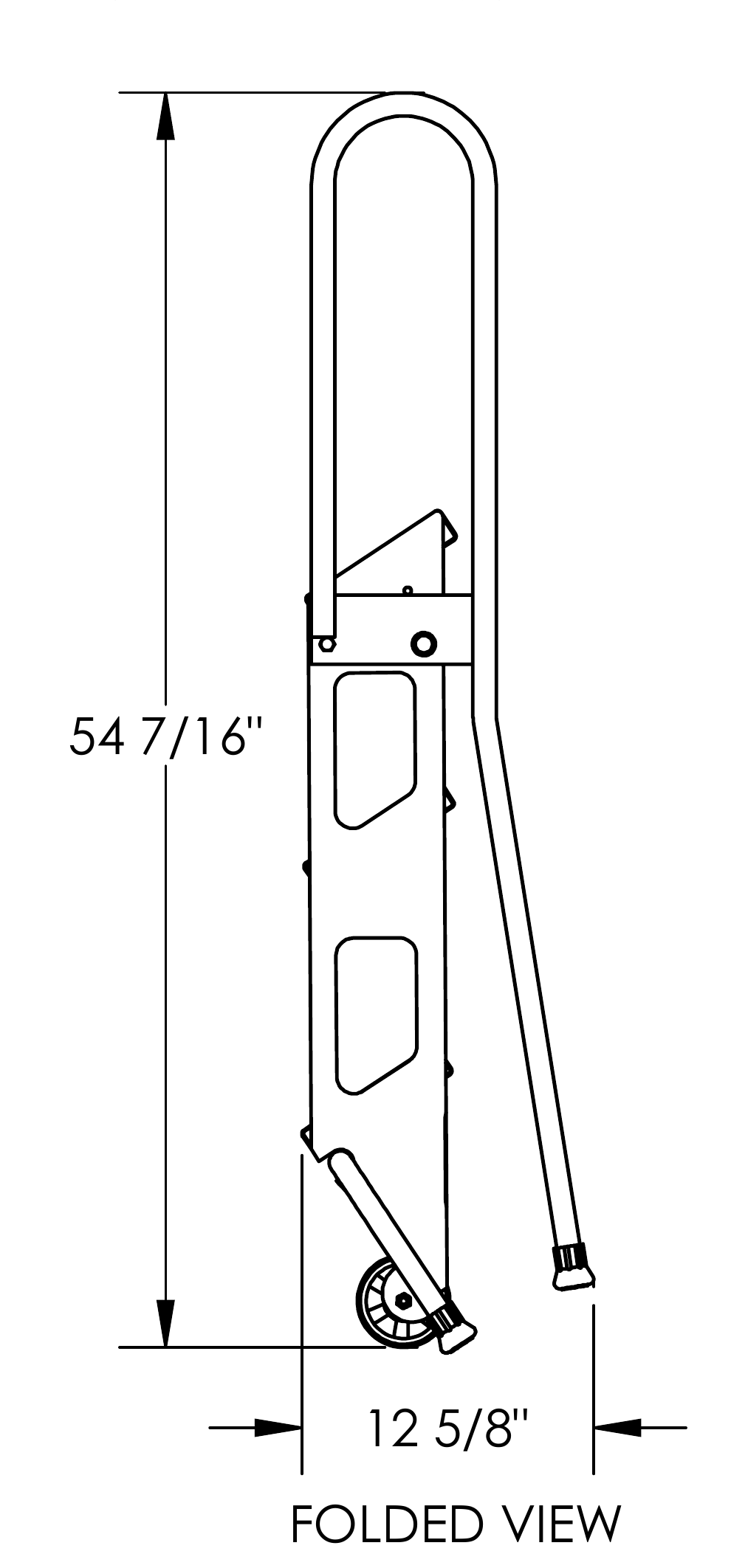

Engineering diagram showing the folded view of the ladder with dimensions 54 7/16" and 12 5/8".

Drawings

3D view of the foldable two-step ladder shown for reference only.
