The Vestil FHCR-24-40-8 is in our catalogue: Material Aluminum Treadplate, Usable Span 8 inch WIDE x 3 inch HIGH, Overall Width 24 inch.

ChatMRO can make mistakes, so double check it

In stockFabricated Aluminum Hose & Cable Crossover Ramp 24"W x 40"L
Vestil · FHCR-24-40-8

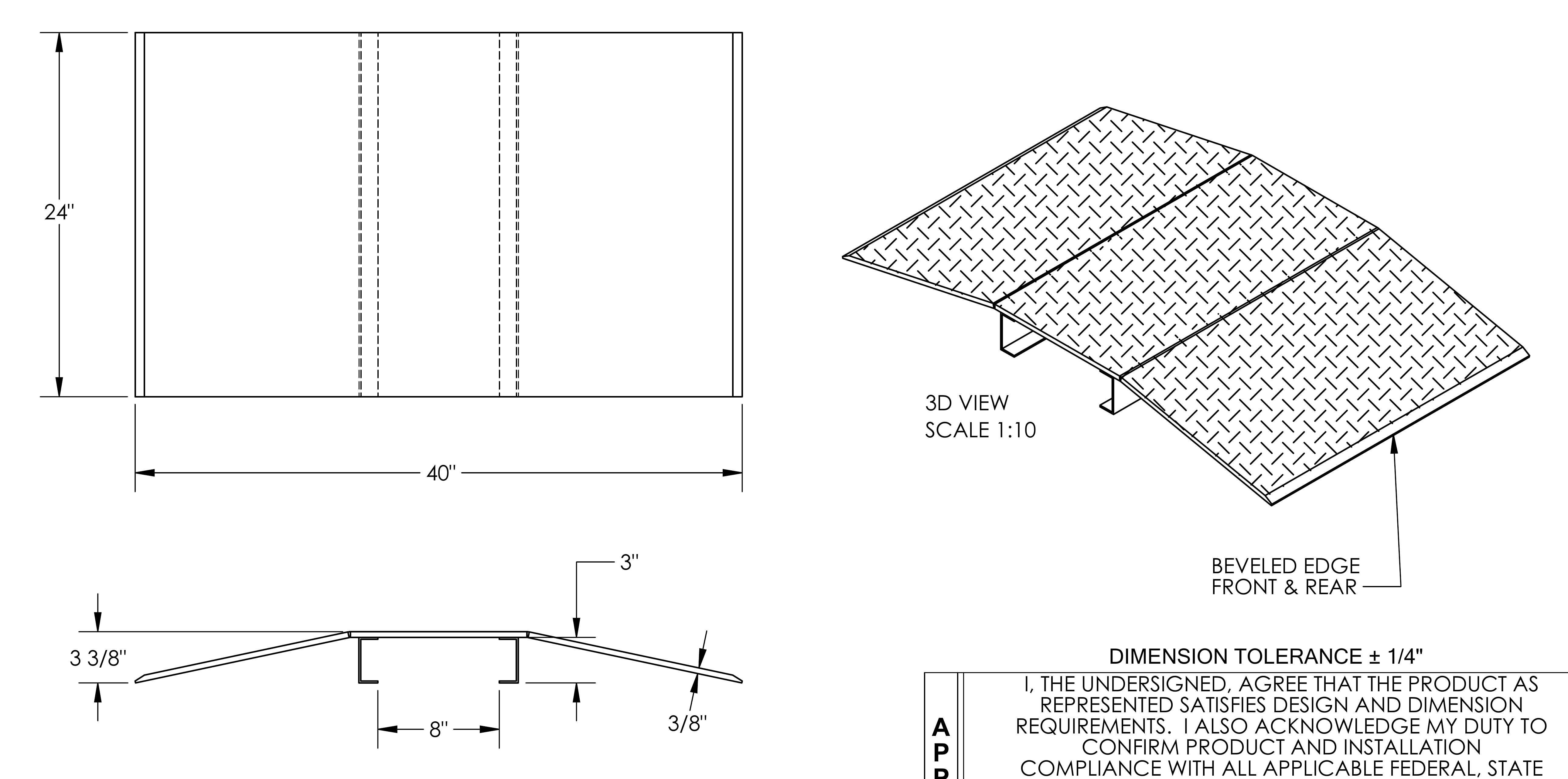

Fabricated Aluminum Hose & Cable Crossover Ramp 24"W x 40"L

$ 547.30per unit · ex. VAT
Fabricated aluminum hose and cable crossover ramp designed for temporary cable and hose protection in industrial and commercial environments. Features a single channel with diamond tread for slip resistance and drop-over connection style. Constructed from durable aluminum for lightweight strength and corrosion resistance.
Material
Aluminum Treadplate
Usable Span
8 inch WIDE x 3 inch HIGH
Overall Width
24 inch
Overall Height
3 3/8 inch
Overall Length
40 inch
MaterialAluminum Treadplate
Usable Span8 inch WIDE x 3 inch HIGH
Overall Width24 inch
Overall Height3 3/8 inch
Approximate Weight38.35 lbs
Load Capacity2,000 LBS
Number of Channels1
Connection StyleDrop Over
Cable Feed StyleLay Under
TextureDiamond
Cover MaterialMetal
