Vestil can-a

The Vestil CAN-A is in our catalogue: Capacity 70 lb, Construction Steel Construction, Designed For 5 Gallon Plastic or Steel Pails.

ChatMRO can make mistakes, so double check it

In stock

Vestil · CAN-A

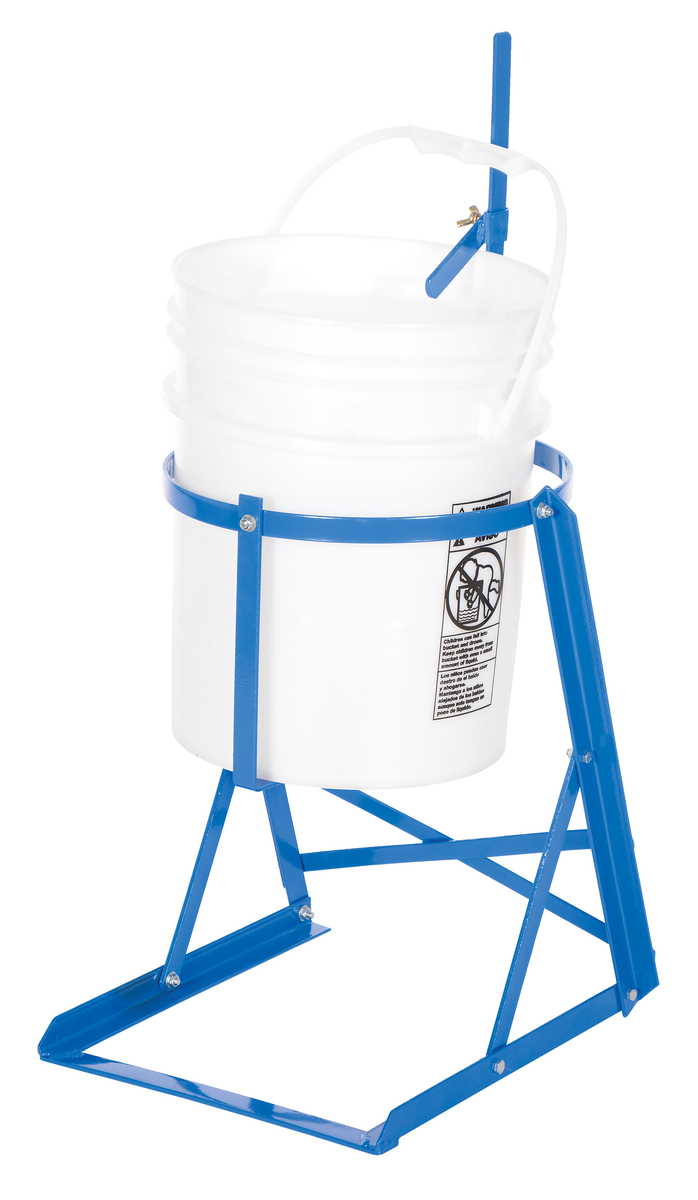

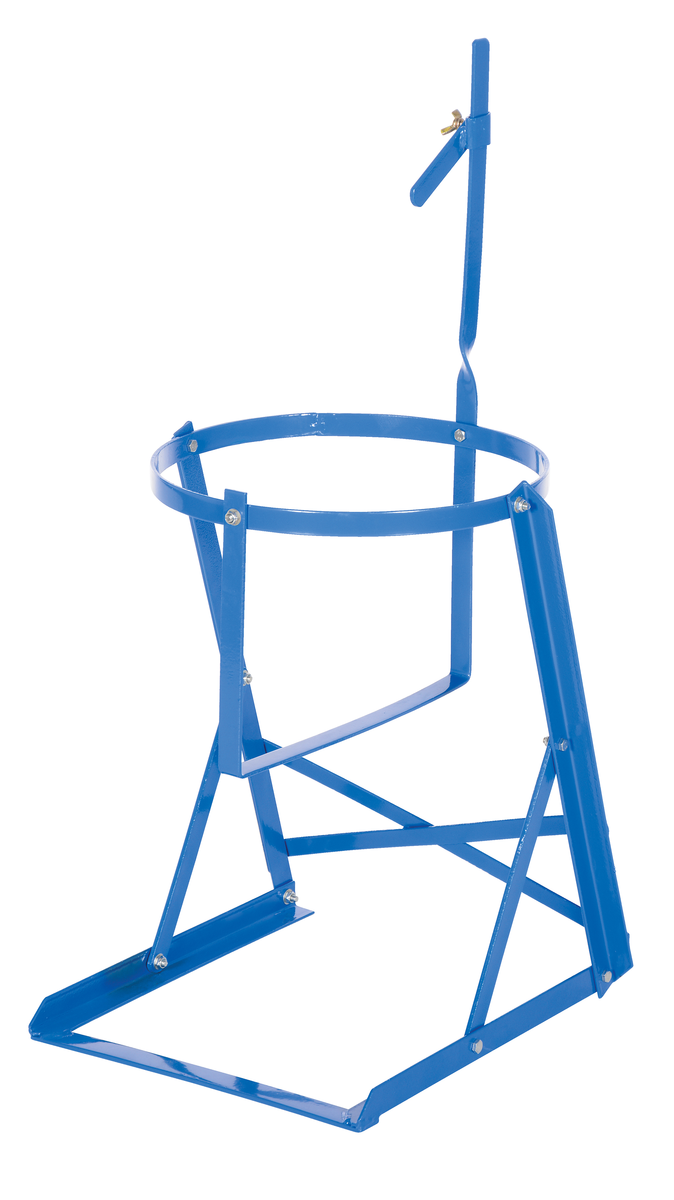

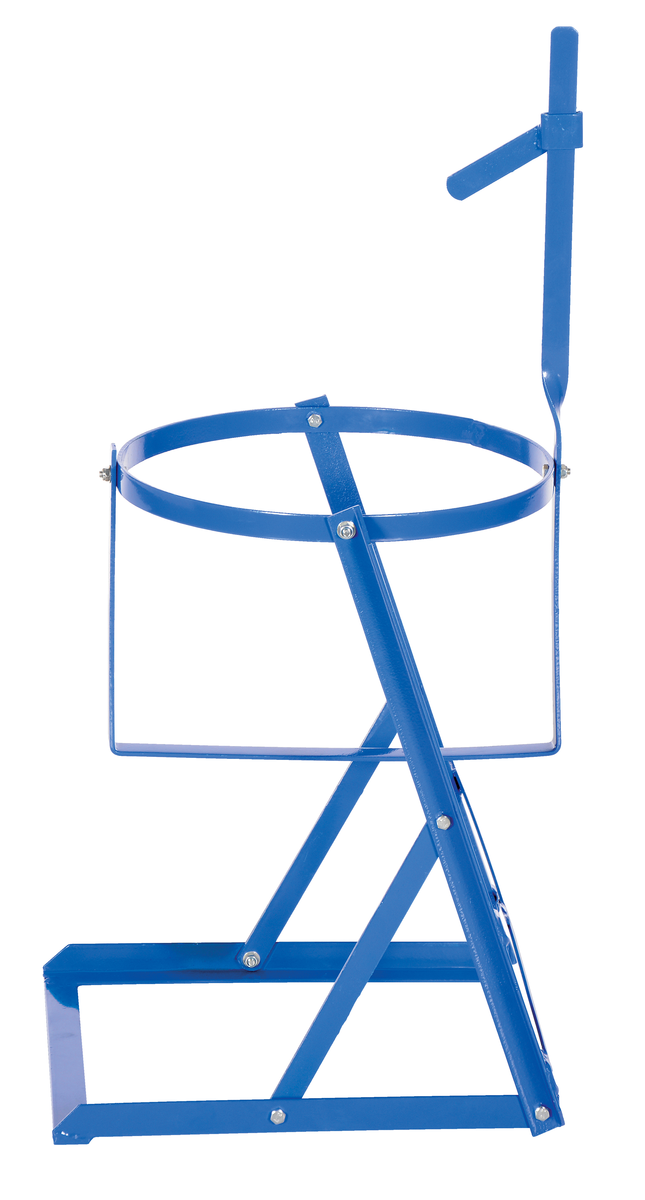

Manual Pail Tipper, Steel, 70 lb Capacity

Name: Vestil CAN-A
Brand: Vestil
Price: 79.99 USD
Availability: InStock

$ 79.99per unit · ex. VAT

Manual steel pail tipper designed for safe and efficient dispensing of 5-gallon plastic or steel pails. Supports up to 70 lb with a maximum tip angle of 135 degrees. Features durable powder-coated blue finish and steel construction for industrial use.

Capacity

70 lb

Construction

Steel Construction

Designed For

5 Gallon Plastic or Steel Pails

Max. Tip Angle

135 degree

Overall Width

14 5/8 inch

Capacity70 lb

ConstructionSteel Construction

Designed For5 Gallon Plastic or Steel Pails

Max. Tip Angle135 degree

Overall Width14 5/8 inch

Max Pail Height17 inch

Usable Ring Opening Dia.11 3/4 inch

ComplianceComplies with all applicable U.S. Federal OSHA regulations and U.S. national standards

Drawings

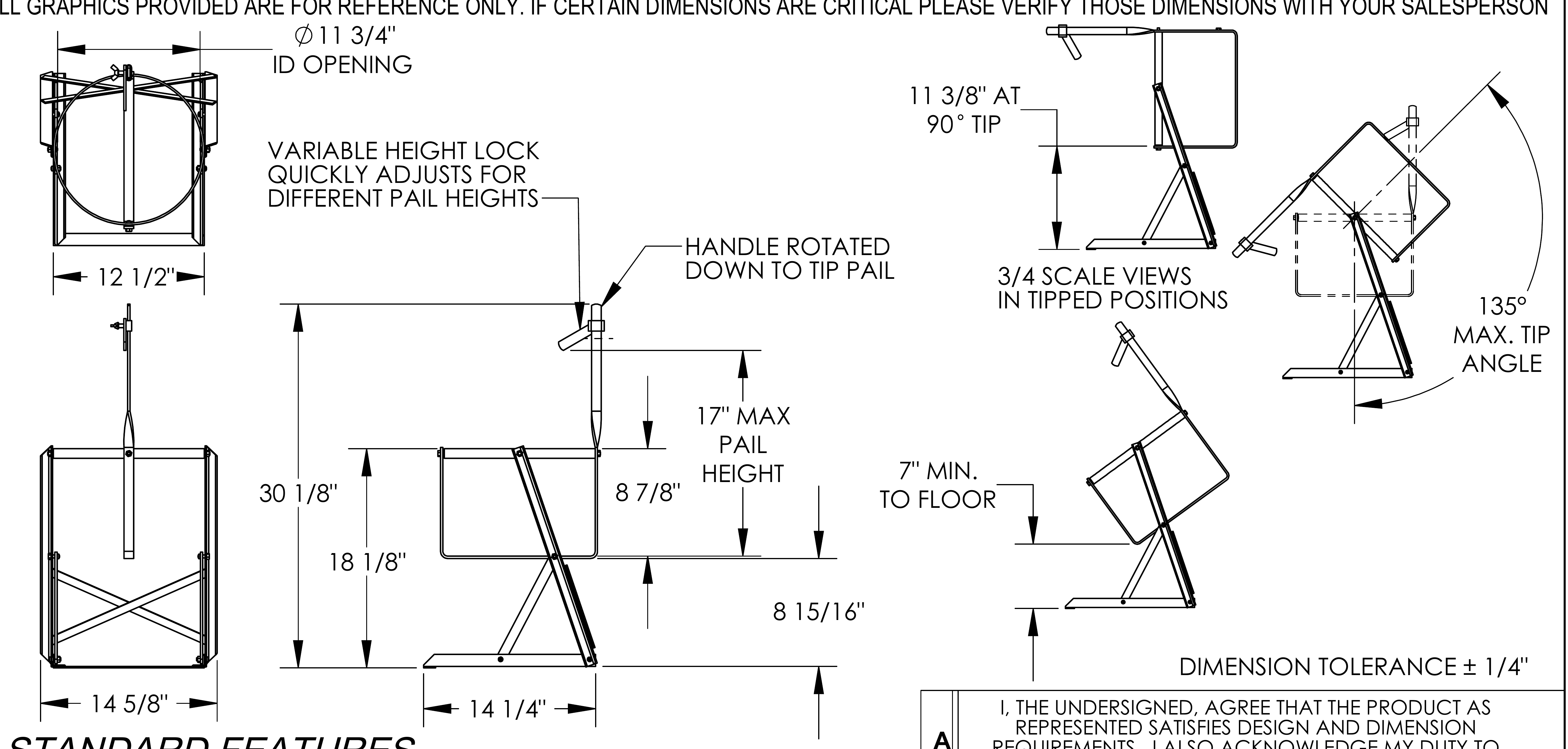

Engineering drawing of CAN TIPPER - CAN-A showing multiple views, dimensions, and tipped positions. Callouts include: 11 3/4" ID OPENING, VARIABLE HEIGHT LOCK QUICKLY ADJUSTS FOR DIFFERENT PAIL HEIGHTS, 11 3/8" AT 90° TIP, 12 1/2", HANDLE ROTATED DOWN TO TIP PAIL, 3/4 SCALE VIEWS IN TIPPED POSITIONS, 135° MAX. TIP ANGLE, 30 1/8", 8 7/8", 18 1/8", 17" MAX PAIL HEIGHT, 7" MIN. TO FLOOR, 8 15/16", 14 5/8", 14 1/4"
