Vestil asp-48-hr

The Vestil ASP-48-HR is in our catalogue: Usable Width 49 inch, Approx Weight 100.82 lbs., Overall Width 51 1/8 inch.

ChatMRO can make mistakes, so double check it

In stock

Vestil · ASP-48-HR

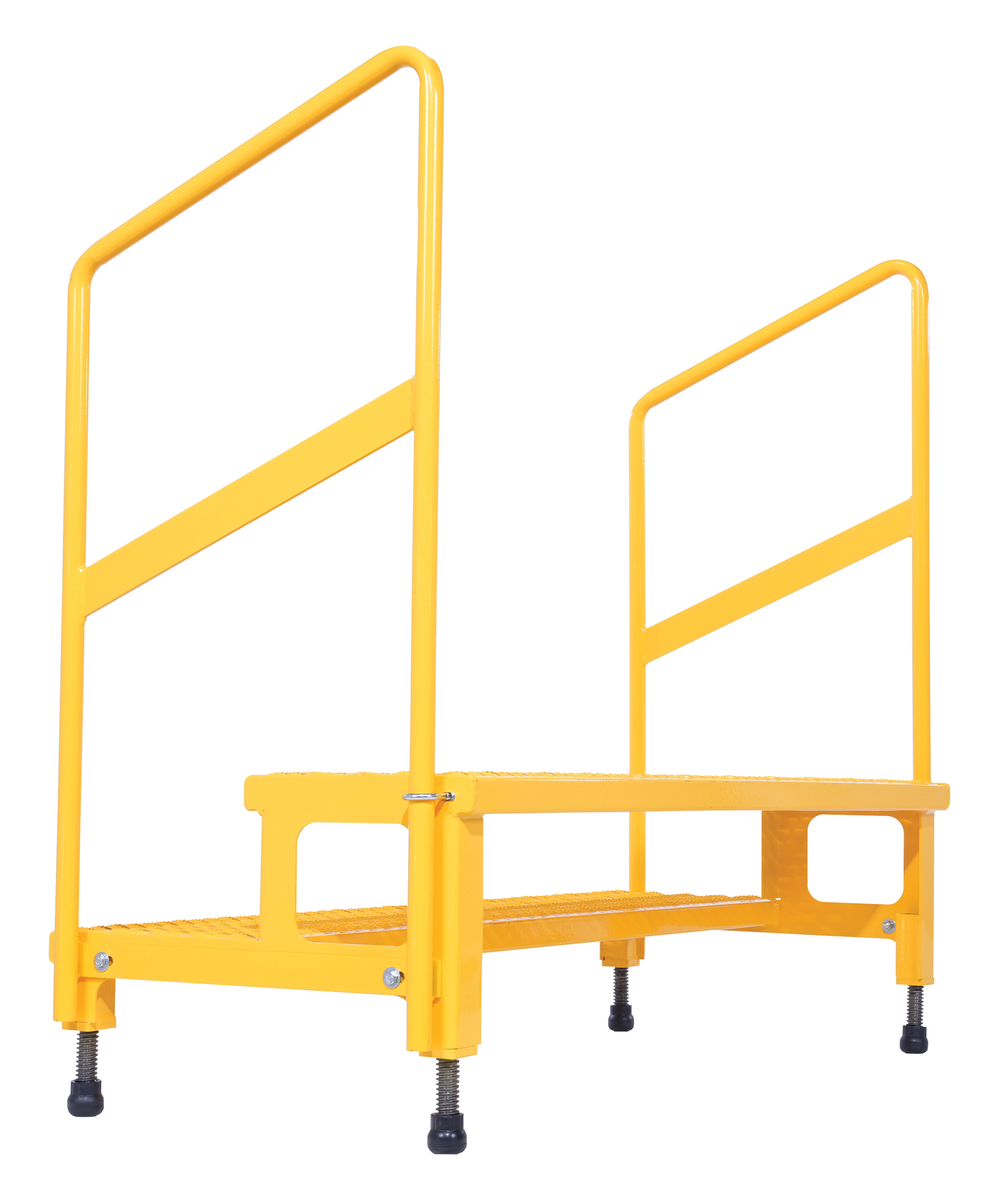

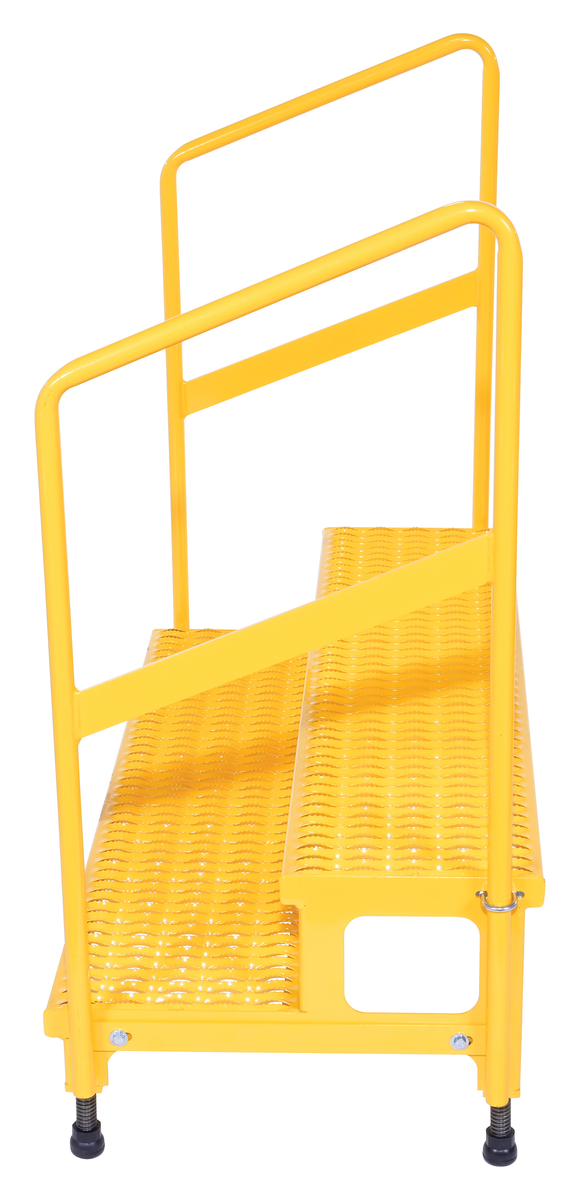

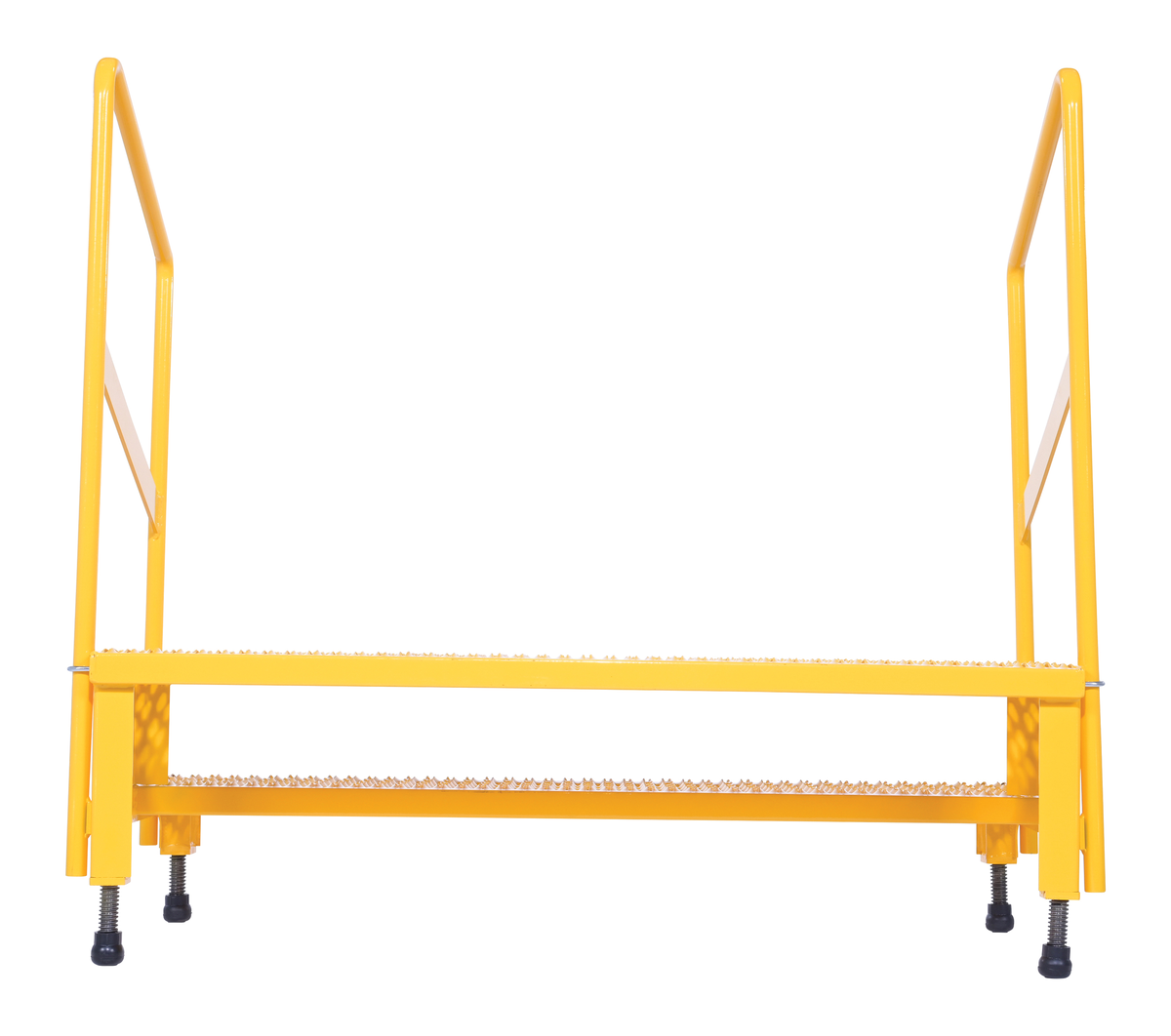

Adjustable 2-Step Platform Stand with Handrail

Name: Vestil ASP-48-HR
Brand: Vestil
Price: 754.76 USD
Availability: InStock

$ 754.76per unit · ex. VAT

Adjustable height step stand with bolt-on handrails, serrated steel steps, and independently adjustable legs for leveling on uneven floors. Certified to comply with U.S. Federal OSHA regulations and national standards. Supports up to 500 lbs with a usable width of 49 inches.

Usable Width

49 inch

Approx Weight

100.82 lbs.

Overall Width

51 1/8 inch

Overall Height

45 1/4 inch MAX

Overall Length

22 7/8 inch

Usable Width49 inch

Approx Weight100.82 lbs.

Overall Width51 1/8 inch

Overall Height45 1/4 inch MAX

Top Step HeightMIN. 13 inch, MAX. 15 1/4 inch

Bottom Step HeightMIN. 6 inch, MAX. 8 1/4 inch

MaterialSteel

Step MaterialSteel

Ladder MaterialSteel

Number of Steps2

Color FamilyYellow

Step Angle33 degree

Drawings

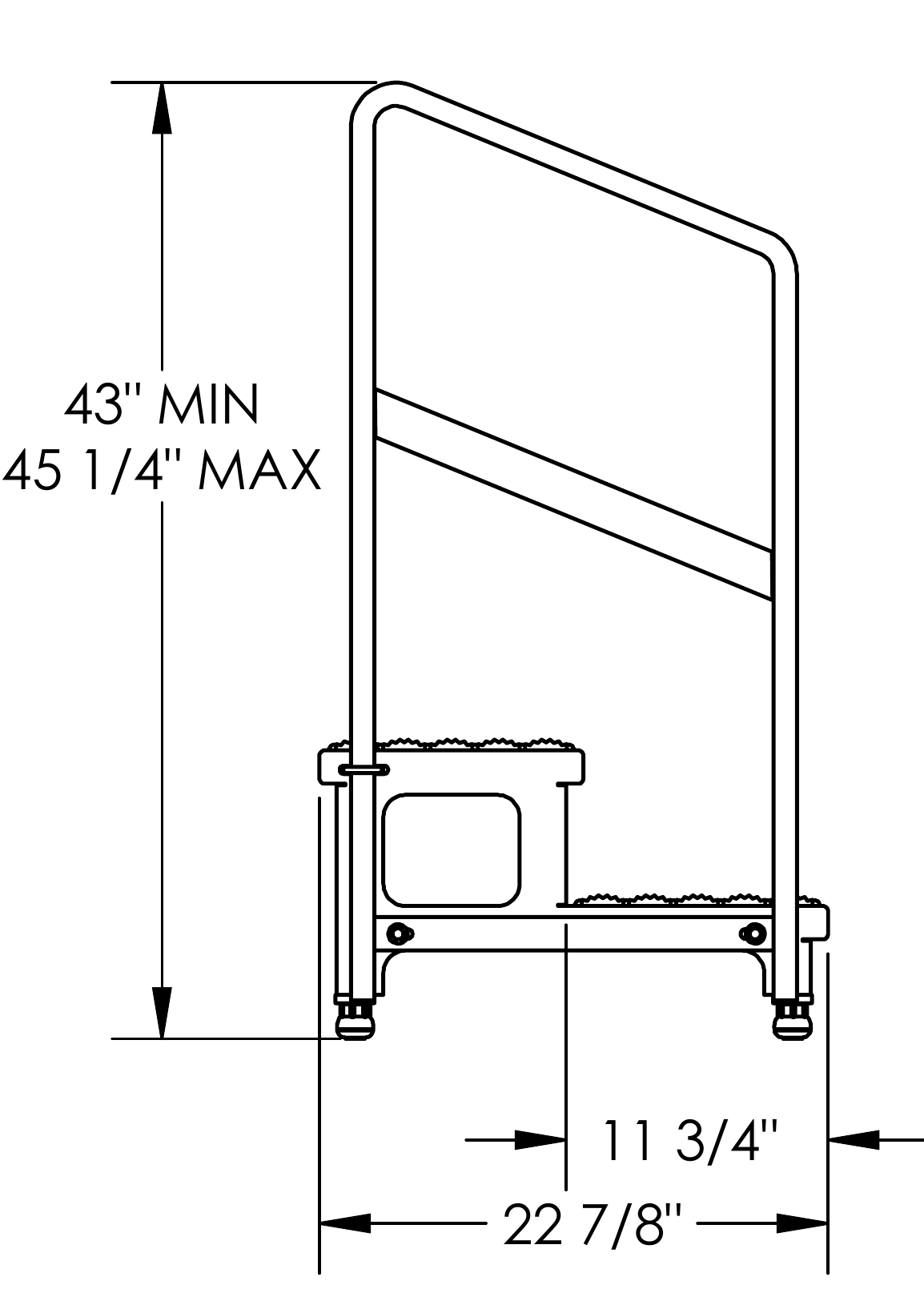

Side view engineering diagram showing overall height (43" MIN, 45 1/4" MAX), step depth (11 3/4"), and overall length (22 7/8")

Drawings

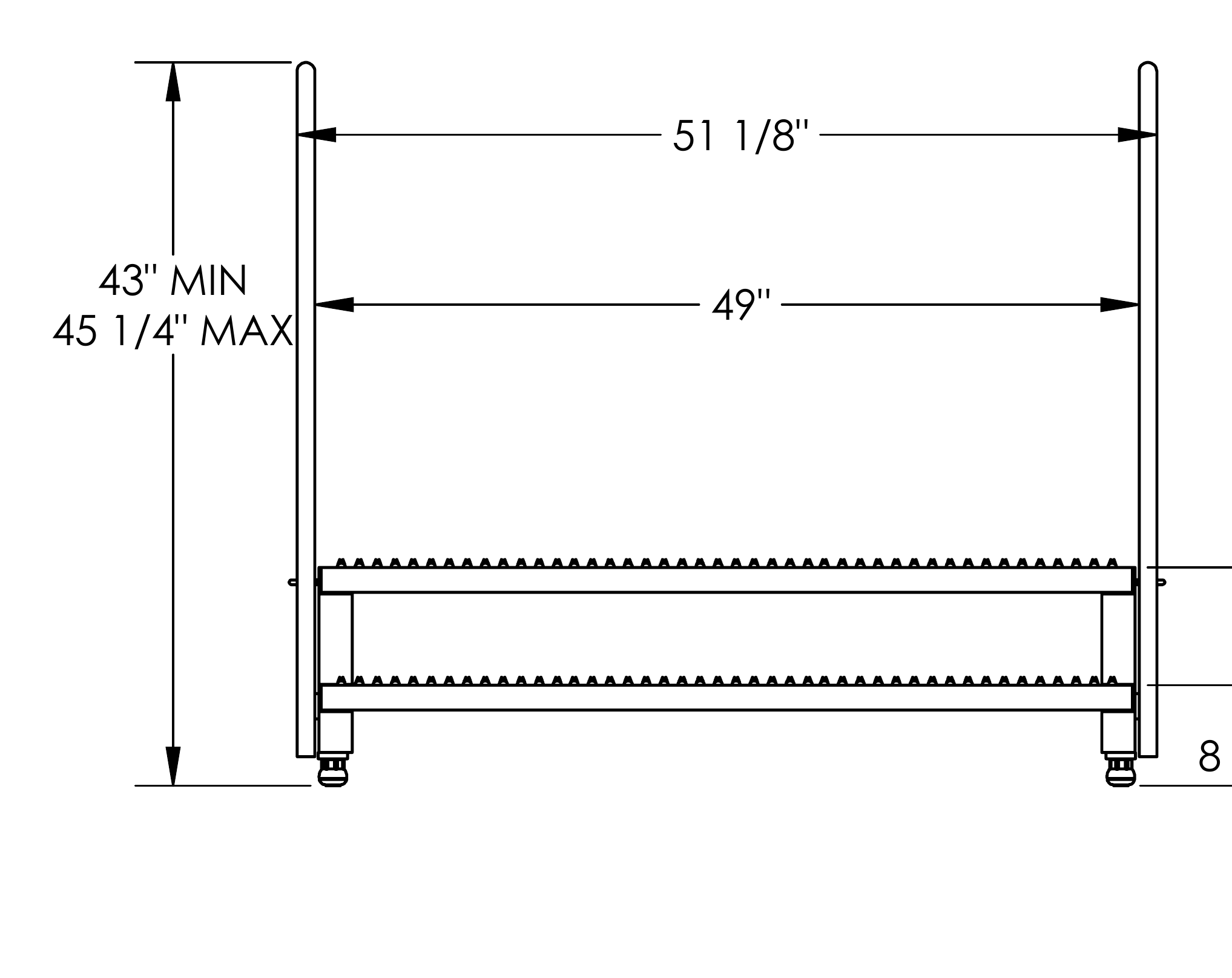

Front view engineering diagram showing overall height (43" MIN, 45 1/4" MAX), overall width (51 1/8"), usable width (49"), bottom step height (6" MIN, 8 1/4" MAX), and top step height (13" MIN, 15 1/4" MAX)

Drawings

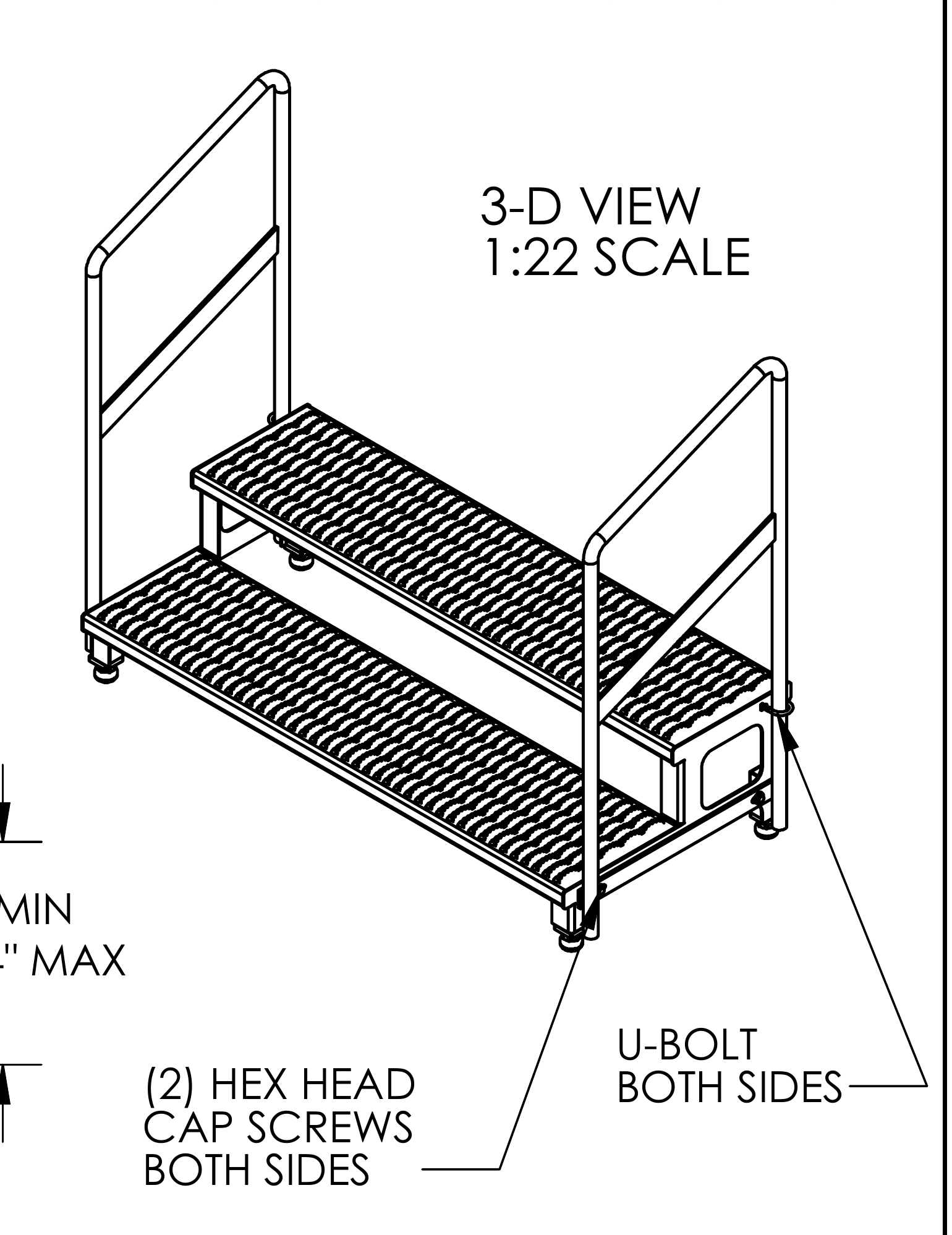

3-D view engineering diagram of the step stand, 1:22 scale. Callouts: (2) HEX HEAD CAP SCREWS BOTH SIDES, U-BOLT BOTH SIDES
