Steel City 502
The abb 502 is in our catalogue: maximum jaw opening 1 1/16", width 2 1/32", special features Supports Threaded Rod.
In stock
abb · 502

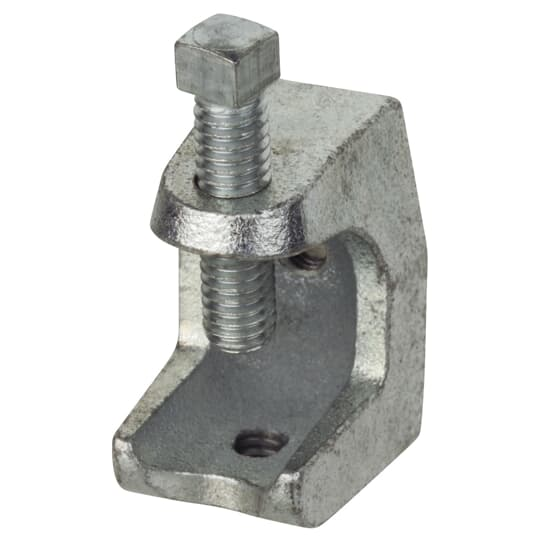

thomas & betts 502 beam clamp, length 2 inch, width 2 inch, pack of 25
$ 808.93per 25 · ex. VAT
Maximum jaw opening
1 1/16"
Width
2 1/32"
Special features
Supports Threaded Rod
Material
Malleable Iron
Length
2"
Maximum jaw opening1 1/16"
Special featuresSupports Threaded Rod
MaterialMalleable Iron
ApplicationFor Hanging Rod
Family nameSteel City Hangers and Clamps
Upc code785991509588
Dimensions2 in L x 2-1/32 in W
FinishElectroplated
Flange thickness1 in
Load capacity1300 lb
Mounting typeThreaded
Rod size3/8-16
Specifications1-1/16 in Maximum Jaw Opening
Suitable for use withHanging Rod, Threaded Rod, Threaded Brindle Ring and Electrical Box
ManufacturerABB - Thomas & Betts
Mount typeBottom Flange
Product weight.978
Uomeach
Bolt size3/8"-16
Jaw opening1″
Beam locationBottom Flange
TypeThreaded Rod Beam Clamp
Load limit1300 lb
Depth1"
Commodity level descripChannel & Strut Fittings
Unspsc31162905
Commodity codeChannel & Strut Fittings
Supplied with screwYes
Screw size3/8 Inch-16 TPI
Screw typeSquare Head
Maximum jaw capacity1 Inch
Additional infoApproval CSA; Base Size 2 Inch L x 2 Inch W
Catalog pagesCatalog Pages
Specification sheetSpecification Sheet
Spec urlSpec URL
