DepthContinuous
BluetoothNo
Power Source4 C-cell
Passive SearchOmniSeek (searches all passive bands at once)
Sonde FrequenciesAll up to 35 kHz
Weight W/Batteries4 lb / 1.8 kg
User-Defined FrequenciesYes up to 35 kHz
Omnidirectional Mapping DisplayYes
Number of Active Line Trace FrequenciesAll up to 35 kHz
DisplayBacklit Mapping Display
IncludesCarrying Case
Alert TypeSound
For Use OnEnergized/Unenergized Lines
Battery SizeC
Battery Type(4) C
Display TypeDigital
For LocatingUnderground Cables and Pipes
Locator TypeUtility Line Locating Receiver
Audible AlertYes
Testing ModesActive, Passive
For Circuit TypeEnergized Lines, Non-Energized Lines
Package Quantity1
Cat Safety RatingNot Rated
Depth UndergroundCan Exceed 15 ft., Depending on Soil Conditions and Transmitter Output
Operating Frequency1 kHz, 128 Hz, 33 kHz, 8 kHz
Maximum Locating Depth15 ft.
Circuit Connection TypeDirect, Induction
Manufacturer Warranty LengthRIDGID Limited Lifetime
Receiver to Transmitter DistanceDependent on Transmitter Output and Soil Conditions
Battery Life16 hours
Battery ChemistryAlkaline
Passive Radio Trace4 kHz-15 kHz, 15 kHz-36 kHz
Passic Ac Line Trace50 Hz, 60 Hz, <4 kHz Broadband

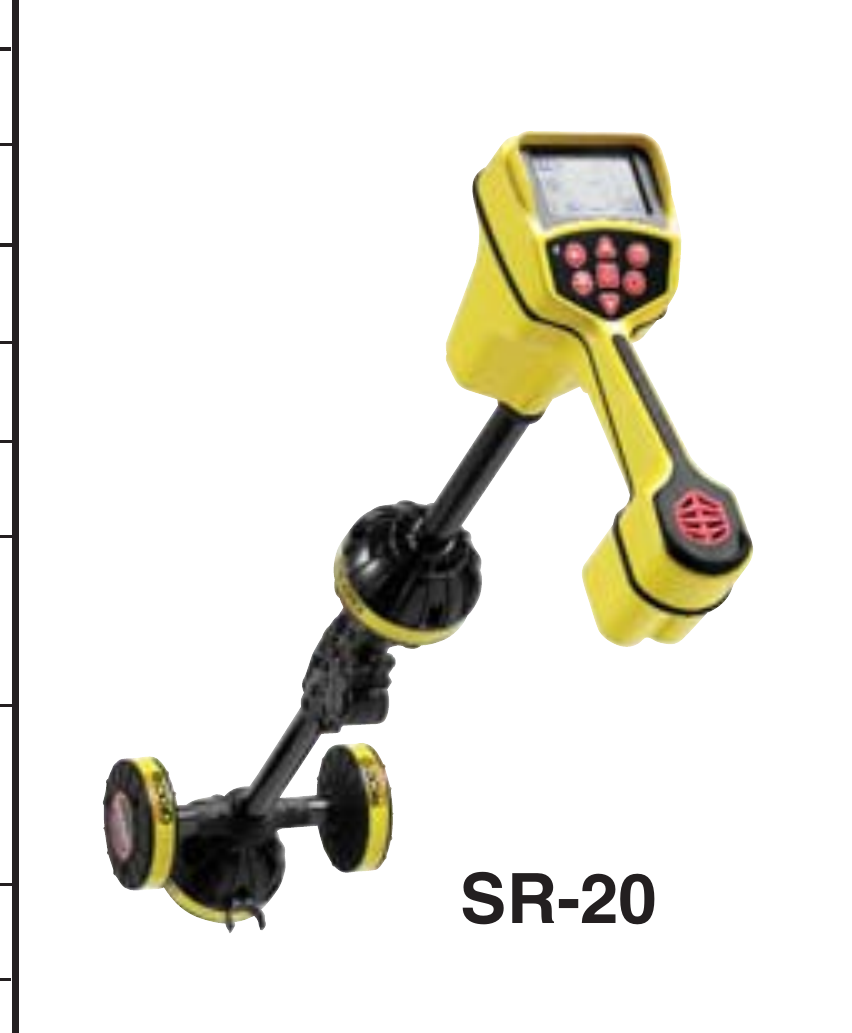

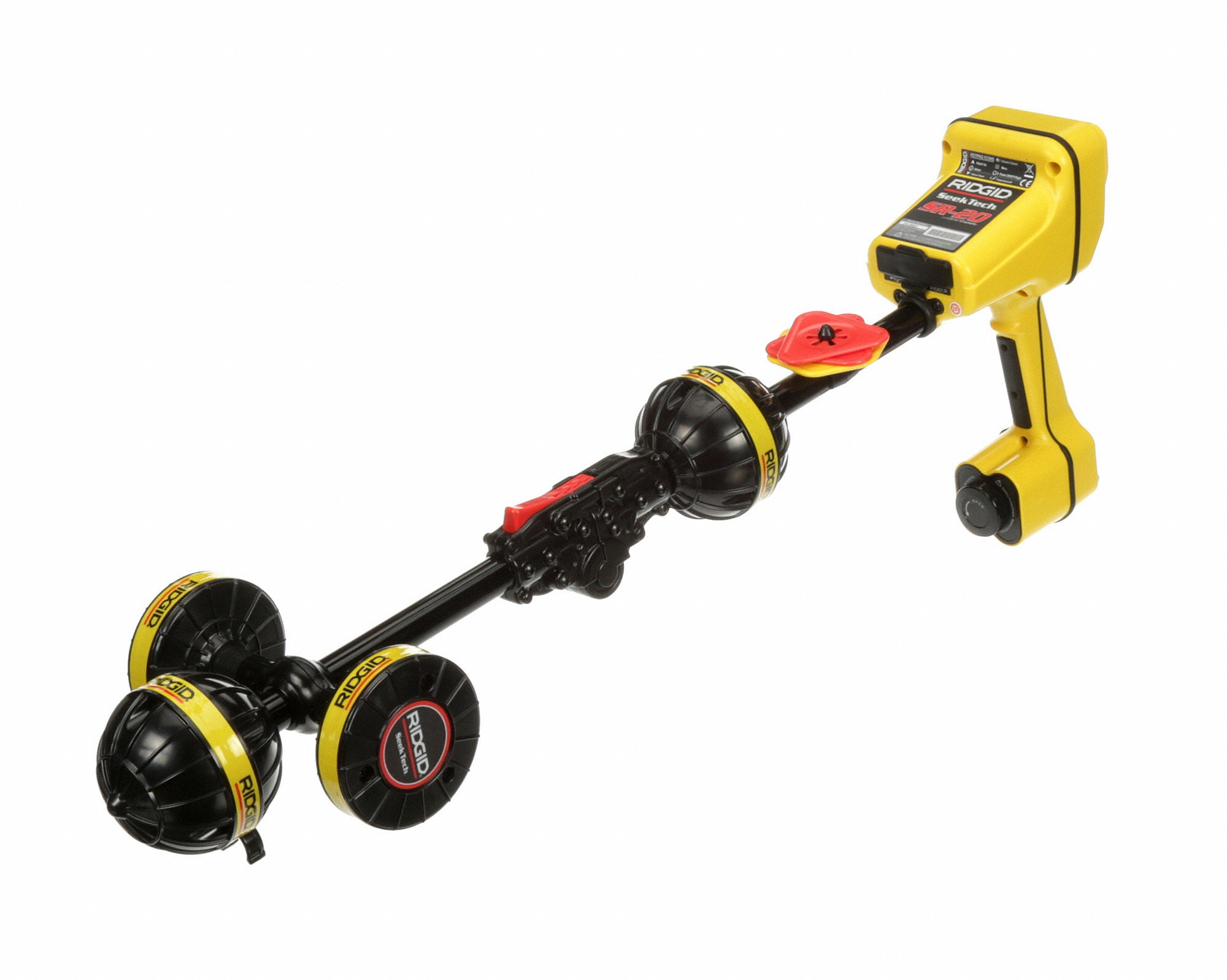

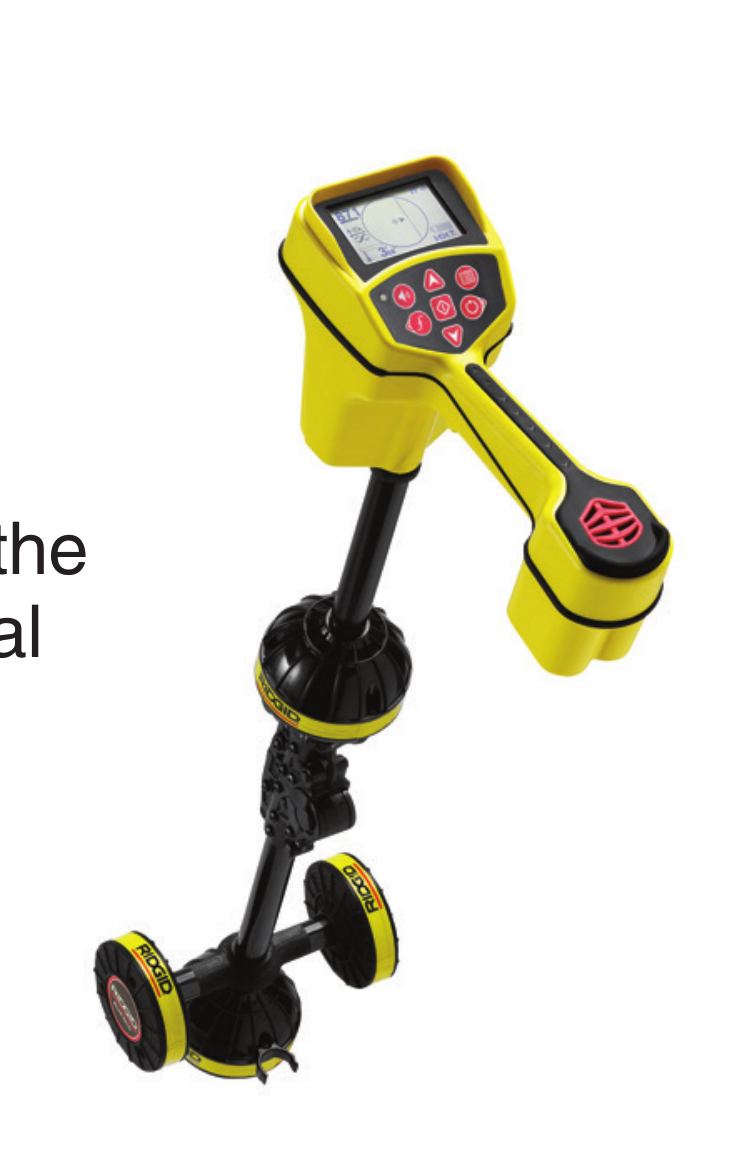

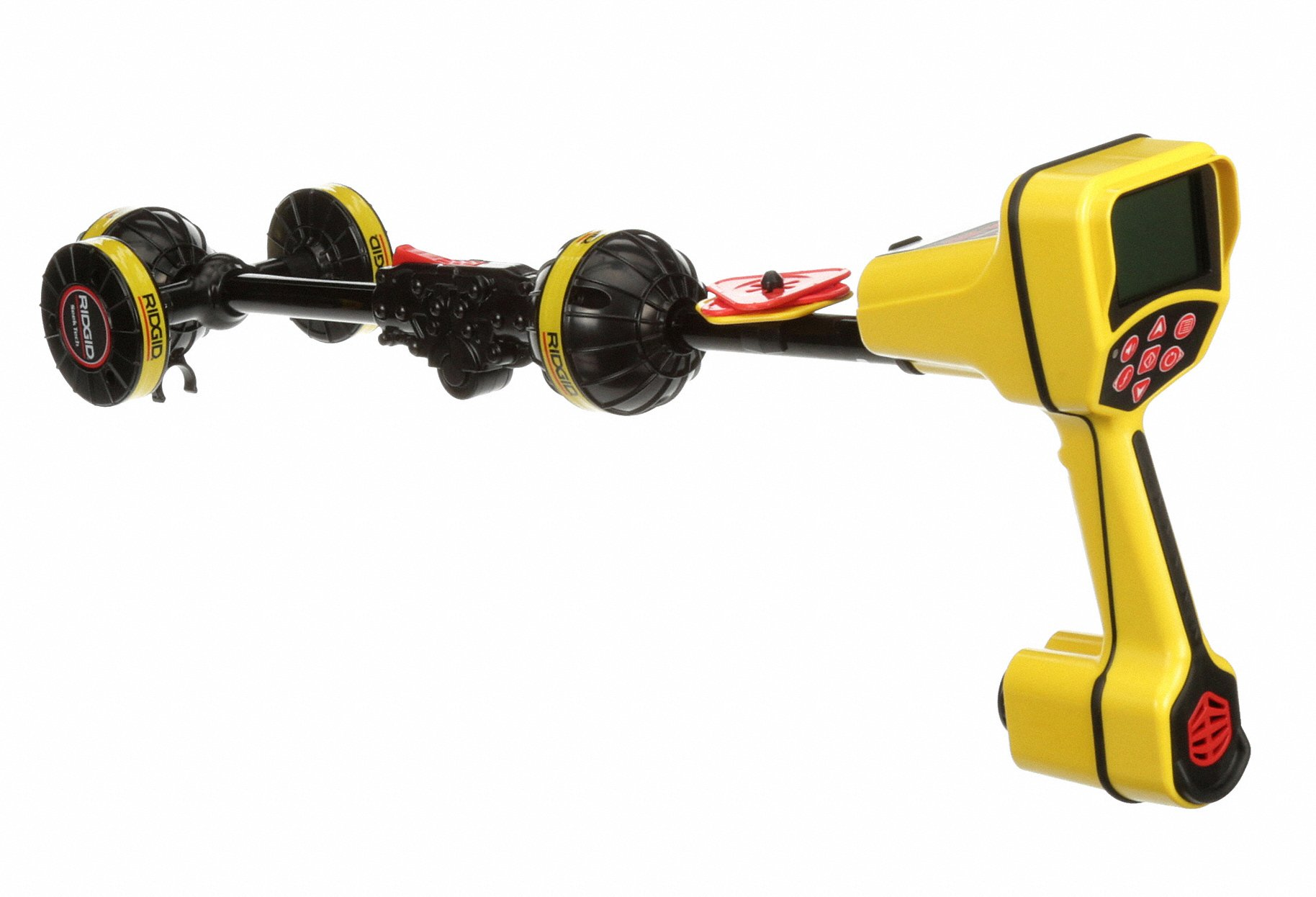

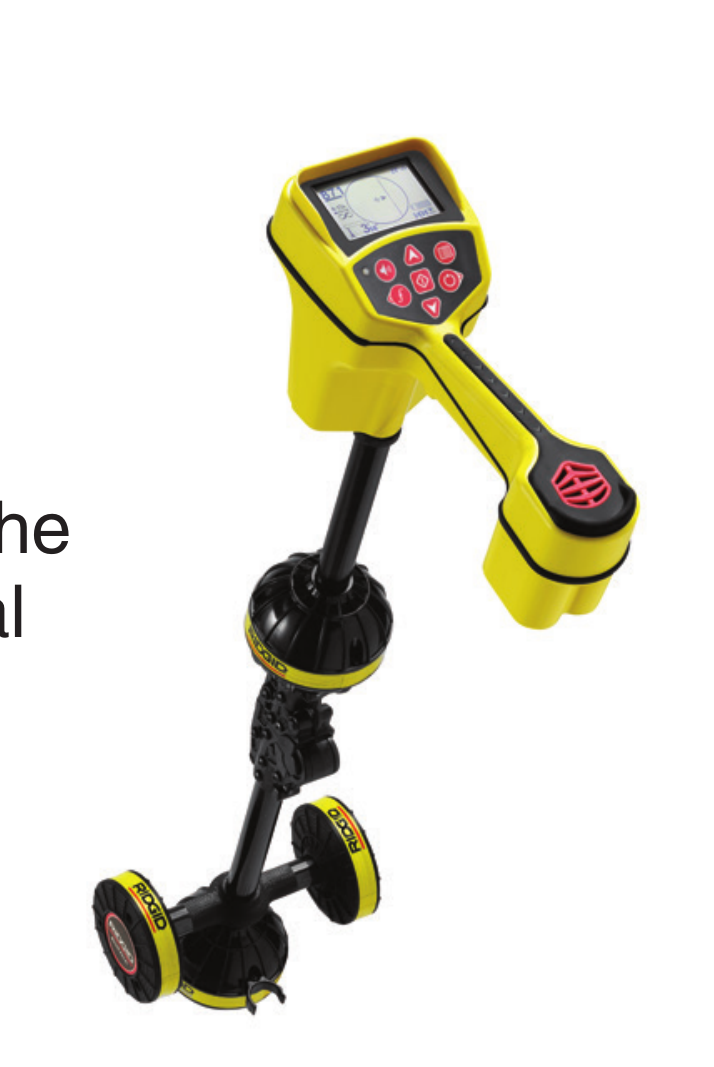

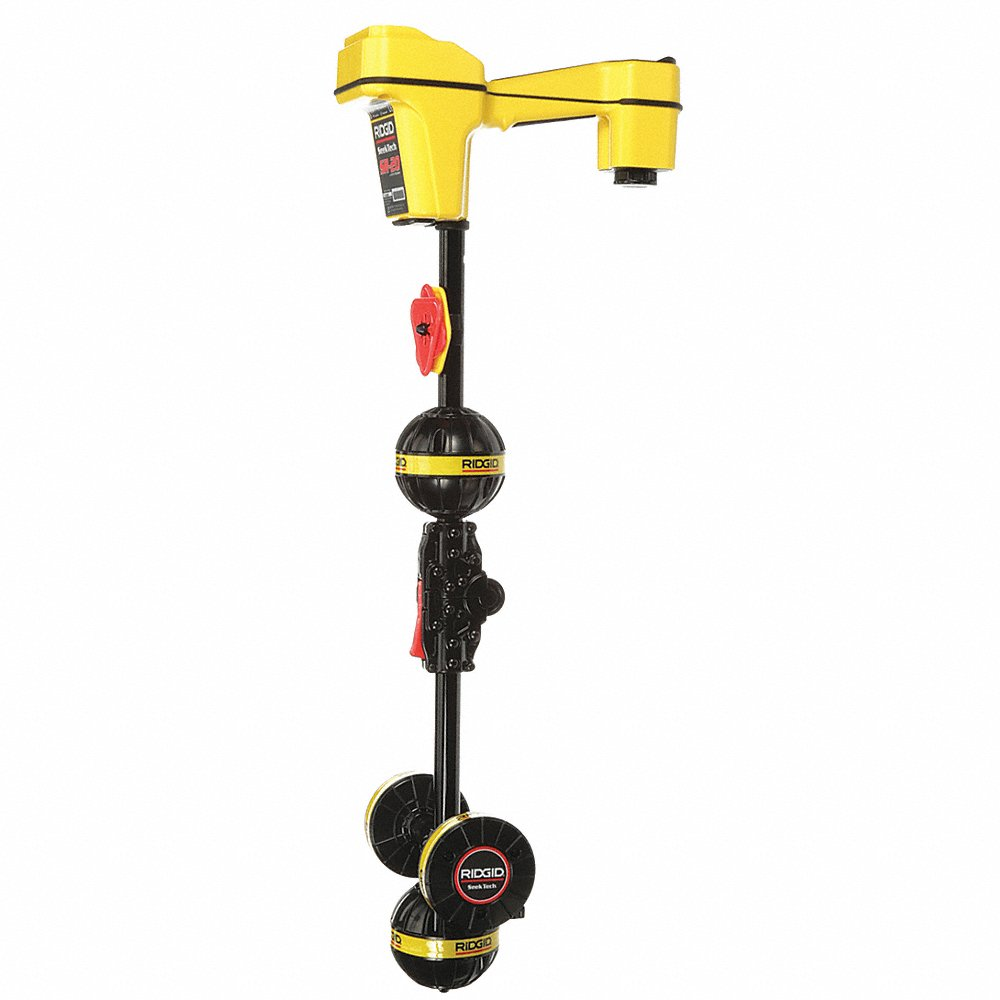

Contents(3) Navitrack Mark Chips, (4) C-Cell Batteries, Carrying Case, SeekTech SR-20 Line Locator
Container TypeBox
