Parker pk252hll05

The Parker PK252HLL05 is in our catalogue: Bore Size 2.5 inch, Seal Class Class 5, Seal Material Fluorocarbon.

ChatMRO can make mistakes, so double check it

In stock

Parker · PK252HLL05

Piston Seal Kit for 2.5 Inch Bore with Class 5 Fluorocarbon Seals

Name: Parker PK252HLL05
Brand: Parker
Price: 375.89 USD
Availability: InStock

$ 375.89per unit · ex. VAT

Piston Seal Kit designed for Parker Series HD Hydraulic Cylinders with a 2.5 inch bore size. Features Class 5 fluorocarbon seals engineered for elevated temperature service. Includes piston lipseal, back-up washer, and end seal o-ring components.

Bore Size

2.5 inch

Seal Class

Class 5

Seal Material

Fluorocarbon

Application

Elevated Temperature Service

Included Components

Piston Lipseal, Back-up Washer, End Seal O-ring

Bore Size2.5 inch

Seal ClassClass 5

Seal MaterialFluorocarbon

ApplicationElevated Temperature Service

Included ComponentsPiston Lipseal, Back-up Washer, End Seal O-ring

Compatible SeriesSeries HD

Drawings

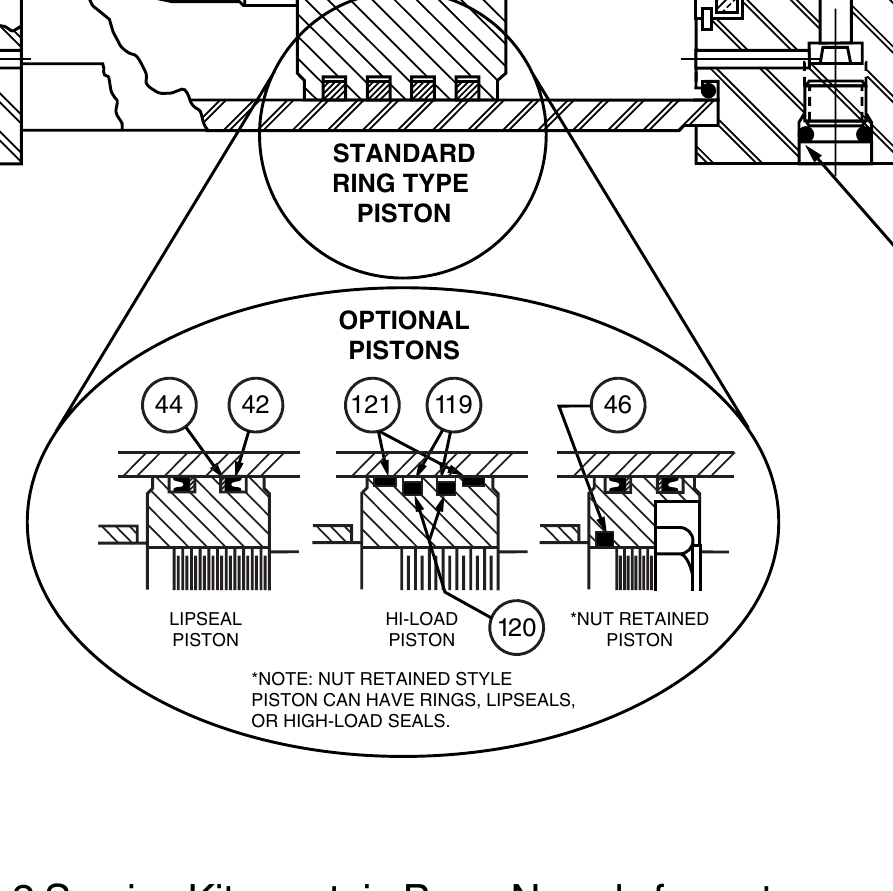

Engineering diagram showing Standard Ring Type Piston and Optional Pistons (Lipseal Piston, Hi-Load Piston, Nut Retained Piston). Includes callouts for parts in this kit (42, 44).

Drawings

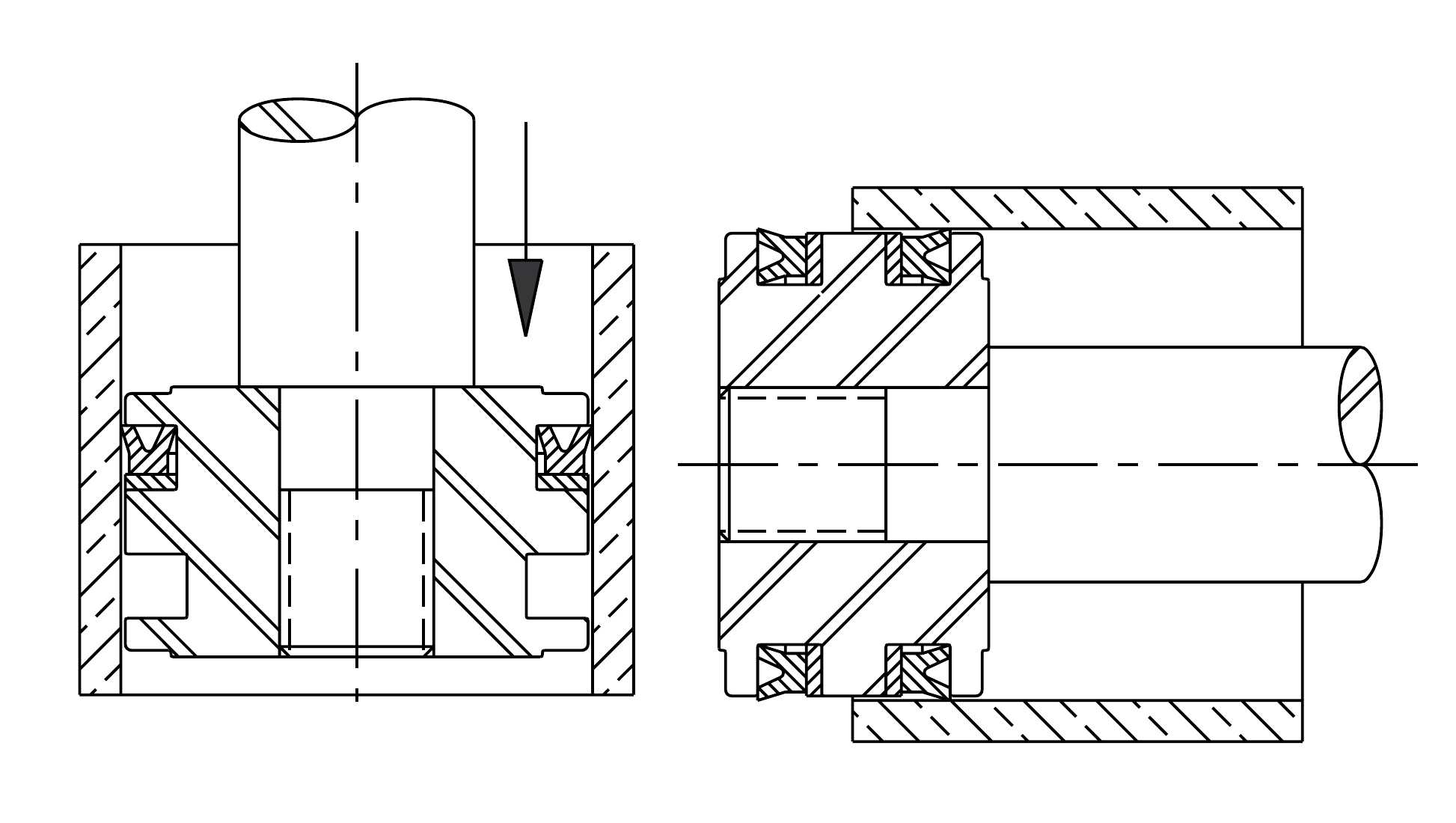

Engineering diagram illustrating the installation of piston seals into the cylinder tube.

Drawings

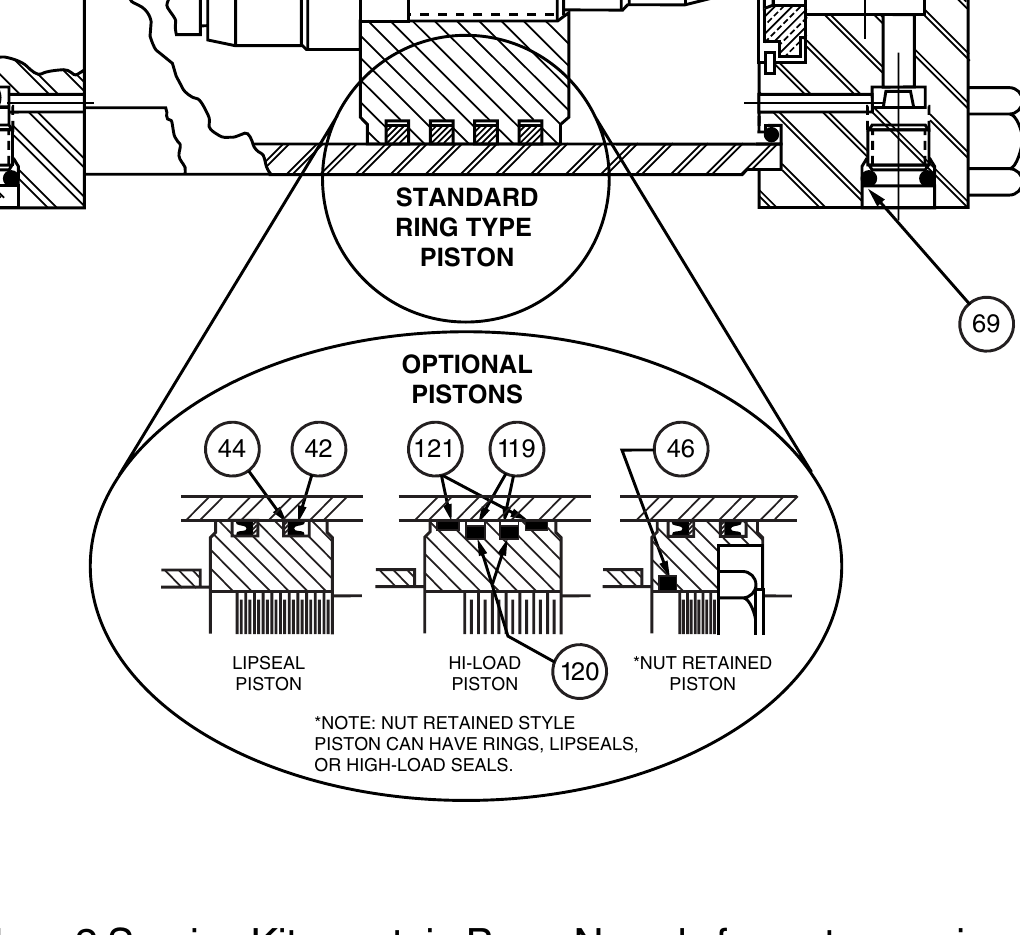

Engineering diagram showing Standard Ring Type Piston and Optional Pistons (Lipseal Piston, Hi-Load Piston, Nut Retained Piston). Includes callouts for components 42 and 44 included in this kit.

Drawings

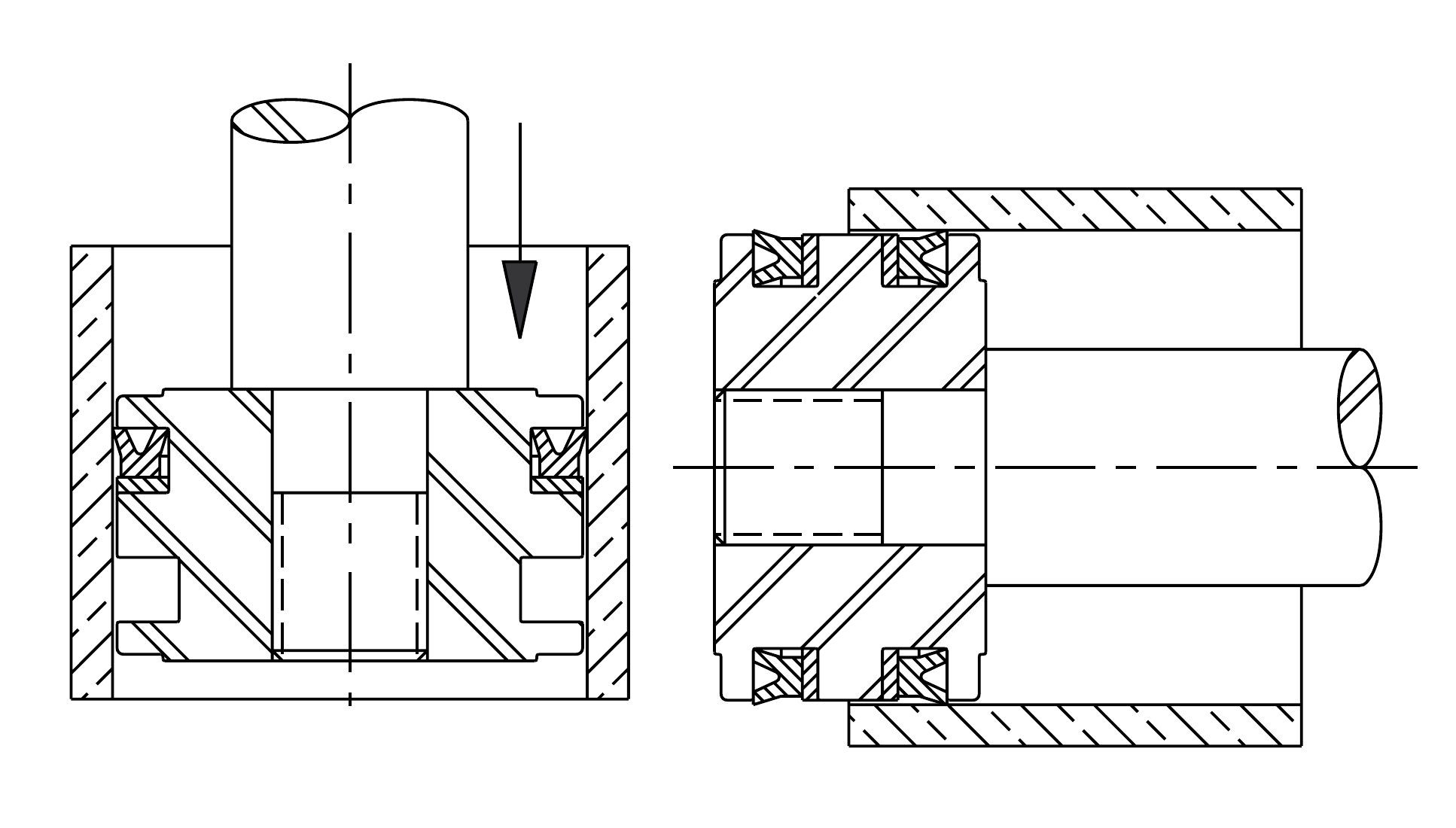

Engineering diagram illustrating the insertion of the piston into the cylinder tube and assembly of seals.

Product

MPNDescriptionPrice

CB252HL001Compatible Cylinder Body Seal Kit CB (2 1/2" Bore)$ 22.79

PK252HK001Alternative Piston Seal Kit Hi-Load (2 1/2" Bore)$ 414.16

PK252HLL01Parent Variant$ 80.93

PK252HLL06Variant - Seal Class Class 2 or 6—

PR252H0001Alternative Piston Seal Kit PR (2 1/2" Bore)—

RG1HDL0251Compatible Rod Gland Seal Kit RG (2 1/2" Bore)—
