The Parker P10MC8 is in our catalogue: Nominal Tube O.D. 5/8 inch, NPTF Thread Size 1/2 inch, Material Black Polypropylene.

ChatMRO can make mistakes, so double check it

In stockMale Connector with 5/8 Inch Tube O.D. and 1/2 Inch NPTF Thread
Parker · P10MC8

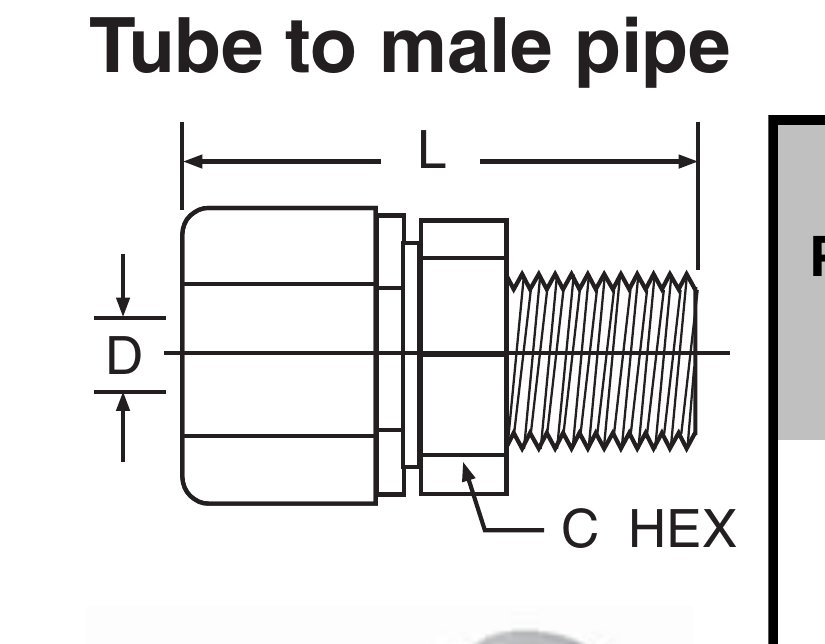

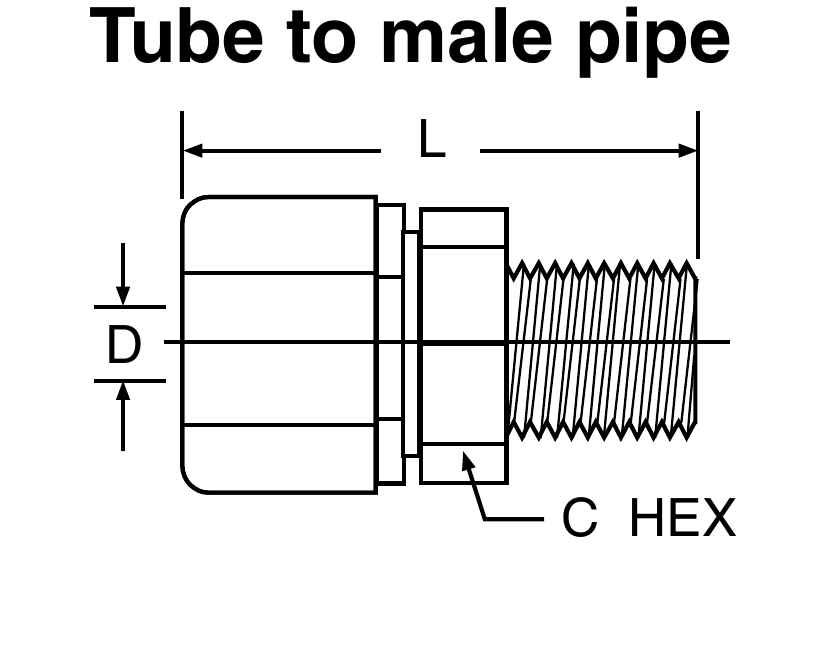

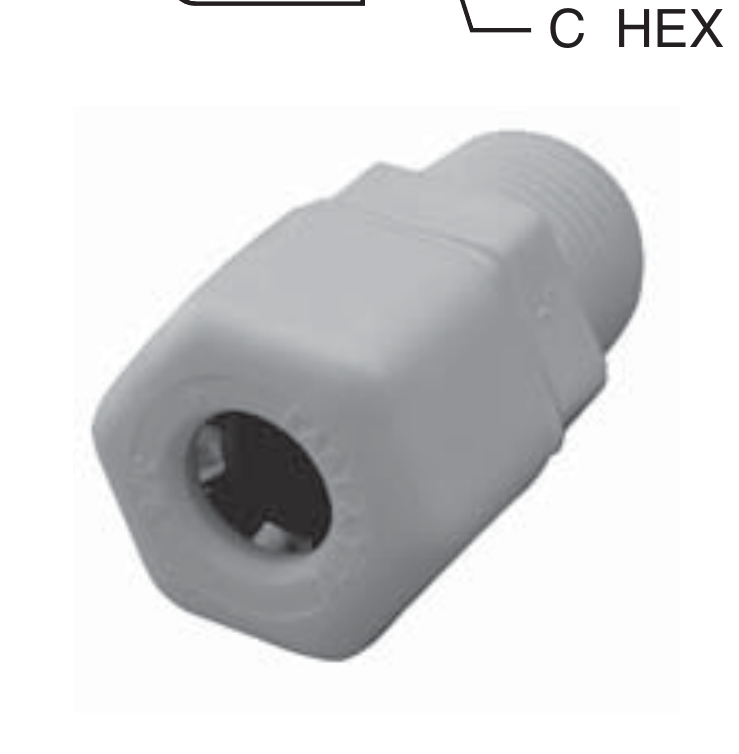

Male Connector with 5/8 Inch Tube O.D. and 1/2 Inch NPTF Thread

$ 5.77per unit · ex. VAT

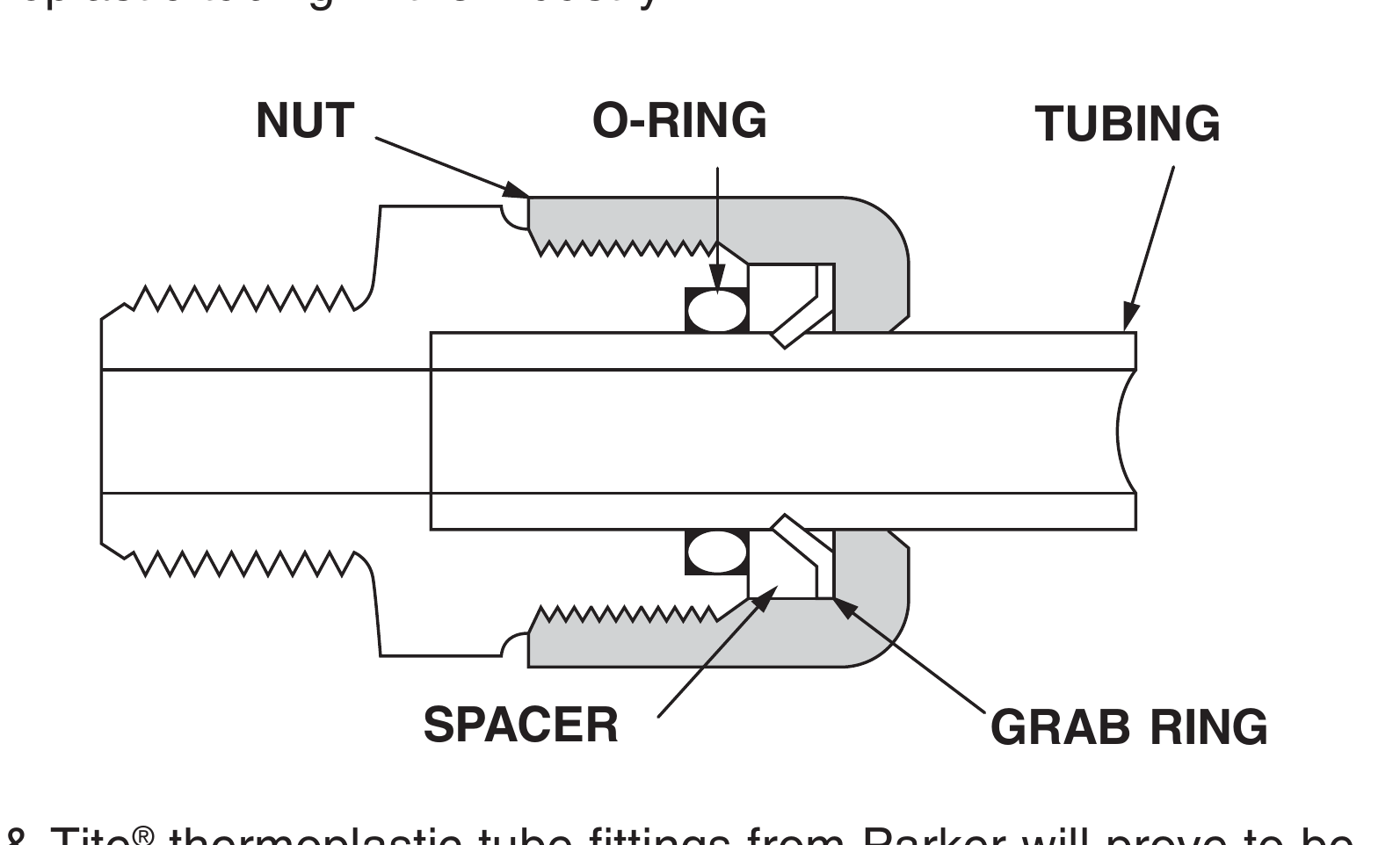

Tube to male pipe connector from the Fast & Tite® series, designed for quick, tool-free installation with a leak-proof seal. Constructed with black polypropylene body, 302 stainless steel grab ring, and nitrile O-ring. Suitable for air, oil, water, potable water, beverages, and food applications within a temperature range of 0°F to 212°F.
Nominal Tube O.D.
5/8 inch
NPTF Thread Size
1/2 inch
Material
Black Polypropylene
Temperature Range
0°F to 212°F (-18°C to 100°C)
Air-Oil-Water Pressure at 75°F
150 PSI
Nominal Tube O.D.5/8 inch
NPTF Thread Size1/2 inch
MaterialBlack Polypropylene
Temperature Range0°F to 212°F (-18°C to 100°C)
Air-Oil-Water Pressure at 75°F150 PSI
Air-Oil-Water Pressure at 76° to 125°F100 PSI
Air-Oil-Water Pressure at 126° to 175°F50 PSI

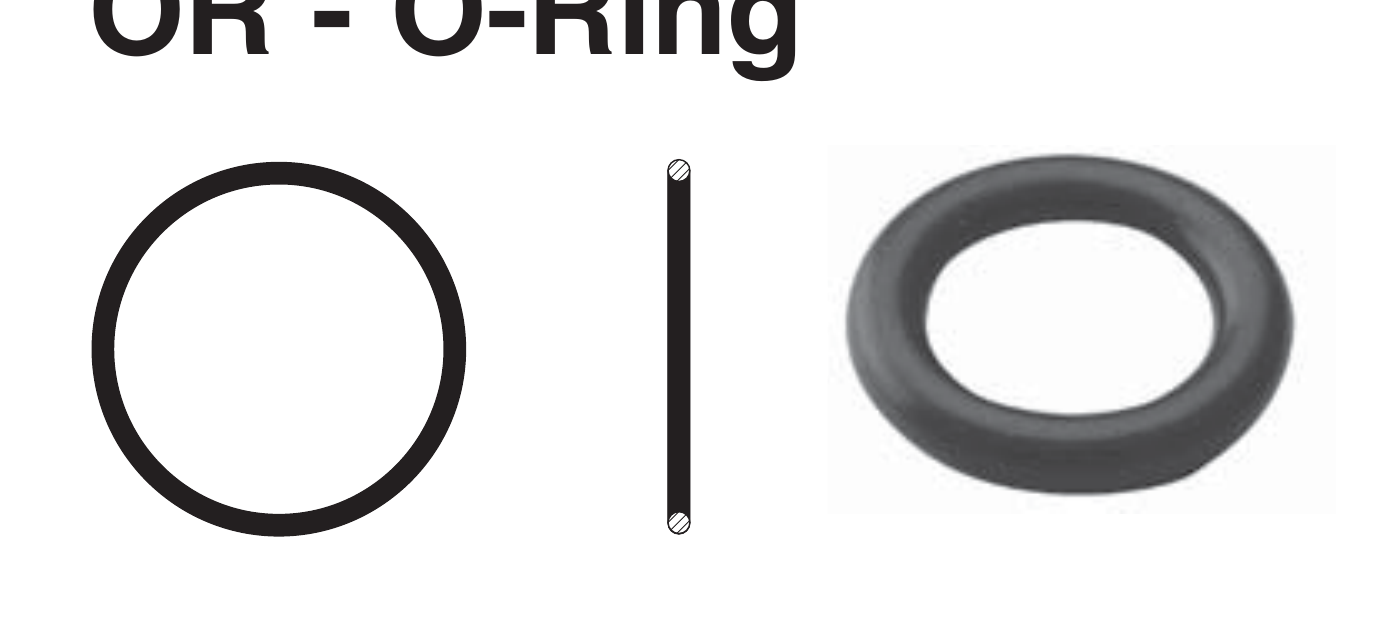

Seal MaterialNitrile
Grab Ring Material302 Stainless Steel
Connection TypeTube x MNPT
StandardsFDA Approved, NSF/ANSI 51
Hex Size1 1/8 inch
