The Parker N8EU8 is in our catalogue: Material White Nylon, Nominal Tube O.D. 1/2 inch, Temperature Range -40 °F (-40 °C) to +200 °F (+93 °C).

ChatMRO can make mistakes, so double check it

In stockElbow Union Fitting, White Nylon, 1/2" Tube O.D.
Parker · N8EU8

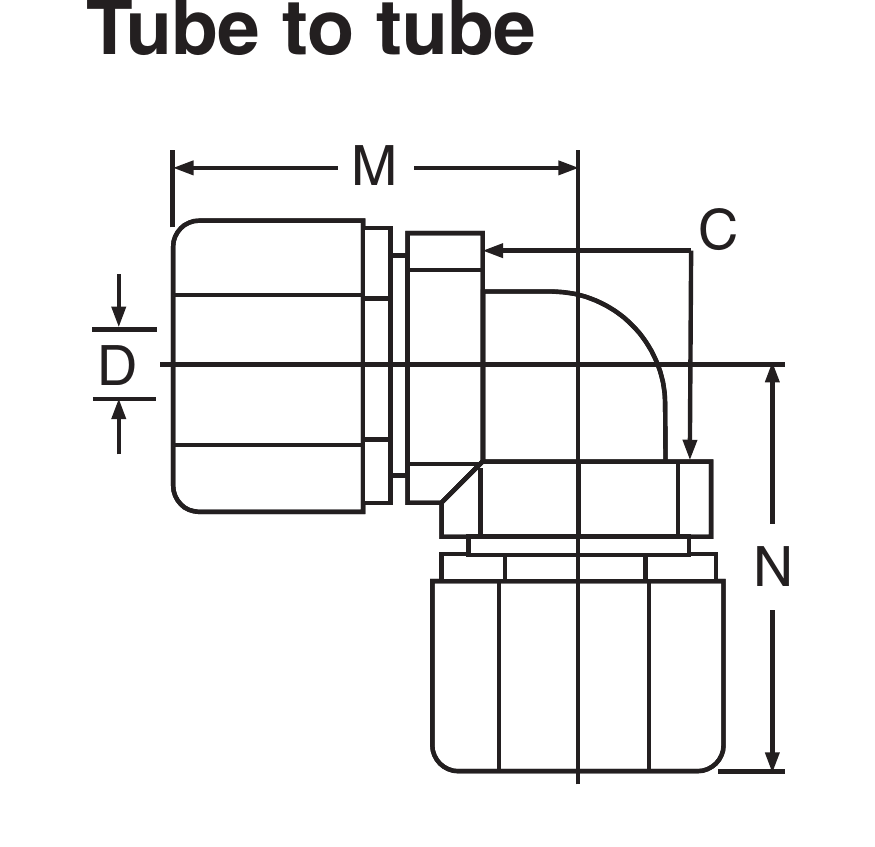

Elbow Union Fitting, White Nylon, 1/2" Tube O.D.

$ 8.40per unit · ex. VAT
Tube to tube Fast & Tite® thermoplastic elbow union fitting for 1/2" tube O.D. Installs in seconds without tools and provides a tight, sure, leak-proof seal. Suitable for air, potable water, beverages, food, and CO2 applications with FDA and NSF/ANSI 51 compliance.
Material
White Nylon
Nominal Tube O.D.
1/2 inch
Temperature Range
-40 °F (-40 °C) to +200 °F (+93 °C)
Air-Oil-Water Pressure Up to 75°F
200 psi
Air-Oil-Water Pressure 76° to 125°F
200 psi
MaterialWhite Nylon
Nominal Tube O.D.1/2 inch
Temperature Range-40 °F (-40 °C) to +200 °F (+93 °C)
Air-Oil-Water Pressure Up to 75°F200 psi
Air-Oil-Water Pressure 76° to 125°F200 psi
Air-Oil-Water Pressure 126° to 175°F150 psi
ColorWhite
Hex Size1-1/16 inch
ApplicationAir, Potable Water, Beverages, Food, CO2
Connection TypeCompression
Fitting Shape90° Elbow Union
Maximum Operating Temperature200 °F
