Parker h3-63-t8
ChatMRO

The Parker H3-63-T8 is in our catalogue: Material Steel, Body Size 3/8, Thread Size 3/4-16 ORB.

ChatMRO can make mistakes, so double check it

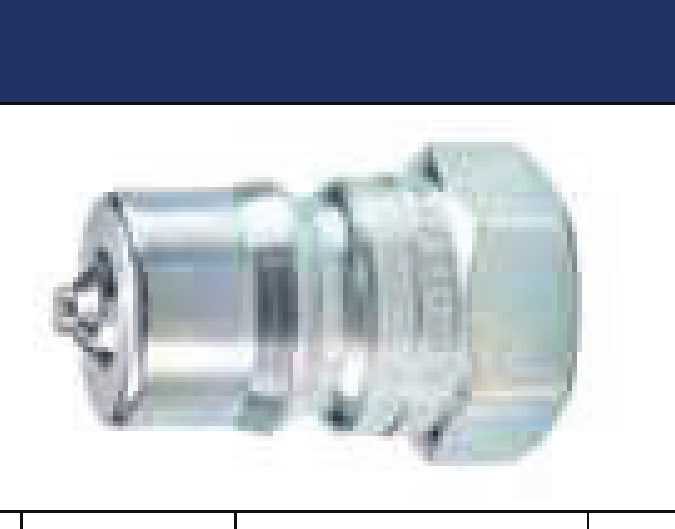

In stock60 Series Steel Nipple - Female Thread, 3/8 Body Size, ORB 3/4-16
Parker · H3-63-T8

60 Series Steel Nipple - Female Thread, 3/8 Body Size, ORB 3/4-16

$ 46.61per unit · ex. VAT
General purpose hydraulic quick coupling nipple with manual sleeve and poppet valve. Constructed of steel with Nitrile seals, rated for 4000 psi and 6 GPM flow. Complies with ISO 7241 Series B standard for interoperability.
Material
Steel
Body Size
3/8
Thread Size
3/4-16 ORB
Overall Length
1.94
Largest Diameter
1.40
MaterialSteel
Body Size3/8
Thread Size3/4-16 ORB
Wrench Flats1.40
Exposed Length0.80
Rated Pressure4000 psi
Rated Flow6 gpm
Seal MaterialNitrile
Seal Temperature Range-40 degree Fahrenheit to +250 degree Fahrenheit (Nitrile)
Valve TypePoppet
Lock MechanismBall
Industry StandardISO 7241 Series B Standard
