The Parker H2-62-T6 is in our catalogue: Body Size 1/4, Thread Size 9/16-18 ORB, Material Steel.

ChatMRO can make mistakes, so double check it

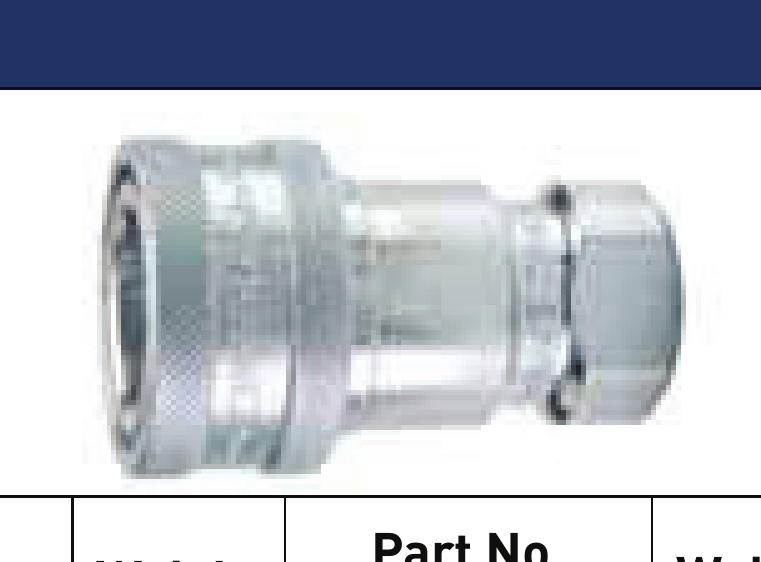

In stockHydraulic Quick Coupler - Steel Body, 1/4 in Body Size, 9/16-18 ORB Thread
Parker · H2-62-T6

Hydraulic Quick Coupler - Steel Body, 1/4 in Body Size, 9/16-18 ORB Thread

$ 58.01per unit · ex. VAT
Steel-bodied hydraulic quick coupler from Parker Hannifin's 60 Series, compliant with ISO 7241 Series B standard. Features manual sleeve with poppet valve design, rated for 5000 psi operating pressure and -40°F to +250°F temperature range with Nitrile seals. Designed for general industrial, agricultural, and hydraulic press applications requiring reliable fluid line connection and disconnection.
Body Size
1/4
Thread Size
9/16-18 ORB
Material
Steel
Weight
0.31 lbs
Wrench Flats
0.81
Body Size1/4
Thread Size9/16-18 ORB
MaterialSteel
Wrench Flats0.81
Rated Pressure5000 psi
Rated Flow3 gpm
Seal MaterialNitrile
Seal Temperature Range-40 degree Fahrenheit to +250 degree Fahrenheit
Valve TypePoppet
Locking MechanismBall
Coupling TypeFemale ORB
Industry StandardISO 7241 Series B
