The Parker F420S is in our catalogue: Flow Cv 0.23, 11 L/min (3 GPM) max, Design Standard knob, for oil media, Material Steel body, Nitrile seal, Stainless steel (SUS416) poppet, 302 stainless steel spring, 416 stainless steel retainer / needle.

ChatMRO can make mistakes, so double check it

In stock1-Way Unidirectional In-Line Hydraulic Needle Valve with Standard Knob
Parker · F420S

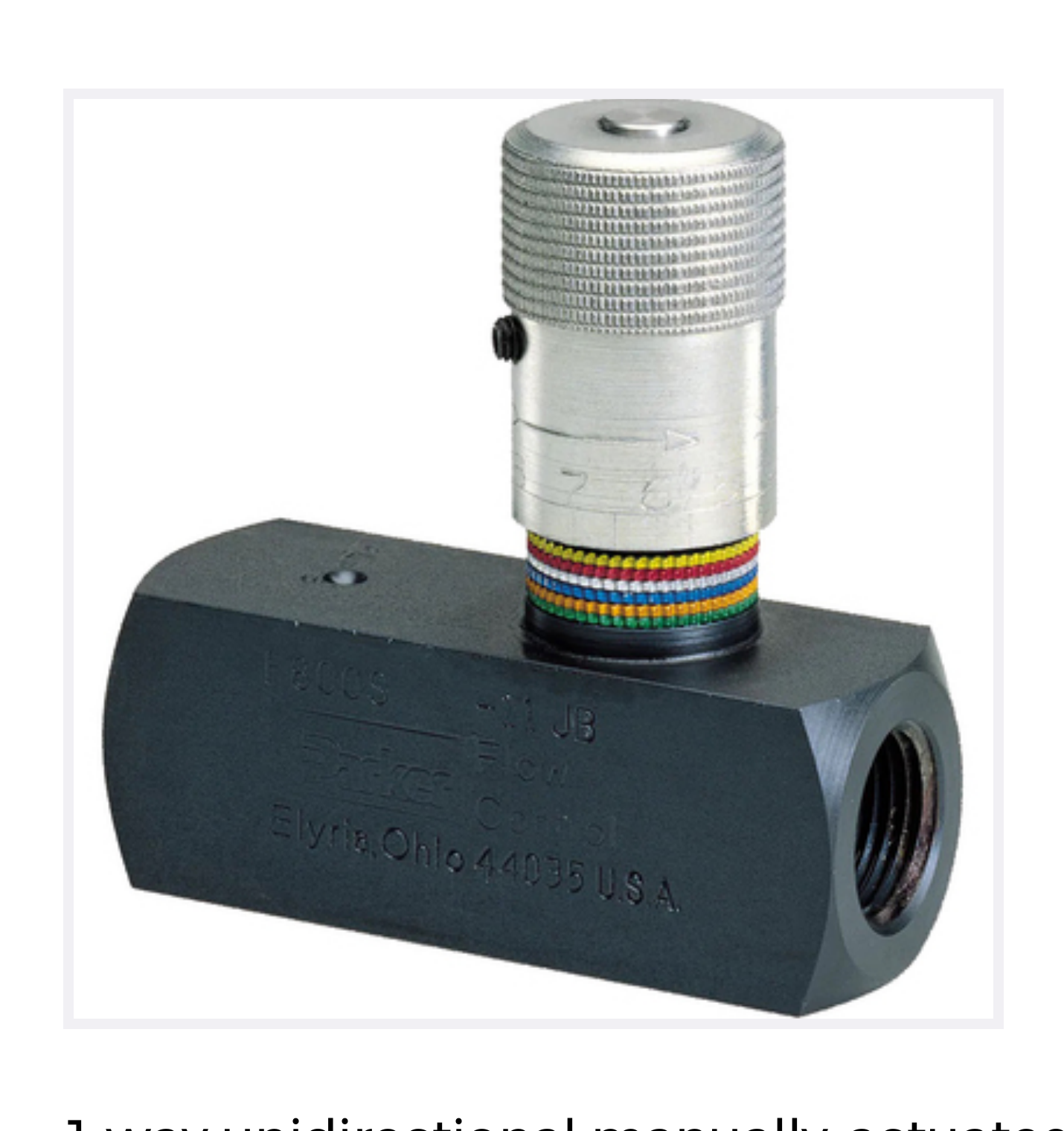

1-Way Unidirectional In-Line Hydraulic Needle Valve with Standard Knob

$ 181.72per unit · ex. VAT
Manually-actuated in-line hydraulic needle valve designed for oil media with 1-way unidirectional flow control. Features a steel body, nitrile seal, and stainless steel internal components. Rated for up to 5000psi operating pressure and media temperatures from -40°C to +121°C. Intended for individual in-line installation in hydraulic systems.
Flow
Cv 0.23, 11 L/min (3 GPM) max
Design
Standard knob, for oil media
Material
Steel body, Nitrile seal, Stainless steel (SUS416) poppet, 302 stainless steel spring, 416 stainless steel retainer / needle
Pressure
5 psi (0.4 bar) nominal cracking pressure, 5000 psi (350 bar) maximum operating pressure
Temperature
-40°C to +121°C (-40°F to +250°F) media temperature
FlowCv 0.23, 11 L/min (3 GPM) max
DesignStandard knob, for oil media
MaterialSteel body, Nitrile seal, Stainless steel (SUS416) poppet, 302 stainless steel spring, 416 stainless steel retainer / needle
Pressure5 psi (0.4 bar) nominal cracking pressure, 5000 psi (350 bar) maximum operating pressure
Temperature-40°C to +121°C (-40°F to +250°F) media temperature
Valve Function1-Way Unidirectional
Connection Type2 x 7/16 inch-20 UNF / SAE-4 threaded ports
Mounting ModeIndividual in-line installation
