Parker c200b
ChatMRO

The Parker C200B is in our catalogue: Material (Body) Brass, Material (Poppet) 416 Stainless Steel, Material (Spring) 316 Stainless Steel.

ChatMRO can make mistakes, so double check it

In stockSeries C Brass Check Valve with Nitrile Seal
Parker · C200B

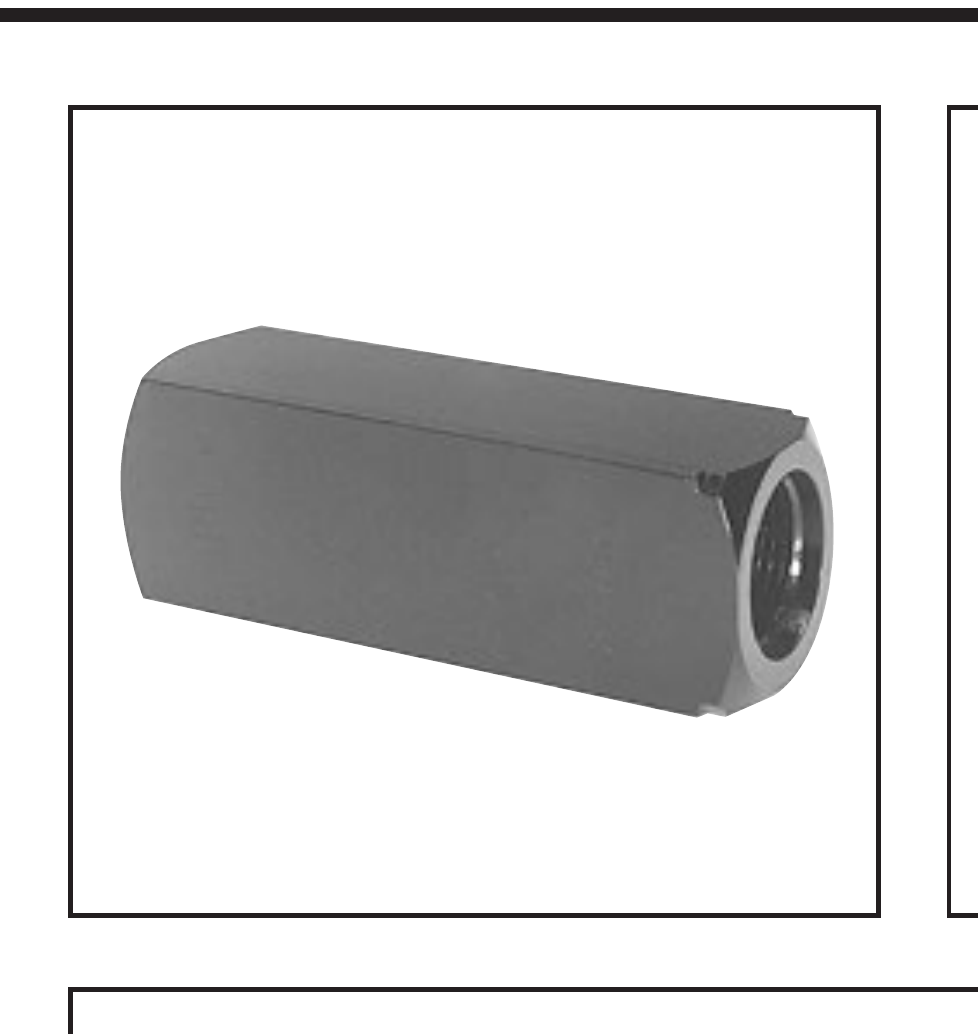

Series C Brass Check Valve with Nitrile Seal

$ 77.84per unit · ex. VAT
The Series C Check Valve allows free flow in one direction and reliable shut-off in reverse. Constructed with a brass body and 416 stainless steel poppet, it features a standard cracking pressure of 0.4 Bar (5 PSI) and a maximum operating pressure of 140 Bar (2000 PSI). Suitable for air and water media, it operates within a temperature range of -40°C to +121°C.
Material (Body)
Brass
Material (Poppet)
416 Stainless Steel
Material (Spring)
316 Stainless Steel
Material (Retainer)
416 Stainless Steel
Maximum Operating Pressure (Brass)
140 Bar (2000 PSI)
Material (Body)Brass
Material (Poppet)416 Stainless Steel
Material (Spring)316 Stainless Steel
Material (Retainer)416 Stainless Steel
Maximum Operating Pressure (Brass)140 Bar (2000 PSI)
Nominal Cracking Pressure (Standard)0.4 Bar (5 PSI)
Nominal Cracking Pressure (Optional)1.38 Bar (20 PSI), 4.48 Bar (65 PSI)
Temperature Range of Seal Compound (Nitrile)-40 degree Celsius to +121 degree Celsius (-40 degree Fahrenheit to +250 degree Fahrenheit)
Temperature Range of Seal Compound (Fluorocarbon)-26 degree Celsius to +205 degree Celsius (-15 degree Fahrenheit to +400 degree Fahrenheit)
Effective Control Flow Cv0.53
Effective Orifice Area Control Flow0.023 inch2
Max Flow LPM (GPM)11 (3)
