In stockGranite Surface Plate, DIN 876 Grade 1, 400 x 250 x 50 mm
Mitutoyo · 901-111

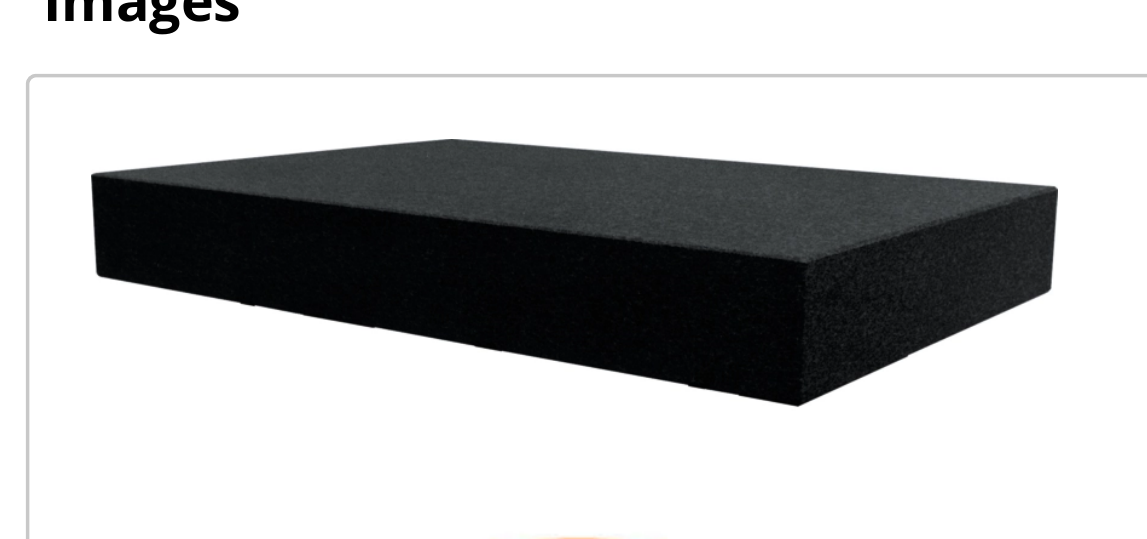

Granite Surface Plate, DIN 876 Grade 1, 400 x 250 x 50 mm

$ 458.59per unit · ex. VAT
Precision granite surface plate manufactured to DIN 876 Grade 1 accuracy standards. Features diamond-lapped surface, fine-ground side faces, and fine-sawn backside. Constructed from high-strength granite with excellent dimensional stability and wear resistance for metrology applications.

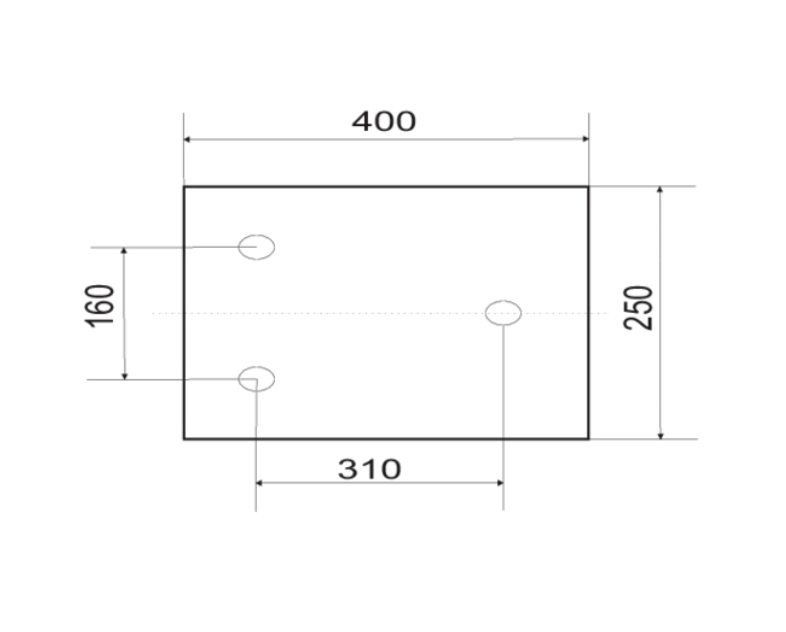

Dimensions L x W x H
400 x 250 x 50 mm
Accuracy
DIN 876 Grade 1
Vickers Hardness
HV 850-900
Flexural Strength
13-22 N/mm²
Max Workpiece Load
100 kg
Dimensions L x W x H400 x 250 x 50 mm
AccuracyDIN 876 Grade 1
Vickers HardnessHV 850-900
Flexural Strength13-22 N/mm²
Max Workpiece Load100 kg
Compressive StrengthApprox. 280 N/mm²
Linear Coefficient of Expansion(5 - 7.5) x 10⁻⁶ x K⁻¹
Mass15 kg
