In stockMagnetic Indicator Stand with Mechanical Locking and On/Off Switch
Mitutoyo · 7033-10

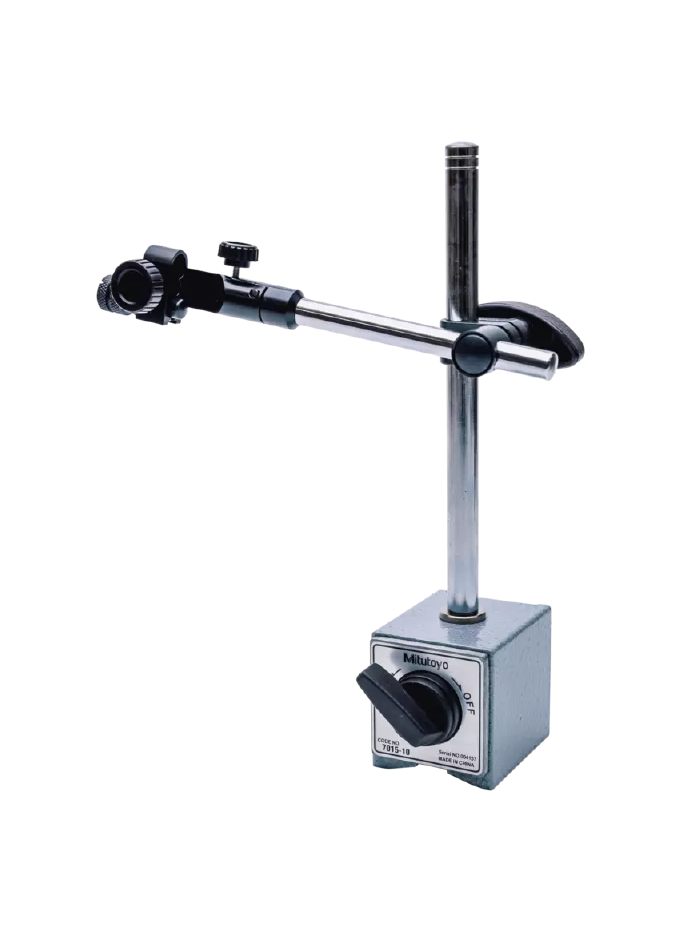

Magnetic Indicator Stand with Mechanical Locking and On/Off Switch

$ 610.80per unit · ex. VAT
Mitutoyo Magnetic Stand model 7033-10 provides strong magnetic adhesion to ferrous surfaces for secure mounting of dial test indicators. It features a mechanical locking system, on/off switch, and accommodates stem diameters of 6 mm, 8 mm, 9.53 mm, and 3/8 inch. Designed for precision alignment in machine tool and fixture applications.
Category
Magnetic Stands
Base Length
55.00 mm
Base Width
50.00 mm
Base Height
60.00 mm
Post Height
382.00 mm
CategoryMagnetic Stands
Base Length55.00 mm
Base Width50.00 mm
Base Height60.00 mm
Post Height382.00 mm
Base Magnetic ForceApprox 600 N
MaterialIron, Stainless Steel
Mount TypeDovetail
FeaturesOn, Off Switch, Mechanical Locking System
IncludesHolder
UNSPSC Code41111600
For Mounting Stem Diameter6.00 mm; 8.00 mm; 9.53 mm; 3/8 inch
