Mitutoyo 572-310-10
ChatMRO

The Mitutoyo 572-310-10 is in our catalogue: Type Single Function, Vertical, Range 0 inch to 4 inch / 0 to 100 mm, Resolution 0.0005 inch / 0.01 mm.

ChatMRO can make mistakes, so double check it

In stockAbsolute Digital Scale Unit, Vertical, 0-4 Inch / 0-100 mm Range, 0.0005 Inch / 0.01 mm Resolution
Mitutoyo · 572-310-10

Absolute Digital Scale Unit, Vertical, 0-4 Inch / 0-100 mm Range, 0.0005 Inch / 0.01 mm Resolution

$ 298.02per unit · ex. VAT

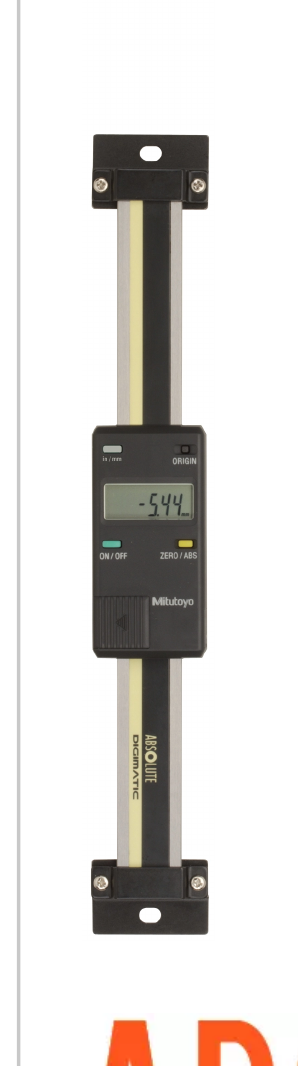

This is an ABSOLUTE capacitive-type digital scale unit with a vertical orientation and single-function design. It offers a measurement range of 0 to 4 inches (0 to 100 mm) with a resolution of 0.0005 inch (0.01 mm) and accuracy of ±0.001 inch (0.03 mm). The unit features an LCD display, SPC data output via Digimatic cable, and is rated IP66 for dust and water resistance.
Type
Single Function, Vertical
Range
0 inch to 4 inch / 0 to 100 mm
Resolution
0.0005 inch / 0.01 mm
Accuracy
±0.001 inch / 0.03 mm
Output
SPC
TypeSingle Function, Vertical
Range0 inch to 4 inch / 0 to 100 mm
Resolution0.0005 inch / 0.01 mm
Accuracy±0.001 inch / 0.03 mm
OutputSPC
Display TypeLCD
IP RatingIP66

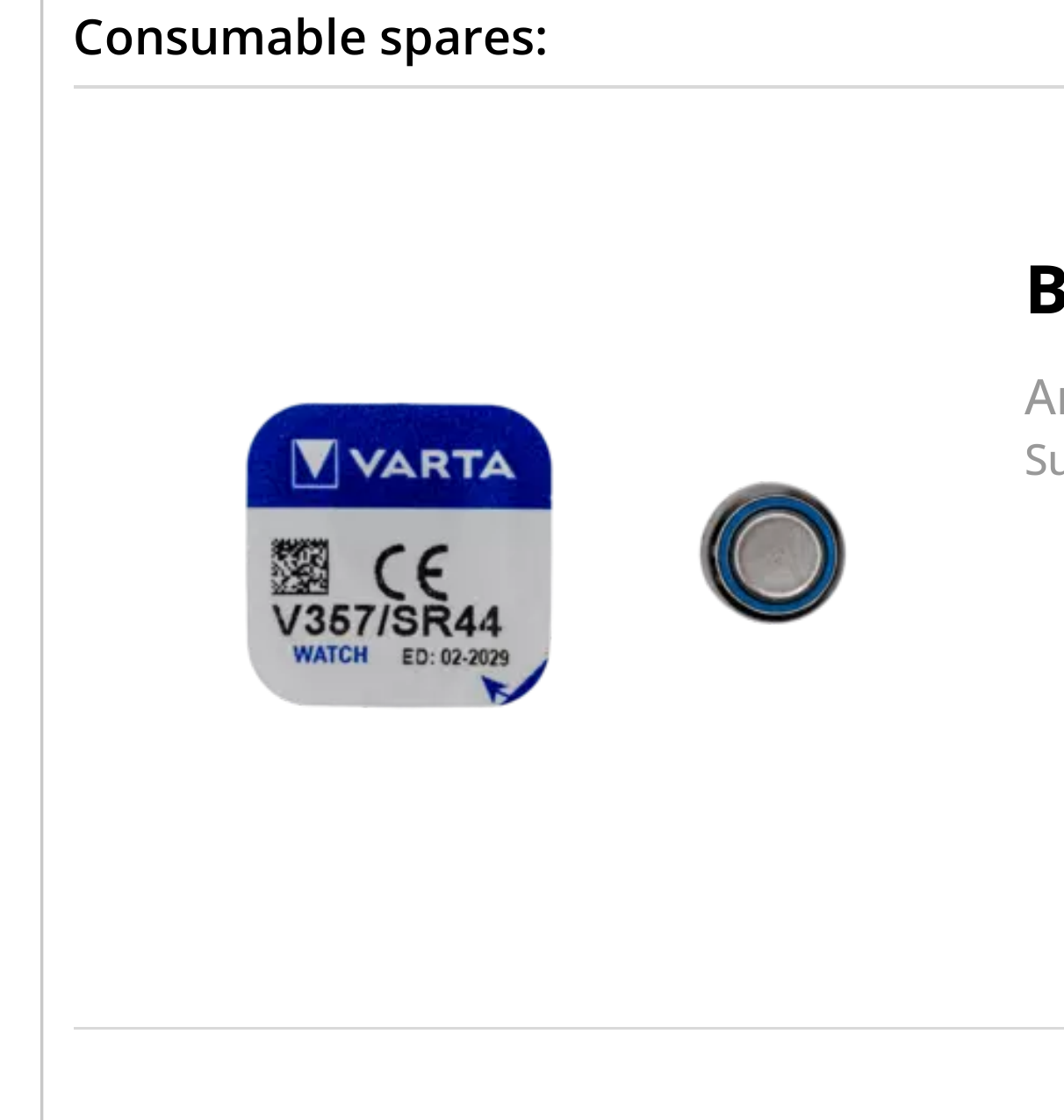

Battery SizeSR44

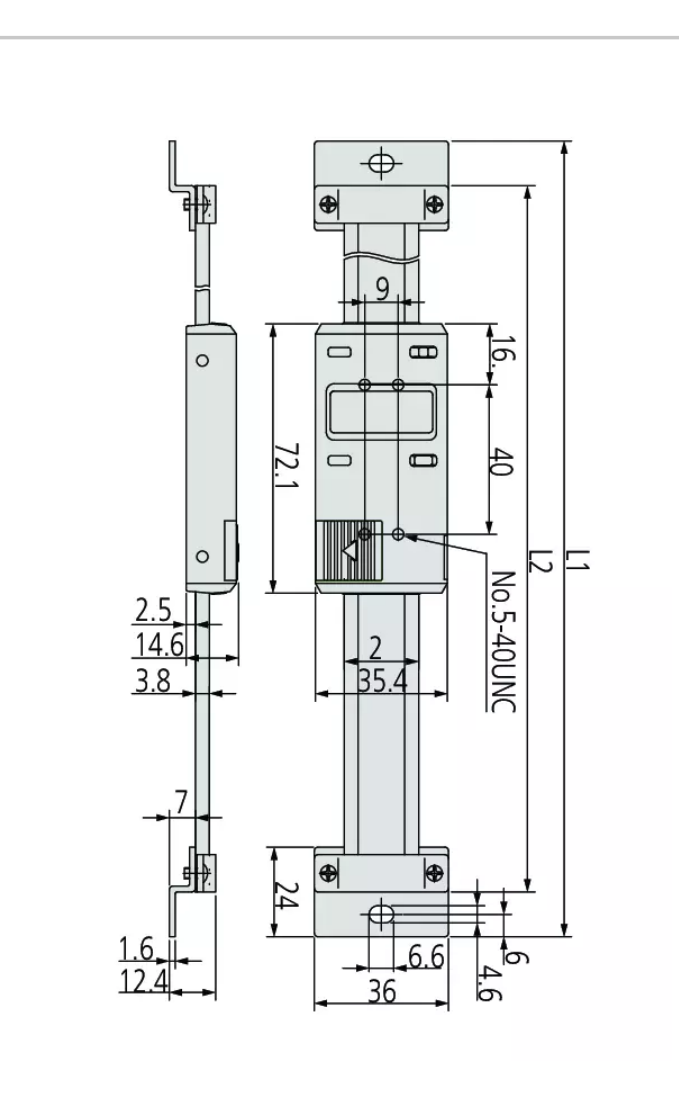

Beam Length7.283 inch / 185 mm
Beam Thickness0.138 inch / 3.5 mm
Data Output TypeCable

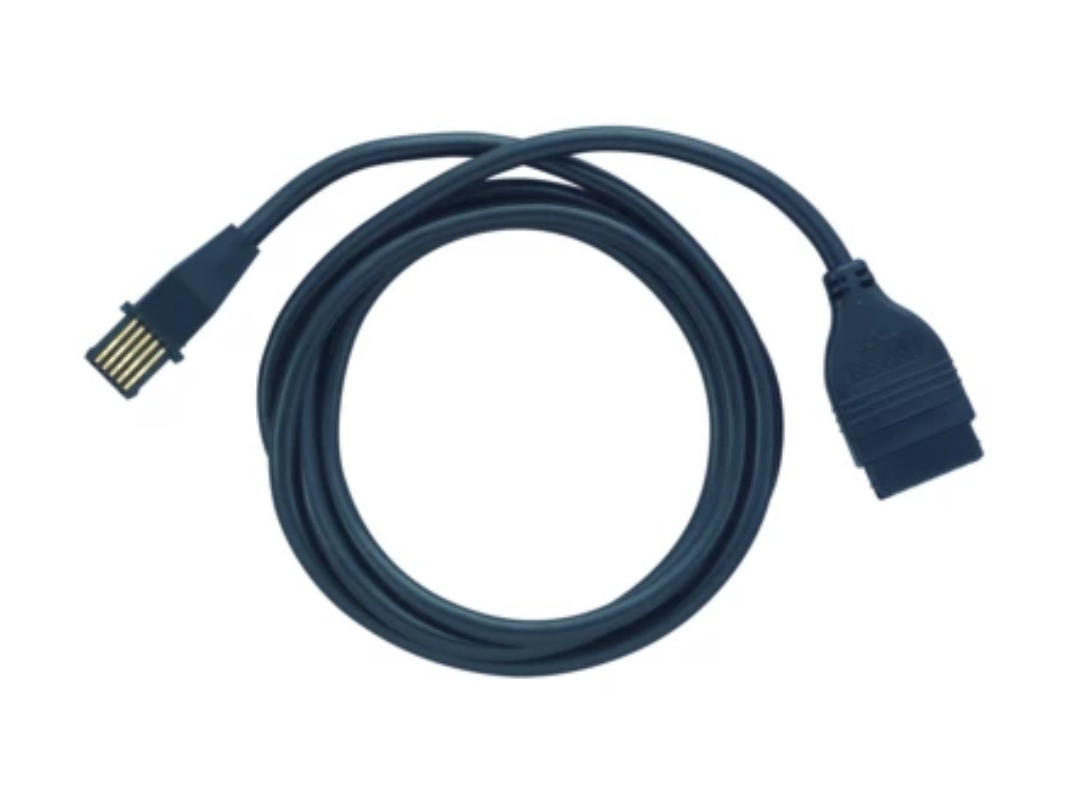

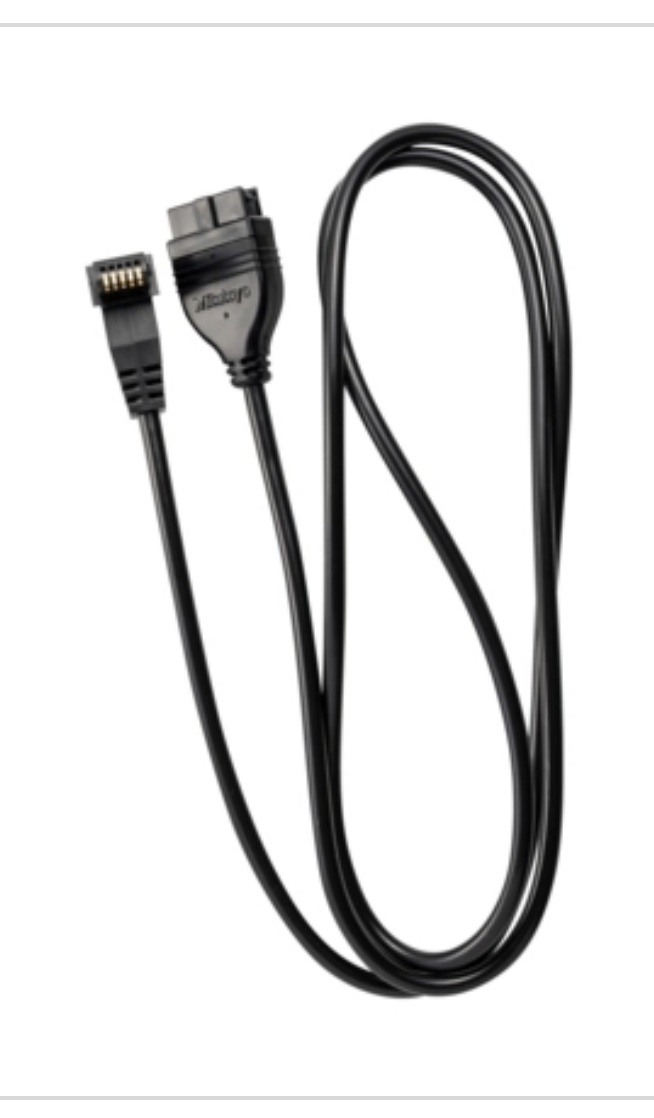

Data Output Connection TypeDigimatic
