The Mitutoyo 547-526S is in our catalogue: Range 0 to 0.47 inch / 0 to 12 mm, Resolution 0.0001 inch / 0.001 mm, Accuracy ±0.0002 inch / ±5 μm.

ChatMRO can make mistakes, so double check it

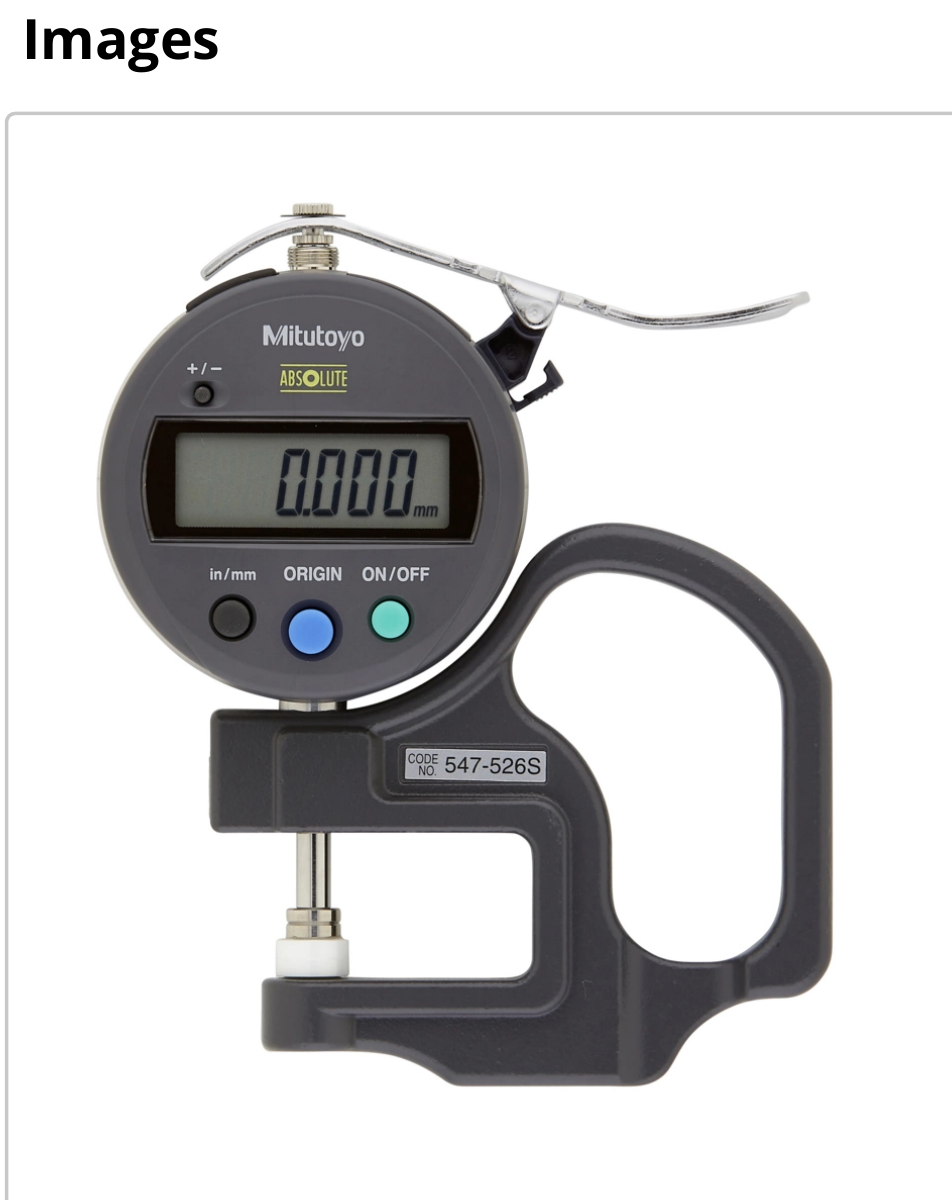

In stockDigital Thickness Gauge with Ceramic Anvil, 0 to 0.47 Inch / 0 to 12 mm Range
Mitutoyo · 547-526S

Digital Thickness Gauge with Ceramic Anvil, 0 to 0.47 Inch / 0 to 12 mm Range

$ 446.62per unit · ex. VAT
Digital thickness gauge designed for precise measurement of thin materials such as paper, film, and felt. Features a flat ceramic anvil, 0.0001 inch / 0.001 mm resolution, and a measuring depth of 30 mm. Equipped with SPC data output and powered by an SR44 battery for extended use.
Range
0 to 0.47 inch / 0 to 12 mm
Resolution
0.0001 inch / 0.001 mm
Accuracy
±0.0002 inch / ±5 μm

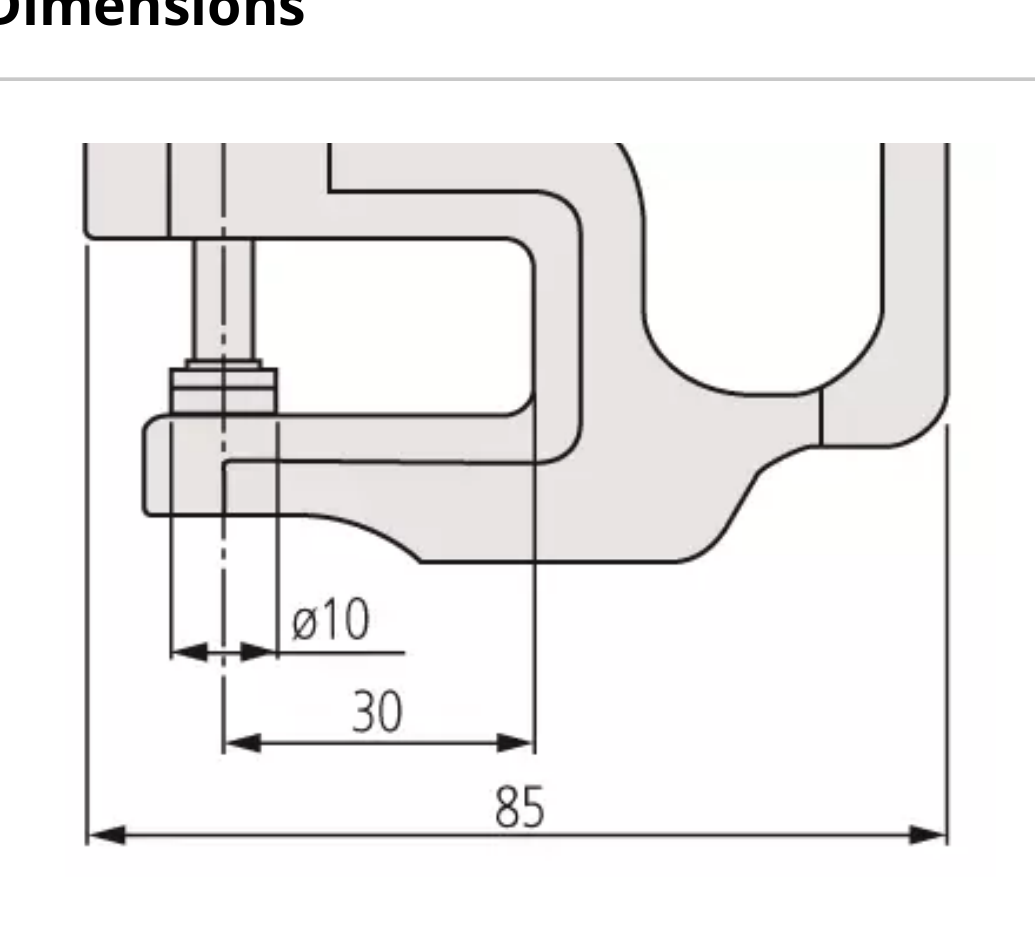

Measuring Depth
30 mm (1.18 inch)
Measuring Force
1.5 N or less
Range0 to 0.47 inch / 0 to 12 mm
Resolution0.0001 inch / 0.001 mm
Accuracy±0.0002 inch / ±5 μm
Measuring Depth30 mm (1.18 inch)
Measuring Force1.5 N or less
Contact Point Anvilø10 mm (ø0.39 inch) Flat
Contact MaterialCeramic
Parallelism0.0002 inch / 0.005 mm
Power Supply1 x SR44 battery
Battery LifeApprox. 7000 hours
Display TypeLCD
Operation TypeDigital
