Mitutoyo 547-520s
ChatMRO

The Mitutoyo 547-520S is in our catalogue: Range 0 to 0.47 inch / 0 to 12 mm, Resolution 0.0005 inch / 0.01 mm, Accuracy ±0.001 inch / ±20 μm.

ChatMRO can make mistakes, so double check it

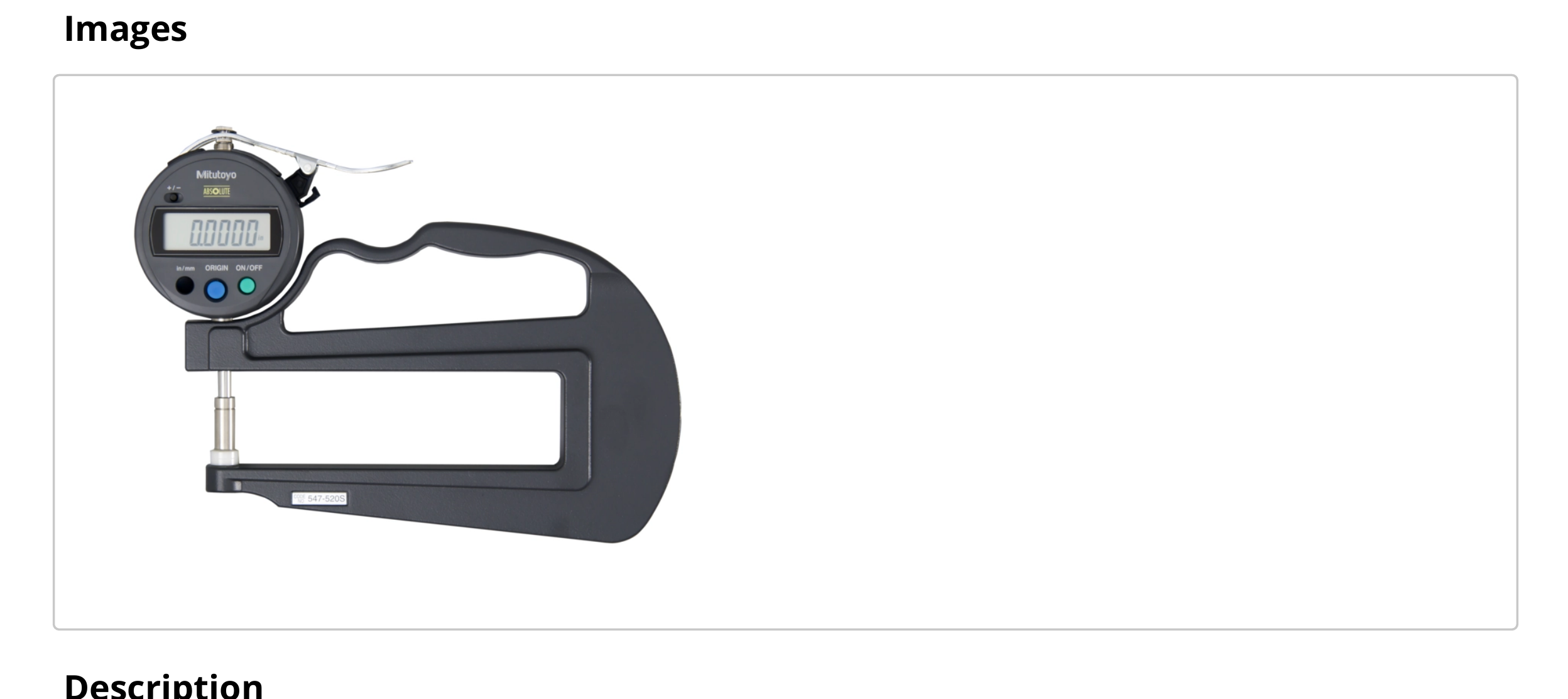

In stockDigital Thickness Gauge with Ceramic Anvil
Mitutoyo · 547-520S

Digital Thickness Gauge with Ceramic Anvil

$ 372.35per unit · ex. VAT
Digital deep throat thickness gauge designed for precise measurement of films, papers, and tube wall thickness. Features a ceramic flat anvil, ABS Digimatic technology, and SPC data output. Offers a measurement range up to 12 mm with 0.0005 inch resolution and high measuring force stability.
Range
0 to 0.47 inch / 0 to 12 mm
Resolution
0.0005 inch / 0.01 mm
Accuracy
±0.001 inch / ±20 μm

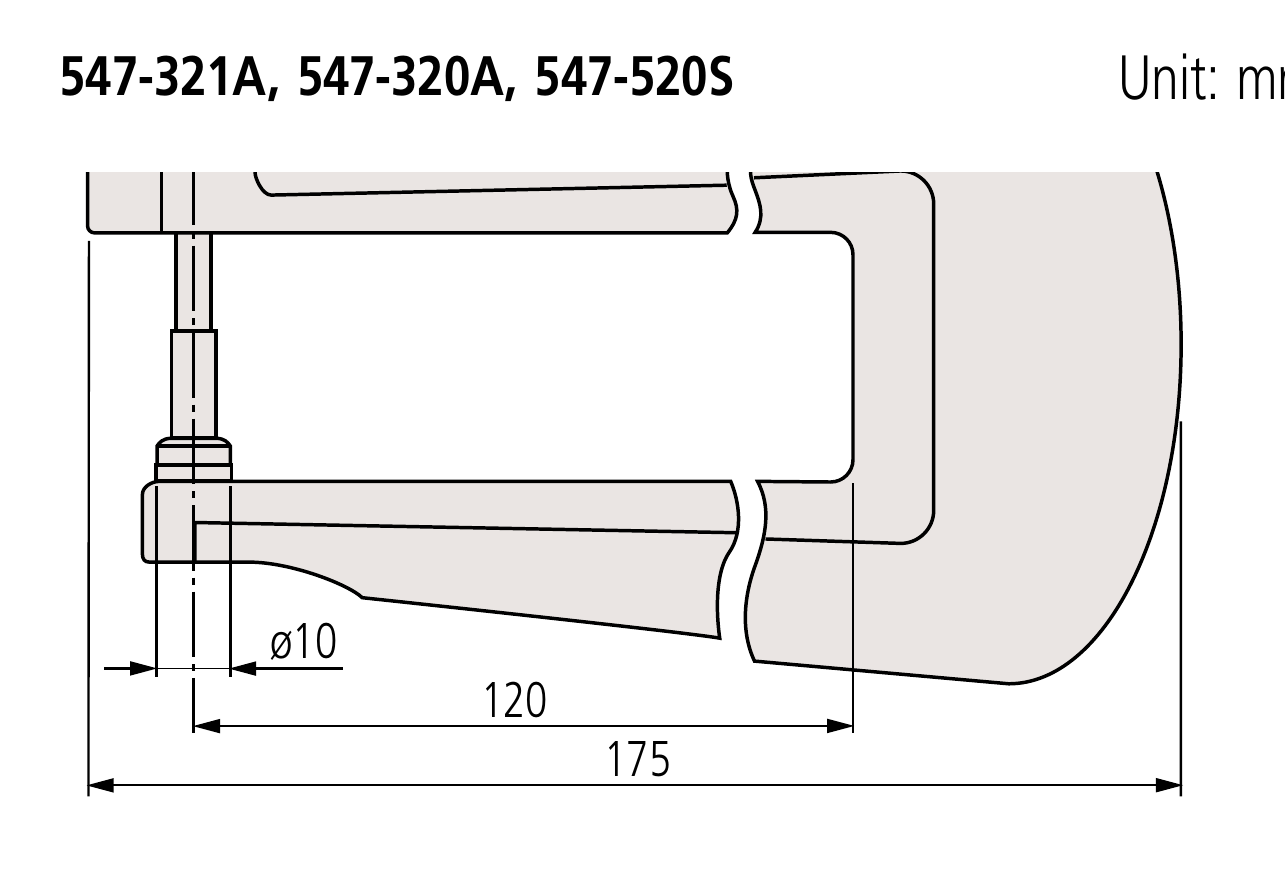

Measuring Depth
120 mm (4.72 inch)
Measuring Force
1.5 N or less
Range0 to 0.47 inch / 0 to 12 mm
Resolution0.0005 inch / 0.01 mm
Accuracy±0.001 inch / ±20 μm
Measuring Depth120 mm (4.72 inch)
Measuring Force1.5 N or less
Contact Point Anvilø10 mm (ø0.39 inch) Flat
Contact MaterialCeramic
Battery TypeSilver Oxide Cell SR44
Display TypeLCD
Data OutputCable (SPC Output)
Operation TypeDigital
Grip StyleConvenient Grip
