The Mitutoyo 543-730B digital indicator is in our catalogue — a 50.8 mm range, flat-back model with selectable resolution of 0.0005, 0.001, or 0.01 mm, and a 7-digit LCD display.

ChatMRO can make mistakes, so double check it

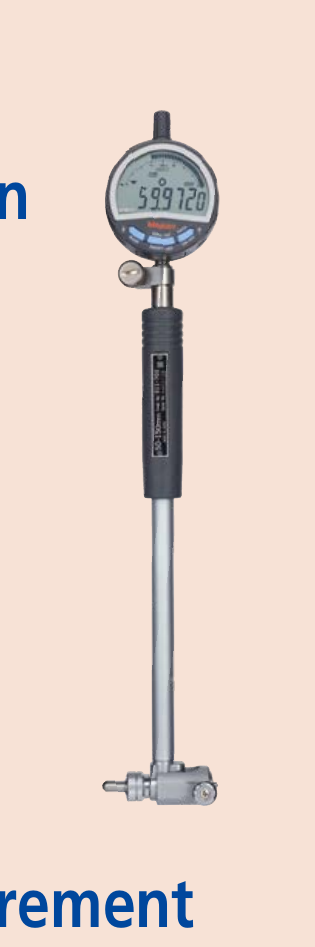

In stockExample of ID-CNX installed on optional bore gage
Mitutoyo · 543-730B

Digital Indicator, 50.8 mm Range, 0.0005/0.001/0.01 mm Resolution, Flat Back

$ 1008.00per unit · ex. VAT
Digital indicator from Mitutoyo's Series 543, Standard Type, with a 50.8 mm measuring range and selectable resolution of 0.0005, 0.001, or 0.01 mm. Features a 7-digit LCD display with analog bar, bidirectional communication support, and a flat back design. Includes a CR2032 battery and offers high accuracy with a maximum permissible error of 0.005 mm over the full range.
Range
50.8 mm
Display
7-digit display, sign, and analog bar
Resolution
0.0005/0.001/0.01 (selectable) mm
Battery Life
Approx. 2,700 hours of continuous use. Approx. 2.5 years under normal use.
Power Source
CR2032 battery (1 pc.), included as standard (for operational checks)
Range50.8 mm
Display7-digit display, sign, and analog bar
Resolution0.0005/0.001/0.01 (selectable) mm
Battery LifeApprox. 2,700 hours of continuous use. Approx. 2.5 years under normal use.
Power SourceCR2032 battery (1 pc.), included as standard (for operational checks)
Mass Flat Back260 g
Response SpeedUnlimited (except for scanning measurement)
Spindle Orientation for MeasurementUsable between the contact point pointing downward and spindle in horizontal orientation. To use the contact point pointing upward, the auxiliary spindle spring (optional) is required.
Maximum Permissible Error Hysteresis0.002 mm
Maximum Permissible Limit Measuring Force2.3 or less N
Maximum Permissible Error Repeatability0.002 mm
Maximum Permissible Error Total Measuring Range0.005 mm
