Mitutoyo 534 114
ChatMRO

The Mitutoyo 534-114 long-jaw vernier caliper is in our catalogue — 0 (20.1) to 500 mm range, 0.02 mm graduation, fine adjustment, and ±0.06 mm accuracy. Made in Japan.

ChatMRO can make mistakes, so double check it

In stockLong Jaw Vernier Caliper 0 (20.1) - 500 mm with Fine Adjustment
Mitutoyo · 534-114

Long Jaw Vernier Caliper 0 (20.1) - 500 mm with Fine Adjustment

$ 1035.59per unit · ex. VAT
Long jaw vernier caliper from Series 534 with fine adjustment feature. Designed for measuring hard-to-reach features. Features a metric measurement range of 0 (20.1) - 500 mm, graduation of 0.02 mm, and maximum permissible error of ±0.06 mm. Made by Mitutoyo in Japan.
Range
0 (20.1) - 500 mm
Graduation
0.02 mm
Maximum Permissible Error EMPE
±0.06 mm
Maximum Permissible Error SMPE
±0.06 mm
Remarks

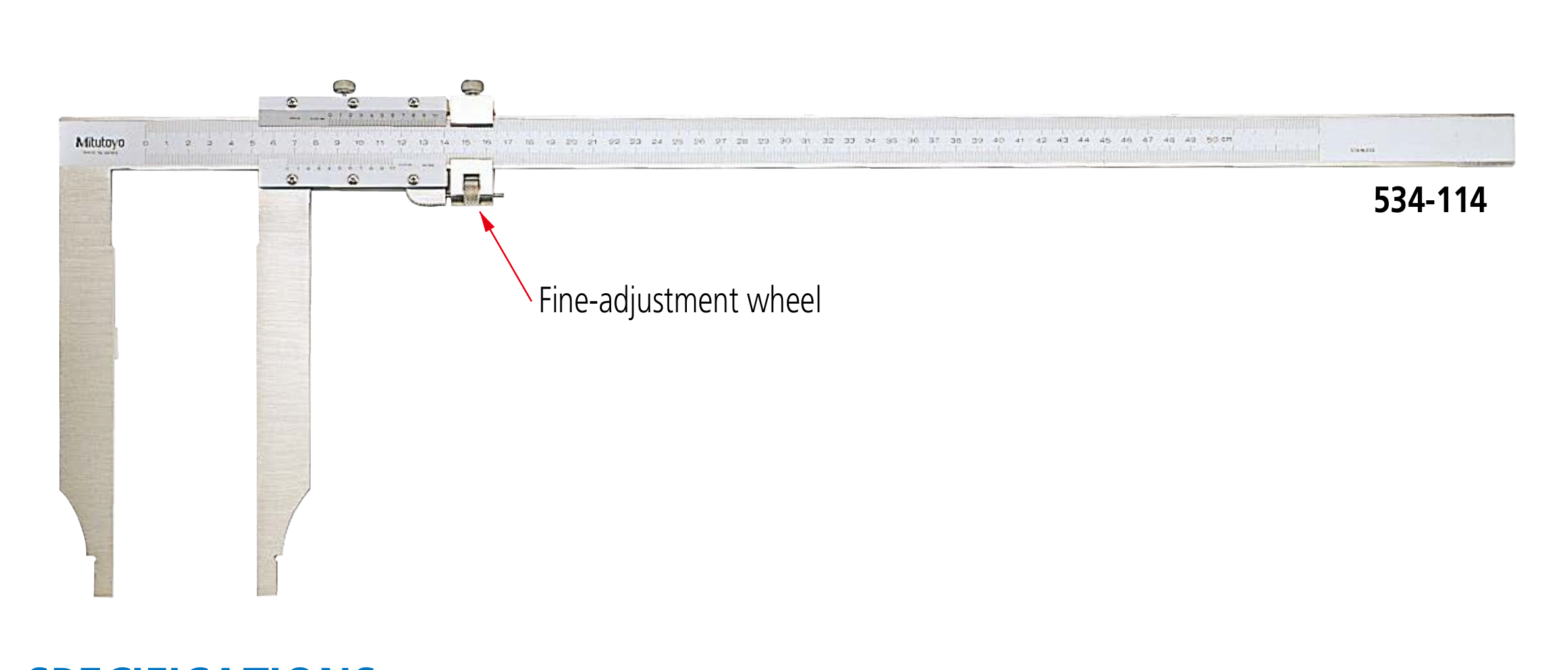

With fine adjustment
Range0 (20.1) - 500 mm
Graduation0.02 mm
Maximum Permissible Error EMPE±0.06 mm
Maximum Permissible Error SMPE±0.06 mm
RemarksWith fine adjustment

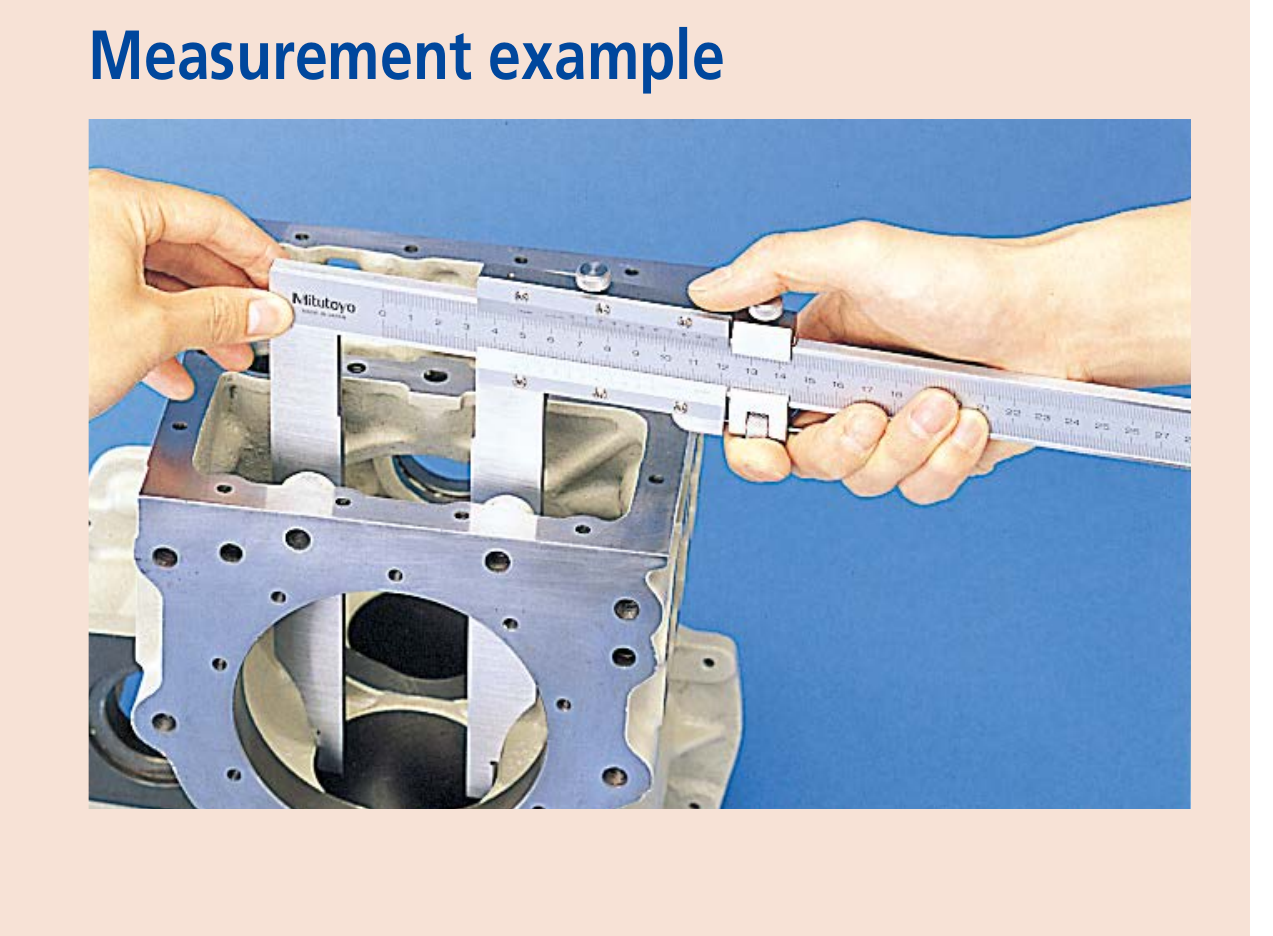

FeaturesLong jaws for measuring hard to reach features
Standards0 (20) - 500 mm
System of MeasurementMetric
Series534 Series
