Mitutoyo 389-352-30
ChatMRO

The Mitutoyo 389-352-30 is in our catalogue: Range 1 - 2 inch, Resolution 0.00005 inch / 0.001 mm, Accuracy ±0.0002 inch.

ChatMRO can make mistakes, so double check it

In stockSheet Metal Micrometer with F-F Measuring Faces, 1-2 Inch Range, IP65 Protection
Mitutoyo · 389-352-30

Sheet Metal Micrometer with F-F Measuring Faces, 1-2 Inch Range, IP65 Protection

$ 738.58per unit · ex. VAT

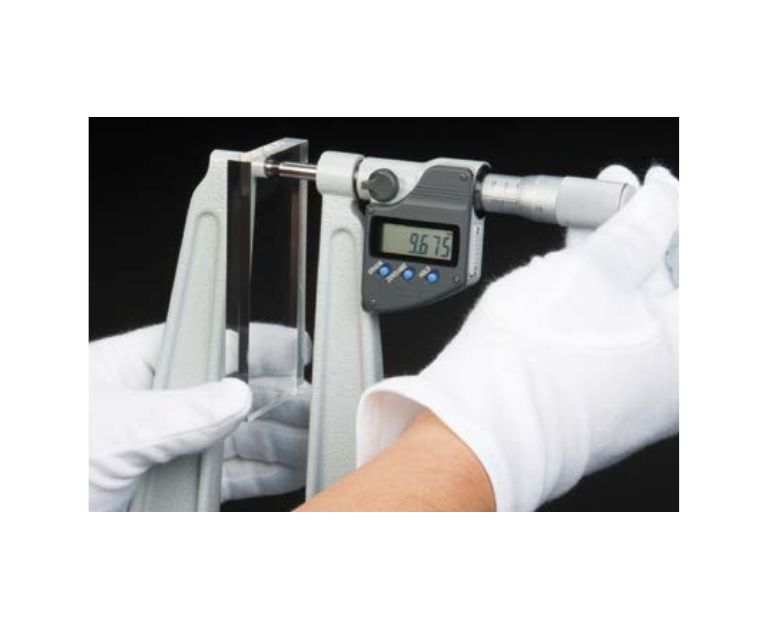

Precision sheet metal micrometer from Mitutoyo Series 389 featuring flat-flat measuring faces, 1-2 inch measurement range, and IP65 dust and water protection. Designed for accurate thickness measurement of sheet metal, plastic, and rubber materials with ratchet thimble for consistent measuring force.
Range
1 - 2 inch
Resolution
0.00005 inch / 0.001 mm
Accuracy
±0.0002 inch
Maximum Permissible Error JMPE
±0.0002 inch
Flatness
0.000024 inch
Range1 - 2 inch
Resolution0.00005 inch / 0.001 mm
Accuracy±0.0002 inch
Maximum Permissible Error JMPE±0.0002 inch
Flatness0.000024 inch
Parallelism0.00012 inch
Throat Depth6 inch

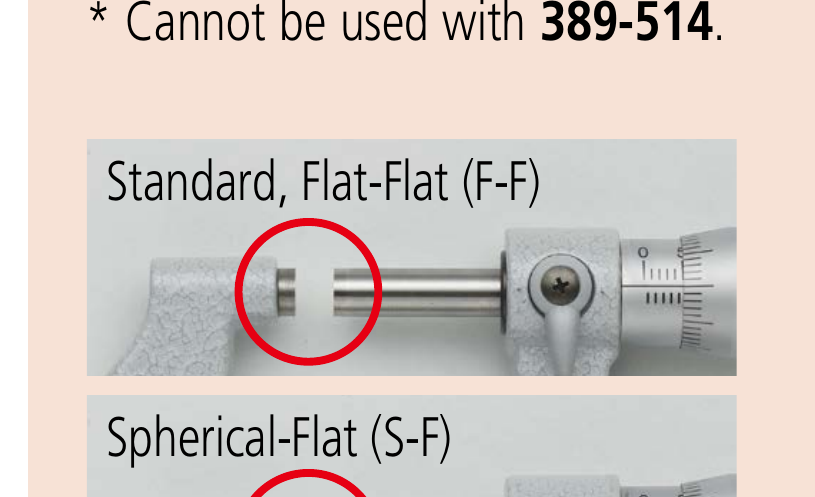

Measuring SurfacesF-F
Position Detection MethodElectromagnetic Rotary Sensor
Battery LifeApprox. 2.4 years under normal use
Power SourceSR44 battery (1 pc.), 938882 included as standard (for operational checks)
Standard AccessoriesSetting standard, 1 pc., Spanner (301336), 1 pc.
