The Mitutoyo 342-251-30 digital point micrometer is in our catalogue — 0–25 mm range, 0.001 mm resolution, IP65 protection, and carbide-tipped pointed anvils for measuring grooves and drill webs.

ChatMRO can make mistakes, so double check it

In stockProduct images and certification logos for Digital Point Micrometer IP65
Mitutoyo · 342-251-30

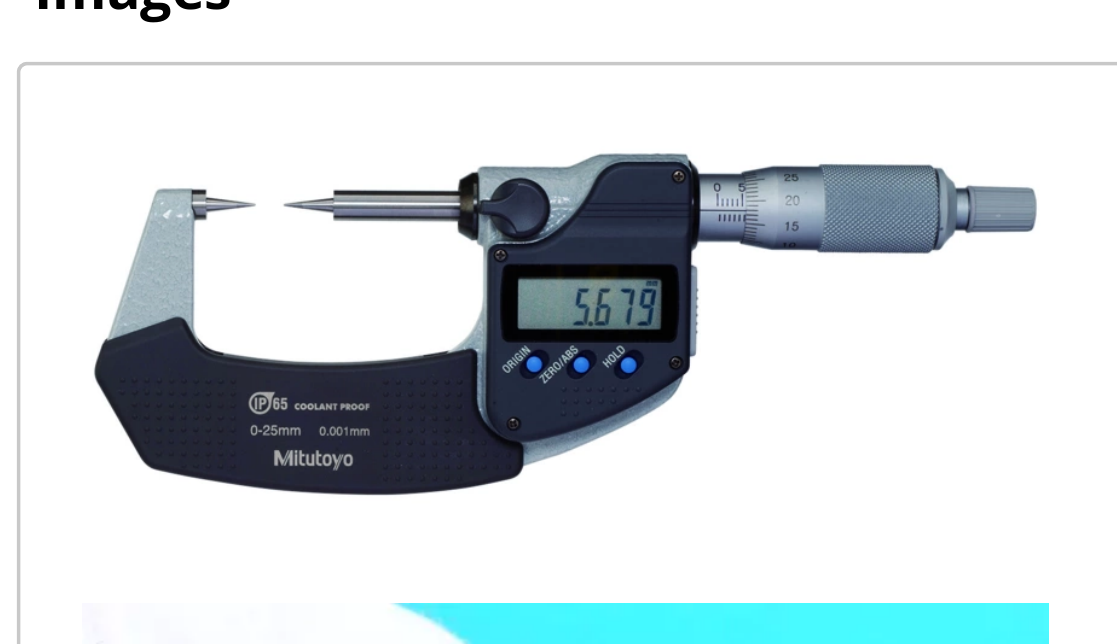

Digital Point Micrometer with 0–25 mm Range and 0.001 mm Resolution

$ 638.39per unit · ex. VAT

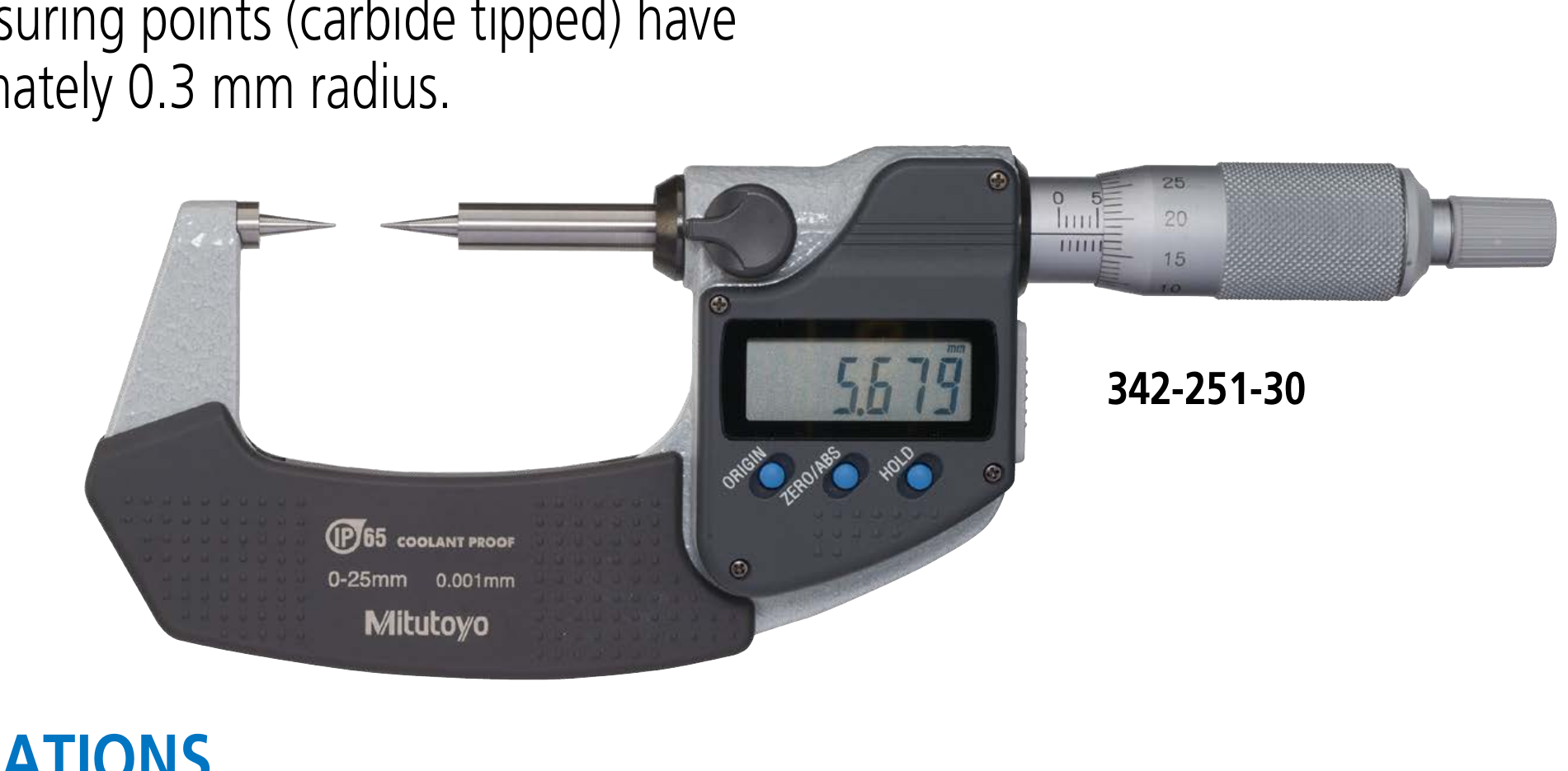

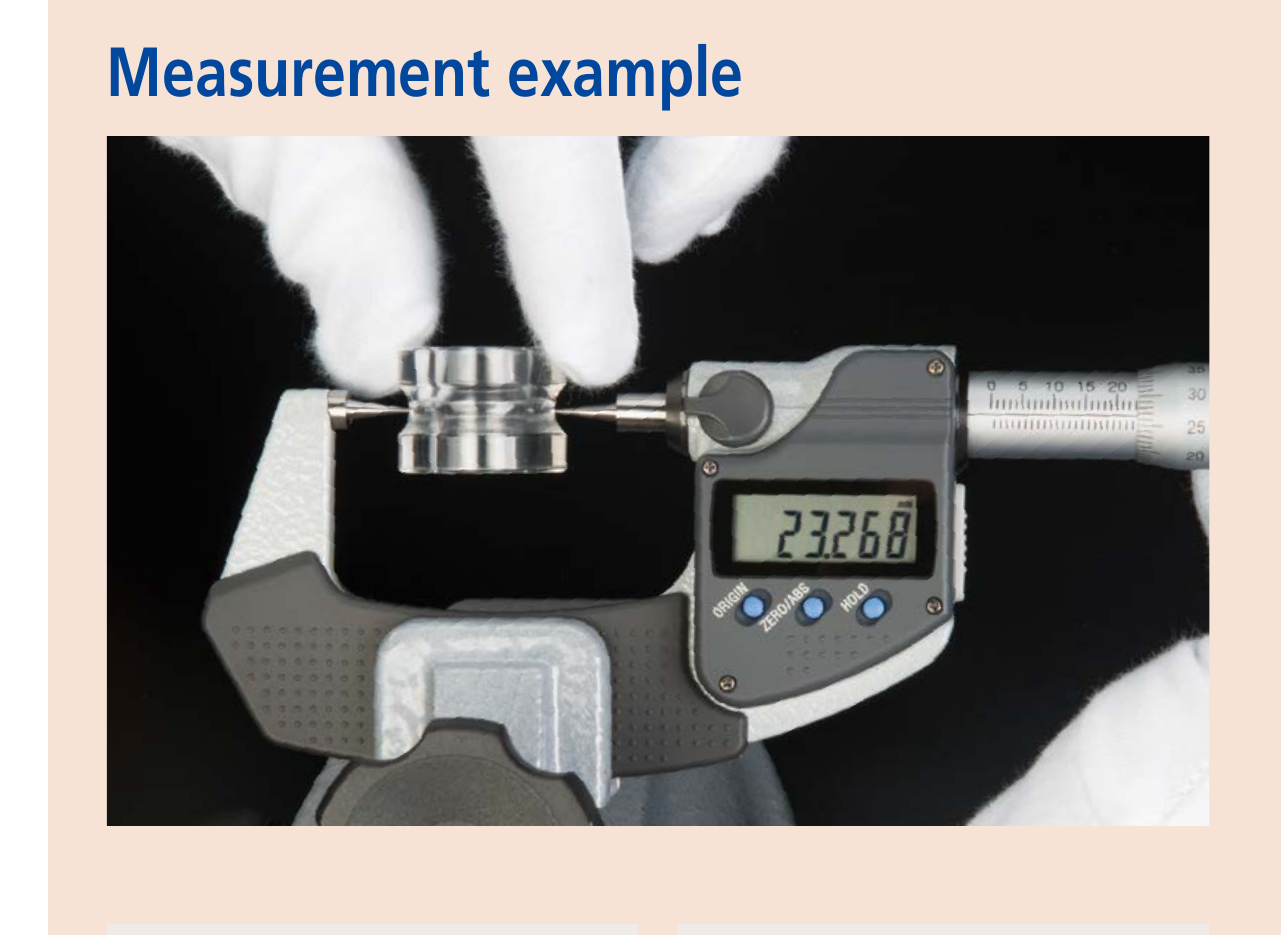

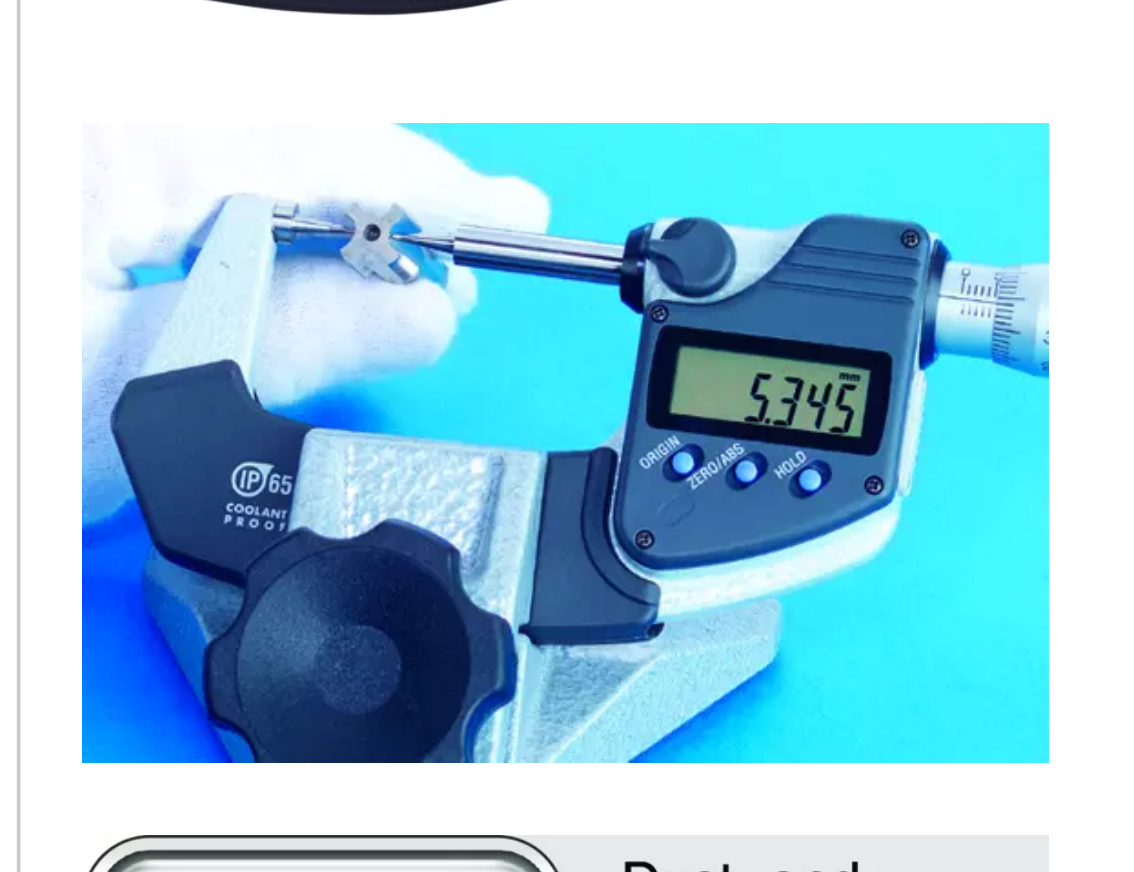

Digital point micrometer with pointed spindle and anvil, designed for measuring grooves, steps, drill web thickness, and other hard-to-reach dimensions. Features IP65 water and dust protection, carbide-tipped measuring faces with 0.3 mm radius, and a digital LCD display with 0.001 mm resolution. Powered by a single SR44 battery with approximately 2.4 years of life under normal use.
Range
0–25 mm
Resolution
0.001 mm
Digital Step
0.001 mm

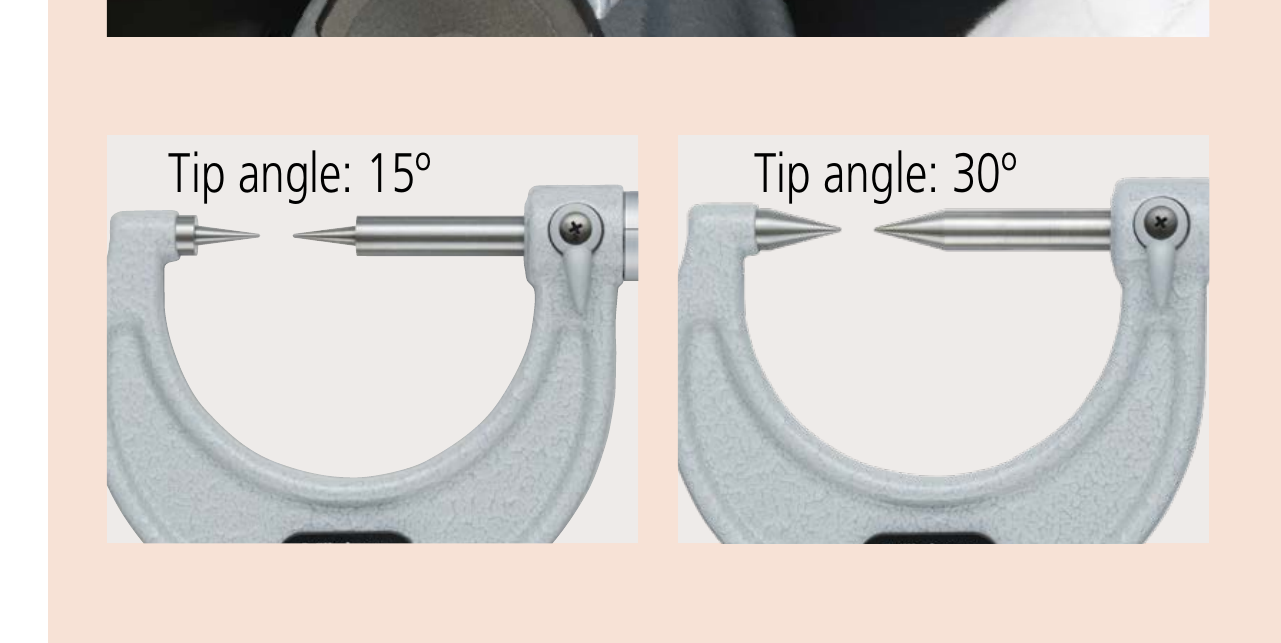

Point Angle
15°
Measuring Face

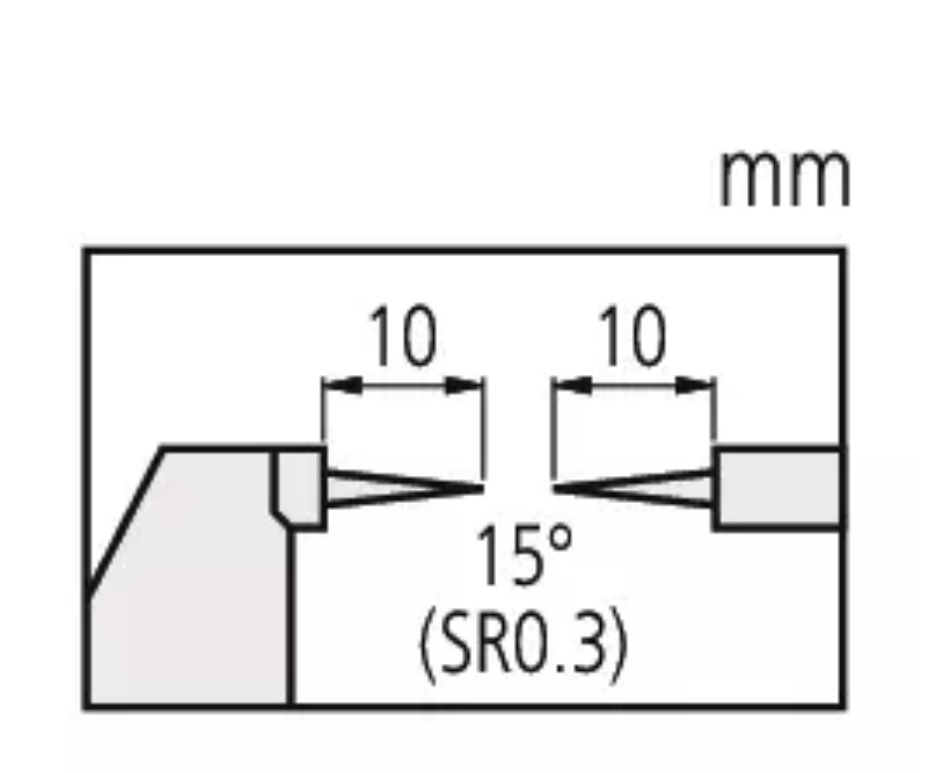

Carbide pointed spindle and anvil, measuring point radius 0.3 mm
Range0–25 mm
Resolution0.001 mm
Digital Step0.001 mm
Point Angle15°
Measuring FaceCarbide pointed spindle and anvil, measuring point radius 0.3 mm
Measuring Force3 - 8 N
DisplayLCD, character height 7.5 mm
Power Supply1 battery SR-44
Battery LifeApprox. 2.4 years

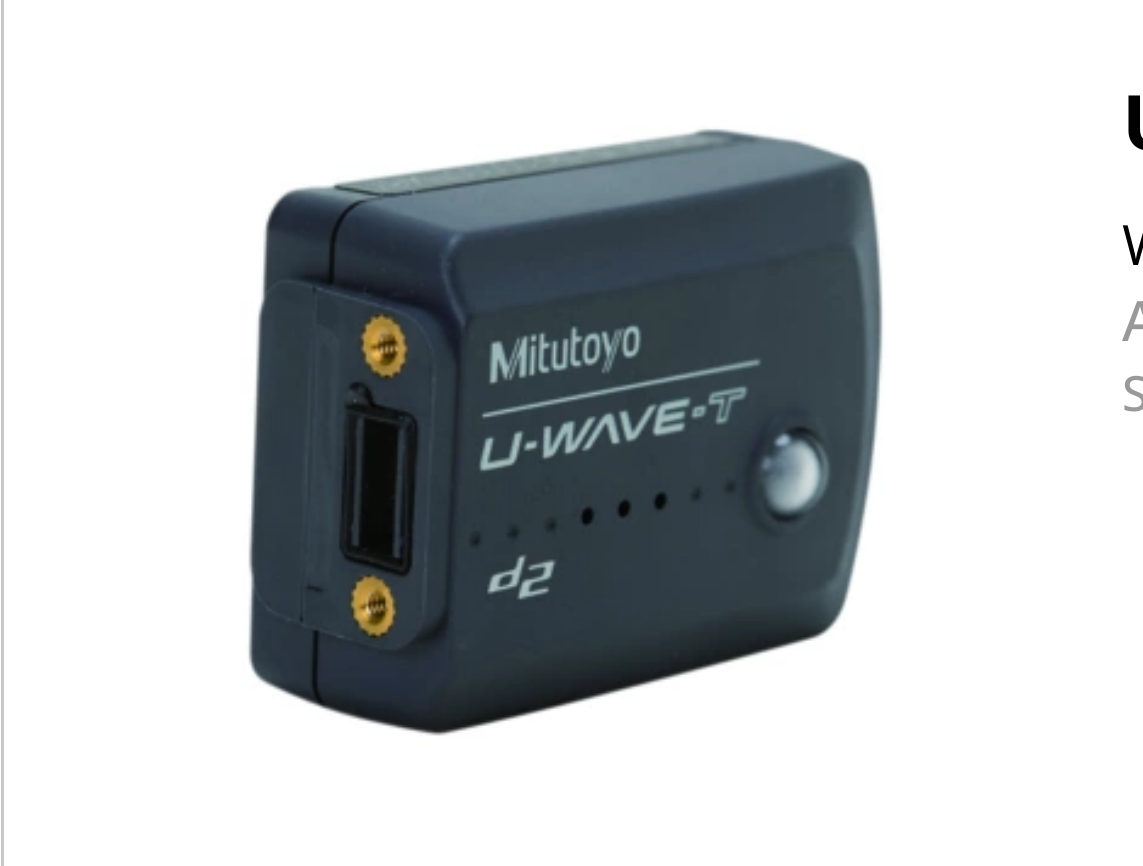

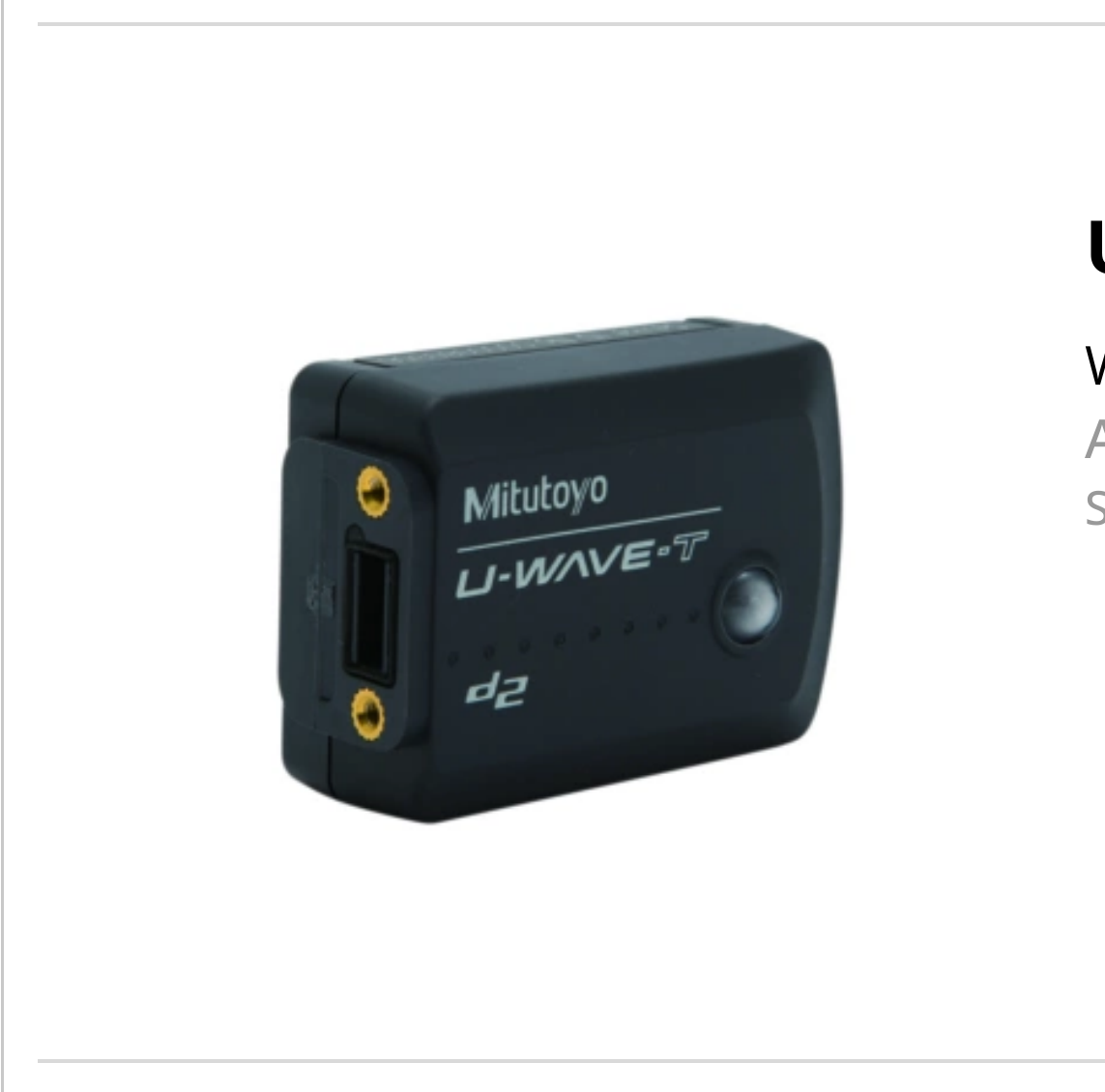

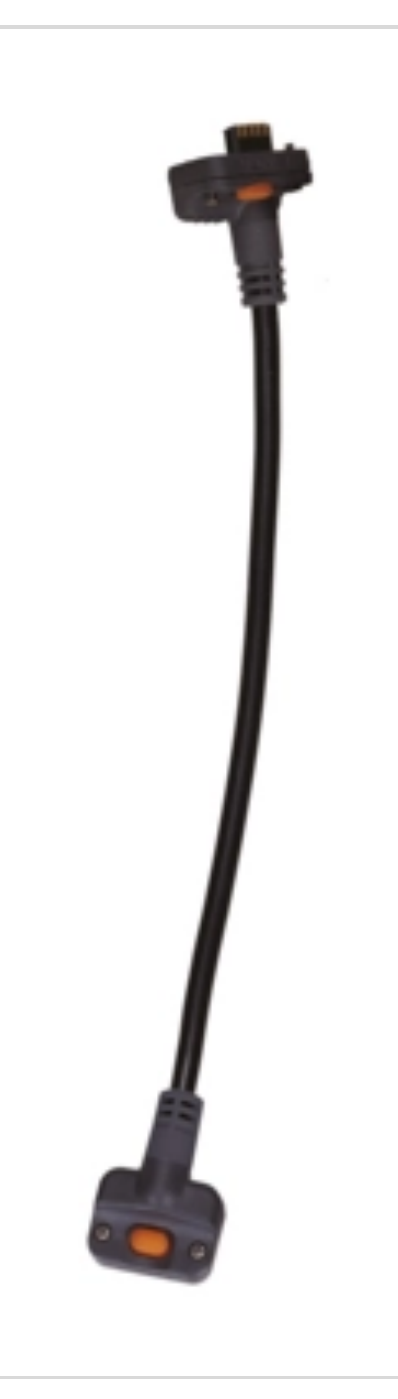

Data OutputYes
HOLD FunctionYes
Function LockYes
