Mitutoyo 147-201
ChatMRO

The Mitutoyo 147-201 is in our catalogue: Range 0 - 0.5 inch, Graduation 0.001 inch, Maximum Permissible Error JMPE ±0.00015 inch.

ChatMRO can make mistakes, so double check it

In stockCan Seam Micrometer for Spray Cans
Mitutoyo · 147-201

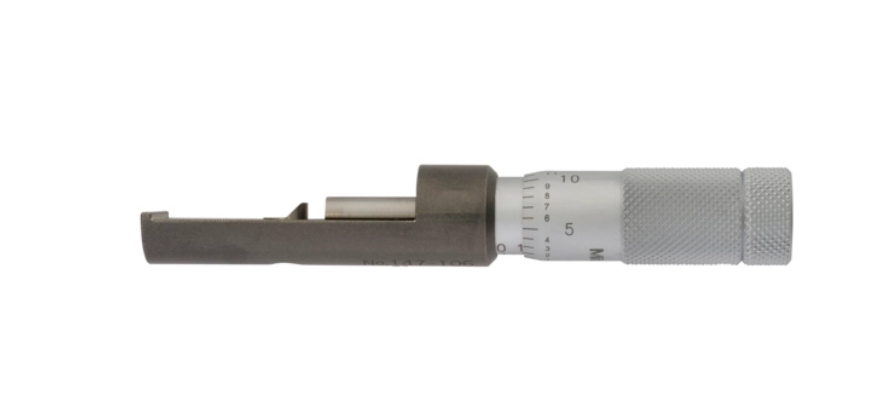

Can Seam Micrometer for Spray Cans

$ 196.36per unit · ex. VAT

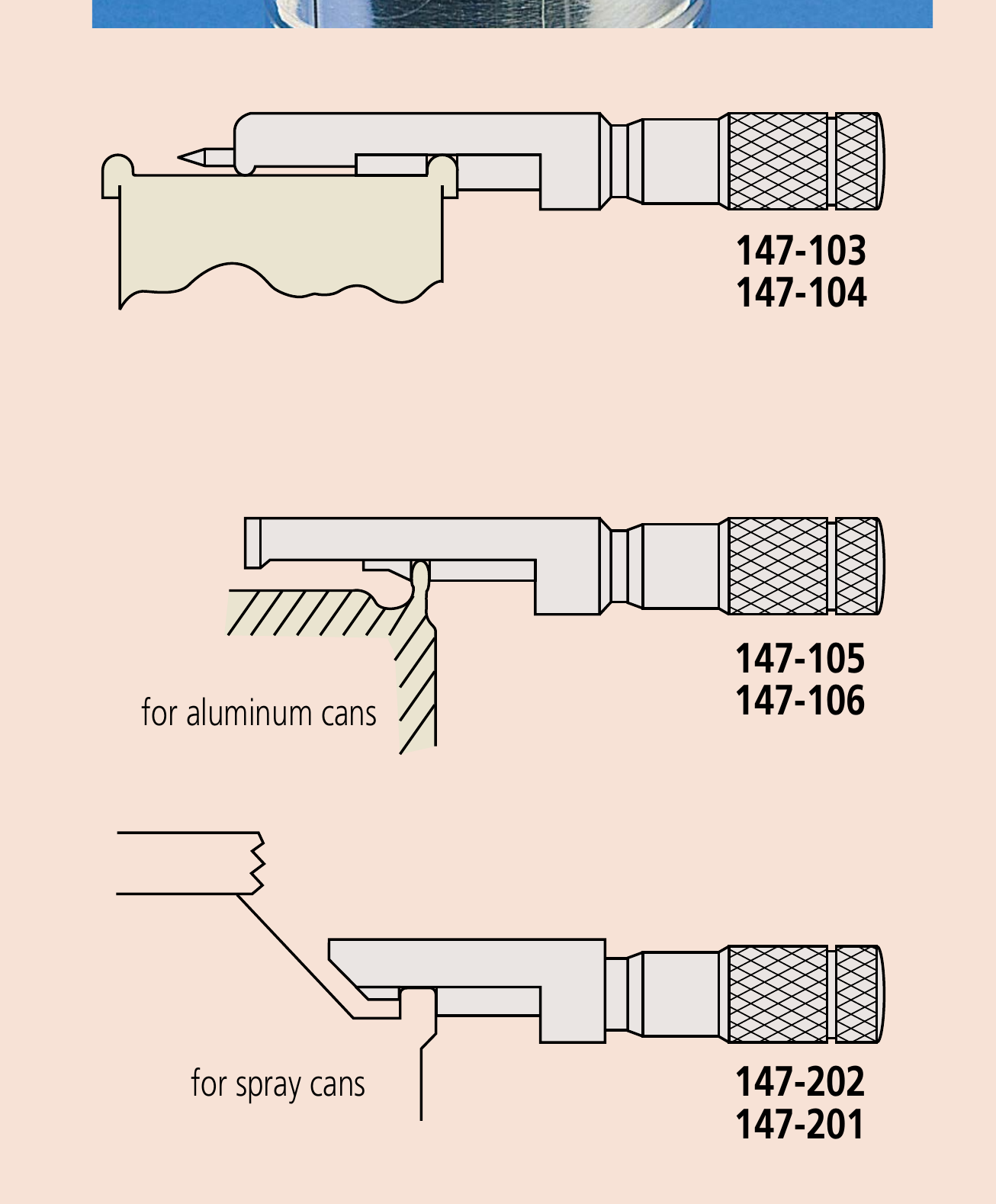

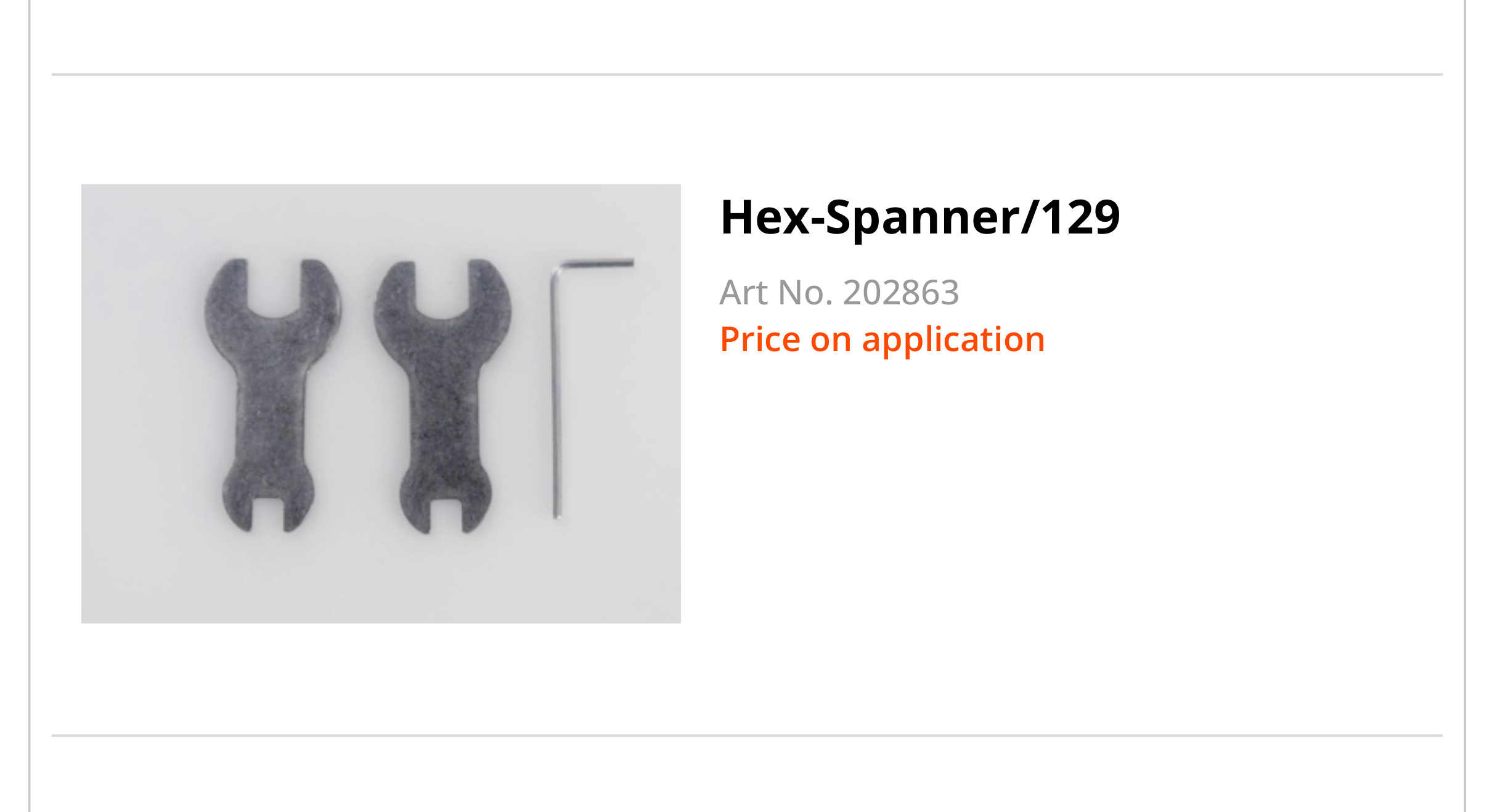

Mechanical can seam micrometer designed for measuring the width, height, and depth of spray can seams. Features a 0 to 0.5 inch range with 0.001 inch graduation and carbide-tipped anvil and spindle for durability. Complies with JIS B 7520 standards and includes a fitted carton, spanner, and hex wrench.
Range
0 - 0.5 inch
Graduation
0.001 inch
Maximum Permissible Error JMPE
±0.00015 inch
Anvil Material
Carbide
Spindle Material
Carbide
Range0 - 0.5 inch
Graduation0.001 inch
Maximum Permissible Error JMPE±0.00015 inch
Anvil MaterialCarbide
Spindle MaterialCarbide
Spindle Diameter18 mm
Thimble TypeRatchet
Operation TypeMechanical
SPC OutputNo
Rotating SpindleYes
Standard LogoJIS B 7520
Long Form Calibration CertificateNo
