The Hubbell UGR1-20231QW is in our catalogue: Type Straight Blade, Hub Size 1/2 inch, Material Aluminum, Copper Free (less than 4/10 of 1 percent).

ChatMRO can make mistakes, so double check it

In stock20A 125V Hazardous Location Receptacle with Dead-End Hub and Quick-Wire
Hubbell · UGR1-20231QW

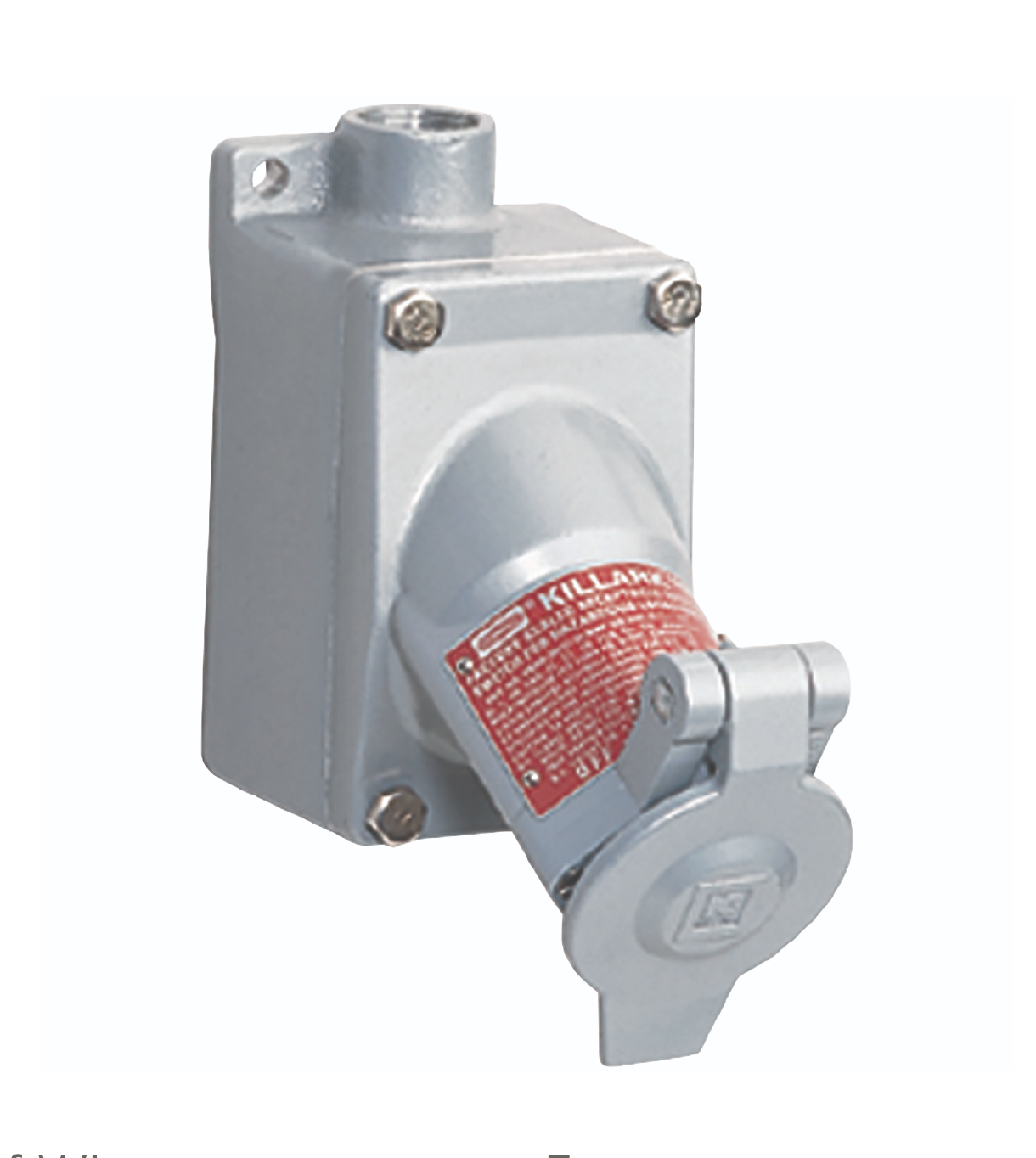

20A 125V Hazardous Location Receptacle with Dead-End Hub and Quick-Wire

$ 562.57per unit · ex. VAT
20A 125V AC hazardous location receptacle with 2 poles, 3 wires, and a 1/2 inch dead-end hub. Constructed with copper-free aluminum housing and powder-coated finish for corrosion resistance. Certified for Class I, II, and III hazardous environments with NEMA 3, 7, and 9 ratings.
Type
Straight Blade
Hub Size
1/2 inch
Material
Aluminum, Copper Free (less than 4/10 of 1 percent)
Hub Pattern
Dead-End
Nema Rating
3, 7(C, D), 9(F, G)
TypeStraight Blade
Hub Size1/2 inch
MaterialAluminum, Copper Free (less than 4/10 of 1 percent)
Hub PatternDead-End
Nema Rating3, 7(C, D), 9(F, G)
Factory SealedFactory Sealed
Amperage Rating20 A
Number Of Poles2
Number Of Wires3
Receptacle TypeDelayed Action
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D, Class I, Zones 1 & 2, Groups IIB, IIA, Class II, Divisions 1 & 2, Groups F, G, Class III, Divisions 1 & 2
Voltage Rating125V AC
