Hubbell Wiring Device-Kellems mcwf2050
The Hubbell MCWF2050 is in our catalogue: Amps 30, Voltage 125V AC, NEMA Configuration L5-30.
In stock
Hubbell · MCWF2050

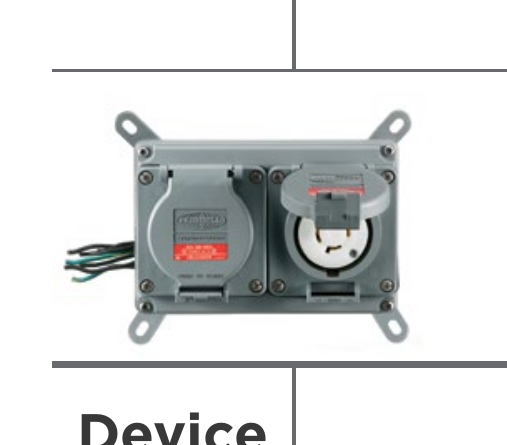

Duplex Conduit Feed Locking Receptacle 30A 125V L5-30R
$ 425.82per unit · ex. VAT
Hubbell MCWF2050 is a duplex conduit feed locking receptacle rated for 30A and 125V AC, featuring L5-30R configuration, shrouded design, and flush mounting. It has a composite housing, IP66 rating, and is suitable for industrial environments requiring watertight and impact-resistant connectivity.
Amps
30
Voltage
125V AC
NEMA Configuration
L5-30
NEMA Receptacle Configuration
L5-30R
Enclosure Type
4, 4X, 12 (when lift lid is latched or connected to equivalently rated plug)
Amps30
Voltage125V AC
NEMA ConfigurationL5-30
NEMA Receptacle ConfigurationL5-30R
Enclosure Type4, 4X, 12 (when lift lid is latched or connected to equivalently rated plug)
IP RatingIP66
Housing MaterialComposite
Housing ColorGray
Mount TypeFlush
Flange TypeFlanged
Flange ShapeRectangular
Wiring StyleStandard
Wire Connection TypeScrew Terminals
Number of Poles2
Number of Wires3
Number of Gangs2
PolarizedYes
ShroudedYes
Special FeaturesConduit Feed
StandardscULus Listed
Resistance PropertiesImpact Resistant, Watertight
Connection OrientationStraight
GradeIndustrial
MarketIndustrial
