The Hubbell Wiring Device-Kellems HBLC30163TT is in our catalogue: Amps 10, Volts AC 125, Watts (Max) 1,250.
ChatMRO can make mistakes, so double check it
In stock
Hubbell Wiring Device-Kellems · HBLC30163TT
Commercial Cord Reel with Triple Tap Outlet, 30 ft #16/3 SJT Cable, 10A 125V AC
$ 412.27per unit · ex. VAT
Commercial-grade cord reel designed for dry, indoor, non-hazardous locations. Features a 30-foot #16/3 SJT cable with a triple tap outlet, 10A 125V AC rating, and a maximum load of 1,250 watts. Includes a 2 ft power supply cord with a molded 15A plug.
Amps
10
Volts AC
125
Watts (Max)
1,250
Cable Length
30 (9.1) Feet (m)
Cable Type
#16/3 SJT
Amps10
Volts AC125
Watts (Max)1,250
Cable Length30 (9.1) Feet (m)
Cable Type#16/3 SJT
EnvironmentDry, indoor, non-hazardous locations
Listing CertificationUL 355
NoteReels supplied with 2 ft. power supply cord and molded on straight blade 15A plug.
Fluorescent Lamp10A/1200W max. with in-line receptacle; 13 watt without receptacle
Incandescent Lamp75 watt max., auto switch, no receptacle; 100 watt max. bulb, with receptacle
Weight3.71 kg
Dimensions13.3" × 10.4" × 4.7"
MOQ1
Drawings

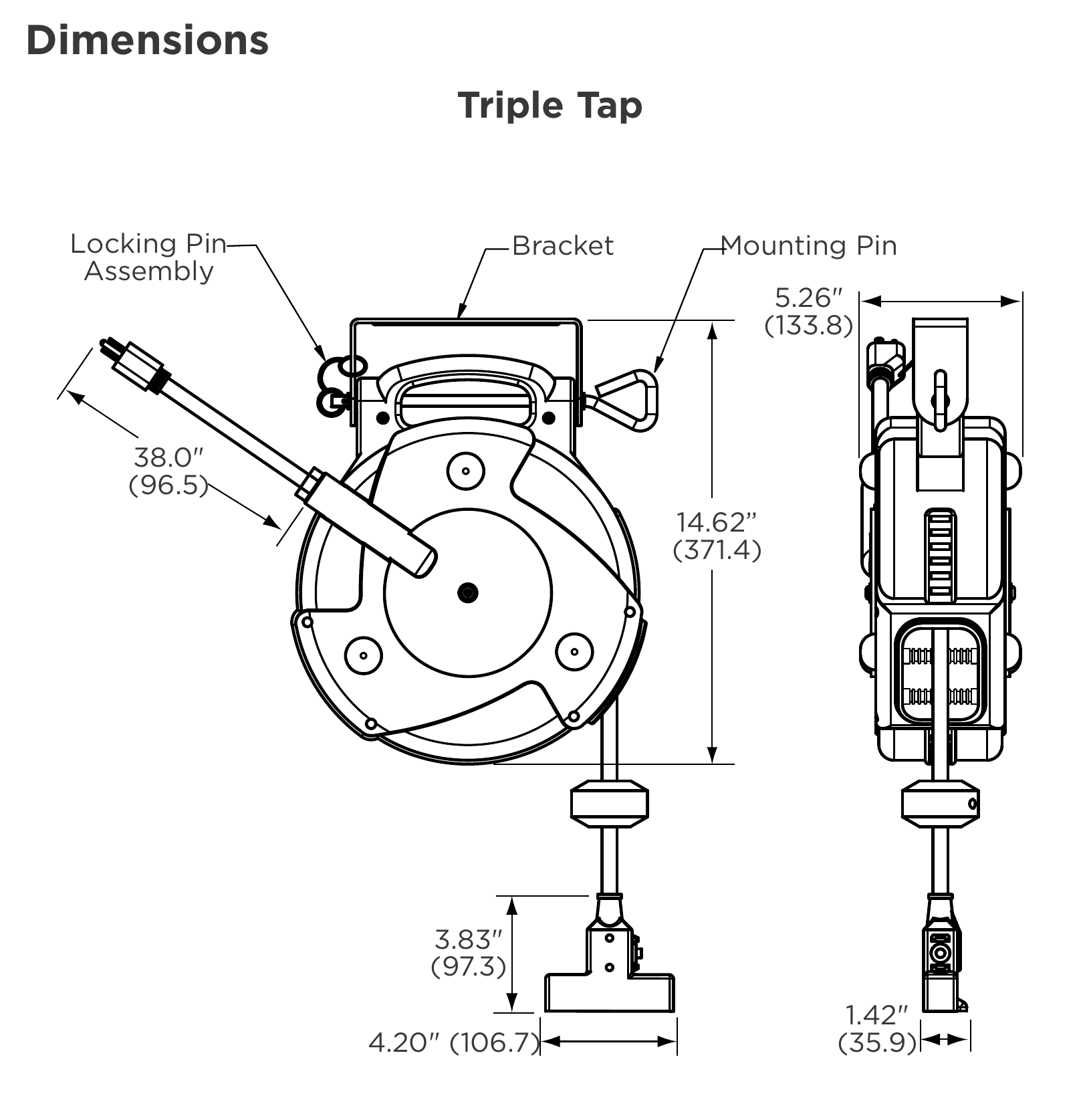

Engineering diagram of Triple Tap cord reel with dimensions
Product

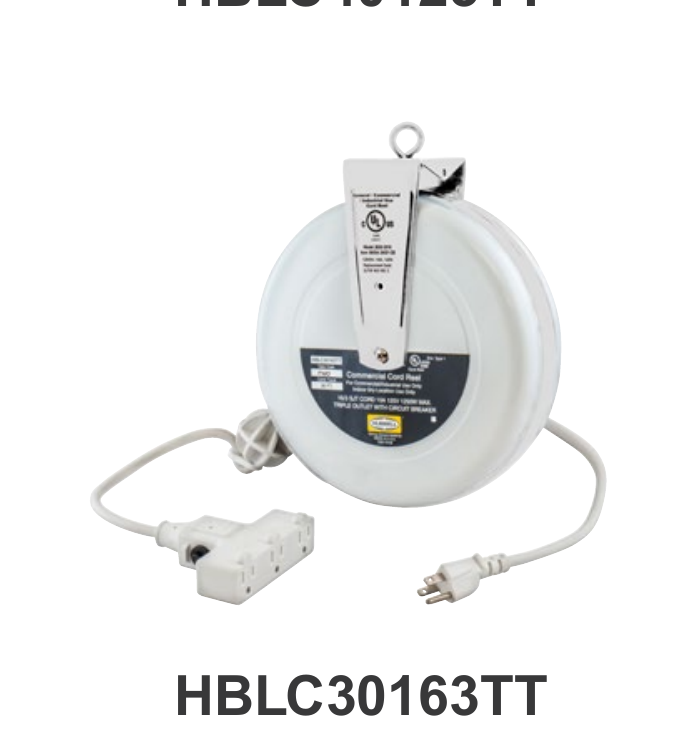

Product photo of HBLC30163TT white cord reel
Product
MPNDescriptionPrice

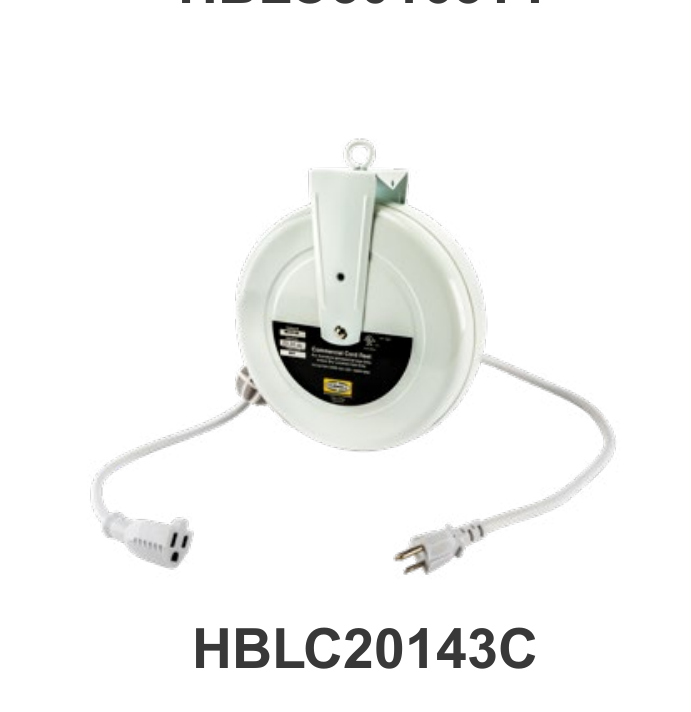

HBLC20143CVariant - White reel with single connector and white cord.—
1
HBLC25163Variant - Yellow reel with Hubbell HBL5969VBLK connector$ 287.36
1
HBLC25163CVariant - Yellow reel with Hubbell HBL5969VBLK connector.$ 287.36
1
HBLC40123Variant - Black reel with wire leads.$ 589.19
1
HBLC40123TTVariant - Black reel with triple tap outlet.$ 573.56
1
HBLC25163**Variant - Yellow reel with wire leads.—
