The Hubbell HBL9451C is in our catalogue: Amperage 50A, Voltage 125/250V, Poles 3 Pole.

ChatMRO can make mistakes, so double check it

In stock50A, 125/250V, 3 Pole, 4 Wire Grounding Plug
Hubbell · HBL9451C

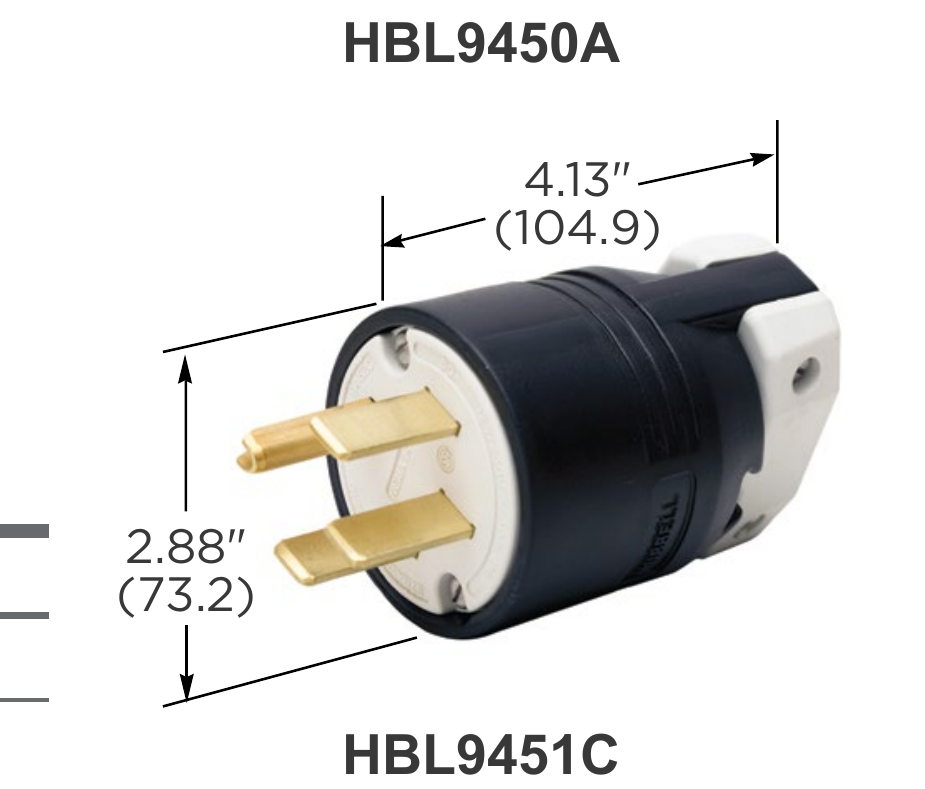

50A, 125/250V, 3 Pole, 4 Wire Grounding Plug

$ 149.72per unit · ex. VAT
Industrial-grade straight blade plug rated for 50A, 125/250V, with 3 poles and 4 wires including grounding. Constructed with Supertough Nylon housing and brass blades, suitable for commercial and industrial applications. Complies with UL 498 and CSA standards, with IP20 suitability and operating temperatures from -40°C to 75°C.
Amperage
50A
Voltage
125/250V
Poles
3 Pole
Wires
4 Wire Grounding
NEMA Rating
NEMA 14-50P
Amperage50A
Voltage125/250V
Poles3 Pole
Wires4 Wire Grounding
NEMA RatingNEMA 14-50P
HousingSupertough Nylon
BladesBrass
Blade HolderReinforced Thermoplastic Polyester
Cord Diameter.625 inch-1.310 inch (15.9-33.3)
IP SuitabilityIP20
Operating TemperaturesMaximum continuous 75 degree Celsius; minimum -40 degree Celsius (w/o impact)
Terminal Accommodation#12 AWG through #4 AWG copper wire only
