The Hubbell HBL5266EBK is in our catalogue: Poles 2, Wires 3, Rating 15A 125V.

ChatMRO can make mistakes, so double check it

In stockInsulgrip® Straight Blade Plug 15A 125V NEMA 5-15P
Hubbell · HBL5266EBK

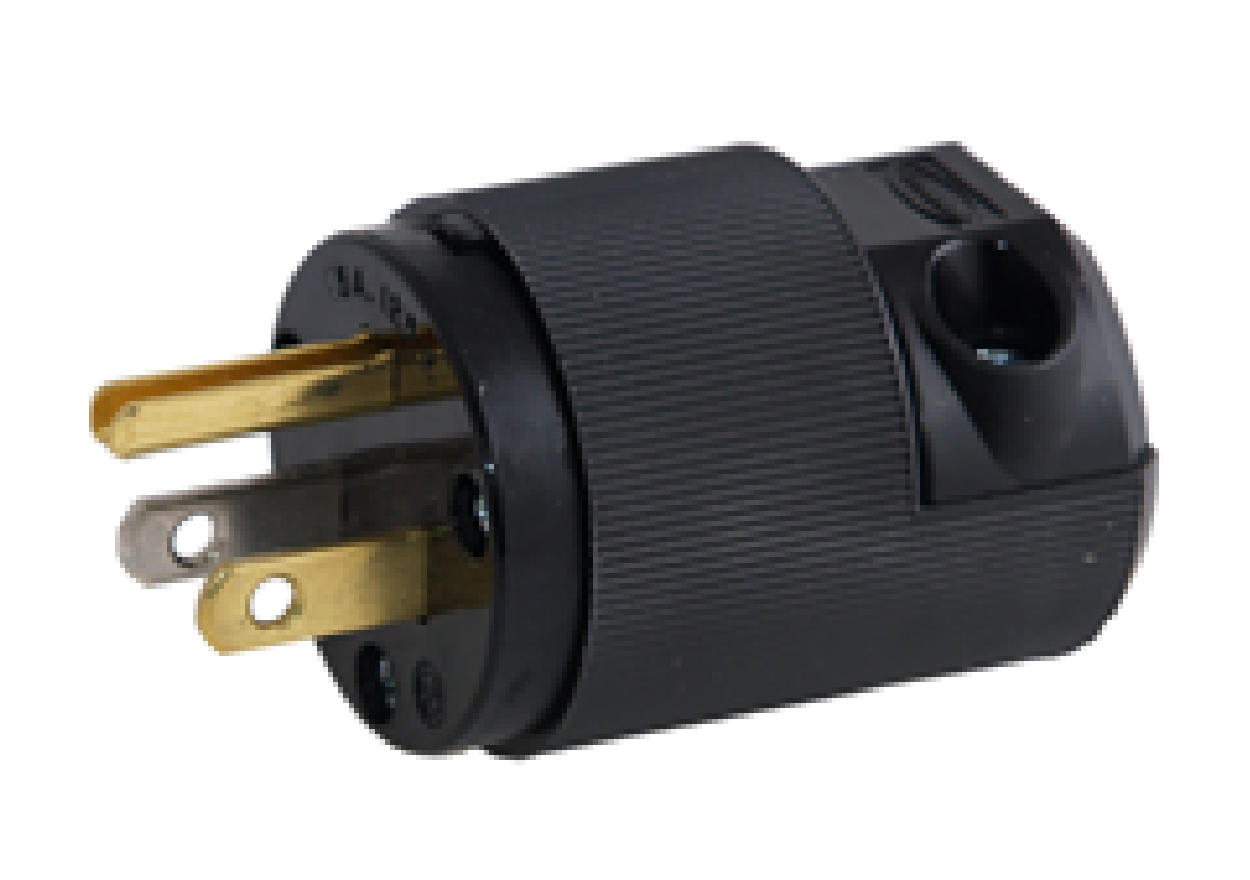

Insulgrip® Straight Blade Plug 15A 125V NEMA 5-15P

$ 50.56per unit · ex. VAT
Industrial/commercial grade straight blade plug with 2 poles, 3 wires, and grounding. Rated for 15A 125V with NEMA 5-15P configuration. Features a black nylon housing and extra large cord clamp accommodating 10-18 AWG stranded copper wire. Certified to UL 498 and CSA C22.2 standards with IP20 suitability.
Poles
2
Wires
3
Rating
15A 125V
Grounding
Yes
Configuration
NEMA 5-15P
Poles2
Wires3
Rating15A 125V
GroundingYes
ConfigurationNEMA 5-15P
Cord Diameter.360 inch-.720 inch (9.1-18.3 mm)
Blades0.060 inch (1.5 mm) Brass
Blade HolderNylon
FlammabilityUL 94 HB or better
Terminal ClampNickel plated steel
Assembly ScrewsNickel plated steel
Terminal Screws#8-32 Brass, multiple drive
