Hubbell Wiring Device-Kellems hbl5262
ChatMRO

The Hubbell Wiring Device-Kellems HBL5262 is in our catalogue: Type 2 Pole, 3 Wire, Grounding, Rating 15A, 125V, NEMA Configuration 5-15R.

ChatMRO can make mistakes, so double check it

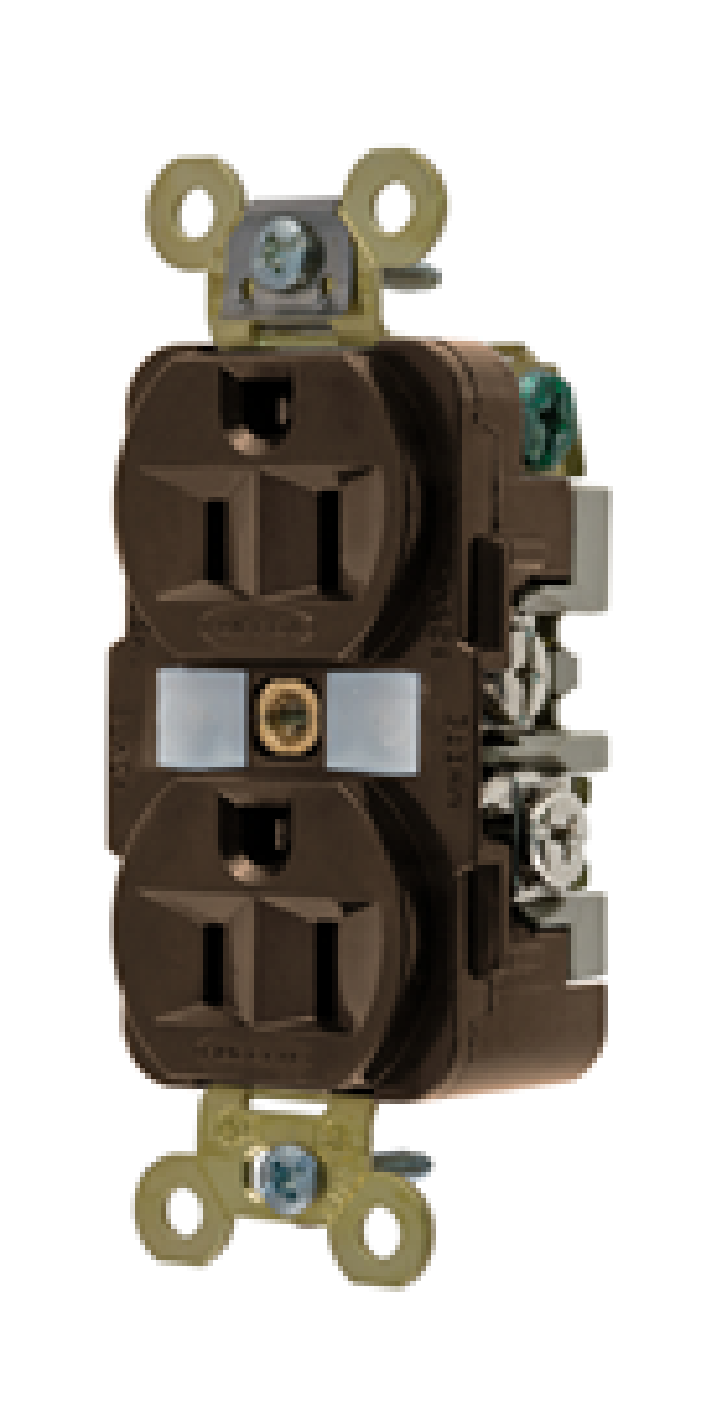

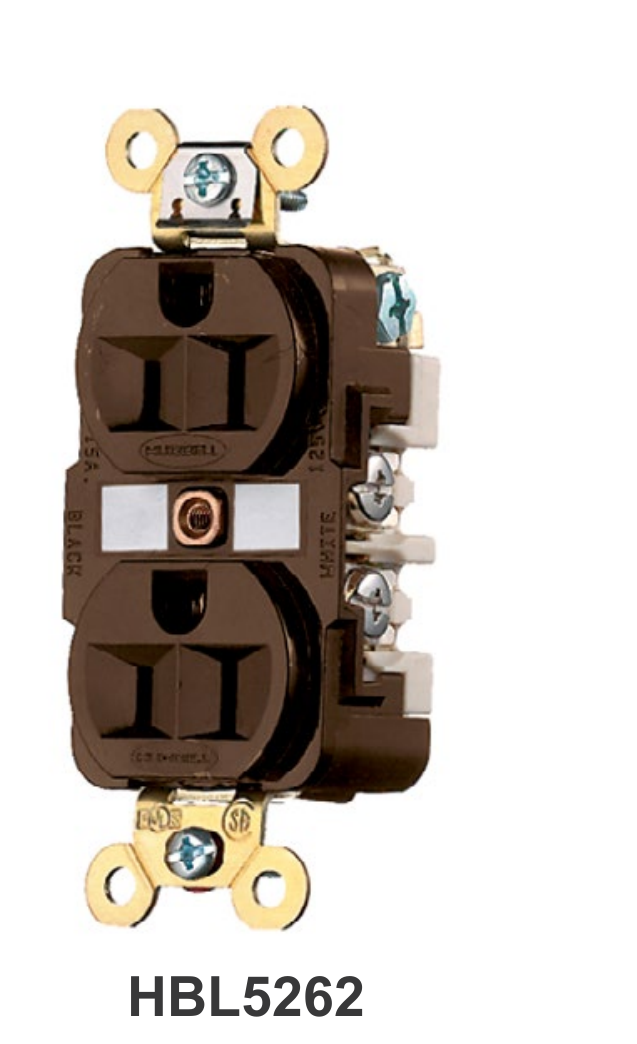

In stockExtra Heavy Duty Specification Grade Duplex Receptacle 15A 125V 5-15R
Hubbell Wiring Device-Kellems · HBL5262

Extra Heavy Duty Specification Grade Duplex Receptacle 15A 125V 5-15R

$ 44.70per unit · ex. VAT
Heavy-duty straight blade duplex receptacle rated 15A, 125V, NEMA 5-15R configuration. Features nylon face and PBT base with UL 94V-2 and UL 94V-0 flammability ratings. Designed for industrial and harsh environments with back and side wiring capability. Certified to UL 498, CSA C22.2 No. 42, and Federal Specification W-C-596.
Type
2 Pole, 3 Wire, Grounding
Rating
15A, 125V

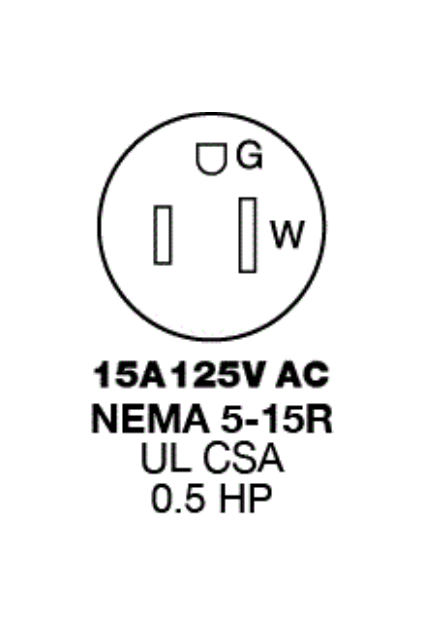

NEMA Configuration
5-15R
Face Material
Nylon
Base Material
PBT
Type2 Pole, 3 Wire, Grounding
Rating15A, 125V
NEMA Configuration5-15R
Face MaterialNylon
Base MaterialPBT
Mounting Strap Material.050 inch (1.3) Brass
Ground Screw Material#10-32 Brass, Multiple Drive (Green)
Terminal Screw Material#10-32 Brass, Multiple Drive
Auto Ground Clip MaterialStainless Steel
By-Pass Power Contacts Material.037 inch (.9) Brass
Terminal Accommodation#14-10 AWG stranded or solid copper conductor only
Terminal IdentificationTerminals identified in accordance with UL 498 and CSA (Brass, White, Green)
