Hubbell Wiring Device-Kellems hbl460ps1w
The Hubbell HBL460PS1W is in our catalogue: Amps 60, Plug Pole 3P, Plug Wire 4W.
In stock
Hubbell · HBL460PS1W

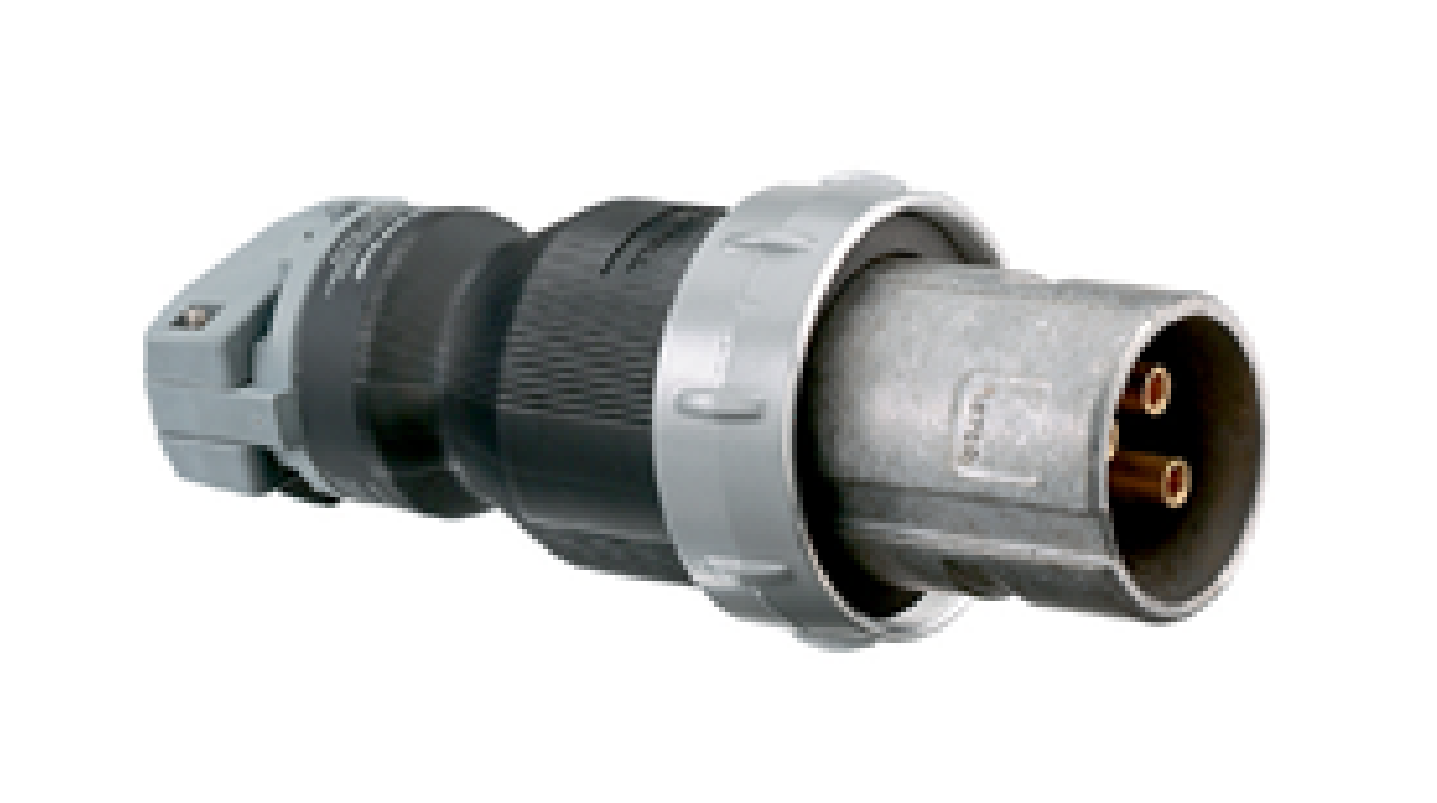

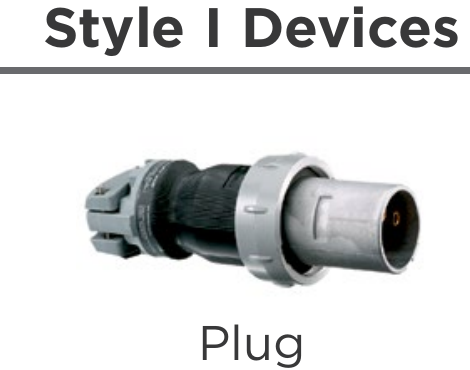

60A 3P4W 600/250V AC/DC Style 1 Insulgrip Pin and Sleeve Plug
$ 597.00per unit · ex. VAT
Insulgrip® Pin and Sleeve Plug, Style 1, rated 60A, 600/250V AC/DC, 3 Pole, 4 Wire. Features Valox® 357 housing, aluminum shroud, and neoprene seals for watertight, impact-resistant performance. Complies with UL 1682, UL 50, UL 1010, and CSA C22.2 No. 159 standards.
Amps
60
Plug Pole
3P
Plug Wire
4W
Plug Style
S1
Max Voltage AC/DC
600/250
Amps60
Plug Pole3P
Plug Wire4W
Plug StyleS1
Max Voltage AC/DC600/250
Poles and Wires3P 4W
Maximum Voltage AC/DC600/250
Rating60A, 600/250V AC/DC, 3 Pole, 4 Wire
HousingValox® 357
RetainerThermoset Polyester
Clamp NutNickel Plated Brass
Gland CapRynite® SST35
StandardsUL Standard 1682,UL 50, and UL 1010, CSA Certified to CSA Spec. C22.2 No. 159, UL Listed and CSA Certified Type 4X
Plug ShroudAluminum
Device ColorAluminum
Grounding StyleStyle 1
Impact ResistancePer CSA C22.2, No. 182.1, UL 1682
Dielectric VoltageWithstands 3,000V AC
Moisture ResistanceType 3, 4, 4X per UL 50E and CSA 22.2, No. 94
Current InterruptingCertified for current interrupting at full rated current
Max. Working Voltage600V AC RMS
Operating TemperaturesMax. Continuous 75 degree Celsius; Min. -40 degree Celsius w/o impact -25 degree with impact
O-Ring, Gaskets & SealsNeoprene
Terminal IdentificationTerminals identified in accordance with UL 1686(1, 2, 3, Green)
Flammability (Enclosure)UL 94V-0 and CSA C22.2 No. 0.17
Wire Size6 AWG to 4 AWG
UL 94 Flammability RatingV-0
Maximum Operating Temperature75 degree Celsius
Minimum Operating Temperature-40 degree Celsius
Terminal TypeScrew
Connection TypePlug
Built-In Strain ReliefYes
Connection DescriptionWater Resistant
Cord TypeRound portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
ApplicationProvide safe and dependable performance in the most demanding environments, Heavy duty construction provides impact and corrosion protection, Withstands high temperatures and provide resistance to electrical tracking
Product Weight2.55
