Hubbell Wiring Device-Kellems hbl430mi7w
ChatMRO

The Hubbell HBL430MI7W is in our catalogue: Amperage 30 A, Voltage 480V AC, 3-Phase, Poles and Wires 3 Pole, 4 Wire.

ChatMRO can make mistakes, so double check it

In stock30A, 3P4W, 480V AC, 3-Phase Unfused Pin & Sleeve Mechanical Interlock
Hubbell · HBL430MI7W

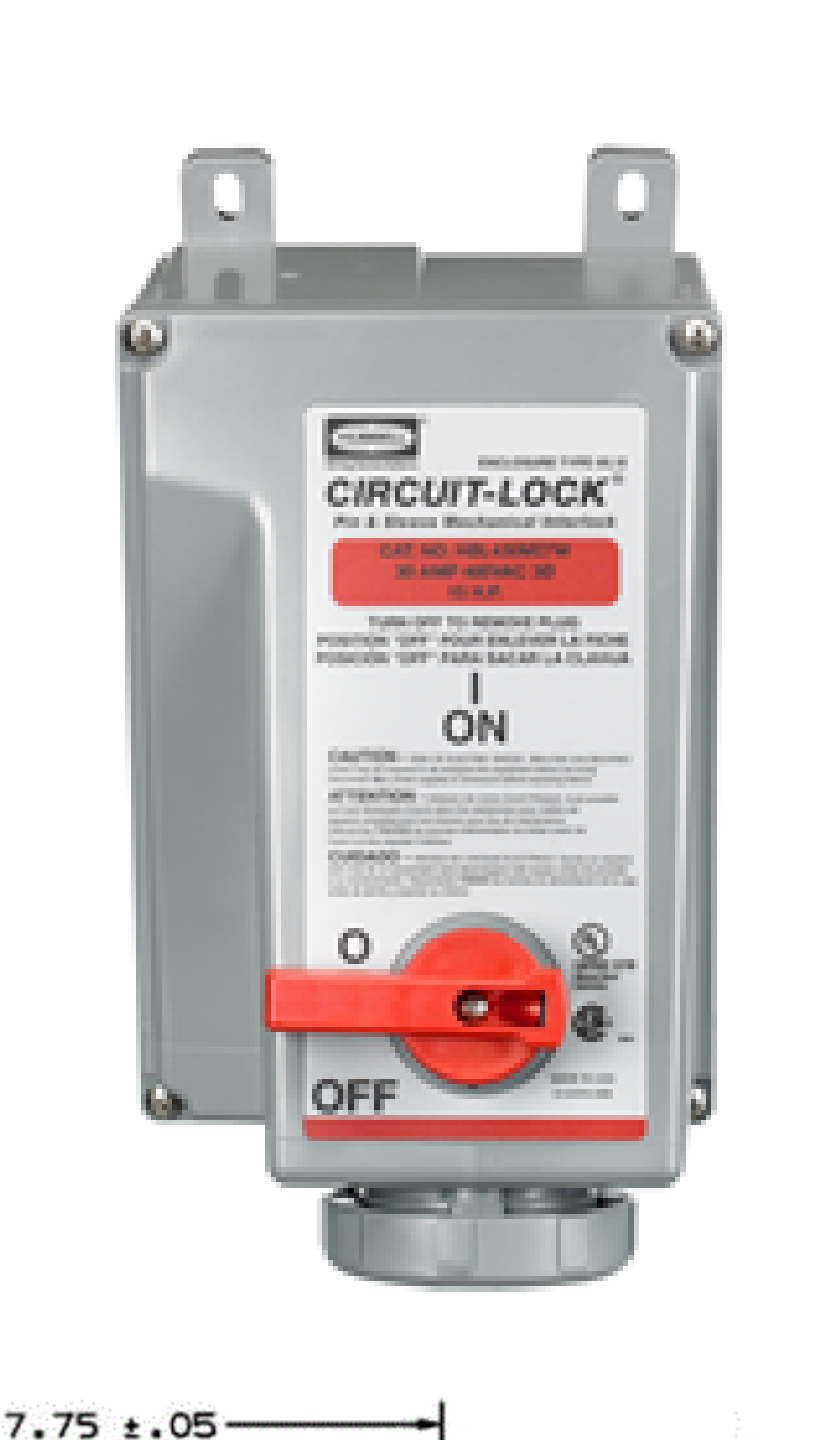

30A, 3P4W, 480V AC, 3-Phase Unfused Pin & Sleeve Mechanical Interlock

$ 1499.14per unit · ex. VAT
Unfused Circuit-Lock® Pin & Sleeve Mechanical Interlock rated for 30A, 3P4W, 480V AC, 3-phase applications. Features IP67 suitability, NEMA 4X/12 rating, and operating temperature from -40°C to +75°C. Constructed with Valox® base and face, zinc conduit hub, and neoprene gasket for watertight performance in indoor and outdoor environments.
Amperage
30 A
Voltage
480V AC, 3-Phase
Poles and Wires
3 Pole, 4 Wire
Base Material
Valox®
Face Material
Valox®
Amperage30 A
Voltage480V AC, 3-Phase
Poles and Wires3 Pole, 4 Wire
Base MaterialValox®
Face MaterialValox®
Conduit Hub MaterialZinc
Enclosure Gasket MaterialNeoprene
Flammability RatingUL94-5VA and V-0 Classification
Dielectric Strength3,000V AC Minimum
Ingress ProtectionIP67 Suitability
NEMA Rating4X, 12
Operating Temperature-40°C to +75°C
