The Hubbell HBL2741 is in our catalogue: Rating 30A, 3 Pole 4 Wire grounding, Voltage AC 3Ø 600V AC, NEMA Configuration L17-30P.

ChatMRO can make mistakes, so double check it

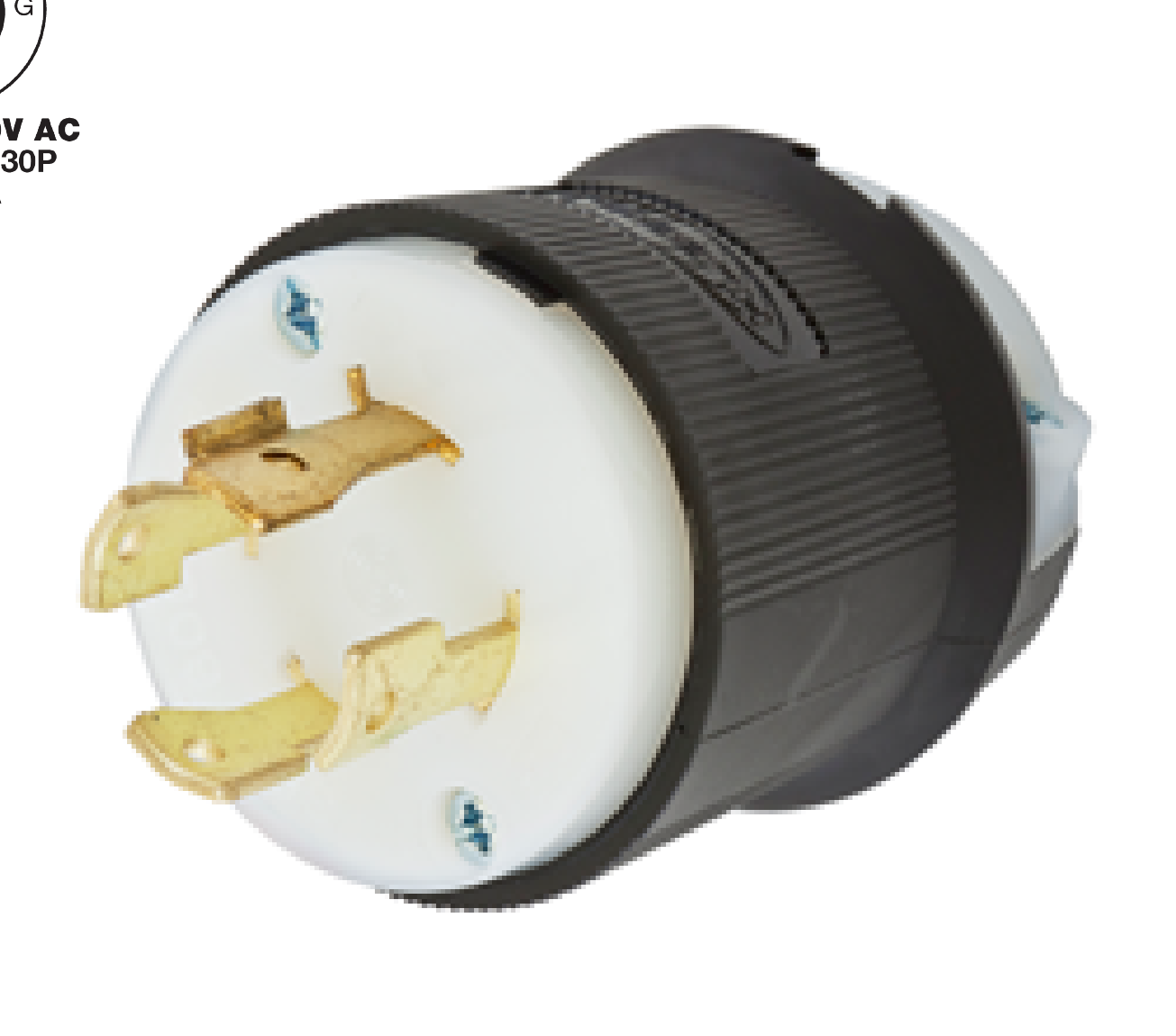

In stockInsulgrip Twist-Lock Plug, 30A 3Ø 600V AC, L17-30P
Hubbell · HBL2741

Insulgrip Twist-Lock Plug, 30A 3Ø 600V AC, L17-30P

$ 66.00per unit · ex. VAT
30A, 3 Phase, 600V AC, 3 Pole, 4 Wire Grounding Twist-Lock plug. Features black and white nylon housing, brass blades, and IP20 suitability. Listed to UL 498, CSA C22.2 No.42, and Fed.Spec. W-C-596. Suitable for industrial environments and convertible to Safety-Shroud configuration.
Rating
30A, 3 Pole 4 Wire grounding
Voltage AC
3Ø 600V AC

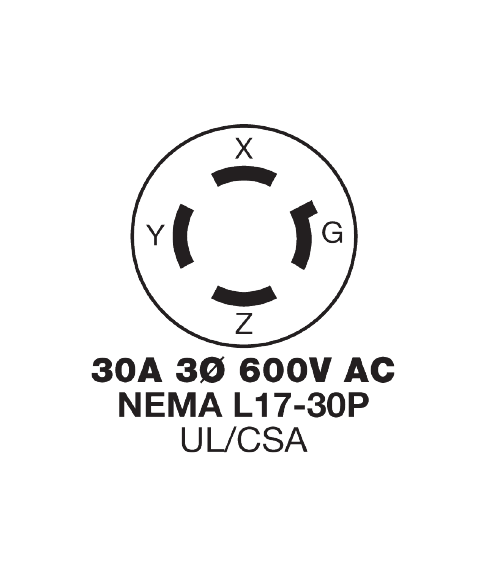

NEMA Configuration
L17-30P
Cord Diameter
0.350 inch - 1.150 inch (9-29 mm)
Suitability
IP20
Rating30A, 3 Pole 4 Wire grounding
Voltage AC3Ø 600V AC
NEMA ConfigurationL17-30P
Cord Diameter0.350 inch - 1.150 inch (9-29 mm)
SuitabilityIP20
CertificationsUL, CSA, Fed. Spec.
Configuration3 Pole, 4 Wire, Grounding

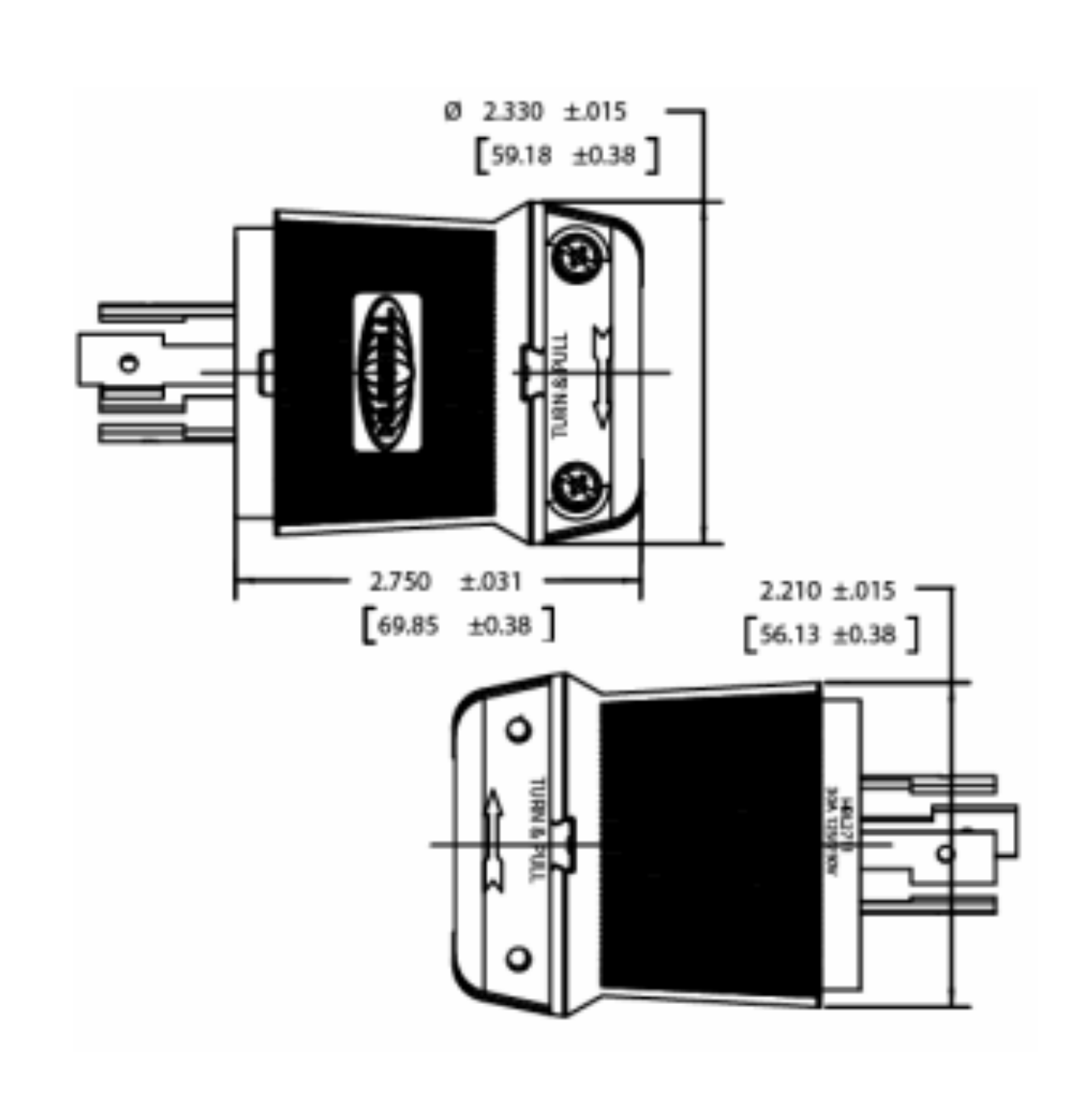

Diameter2.330 ± 0.015 inch [59.18 ± 0.38 mm]
Voltage Color CodeBlack
IEC Color CodeBlack
Electrical Rating30A, 3 Phase 600V AC, 3 Pole, 4 Wire Grounding
BladesBrass
