Hubbell Wiring Device-Kellems hbl2613
ChatMRO

The Hubbell HBL2613 is in our catalogue: Electrical Rating 30A, 125V AC, 2 Pole, 3 Wire Grounding, Contacts Brass, Listings Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42.

ChatMRO can make mistakes, so double check it

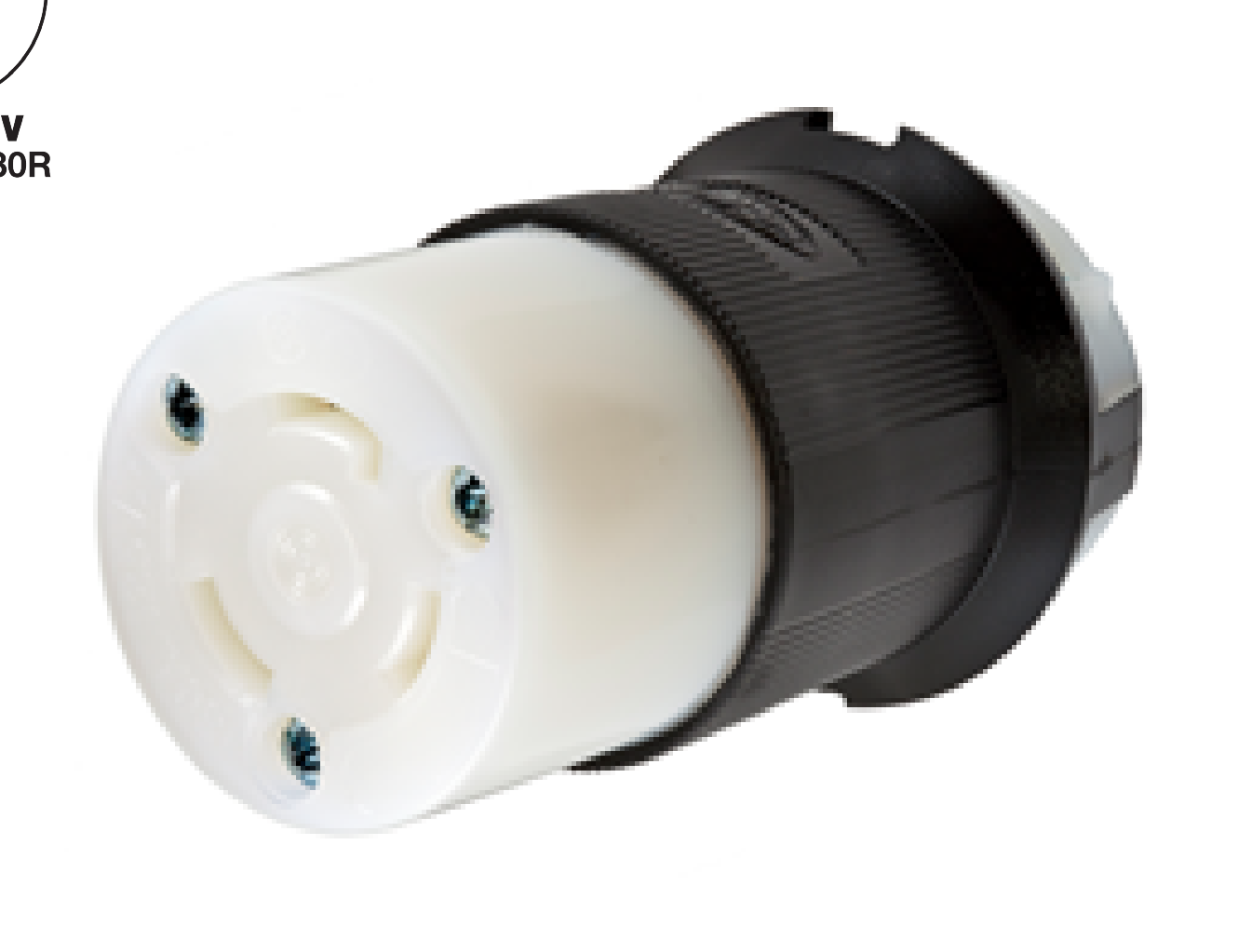

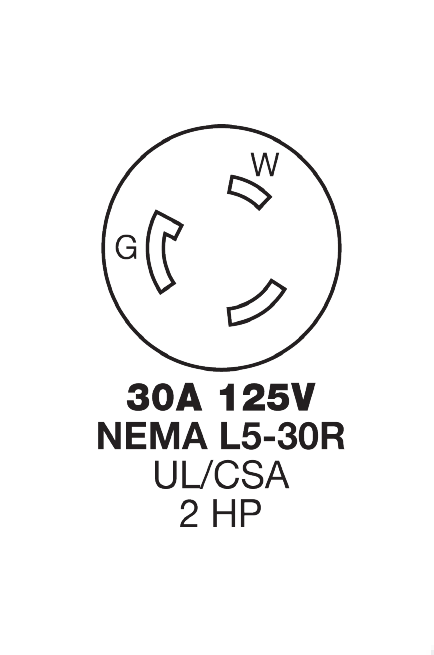

In stock30A 125V AC 2 Pole 3 Wire Grounding Twist-Lock Connector
Hubbell · HBL2613

30A 125V AC 2 Pole 3 Wire Grounding Twist-Lock Connector

$ 119.69per unit · ex. VAT
Industrial-grade Twist-Lock connector rated for 30A, 125V AC, 2 Pole, 3 Wire grounding configuration. Constructed with nylon housing, brass contacts, and nickel-plated steel components. Suitable for stranded copper wire from #16 AWG to #8 AWG. Operates from -40°C to 75°C and meets UL 498, CSA C22.2 No.42, and Fed.Spec. W-C-596 standards.
Electrical Rating
30A, 125V AC, 2 Pole, 3 Wire Grounding
Contacts
Brass
Listings
Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Cord Diameter
.360 inch-.930 inch (9-24)
Electrical Rating30A, 125V AC, 2 Pole, 3 Wire Grounding
ContactsBrass
ListingsListed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42
FlammabilityHB or better per UL94 or CSA 22.2 No. 0.6
Cord Diameter.360 inch-.930 inch (9-24)
Terminal ClampCold rolled steel – nickel plated
Assembly ScrewsSteel - nickel plated
Terminal Screws#10-32 Brass (Phillips / Slotted / Robertson)
Terminal RetainerClear polycarbonate
Dielectric VoltageWithstands 2,000V minimum
Current InterruptingCertified for current interrupting at full rated current
Housing / Cord ClampNylon
