The Hubbell HBL2325SW is in our catalogue: Configuration Rating 20A 250V, Poles 2 Pole, Wires 3 Wire.

ChatMRO can make mistakes, so double check it

In stock20A 250V Watertight Safety-Shroud Twist-Lock Flanged Inlet
Hubbell · HBL2325SW

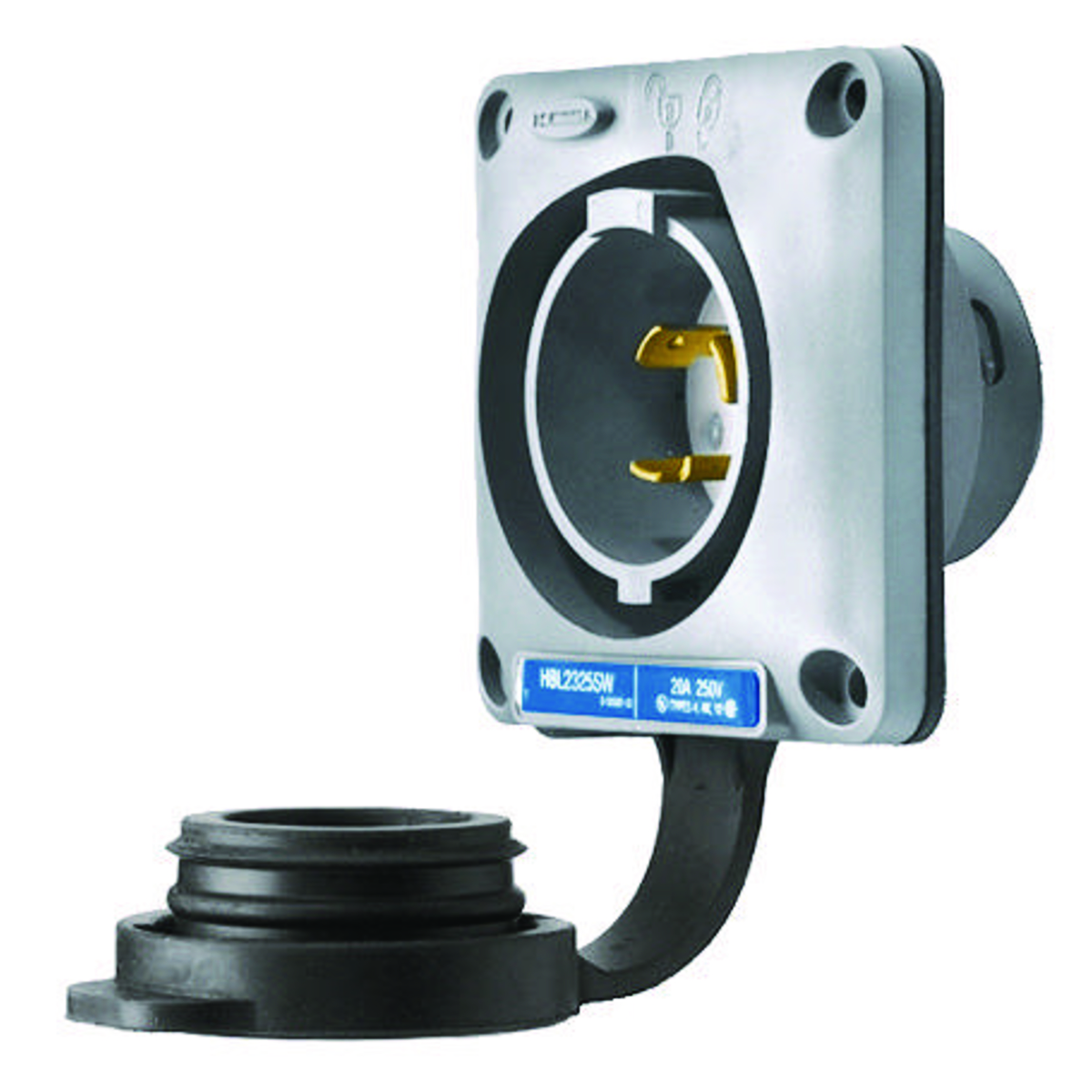

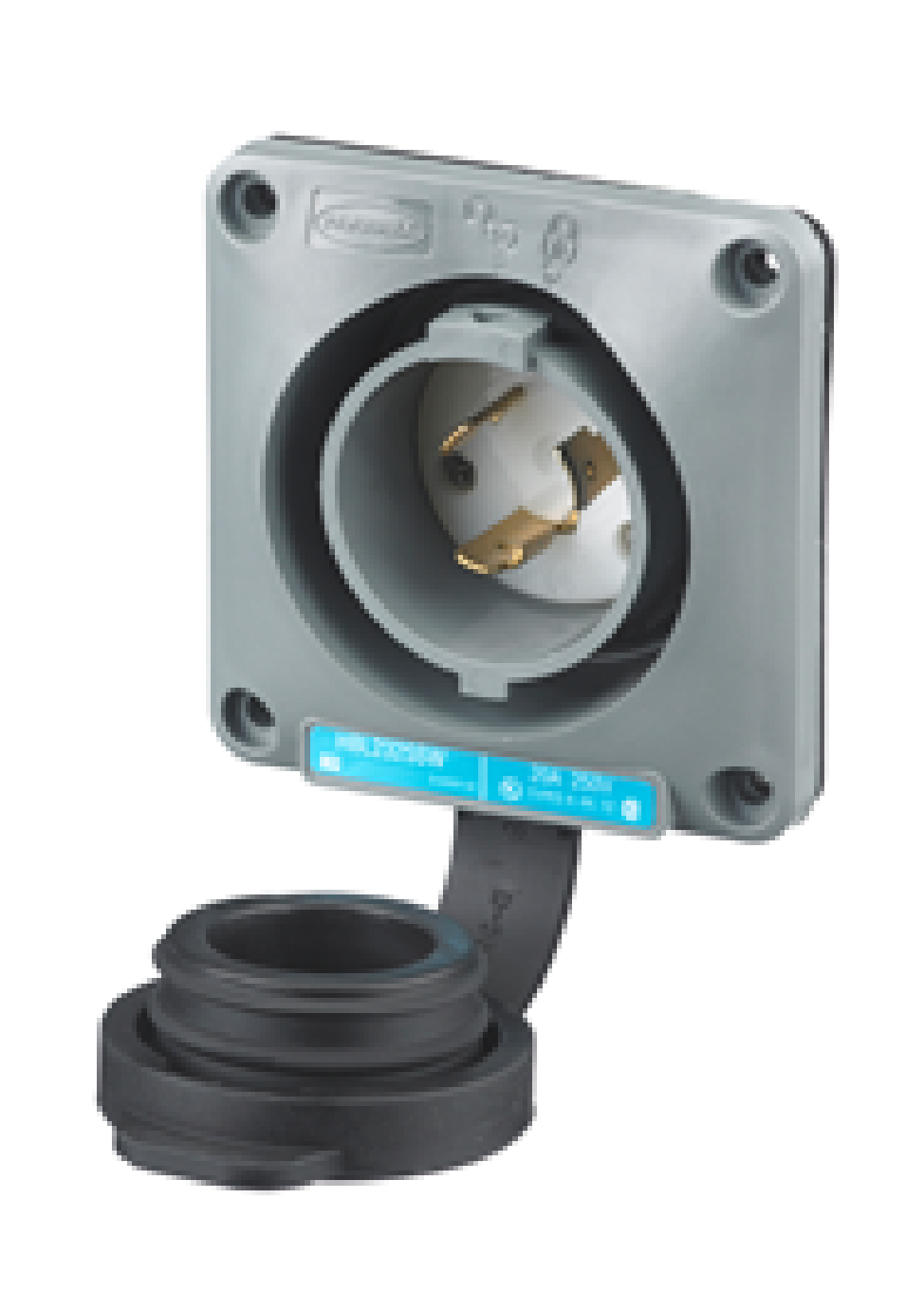

20A 250V Watertight Safety-Shroud Twist-Lock Flanged Inlet

$ 142.25per unit · ex. VAT
20A, 250V AC, 2 Pole, 3 Wire Grounding Watertight Safety-Shroud® Flanged Inlet with gray PBT housing and flange. Designed for industrial watertight applications with UL Type 4, 4X, 12 and IP66 suitability. Features brass blades, stainless steel screws, and polycarbonate terminal retainer.
Configuration Rating
20A 250V
Poles
2 Pole
Wires
3 Wire
Grounding
Grounding

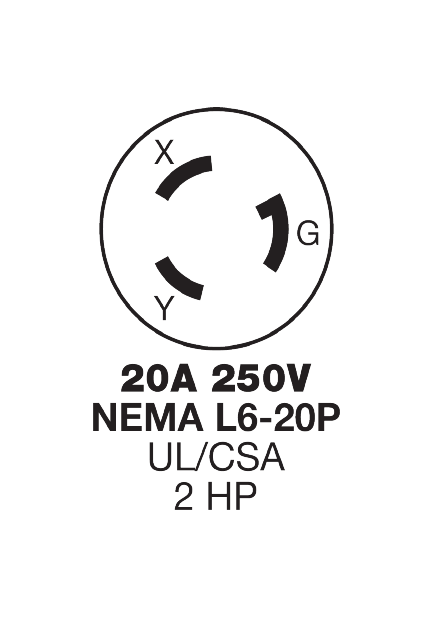

NEMA Configuration
L6-20P
Configuration Rating20A 250V
Poles2 Pole
Wires3 Wire
GroundingGrounding
NEMA ConfigurationL6-20P
Housing MaterialGray PBT
Blade MaterialBrass
Screw MaterialStainless Steel
Terminal RetainerClear Polycarbonate
Moisture ResistanceUL Type 4, 4X, 12, IP66
Operating TemperatureMaximum Continuous 75°C; Minimum -40°C
Wire Size#16 AWG - #8 AWG Copper
