Wiegmann wc12c20
The Wiegmann WC12C20 is in our catalogue: Color Gray, Depth 9 inch, Width 20 inch.
In stock
Wiegmann · WC12C20

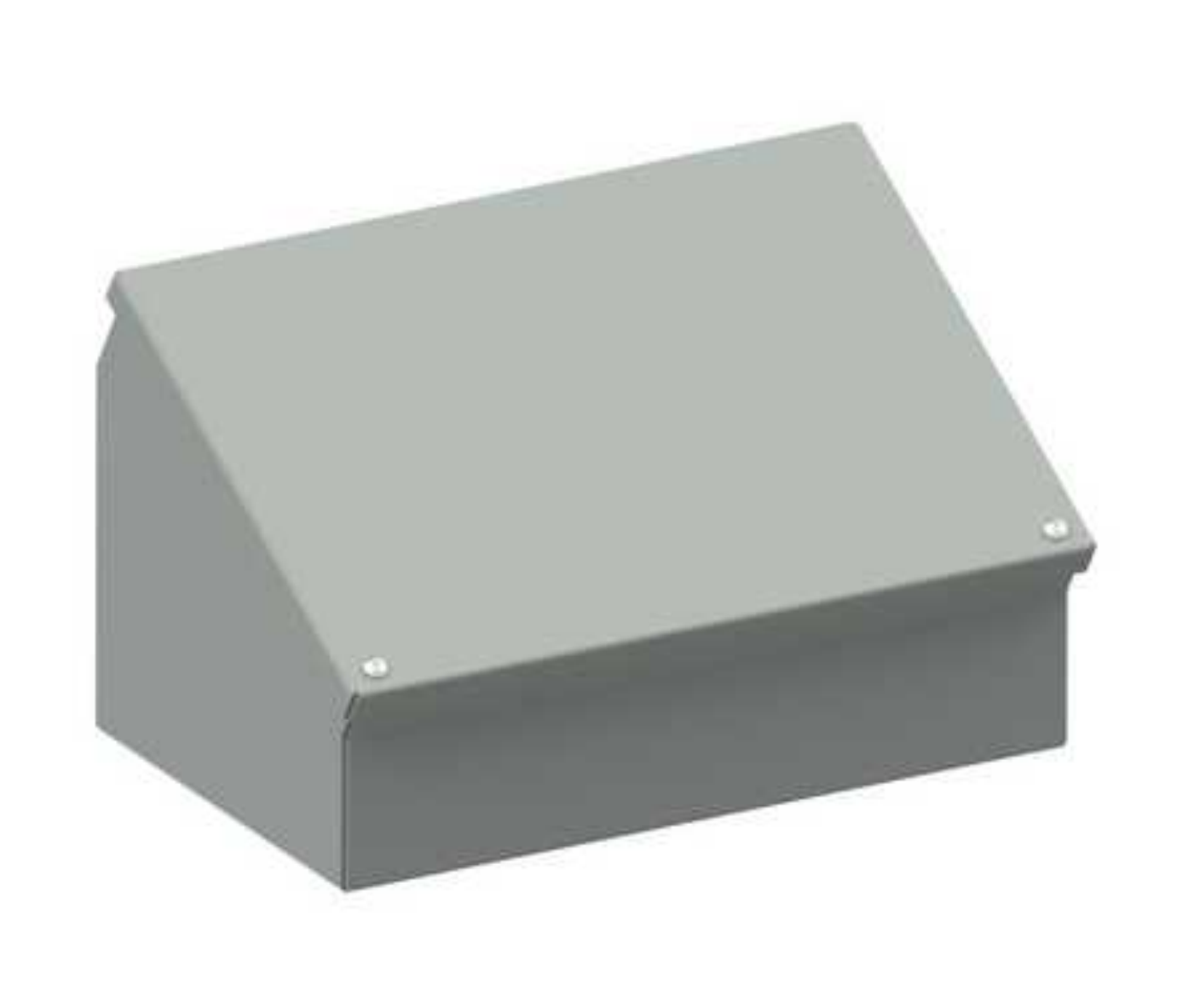

NEMA 12/13 Carbon Steel Consolet Enclosure 12 in H x 20 in W
$ 300.50per unit · ex. VAT
Carbon steel consolet enclosure with NEMA 12 and 13 ratings for protection against dust, dirt, oil, and water. Features continuously welded seams, polyester powder coating, and a hinged door with captivated screws. Designed for desktop, pedestal, or wall mounting with flexible orientation for 30 or 60 degree control surfaces.
Color
Gray
Depth
9 inch
Width
20 inch
Height
12 inch
Weight
24 lb
ColorGray
Depth9 inch
ListingsUL, CSA
UL ListedYes
Cover TypeScrew
Finish TypePolyester Powder
ConstructionContinuously Welded Seams
Certified ListedUL, CSA
GasketNeoprene
Metal Gauge14 ga
Capacity2160 cu.in
KnockoutsNo
StandardscULus
Closure MethodScrews
Enclosure MaterialCarbon Steel
Solid / Clear CoverSolid
Enclosure Cover TypeHinged
Usable Opening Depth8.88 inch
Enclosure Nema Rating12, 13
Nominal Enclosure Width20 inch
Enclosure Cover FeaturesCaptivated Cover Screws
Knockouts / No KnockoutsNo Knockouts
Gasket MaterialOil Resistant Neoprene
Includes KnockoutsKnockouts Not Included
Nema Enclosure RatingNEMA 12, NEMA 13
CompositionMetallic
Cover DesignHinged
Nominal Depth9 inch
Nominal Width20 inch
Nominal Height12 inch
Panel IncludedNo
Product SeriesWC-C
Number of Doors1
Options IncludedGasketed Cover, Ground Stud
Latching MechanismScrews
Enclosure Width20.31 inch
Enclosure Height12.31 inch
Nominal Enclosure Dimensions12 x 20 x 9 inch (HxWxD)
UPC Code786725441303
Gauge14
StyleConsolet - Operator Interface
Mount TypeWall Mount
SpecificationUL 508 Types 12 and 13, CSA Certified Types 12 and 13, NEMA/EEMAC Types 12 and 13, JIC EL-1-71
