Hubbell · HBL2610ST

Twist-Lock Receptacle, 30A 125V, 2P/3W, L5-30R, Spring Termination

Name: Hubbell HBL2610ST
Brand: Hubbell
Price: 70.65 USD
Availability: InStock

$ 70.65per unit · ex. VAT

30A, 125V, 2 Pole, 3 Wire grounding spring termination single flush receptacle. Features nylon housing, brass contacts, and steel spring for durability. Rated for industrial indoor dry environments with IP20 suitability and NEMA 1 enclosure.

Amperage

30A

Voltage

125V

Poles/Wires

2P/3W

NEMA Receptacle Configuration

L5-30R

Horsepower Rating

2 HP

Amperage30A

Voltage125V

Poles/Wires2P/3W

NEMA Receptacle ConfigurationL5-30R

Horsepower Rating2 HP

Mounting TypeFlush

Housing MaterialNylon

Contact MaterialBrass

Spring MaterialSteel

Operating TemperatureMaximum Continuous 75°C; Minimum -40°C

Wire Size Accommodation14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded

IP RatingIP20

Drawings

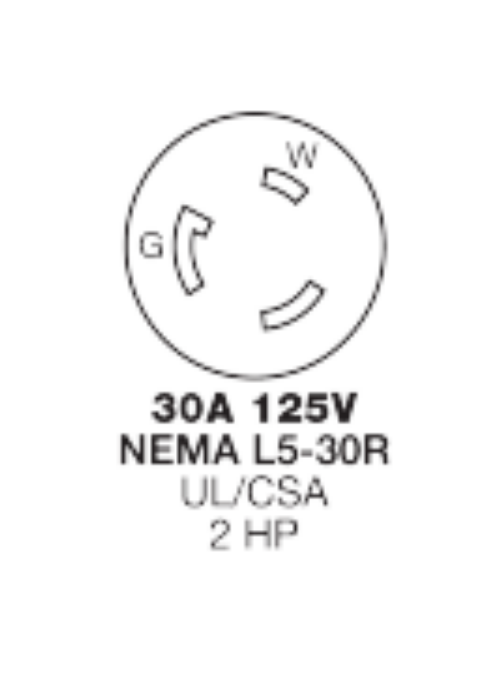

NEMA L5-30R configuration diagram

Drawings

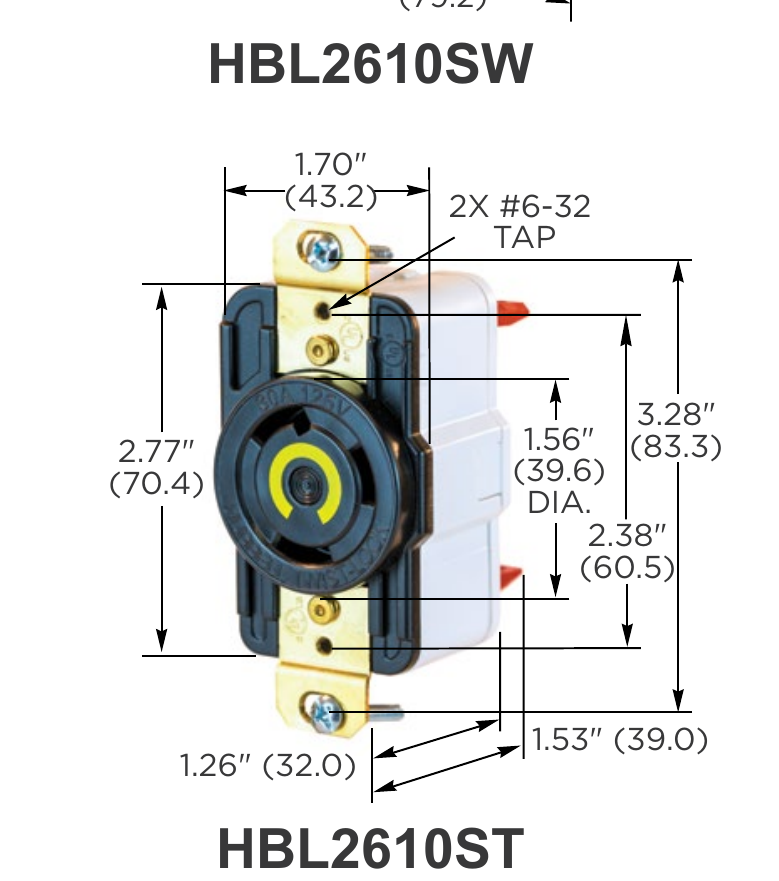

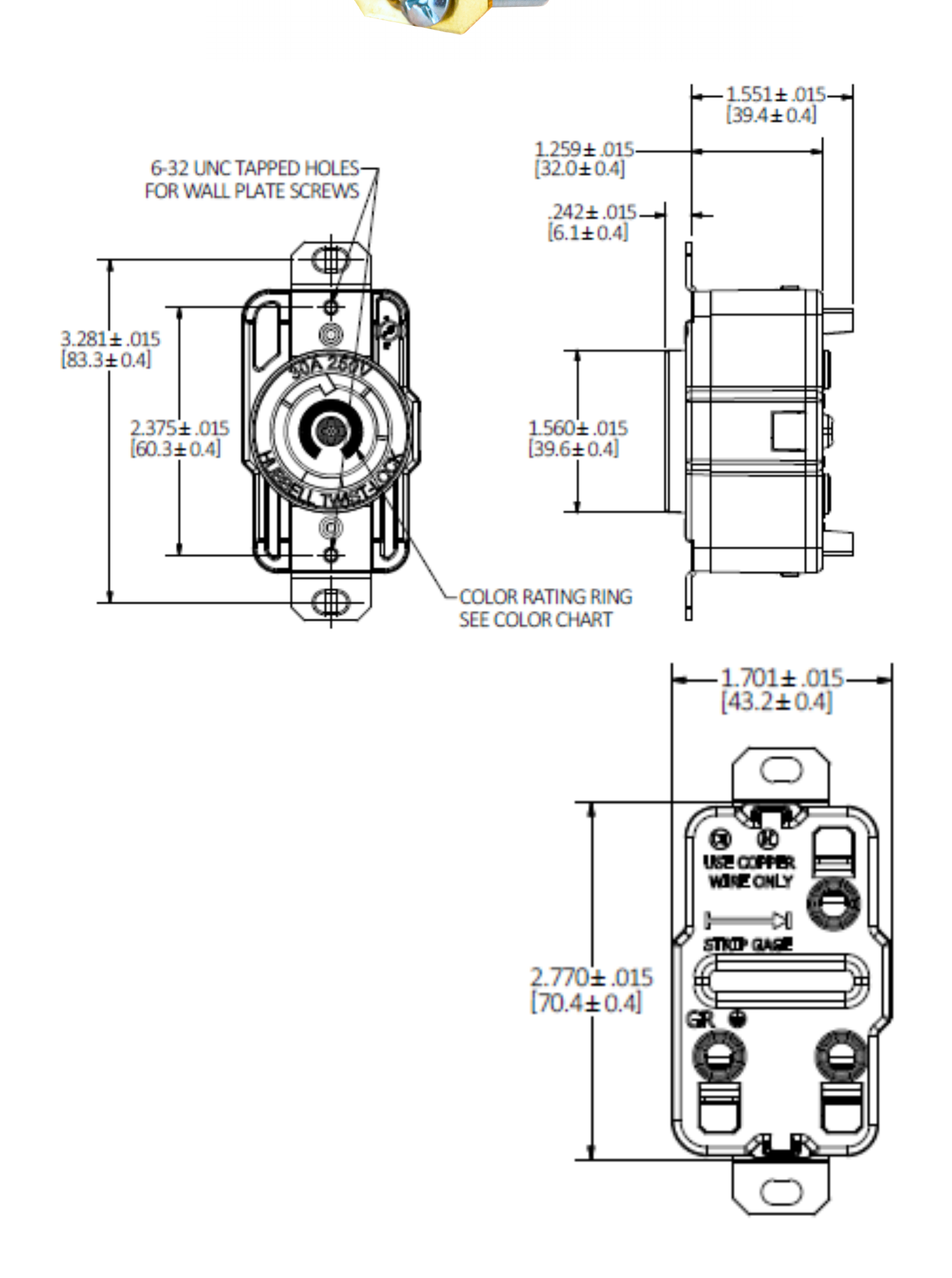

Dimensional drawing of the receptacle

Drawings

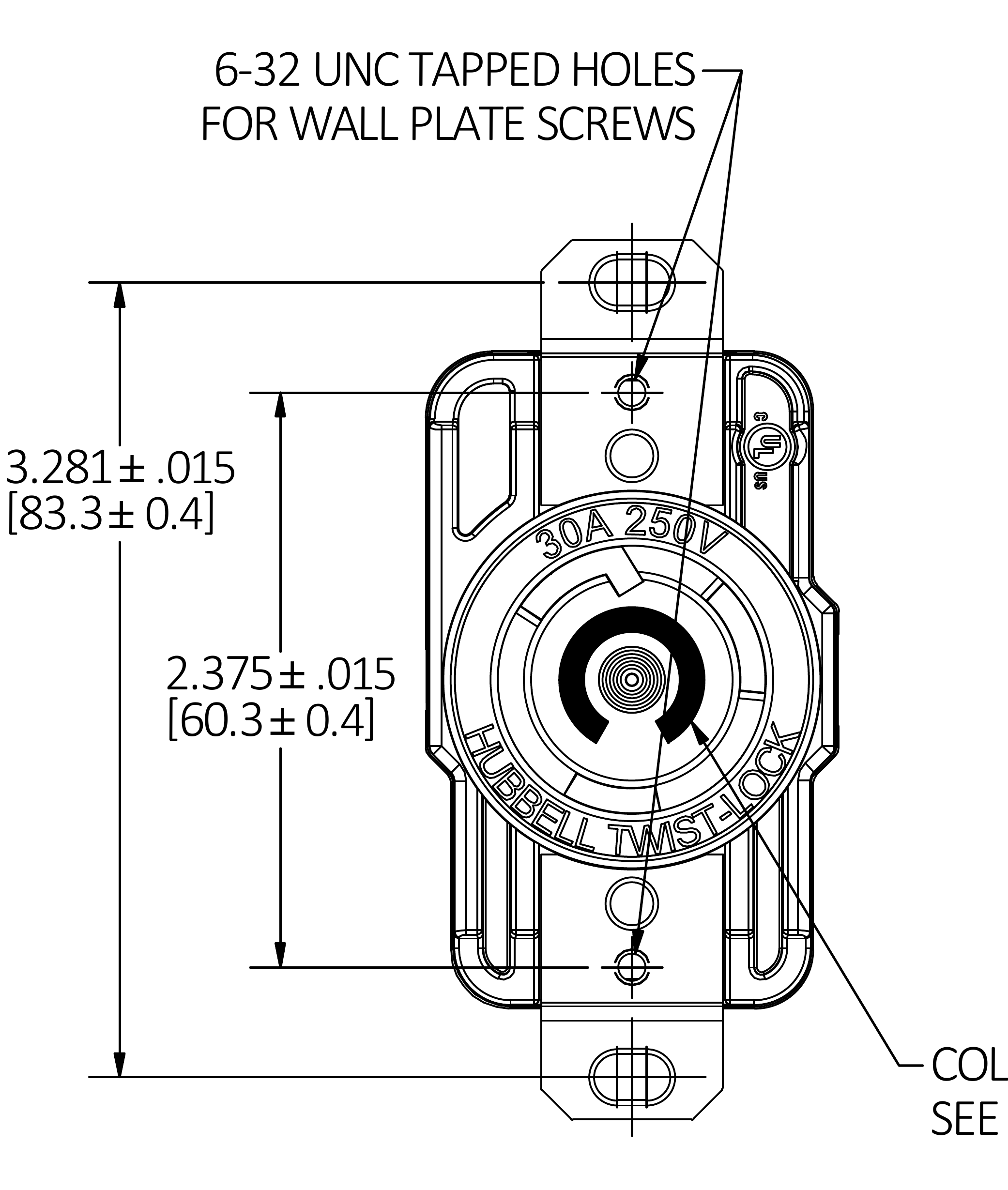

Front view of 30A 3 wire spring termination receptacle with dimensions and callouts for tapped holes and color rating ring

Drawings

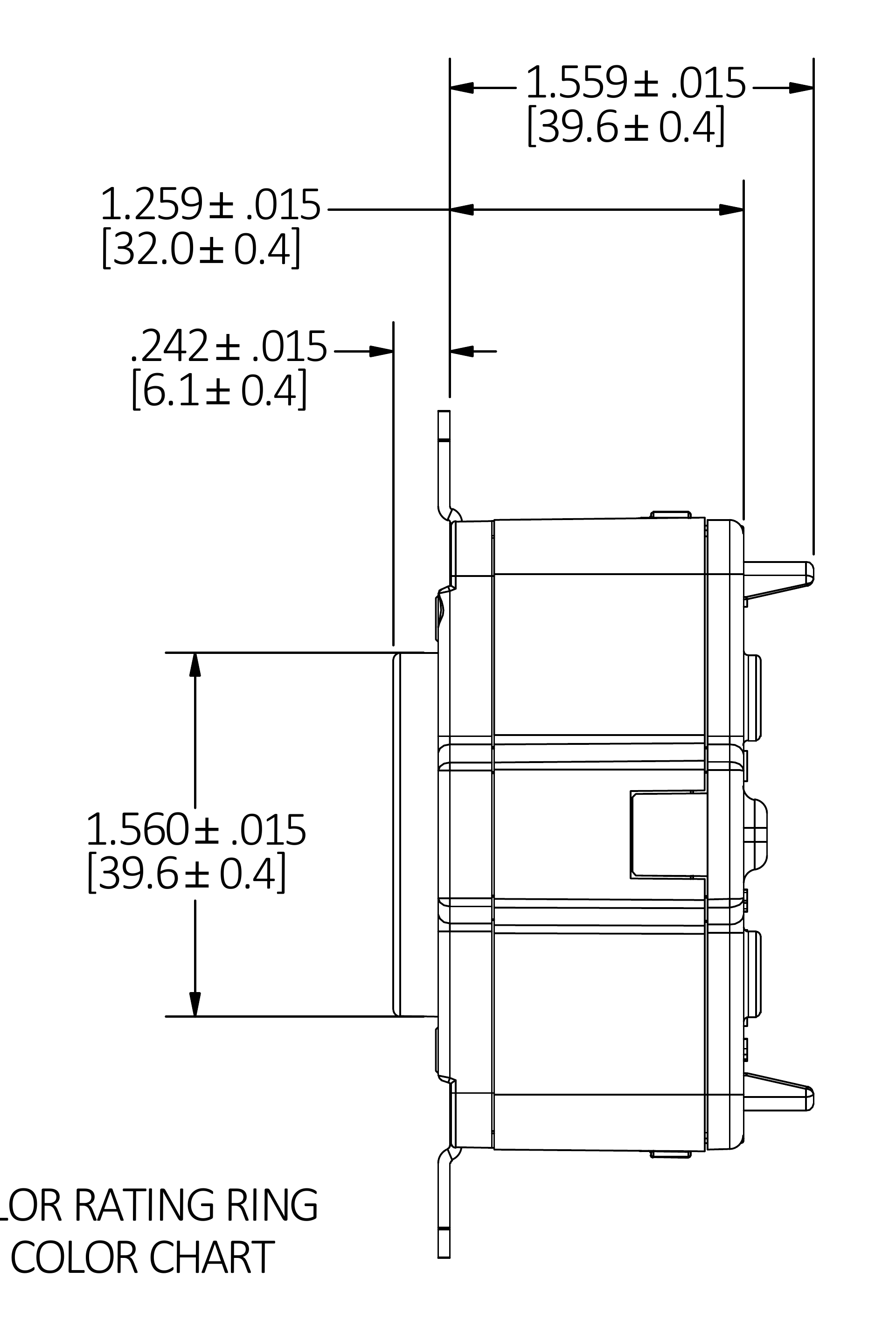

Side view of receptacle with dimensions

Drawings

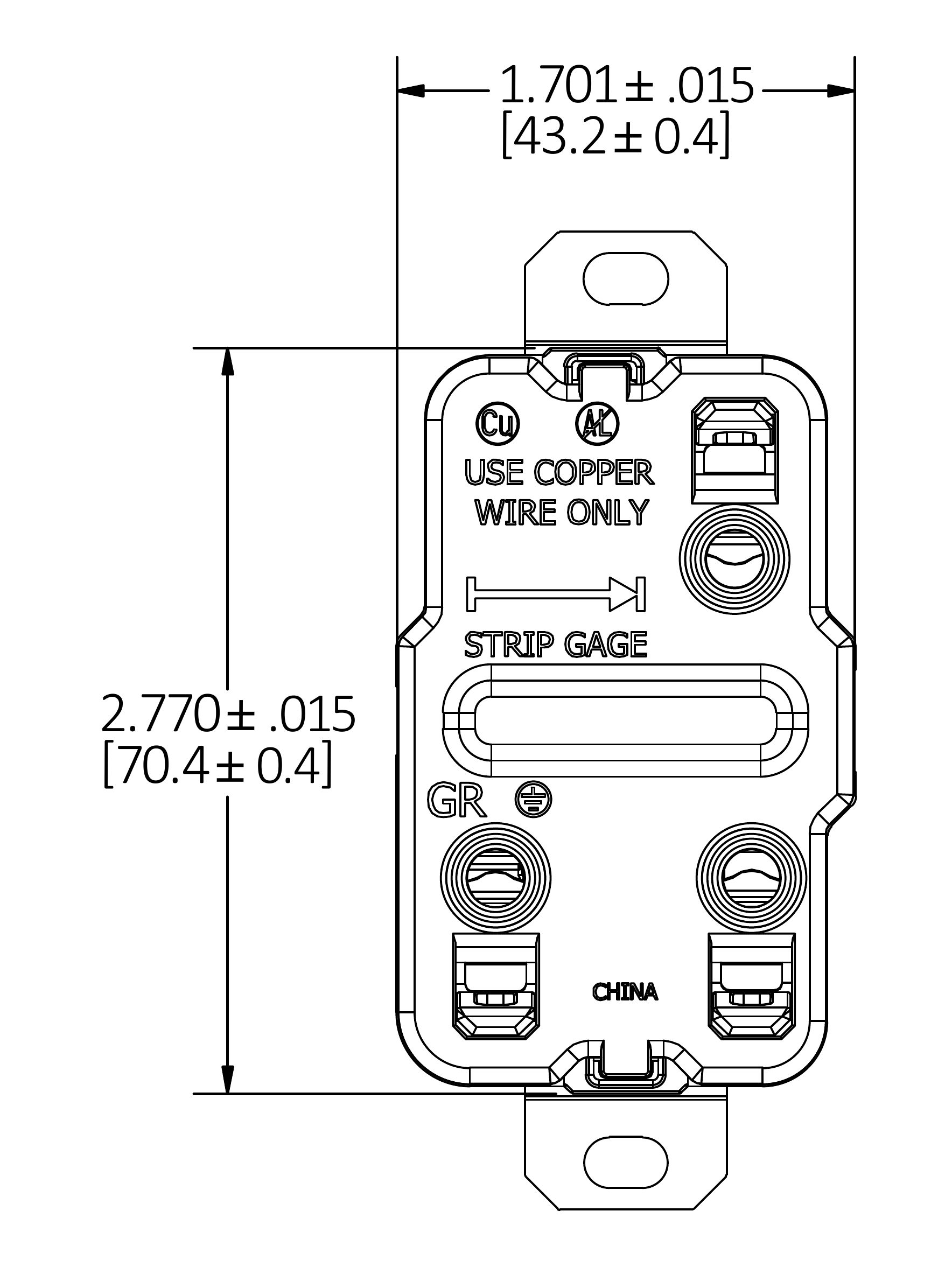

Back view of receptacle with dimensions and strip gage

Drawings

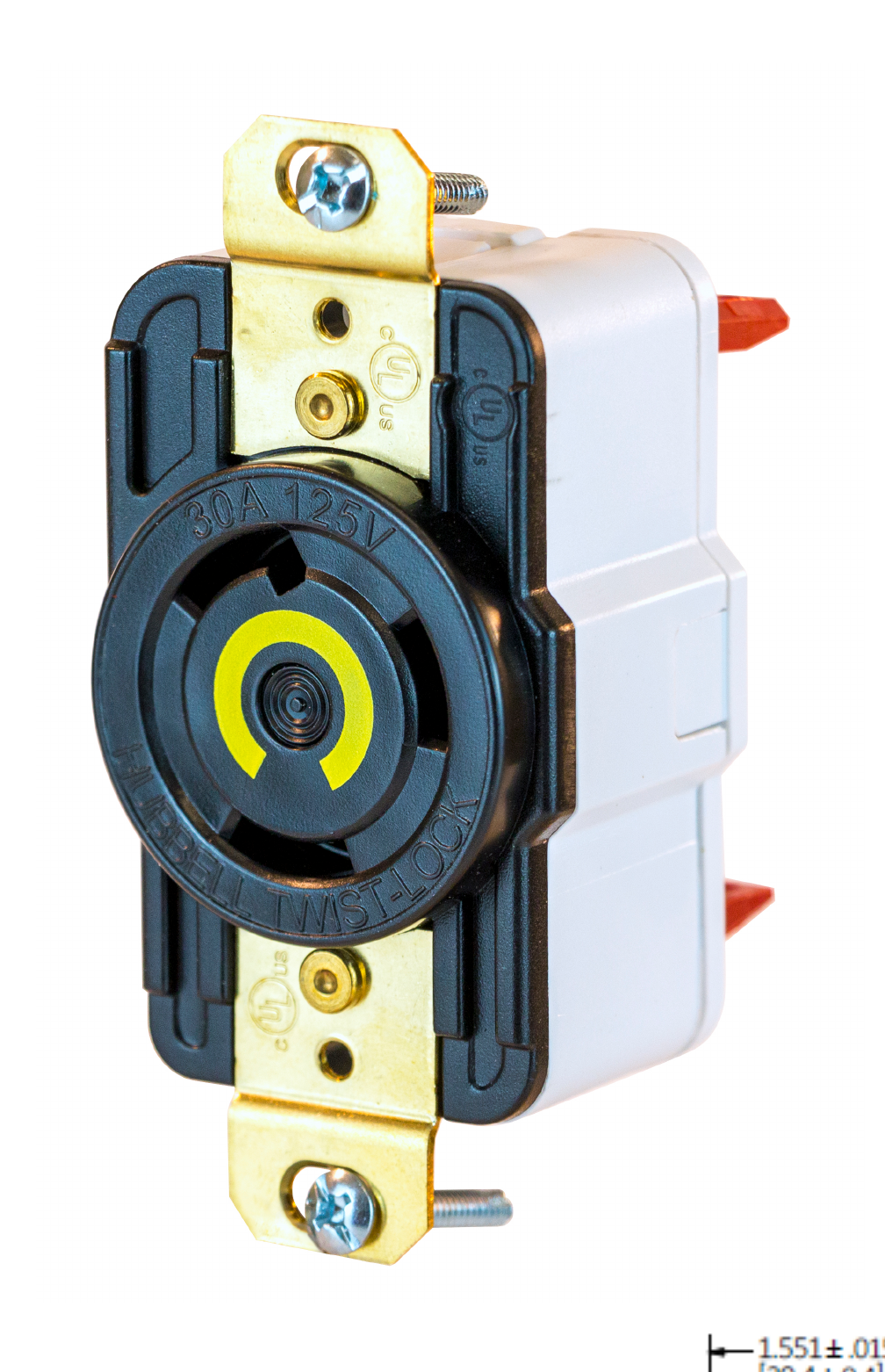

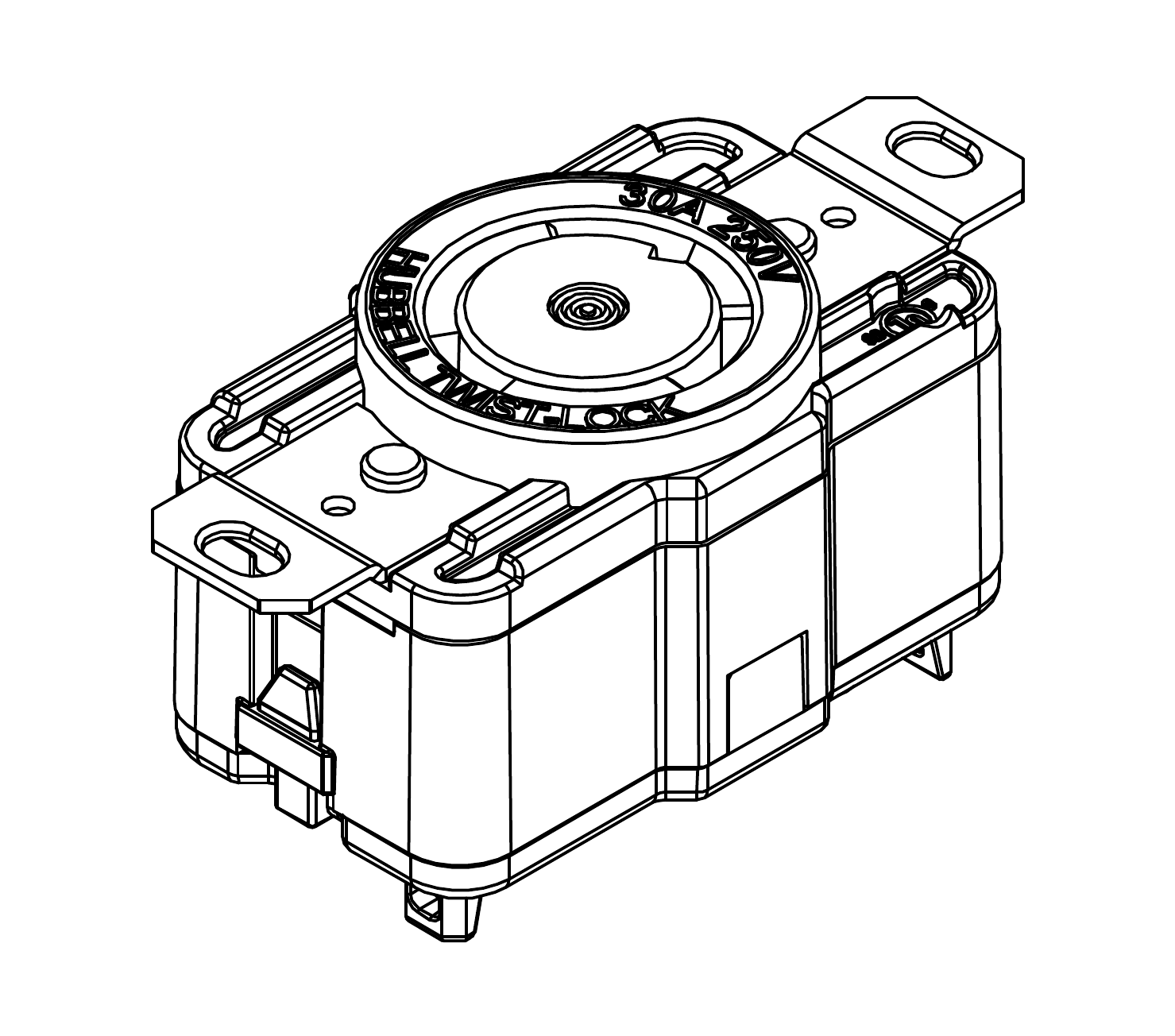

Isometric view of 30A 3 wire spring termination receptacle

Drawings

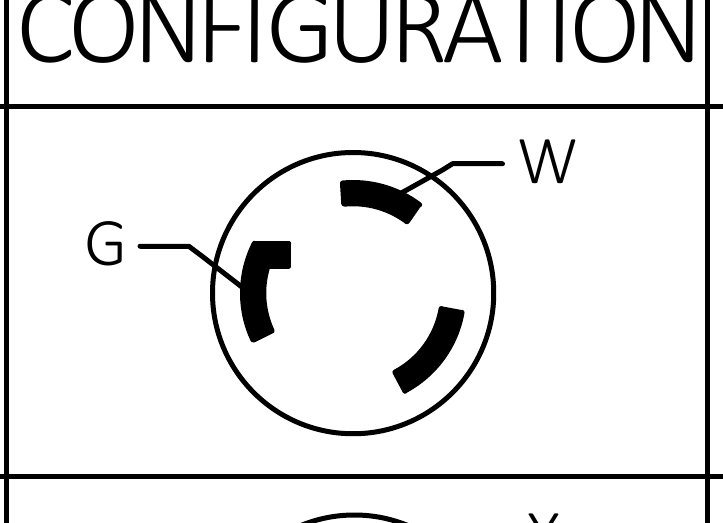

Configuration diagram for L5-30 (G, W)

Product

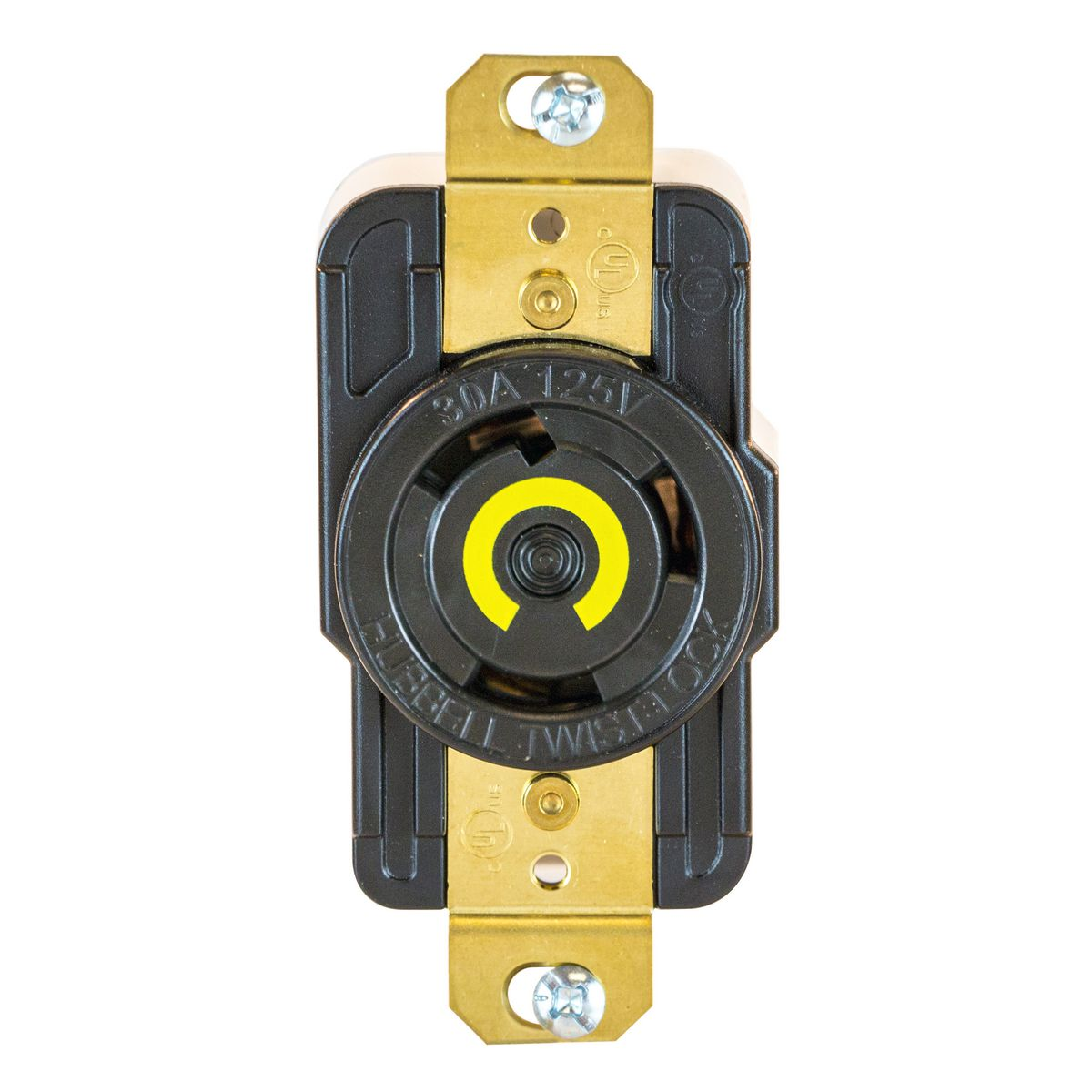

Product photo of the receptacle

MPNDescriptionPrice

HBL26CM10Variant - Corrosion resistant, yellow nylon face, back and side wired.$ 80.41

HBL26CM20Variant - Corrosion resistant, yellow nylon face, back and side wired$ 88.68

HBL2610Variant - Black nylon face, spring terminals.$ 60.44

HBL2610ARVariant - Gray Valox angle housing, one gang, back wired.$ 73.57

HBL2610M6Variant - Black nylon face, spring terminals.$ 61.24

HBL2610RTVariant - Ring terminal connection.$ 79.08
