The Resideo Technologies VR8345M4302 is in our catalogue: Ignition Type Electronic, Voltage 24V AC, Amps AC 0.7 A.

ChatMRO can make mistakes, so double check it

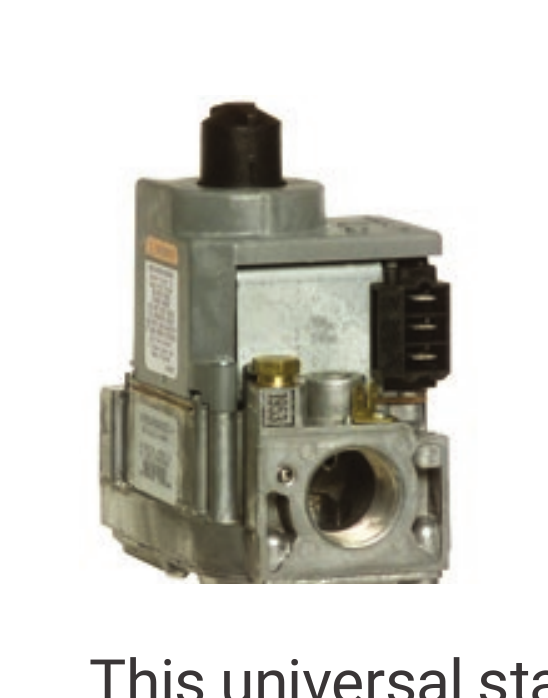

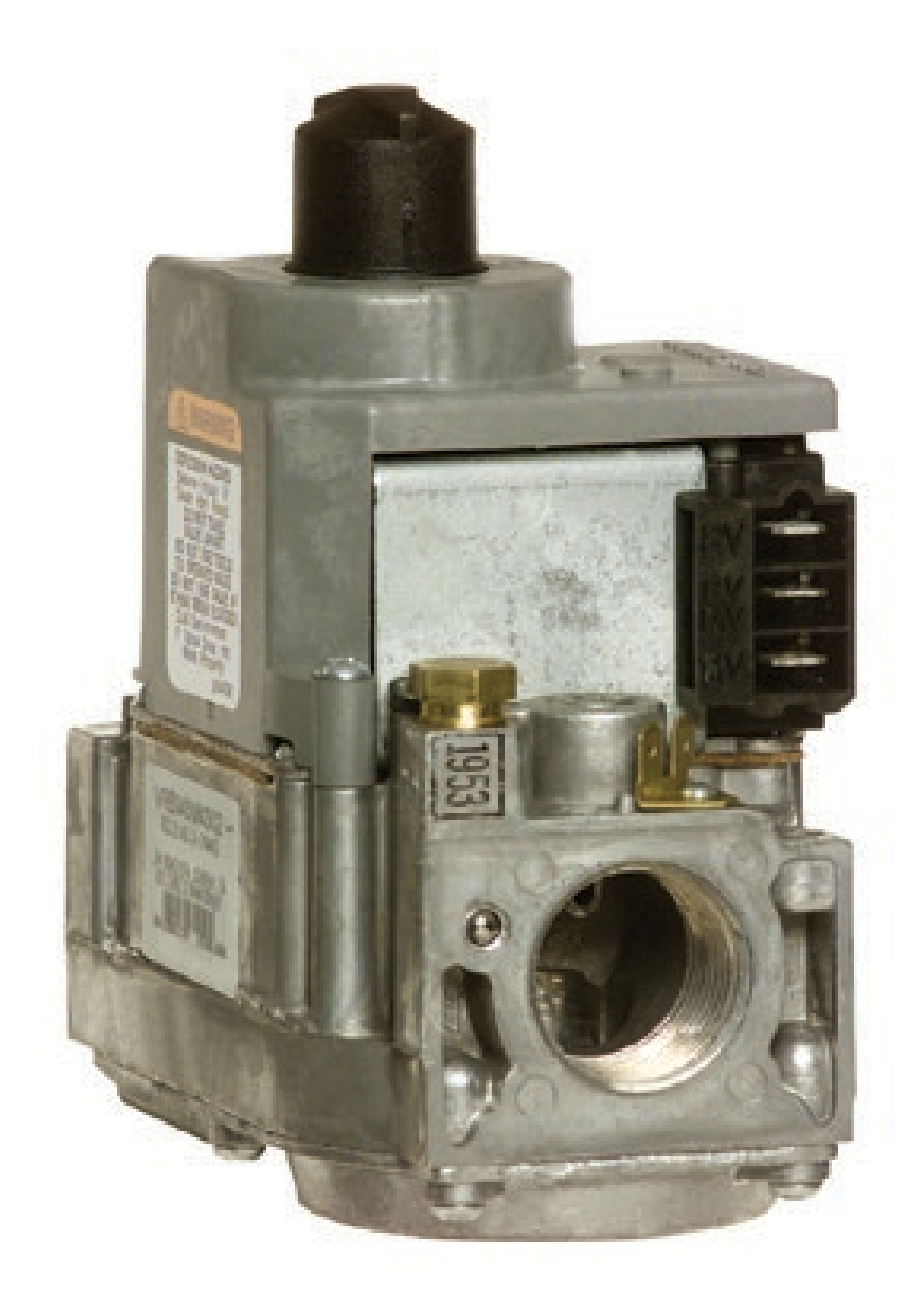

In stockUniversal Electronic Ignition Gas Valve with 3.5 in wc Regulator, 24V AC, 0.7 A
Resideo Technologies · VR8345M4302

Universal Electronic Ignition Gas Valve With 3.5 In Wc Regulator, 24V AC, 0.7 A

$ 238.26per unit · ex. VAT
Universal electronic ignition gas valve designed for safe and reliable operation with natural gas or liquid propane. Features a 3.5 inch water column pressure regulator, 24V AC coil, and redundant design for improved safety. Suitable for vertical installation in HVAC systems with up to 415,000 BtuH capacity.
Ignition Type
Electronic
Voltage
24V AC
Amps AC
0.7 A
Hertz Rating
50/60 Hz
Inlet Size
3/4 inch
Ignition TypeElectronic
Voltage24V AC
Amps AC0.7 A
Hertz Rating50/60 Hz
Inlet Size3/4 inch
Outlet Size3/4 inch
Port Connection Size3/4 inch
Port Connection TypeNPT
Port Connection GenderFemale
Pressure Regulator Setting3.5 inch wc (0.87 kPa)
Max Inlet Pressure1/2 psi
Temperature Range-40 to 175 degree Fahrenheit (-40 to 79 degree Celsius)
