Honeywell sv9601m4571
ChatMRO

The Honeywell SV9601M4571 is in our catalogue: Gas Type Natural, Flame Sense Electrode, Body Pattern Straight-through.

ChatMRO can make mistakes, so double check it

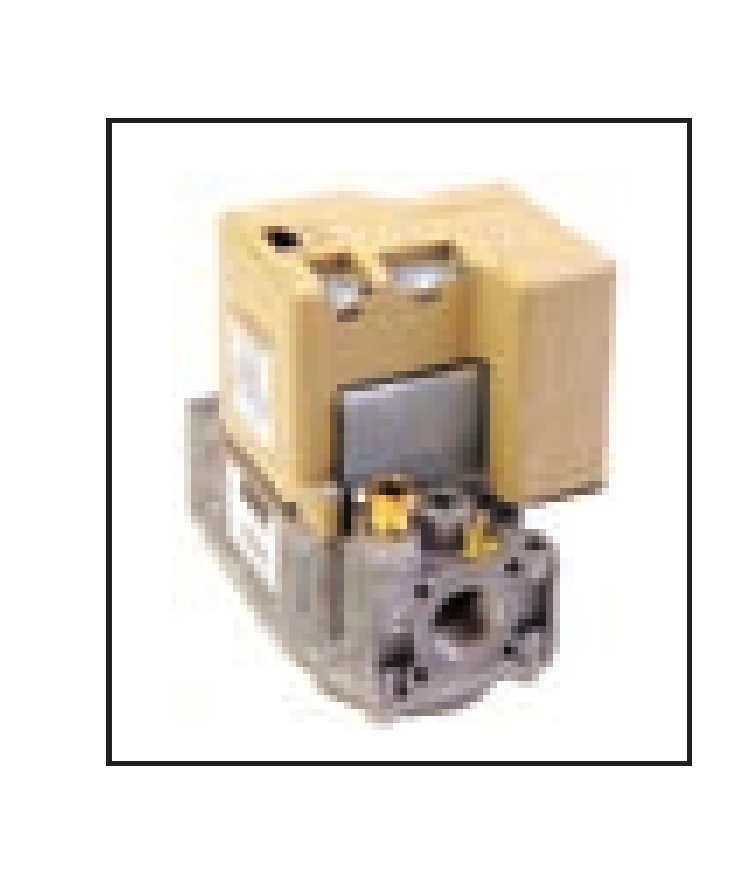

In stockUniversal SmartValve System Control with Electrode Flame Sense and Standard Opening
Honeywell · SV9601M4571

Universal SmartValve System Control with Electrode Flame Sense and Standard Opening

$ 696.93per unit · ex. VAT

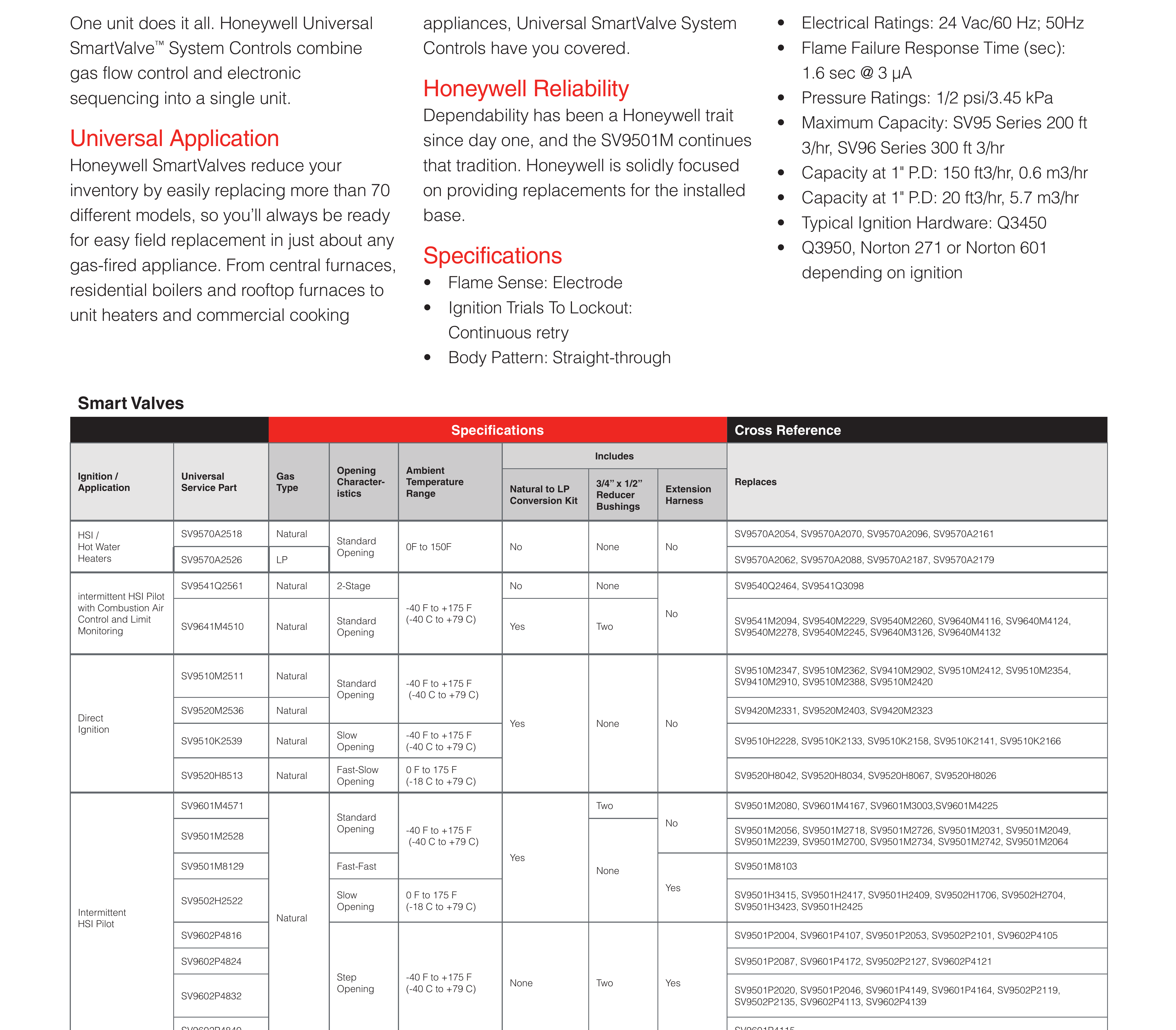

Honeywell Universal SmartValve System Control combines gas flow control and electronic sequencing into a single unit for use in gas-fired appliances. Supports natural gas and LP conversion, with intermittent pilot and hot surface ignition. Designed for reliable operation in ambient temperatures from -40°F to +175°F.
Gas Type
Natural
Flame Sense
Electrode
Body Pattern
Straight-through
Maximum Capacity
300 ft.³/hr
Pressure Ratings
1/2 psi / 3.45 kPa
Gas TypeNatural
Flame SenseElectrode
Body PatternStraight-through
Maximum Capacity300 ft.³/hr
Pressure Ratings1/2 psi / 3.45 kPa
Capacity at 1" P.D150 ft.³/hr, 0.6 m³/hr
Electrical Ratings24 Vac / 60 Hz; 50 Hz
Ignition / ApplicationIntermittent HSI Pilot
Opening CharacteristicsStandard Opening
Ambient Temperature Range-40°F to +175°F (-40°C to +79°C)
Ignition Trials To LockoutContinuous retry
Flame Failure Response Time1.6 sec @ 3 microampere
