Honeywell rp7517a1009

The Honeywell RP7517A1009 is in our catalogue: Input Signal 2 to 10V DC, Nominal Range at 2 to 10V DC 3 to 15 psi (20 to 103 kPa), Main Air Pressure 18 psi (125 kPa).

ChatMRO can make mistakes, so double check it

In stock

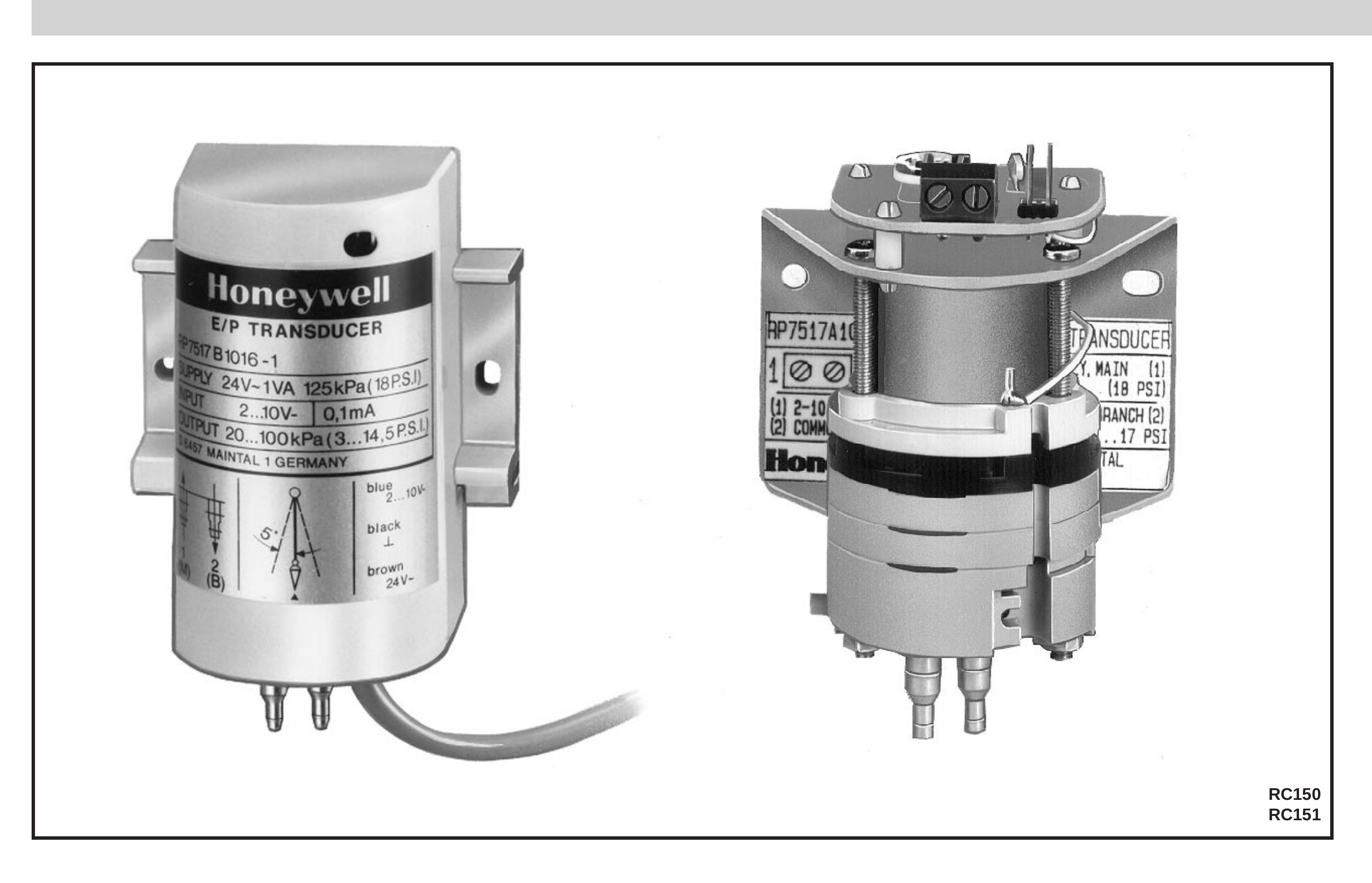

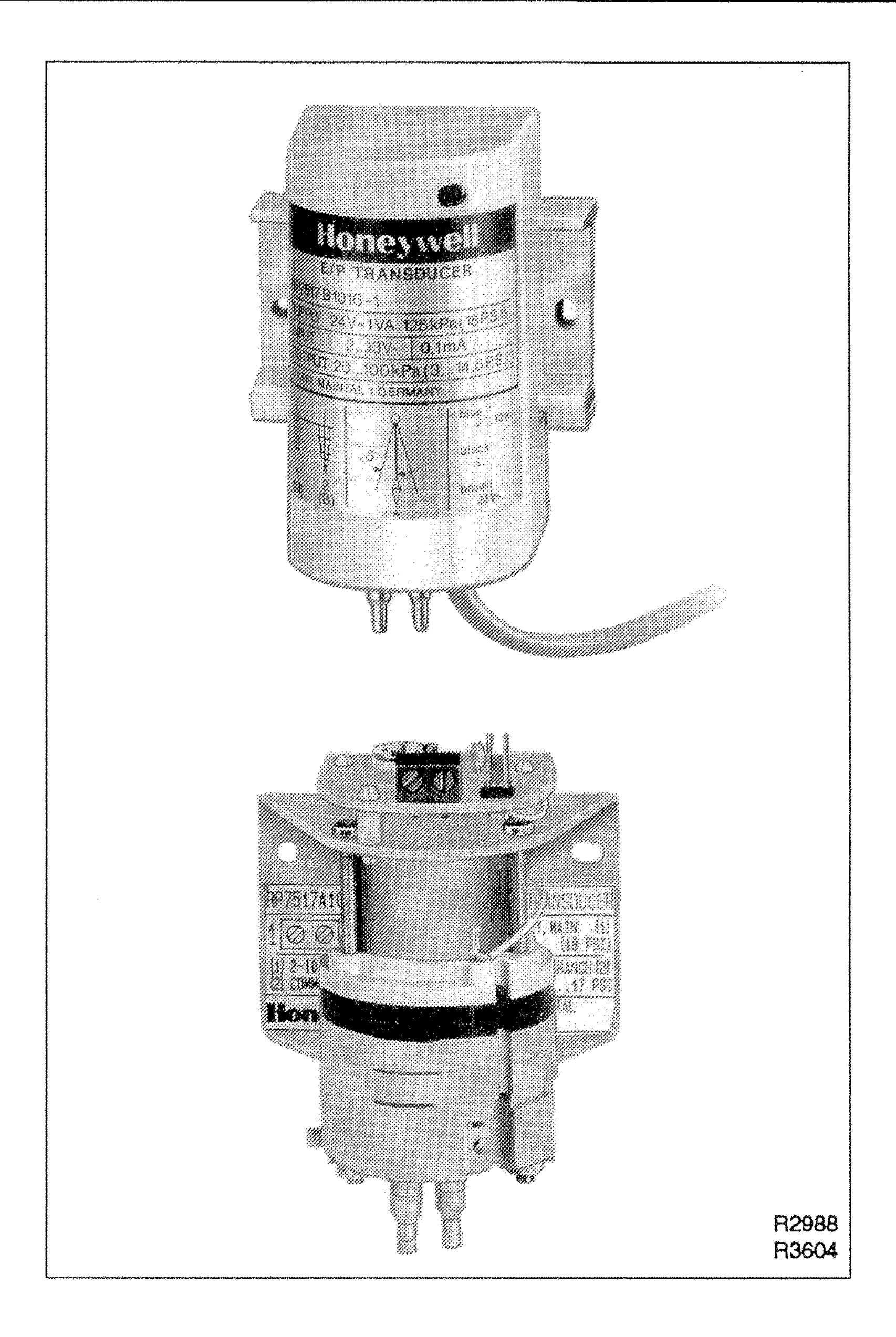

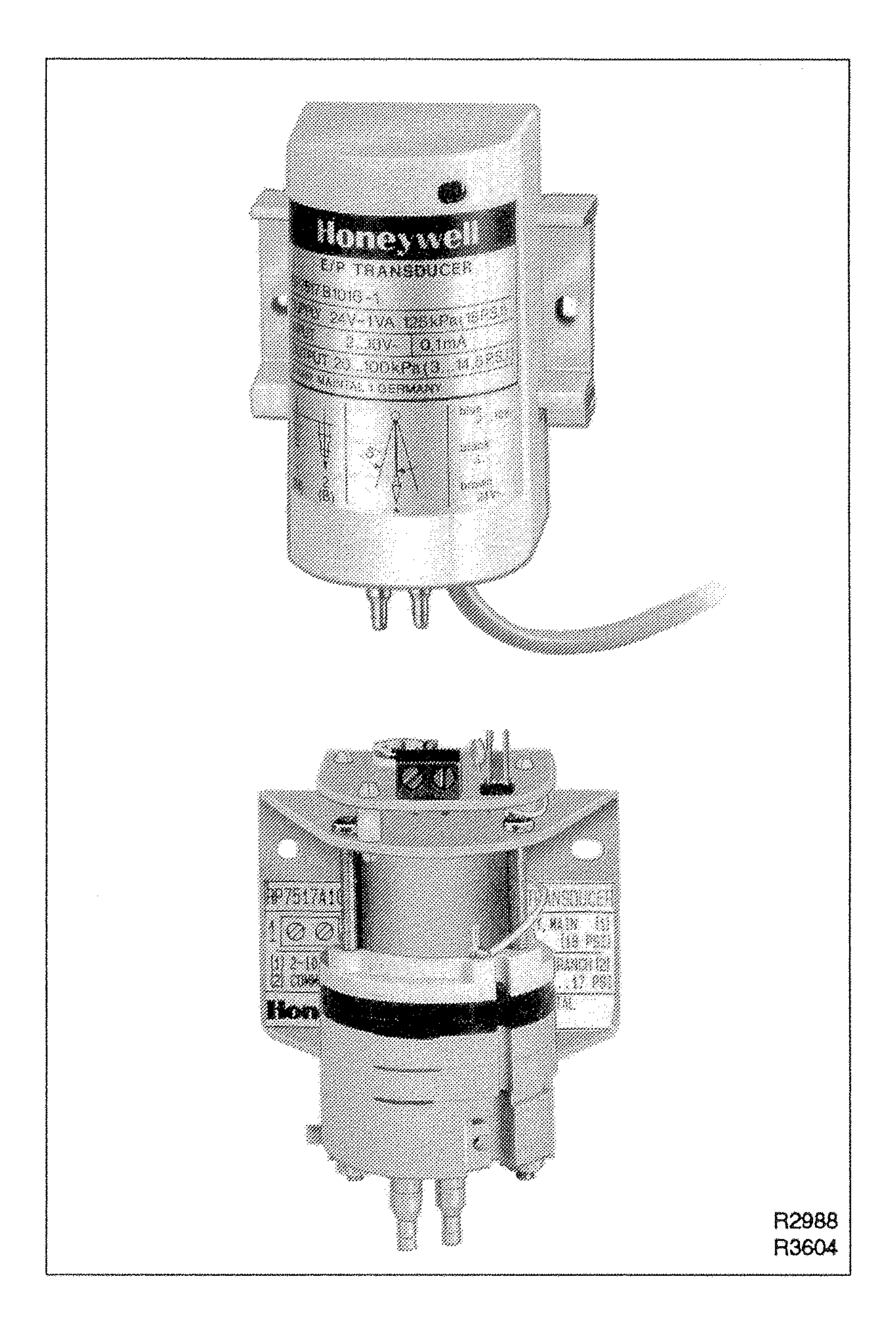

Electronic-Pneumatic Transducer with 2 to 10V DC Input and 3 to 15 psi Output Range

Honeywell · RP7517A1009

Electronic-Pneumatic Transducer with 2 to 10V DC Input and 3 to 15 psi Output Range

$ 1618.65per unit · ex. VAT

Electronic-Pneumatic Transducer that converts a proportional electric signal (2 to 10V DC) into a direct-acting, proportional pneumatic output (3 to 15 psi). Designed for vertical mounting within 5 degrees to maintain factory calibration. Powered by the control signal, with no external power supply required.

Input Signal

2 to 10V DC

Nominal Range at 2 to 10V DC

3 to 15 psi (20 to 103 kPa)

Main Air Pressure

18 psi (125 kPa)

Maximum Safe Air Pressure

29 psi (200 kPa)

Air Capacity

0.45 scfm (211 ml/s)

Input Signal2 to 10V DC

Nominal Range at 2 to 10V DC3 to 15 psi (20 to 103 kPa)

Main Air Pressure18 psi (125 kPa)

Maximum Safe Air Pressure29 psi (200 kPa)

Air Capacity0.45 scfm (211 ml/s)

Air Consumption0.025 scfm (11.7 ml/s)

Electrical Connections30-in (762-mm) lead wires

Air ConnectionsDual barb-fittings for: 1/4-in. (6-mm) O.D. or 5/32-in. (4-mm) O.D. polyethylene tubing

MountingModels with covers have snap (DIN) rail capability

CalibrationFactory calibrated; must be mounted vertically within 5 degrees to maintain calibration

Ambient Operating Temperature41 to 131°F (5 to 55°C)

Ambient Operating Humidity5 to 95 percent rh

Drawings

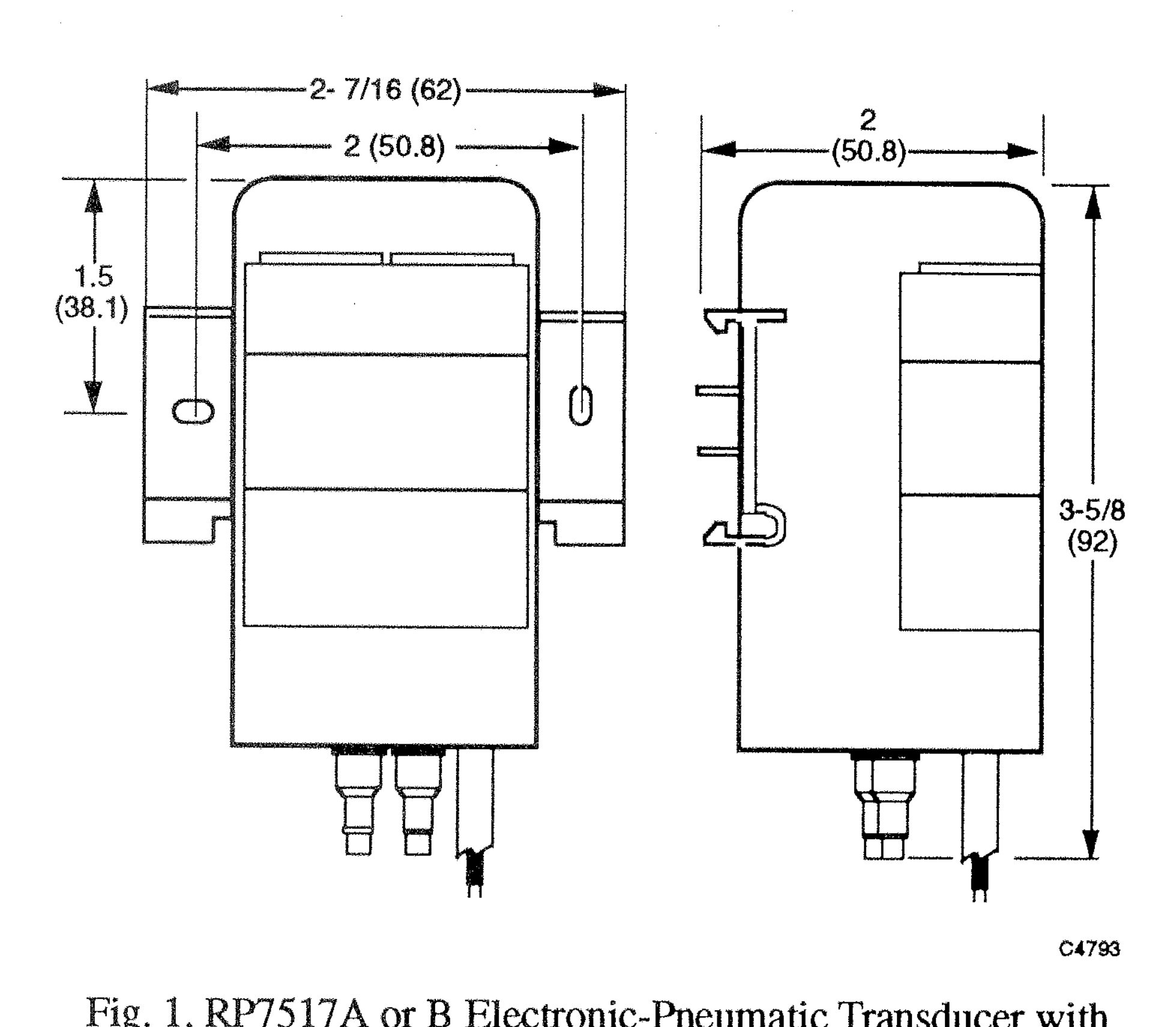

Fig. 1. RP7517A or B Electronic-Pneumatic Transducer with Cover — Approximate Dimensions in Inches (Millimeters).

Fig. 1. RP7517A or B Electronic-Pneumatic Transducer with Cover — Approximate Dimensions in Inches (Millimeters).

Drawings

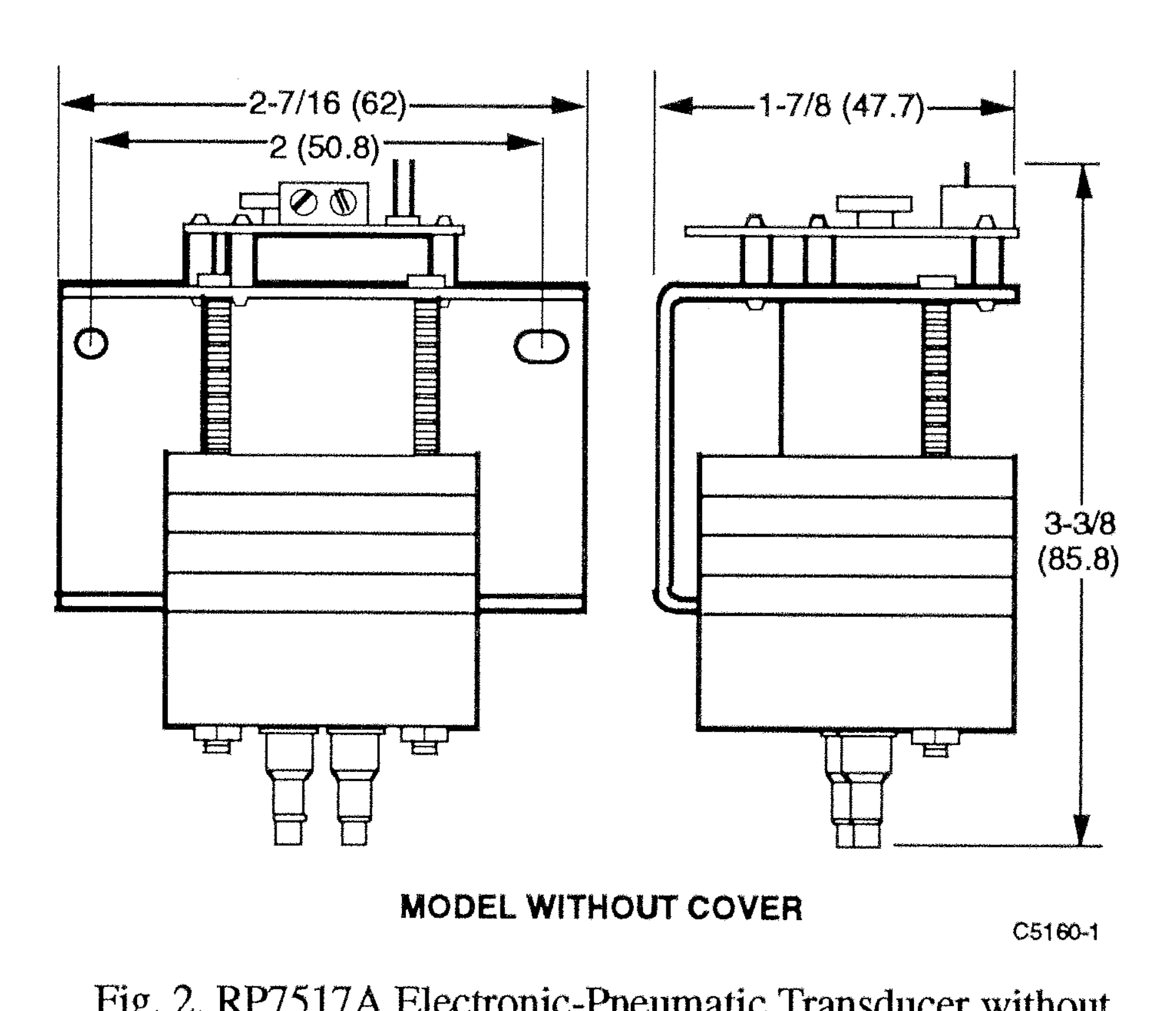

Fig. 2. RP7517A Electronic-Pneumatic Transducer without Cover — Approximate Dimensions in Inches (Millimeters).

Fig. 2. RP7517A Electronic-Pneumatic Transducer without Cover — Approximate Dimensions in Inches (Millimeters).

Drawings

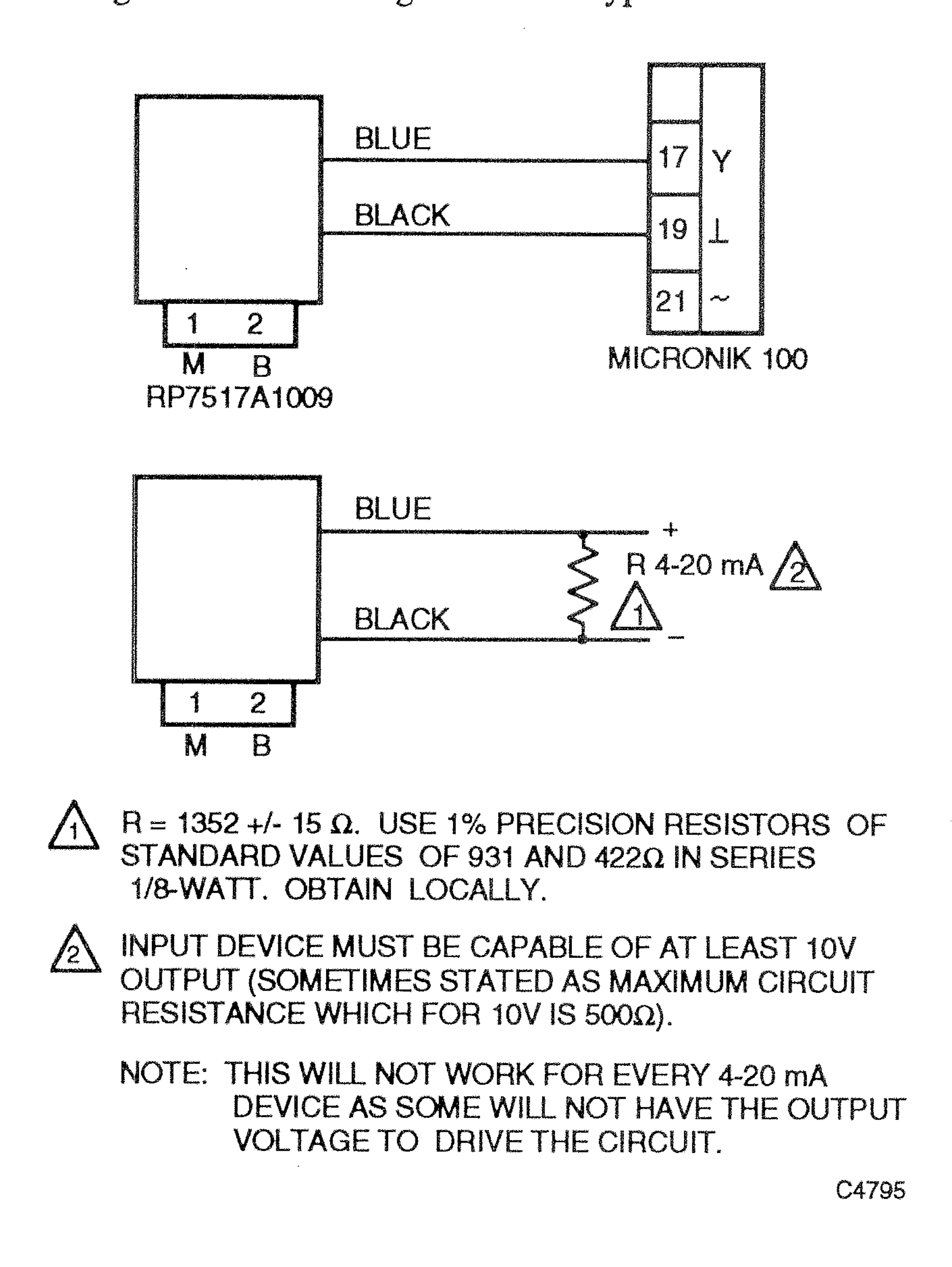

Fig. 3. RP7517A1009 Typical Wiring Diagram.

Fig. 3. RP7517A1009 Typical Wiring Diagram.

Drawings

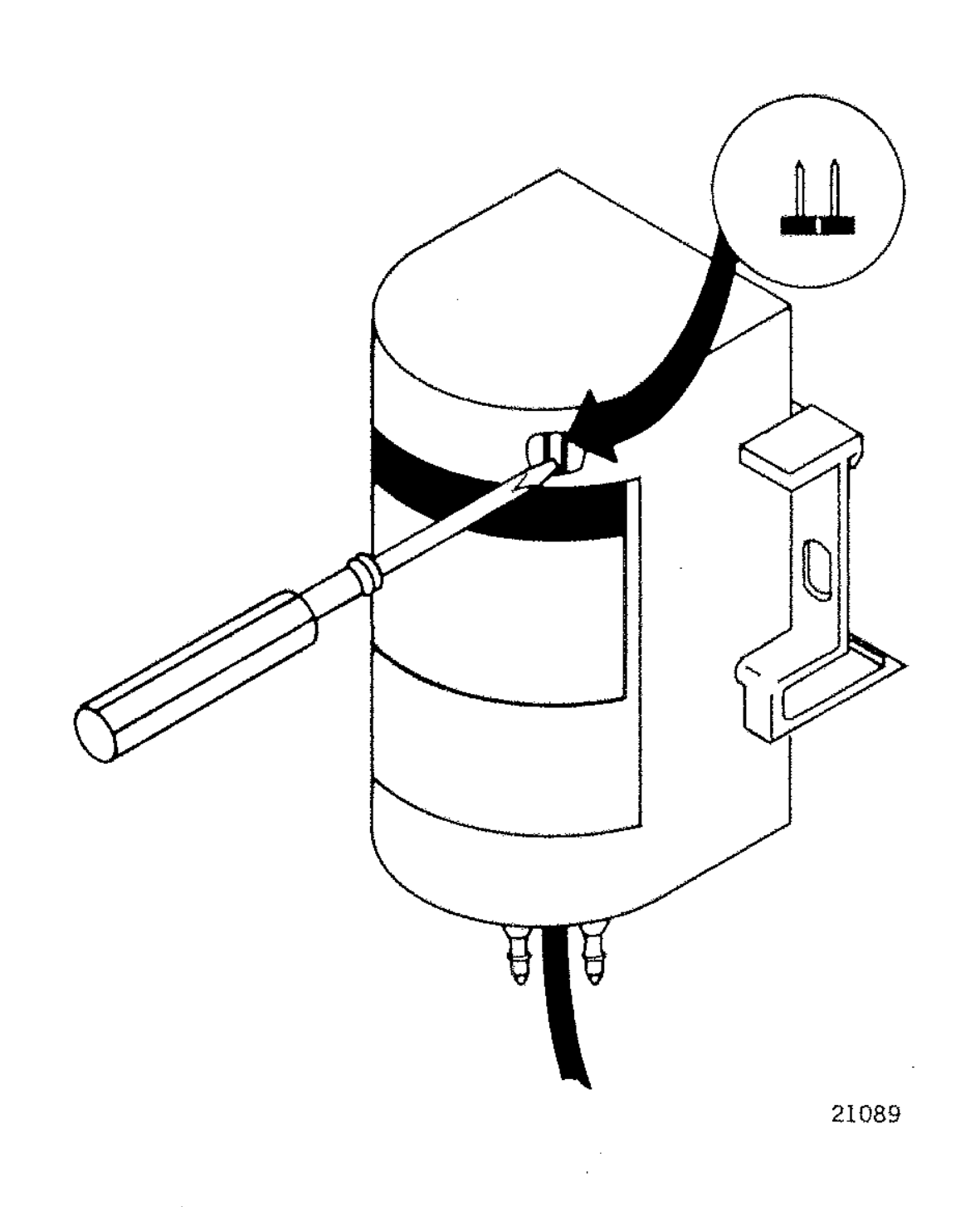

Fig. 6. RP7517A, B Electronic-Pneumatic Transducer Start Up.

Fig. 6. RP7517A, B Electronic-Pneumatic Transducer Start Up.

Drawings

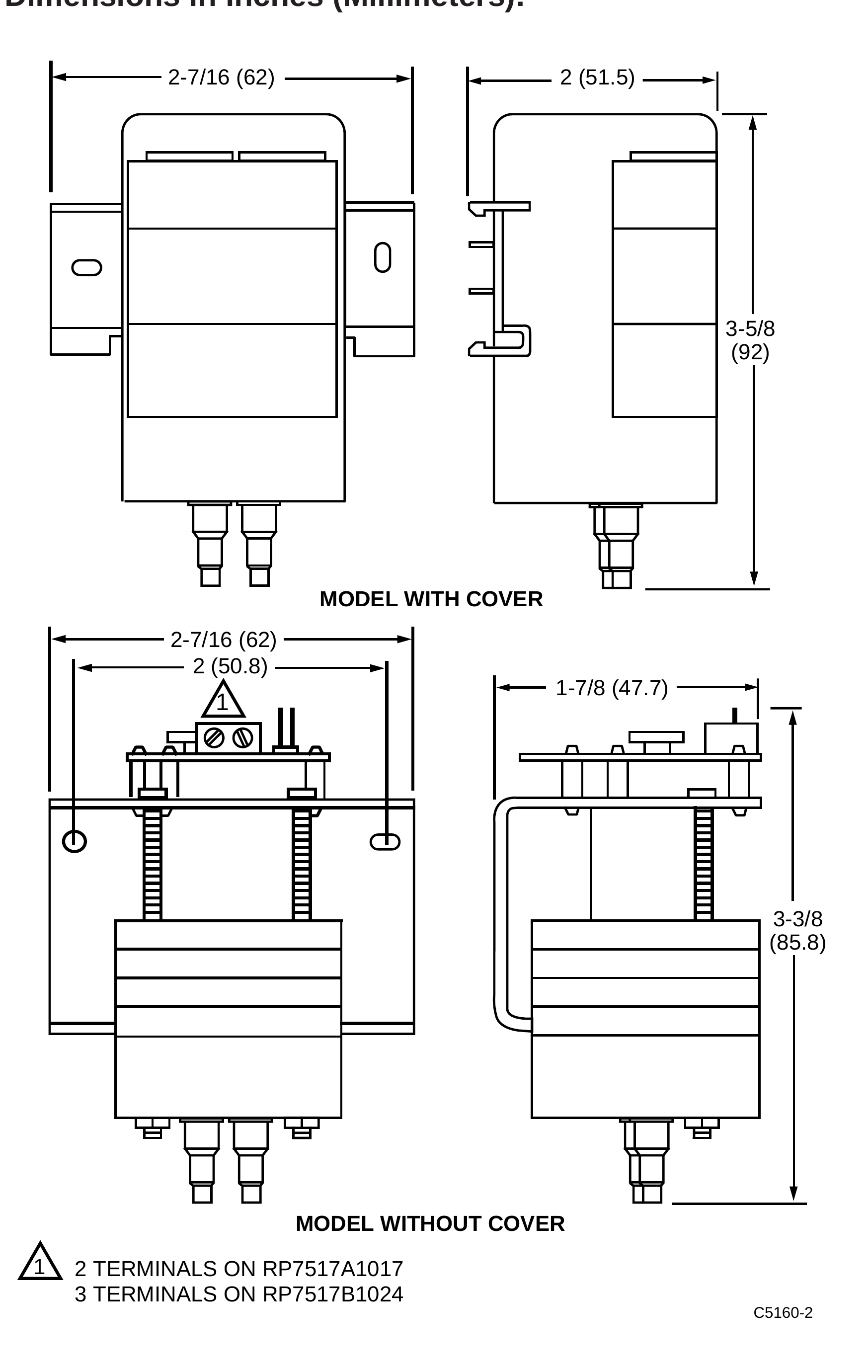

Dimensions In Inches (Millimeters) for MODEL WITH COVER and MODEL WITHOUT COVER

Dimensions In Inches (Millimeters) for MODEL WITH COVER and MODEL WITHOUT COVER

Drawings

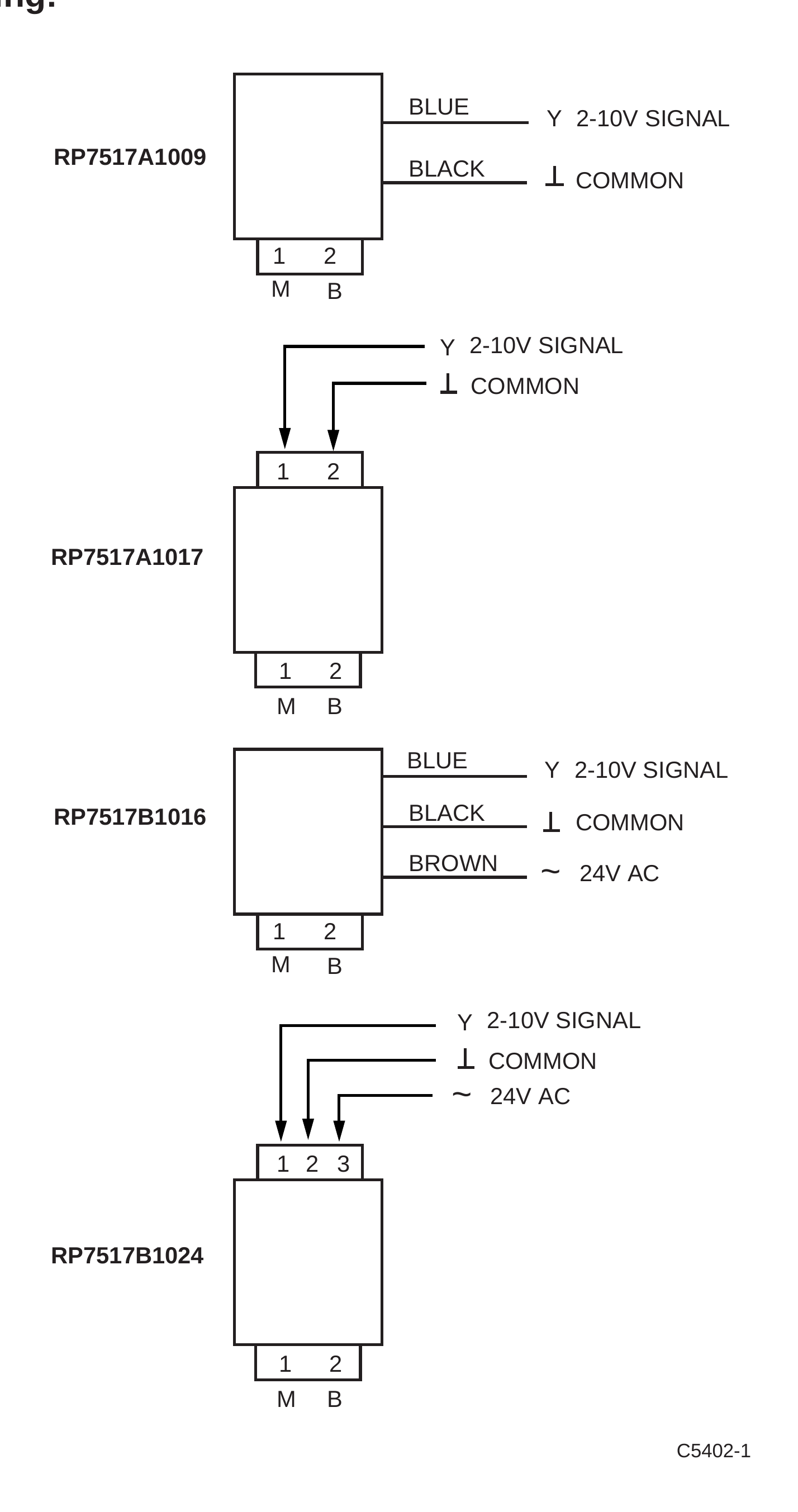

Wiring diagrams for RP7517A1009, RP7517A1017, RP7517B1016, RP7517B1024

Wiring diagrams for RP7517A1009, RP7517A1017, RP7517B1016, RP7517B1024

Drawings

Fig. 1. RP7517A or B Electronic-Pneumatic Transducer with Cover — Approximate Dimensions in Inches (Millimeters).

Fig. 1. RP7517A or B Electronic-Pneumatic Transducer with Cover — Approximate Dimensions in Inches (Millimeters).

Drawings

Fig. 2. RP7517A Electronic-Pneumatic Transducer without Cover — Approximate Dimensions in Inches (Millimeters).

Fig. 2. RP7517A Electronic-Pneumatic Transducer without Cover — Approximate Dimensions in Inches (Millimeters).

MPNDescriptionPrice

Honeywell RP7517A1017

RP7517A1017Variant$ 1134.36

1

Honeywell RP7517B1016

RP7517B1016Variant - 3-wire, with cover, with internal amplifier$ 818.95

1

Honeywell RP7517B1024

RP7517B1024Variant - 3-wire, without cover, with internal amplifier$ 1047.05

1

DELTANETMICROCEL™Compatible—

1

MICRONIK100Compatible—

1

R7510/11EXCELCONTROLLERIncompatible (The RP7517A cannot be used with the R7510/11 Excel Controller)—

1
