Honeywell l4006b1155
ChatMRO

The Honeywell L4006B1155 is in our catalogue: Mounting Horizontal or Vertical Mounting, Insulation Depth 3 inch, Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 8A @ 120 Vac | 5.1A @ 240 Vac; ALR: 48A @ 120 Vac | 30.6A @ 240 Vac.

ChatMRO can make mistakes, so double check it

In stockSingle-Function Aquastat with SPST-N.O. Switch, 100–240°F Range
Honeywell · L4006B1155

Single-Function Aquastat with SPST-N.O. Switch, 100–240°F Range

$ 261.29per unit · ex. VAT

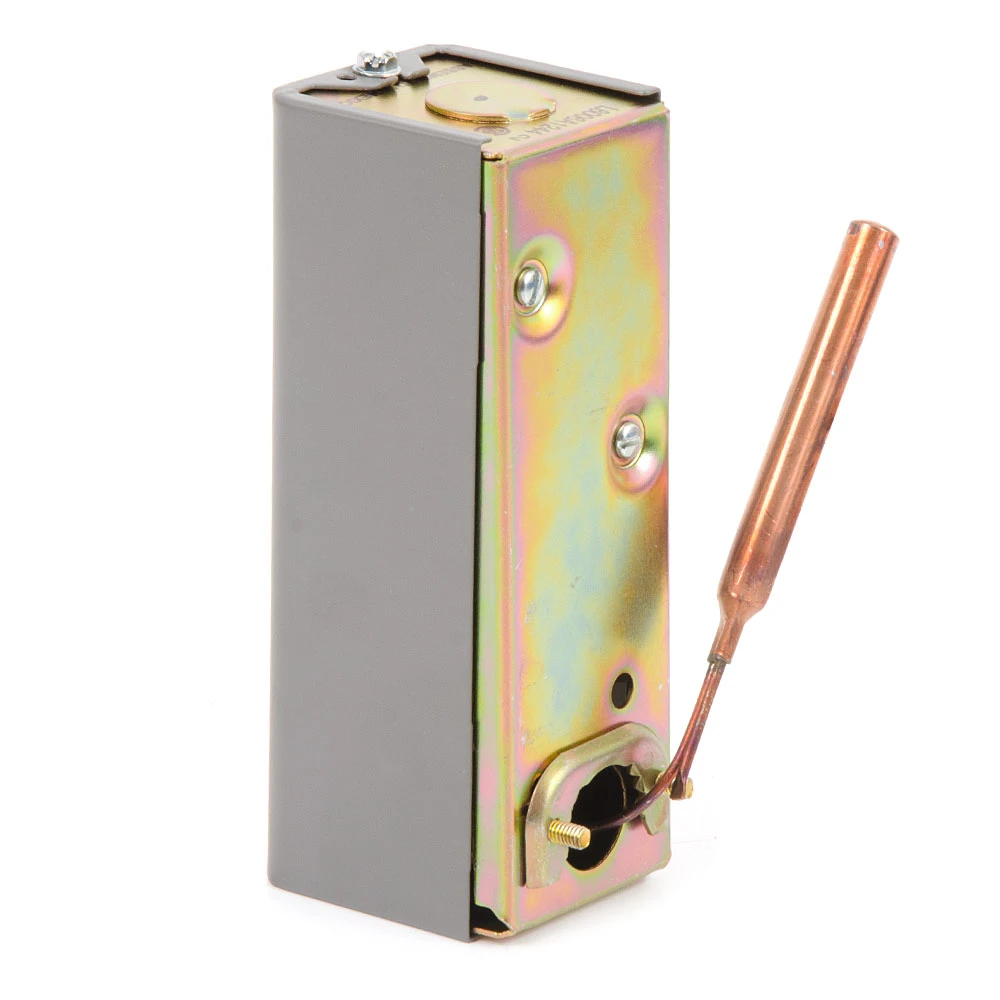

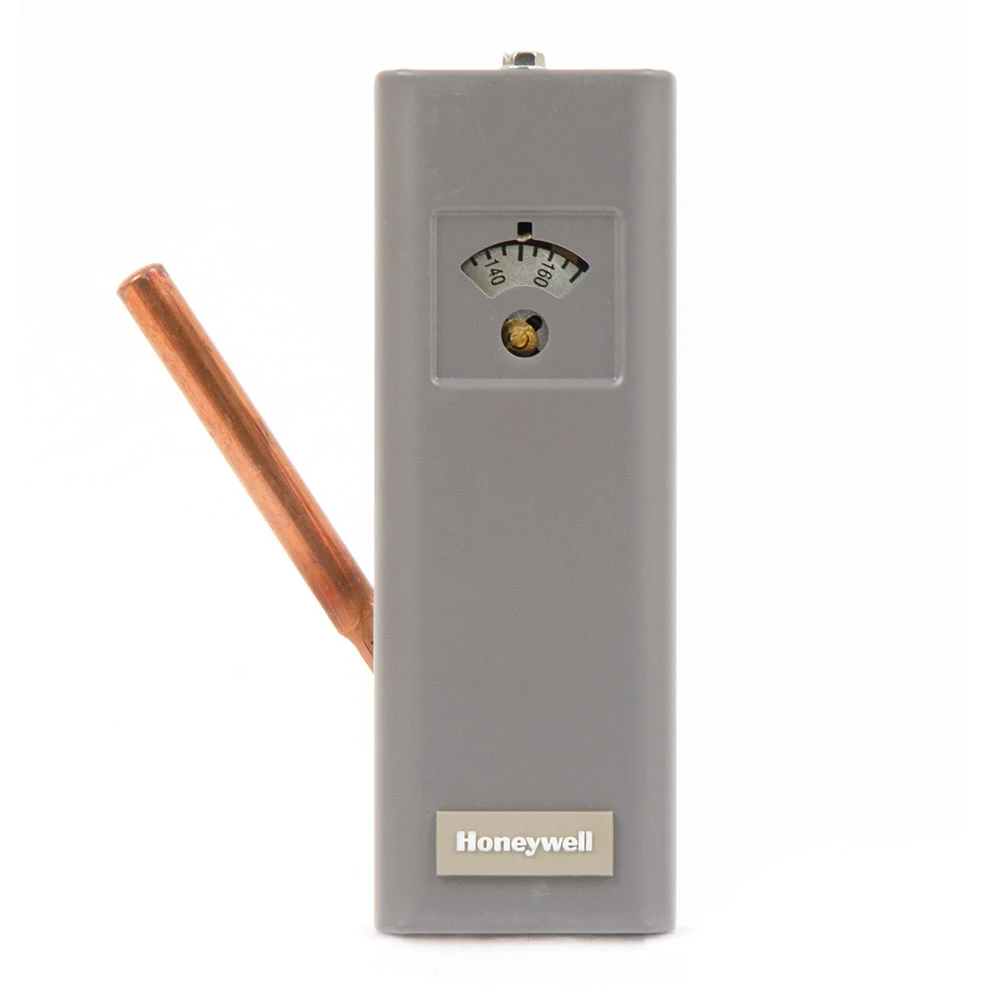

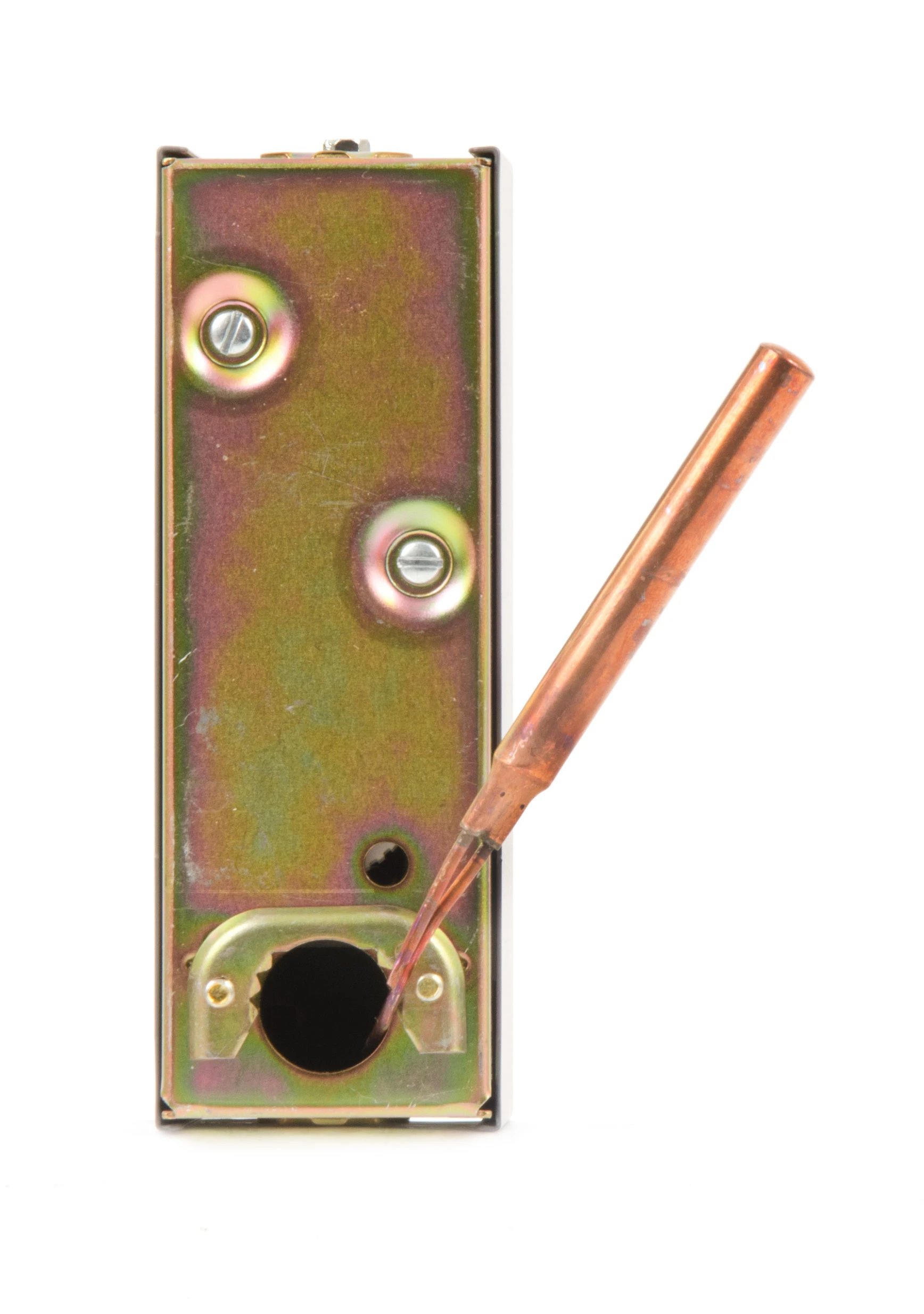

Honeywell L4006B1155 is a single-function aquastat controller designed for circulator applications with a temperature range of 100–240°F and adjustable differential of 5–30°F. It features automatic reset, horizontal or vertical mounting, and includes heat-conductive compound. The device has SPST-N.O. (make on rise) switch configuration with millivolt and line-voltage electrical ratings.
Mounting
Horizontal or Vertical Mounting
Insulation Depth
3 inch
Electrical Ratings
Millivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 8A @ 120 Vac | 5.1A @ 240 Vac; ALR: 48A @ 120 Vac | 30.6A @ 240 Vac
Switch Configuration
SPST — N.O. (Make on Rise)
Differential Temperature
5 – 30 ˚F
MountingHorizontal or Vertical Mounting
Insulation Depth3 inch
Electrical RatingsMillivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 8A @ 120 Vac | 5.1A @ 240 Vac; ALR: 48A @ 120 Vac | 30.6A @ 240 Vac
Switch ConfigurationSPST — N.O. (Make on Rise)
Differential Temperature5 – 30 ˚F
Operating Temperature Range100 – 240 ˚F
Package Quantity1
Dimensions2 inch Width × 2 1/8 inch Depth × 8 5/8 inch Height
Spud Size3/4 inch
Spud TypeNPT
Reset TypeAutomatic Reset
ApplicationCirculator
