The Honeywell EARD8TZ is in our catalogue: Damper Diameter 8 inch, Nominal Duct Diameter 8 inch, Frame Galvanized steel spiral duct.

ChatMRO can make mistakes, so double check it

In stockMotorized Fresh Air Damper with 8 in Diameter and 24V AC Motor
Honeywell · EARD8TZ

Motorized Fresh Air Damper with 8 in Diameter and 24V AC Motor

$ 208.19per unit · ex. VAT

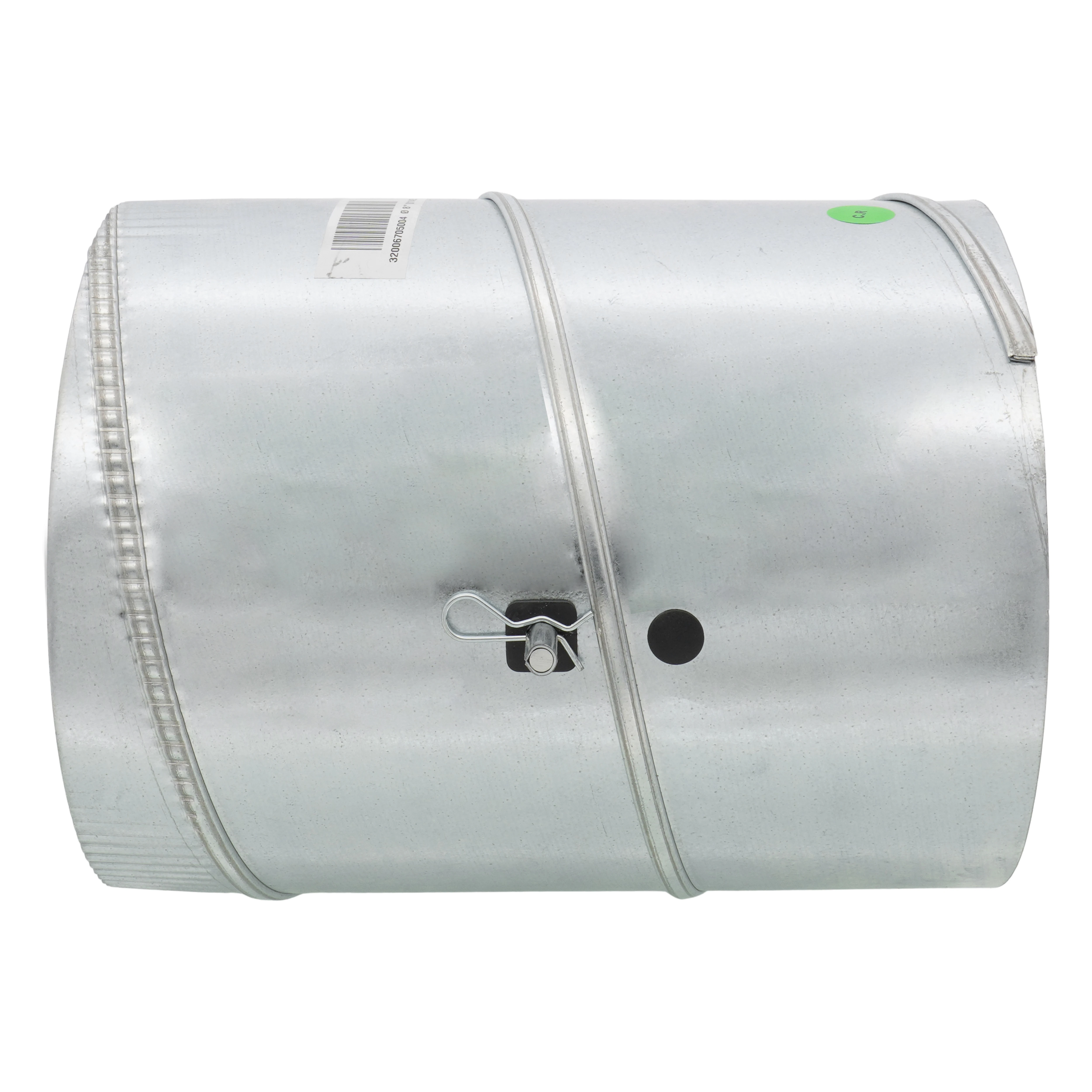

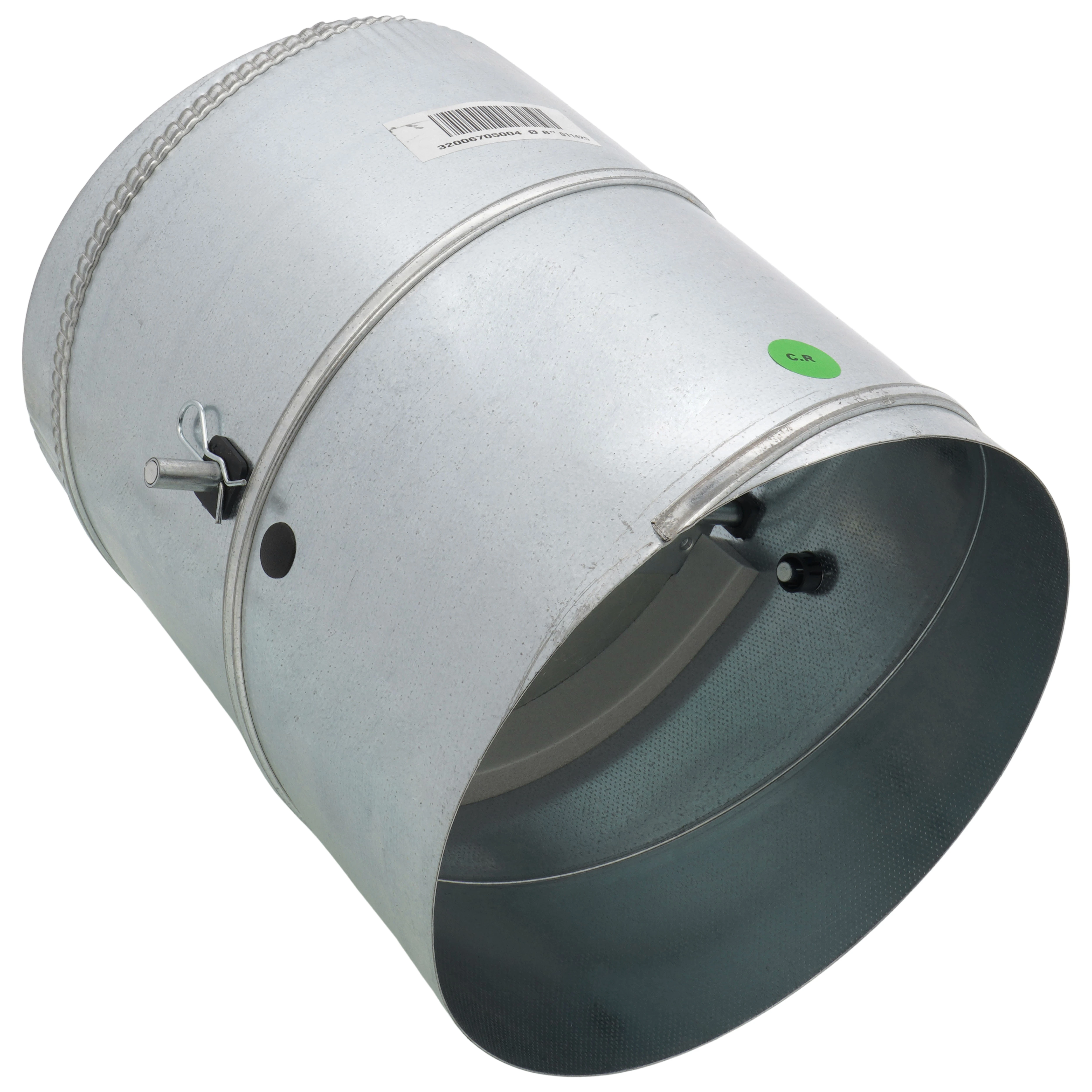

The Honeywell EARD8TZ is a power-open, spring-closed motorized fresh air damper designed for use in HVAC systems. It features an 8-inch nominal duct diameter, 24V AC motor, and is typically controlled by an IAQ thermostat or whole-house ventilation system. The damper provides less than 1% leakage at 0.5 inch w.c. and is constructed with a galvanized steel spiral duct frame.
Damper Diameter
8 inch
Nominal Duct Diameter
8 inch
Frame
Galvanized steel spiral duct
Frame Material
Steel
Blade Material
Galvanized Steel
Damper Diameter8 inch
Nominal Duct Diameter8 inch
FrameGalvanized steel spiral duct
Frame MaterialSteel
Blade MaterialGalvanized Steel
LeakageLess than 1% at 1/2 inch. wc
Maximum Static Pressure1 inch. wc for all models
Motor Electrical Rating24 Vac, 60 Hz, 8VA
Nameplate Voltage24V AC
Frequency60 Hz
Output8VA
Motor TorqueMinimum 71 inch-oz. (500 millinewton meters)
