In stockRotary Vane Vacuum Pump, 0.25 HP, 1725 RPM, 26 in Hg Max Vacuum, No Oil Lubrication
Gast · 0523-101Q-G588NDX

Rotary Vane Vacuum Pump, 0.25 HP, 1725 RPM, 26 in Hg Max Vacuum, No Oil Lubrication

$ 784.87per unit · ex. VAT
Electric rotary vane vacuum pump with 0.25 HP motor, 1725 RPM at 60 Hz, and 26 in Hg maximum vacuum. Features no oil lubrication, internal muffler and filter, and thermal protection. Designed for continuous duty in laboratory and medical environments.
Horsepower
0.25 HP
Kilowatts
0.18 kW
Net Weight
30 lbs / 13.6 kg
Environment
Clean Dust Free
Sound Level
Less than 70 dB(A)
Horsepower0.25 HP
Kilowatts0.18 kW
EnvironmentClean Dust Free
Sound LevelLess than 70 dB(A)
RPM 50 Cycle1425
RPM 60 Cycle1725
Motor Voltage110-115/220-240 V
Normal Ambient Temperature1 °C to 40 °C
Relative Humidity8% to 100%, Non-Condensing
Duty CycleContinuous

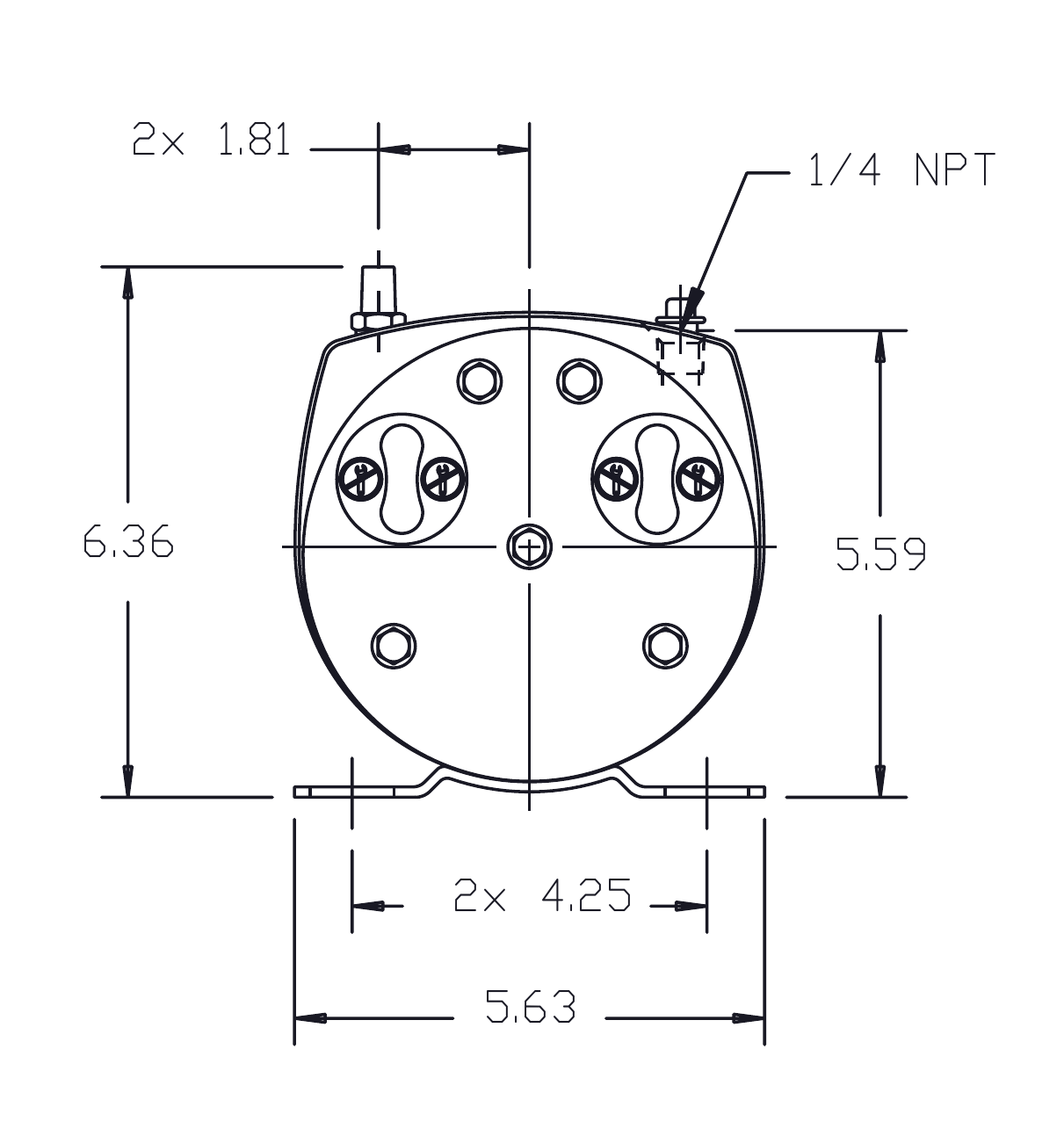

Inlet Size1/4 inch
Inlet TypeNPT
