The Destaco 812-U-LC is in our catalogue: Max Operating Temp -23 °C to 74 °C [-10 °F to 165 °F], Bar Style Solid, Port Size M5.

ChatMRO can make mistakes, so double check it

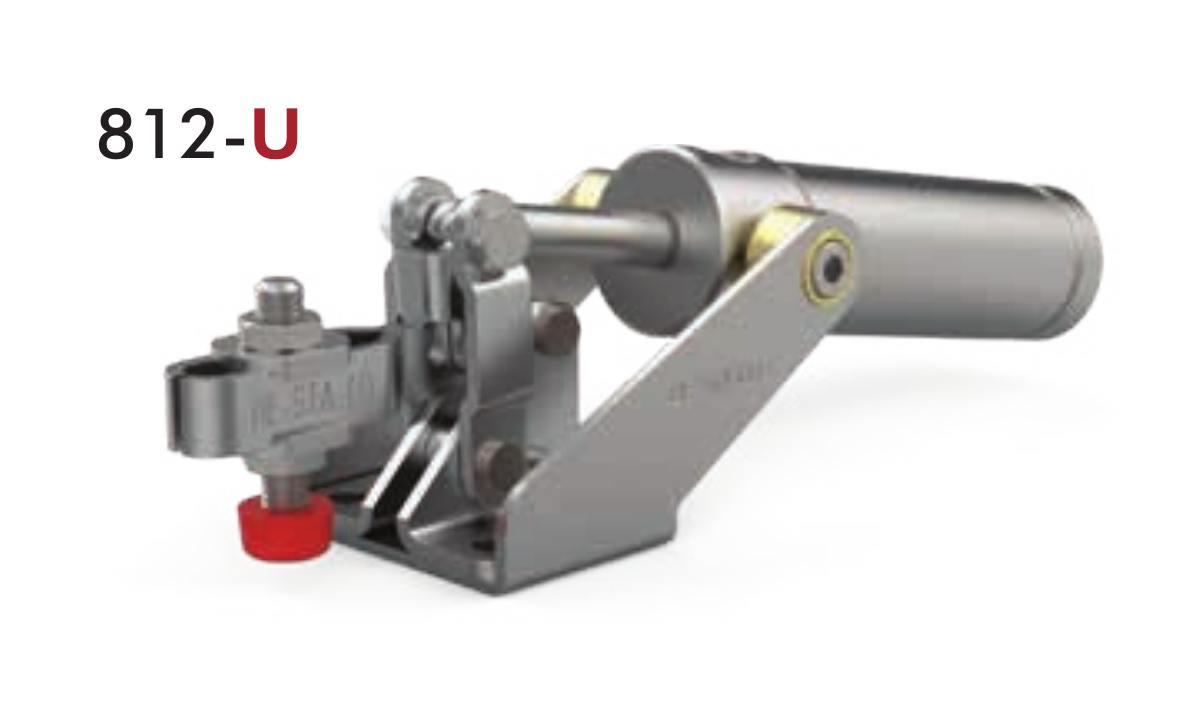

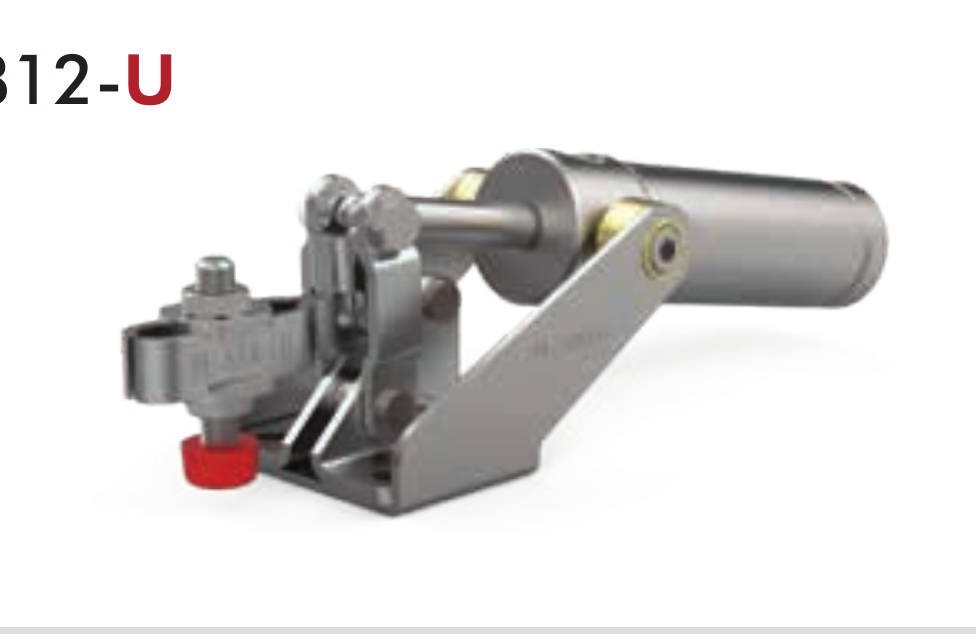

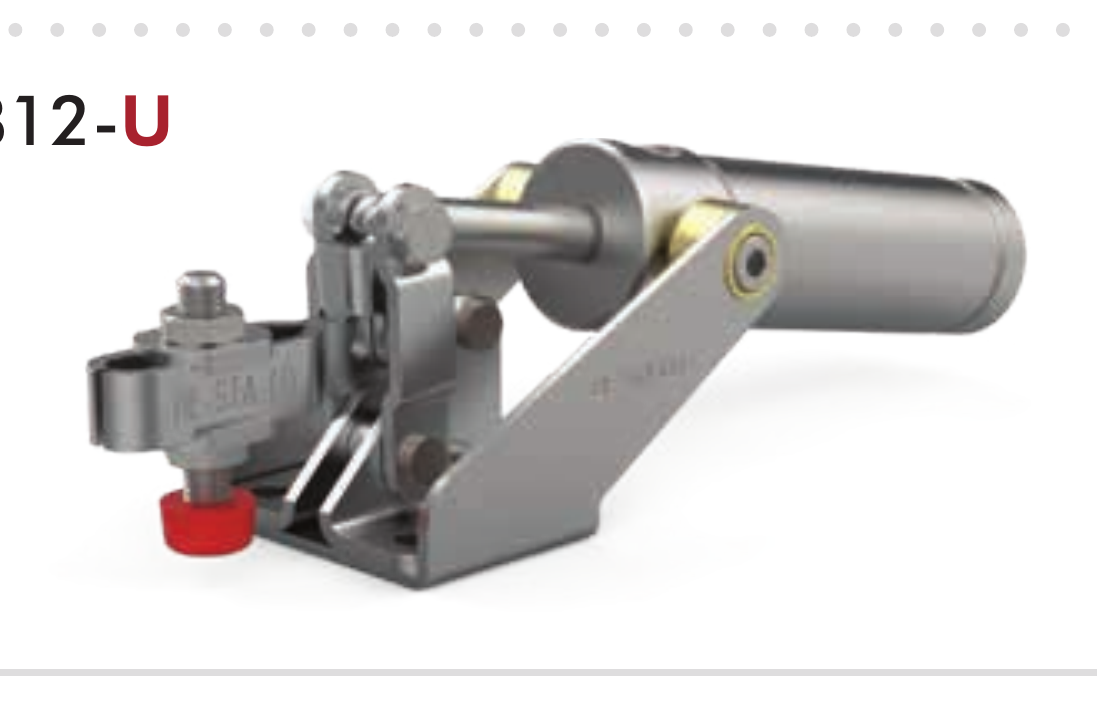

In stockReplacement Clamp Assembly for 812 Series Pneumatic Toggle Clamps
Destaco · 812-U-LC

Replacement Clamp Assembly for 812 Series Pneumatic Toggle Clamps

$ 130.50per unit · ex. VAT
Replacement clamp assembly designed for 812 Series Pneumatic Toggle Clamps. Features a U-bar clamp arm style and horizontal mounting orientation. Suitable for applications requiring a 100 lb holding capacity and 99-degree clamp bar opening.
Max Operating Temp
-23 °C to 74 °C [-10 °F to 165 °F]
Bar Style
Solid
Port Size
M5
Open Height
2 19/25 inch
Clamp Arm Style
U Bar
Max Operating Temp-23 °C to 74 °C [-10 °F to 165 °F]
Bar StyleSolid
Port SizeM5
Open Height2 19/25 inch
Clamp Arm StyleU Bar
Clamp Arm Length1.02 inch
Holding Capacity100 lbs
Clamp Bar Opening99 degree
Mounting OrientationHorizontal
