In stockPneumatic Hold Down Replacement Clamp
Destaco · 807-U-RC

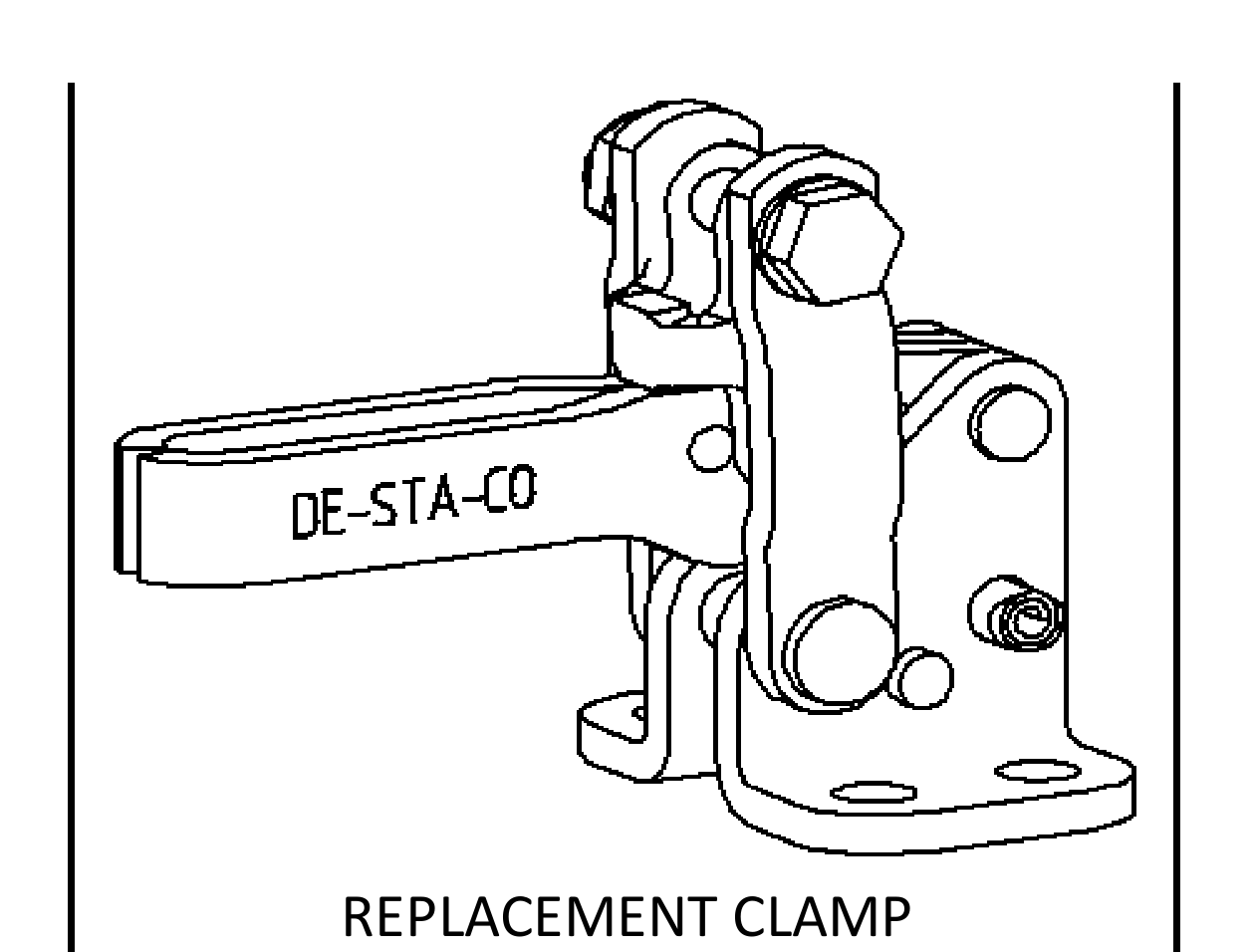

Pneumatic Hold Down Replacement Clamp

$ 71.41per unit · ex. VAT
Replacement clamp for 807 series pneumatic hold down clamps. Features a solid bar design and operates within a temperature range of -10°C to +90°C. Designed for horizontal mounting orientation.
Rod
10mm [.394]
Bore
25mm [.984]
Clamp Stroke
48mm [1.890]
Seal Material
Buna-N & Urethane
Volume Per Stroke
43 cm³ [2.65 inch³]
Rod10mm [.394]
Bore25mm [.984]
Clamp Stroke48mm [1.890]
Seal MaterialBuna-N & Urethane
Volume Per Stroke43 cm³ [2.65 inch³]
Nominal Working Pressure5.5 - 6.2 bar [80-90 psi]
Maximum Operating Pressure8.3 bar [120 psi]
Minimum Operating Pressure2.8 bar [40 psi]
Maximum Recommended Arm Weight100 g [3.5 oz]
Operating Temperature-10°C to +90°C
Bar StyleSolid
Clamp Bar Opening103 Degree
