In stockStraight Line Action Clamp with Toggle Lock Plus
Destaco · 630-MR

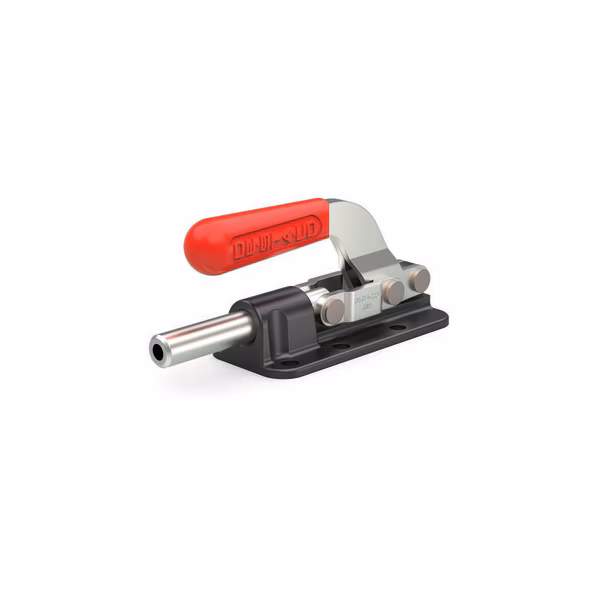

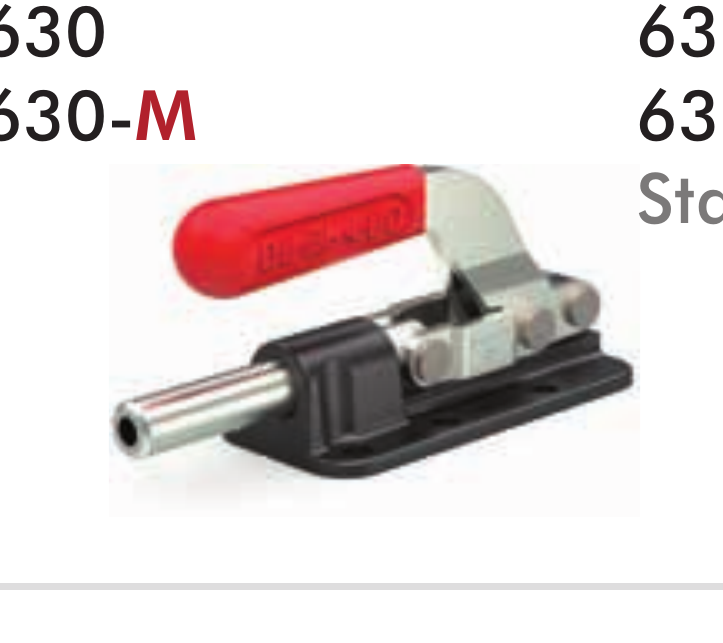

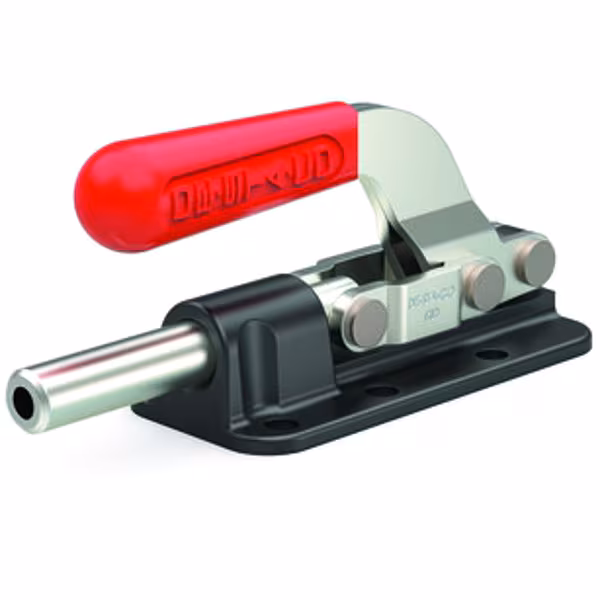

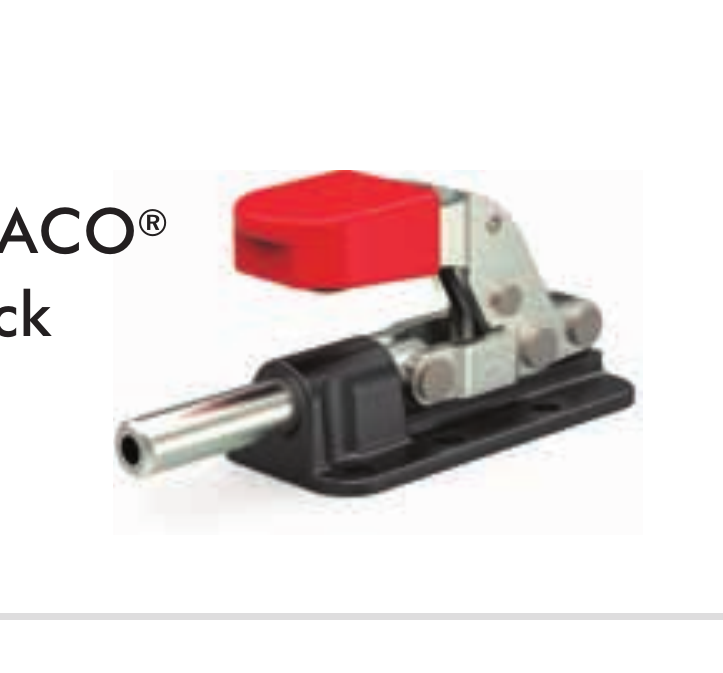

Straight Line Action Clamp with Toggle Lock Plus

$ 231.71per unit · ex. VAT
DESTACO 630-MR Straight Line Action Clamp featuring Toggle Lock Plus technology for secure locking. Designed for manual base mount applications with flanged base and forward action handle. Offers high holding capacity with metric plunger thread.
Weight
1.90 lb (0.89 kg)
Plunger Travel
2.00 in (50.8 mm)
Plunger Thread
M10 Internal

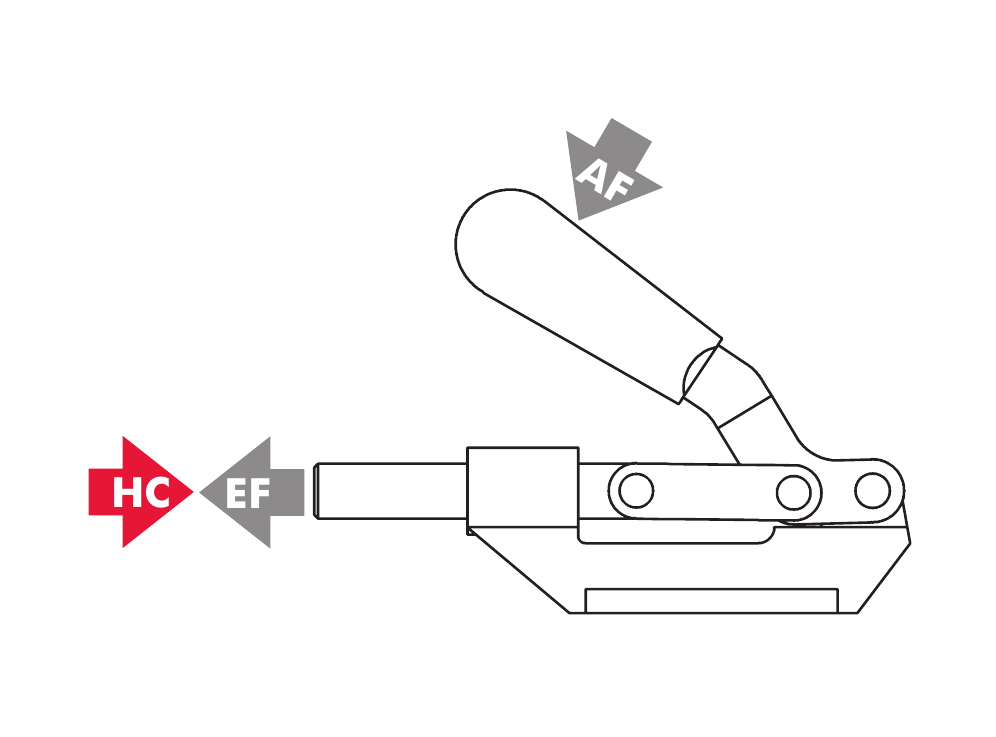

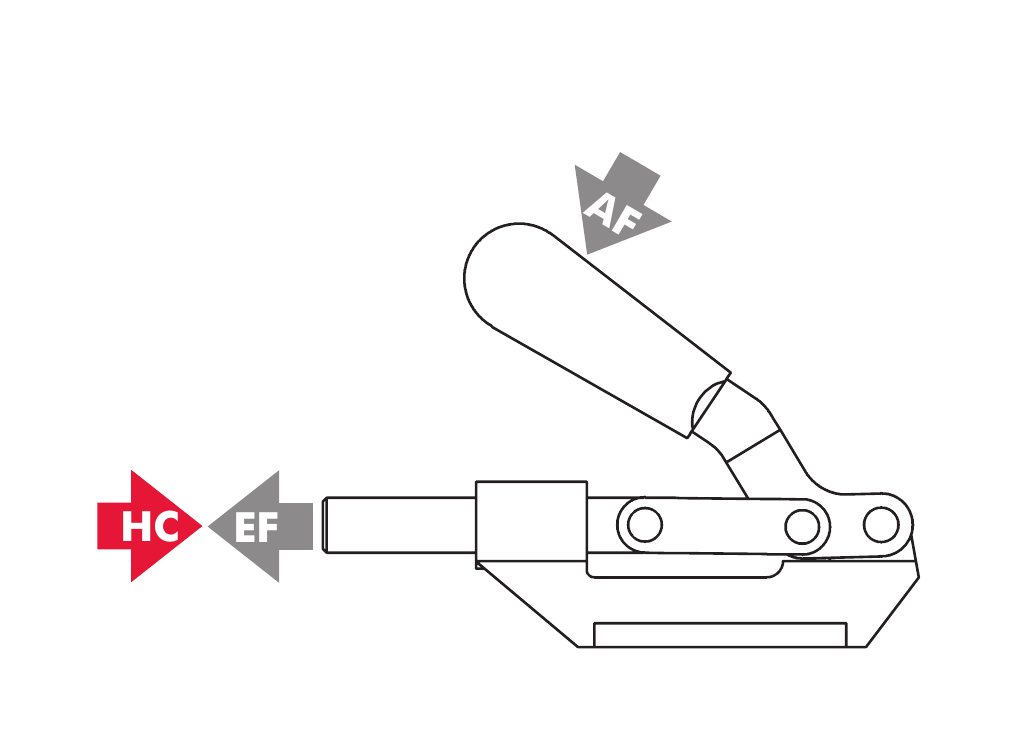

Max Holding Capacity
2500 lbf (11100 N)
Mechanical Advantage
36:1 (pushing), 23:1 (pulling)
Plunger Travel2.00 in (50.8 mm)
Plunger ThreadM10 Internal
Max Holding Capacity2500 lbf (11100 N)
Mechanical Advantage36:1 (pushing), 23:1 (pulling)
MaterialSteel

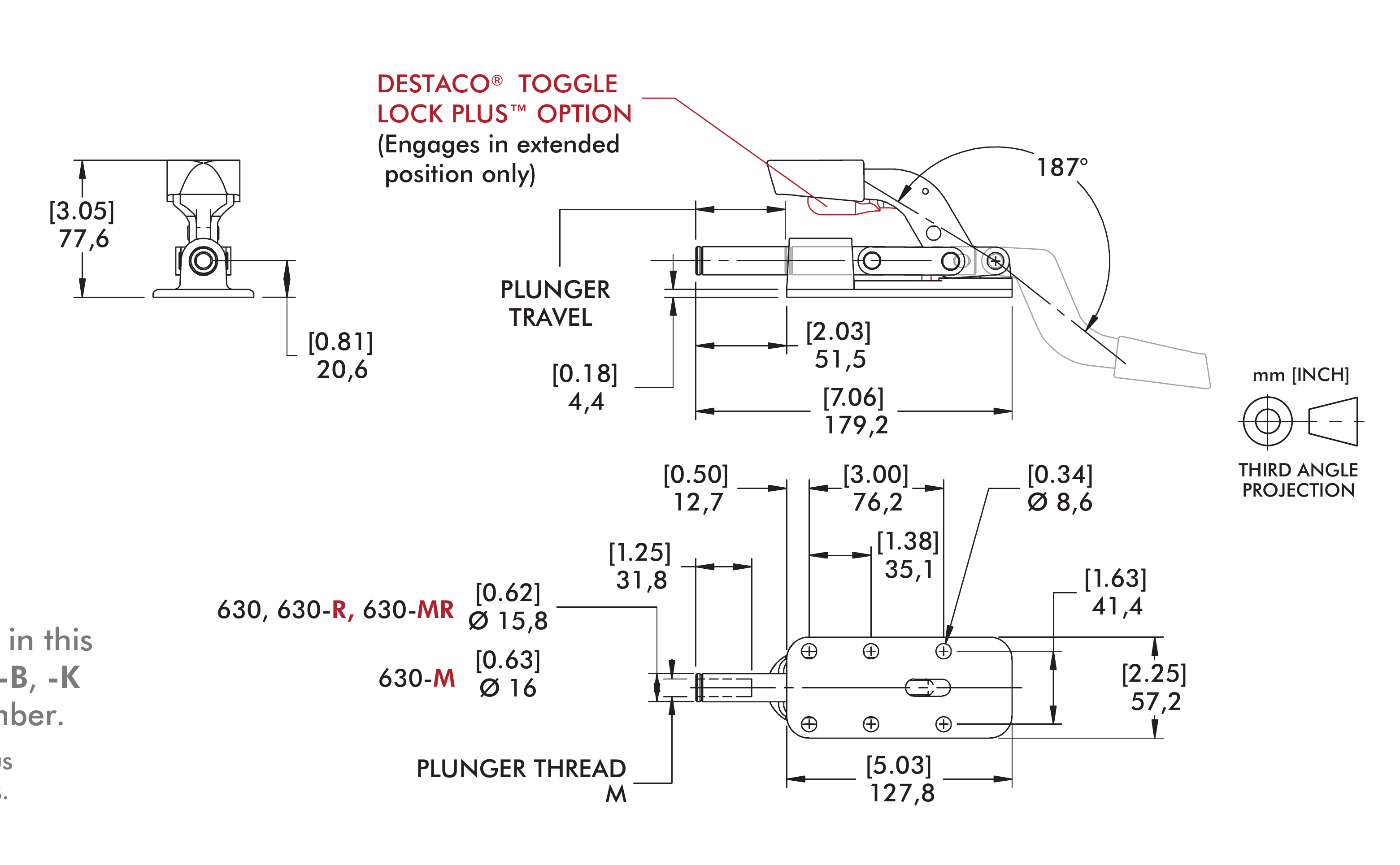

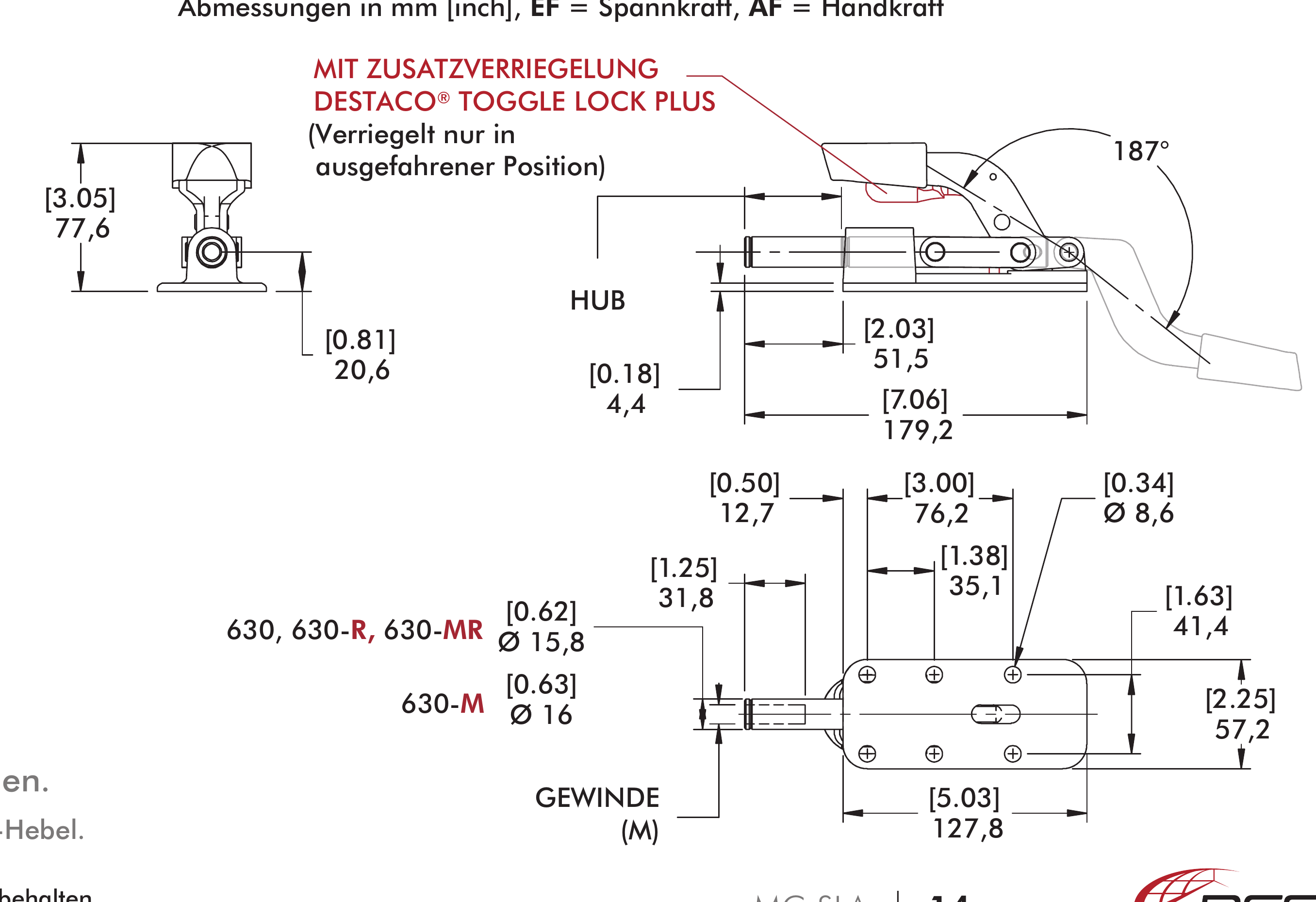

Base Width2.25 inch
Base Length2.25 inch
Overall Height3.05 inch
Plunger Diameter0.620 inch
Mounting BaseFlange

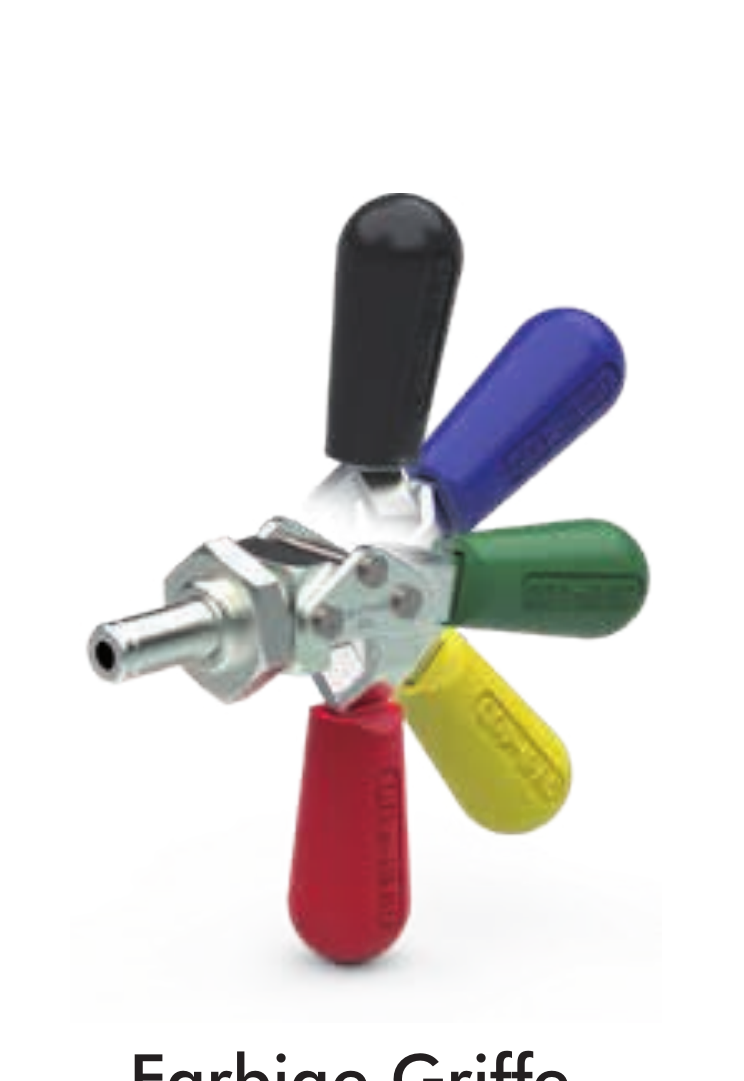

Handle StyleThumb
Handle Movement ActionForward Action
