The Destaco 609 is in our catalogue: Plunger Travel 1.25 in (31.8 mm), Plunger Thread 5/16-18, Max. Holding Capacity 300 lbf (1330 N).

ChatMRO can make mistakes, so double check it

In stockStraight Line Action Clamp with Flanged Base, 300 lbf Holding Capacity, 1.25 in Plunger Travel
Destaco · 609

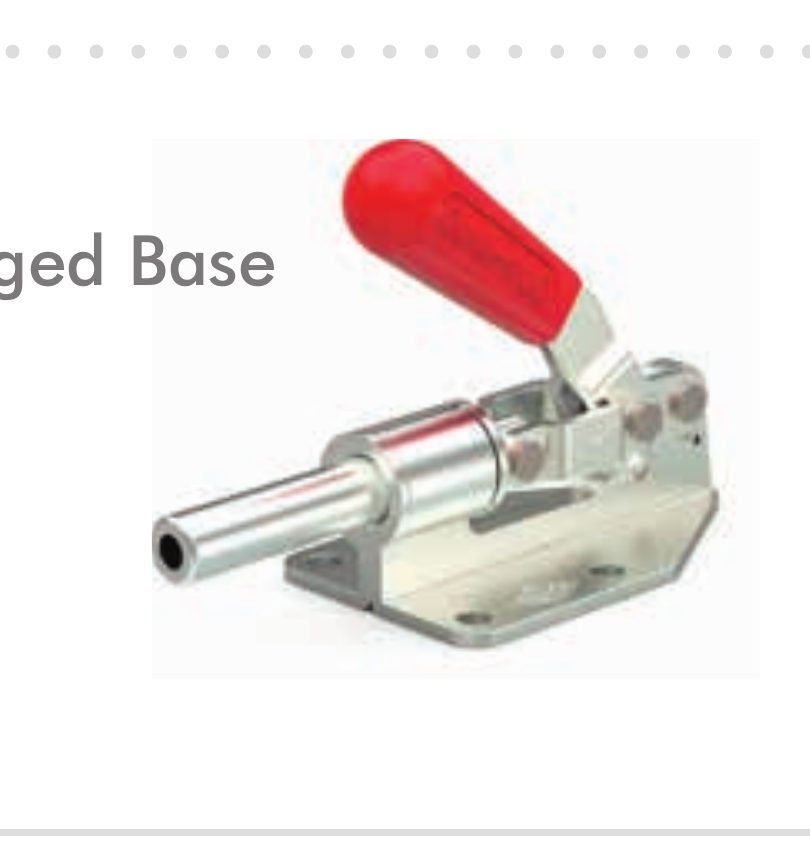

Straight Line Action Clamp with Flanged Base, 300 lbf Holding Capacity, 1.25 in Plunger Travel

$ 50.50per unit · ex. VAT
DESTACO 609 Series flanged base straight line action clamp designed for high holding capacity and low profile applications. Features a 300 lbf maximum holding capacity, 1.25 in plunger travel, and 5/16-18 internal plunger thread. Constructed from steel for durability in welding, assembly, and test environments.
Weight
0.88 lb (0.40 kg)
Plunger Travel
1.25 in (31.8 mm)
Plunger Thread
5/16-18
Max. Holding Capacity
300 lbf (1330 N)

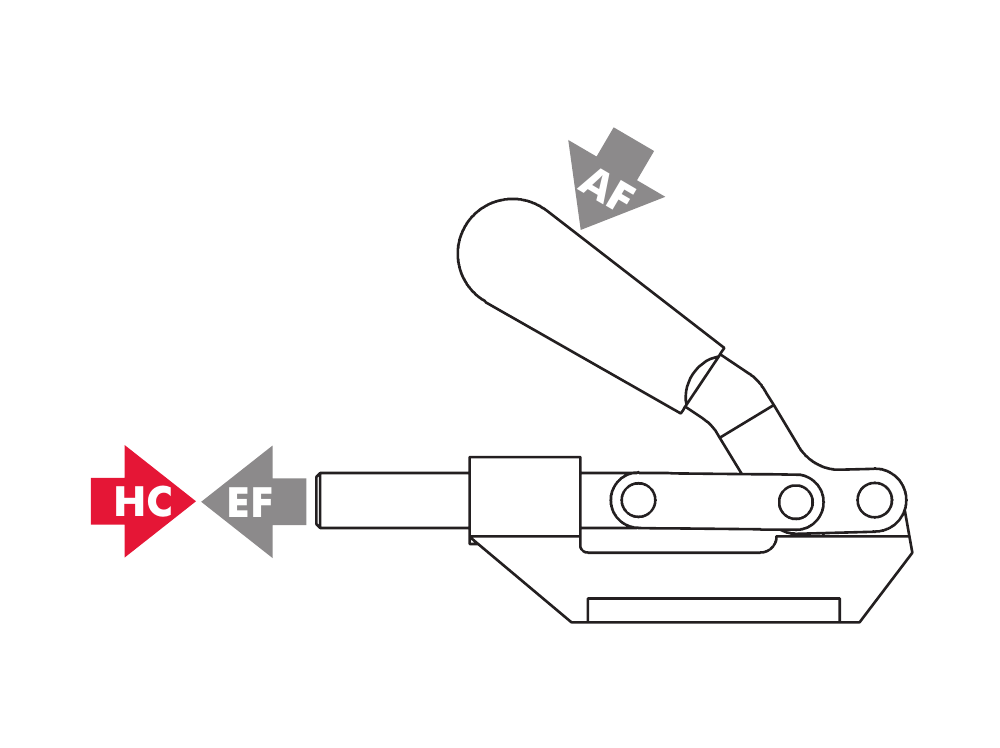

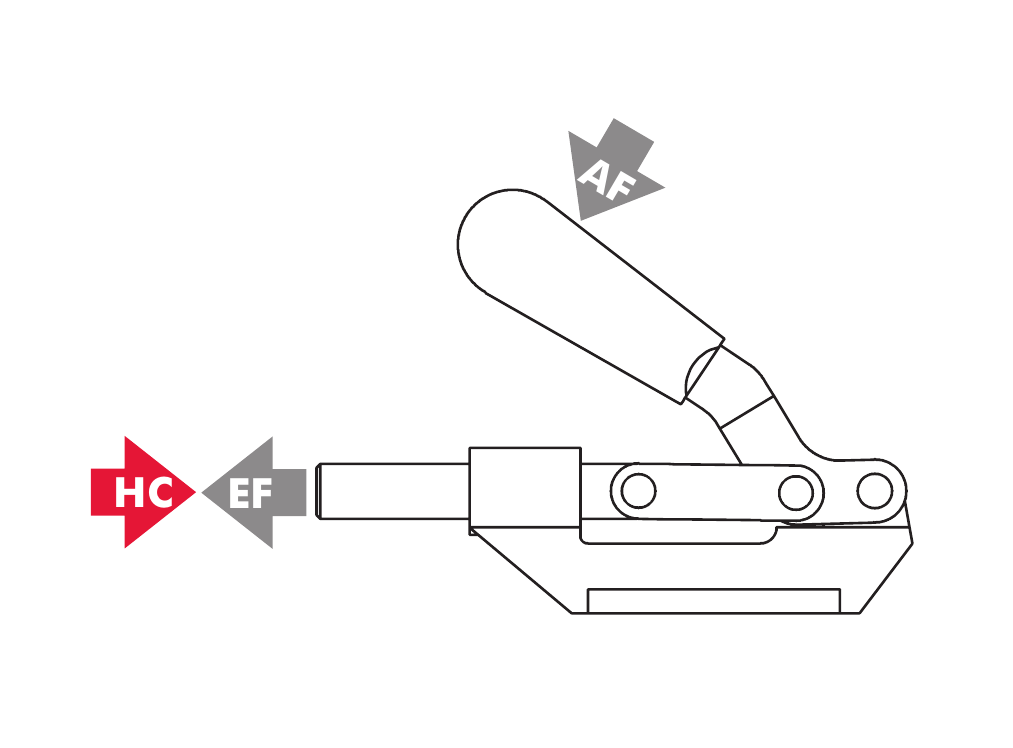

Mechanical Advantage
36:1 (pushing), 47:1 (pulling)
Plunger Travel1.25 in (31.8 mm)
Plunger Thread5/16-18
Max. Holding Capacity300 lbf (1330 N)
Mechanical Advantage36:1 (pushing), 47:1 (pulling)
MaterialSteel
Base Mounting StyleFlange
Plunger ShapeRound

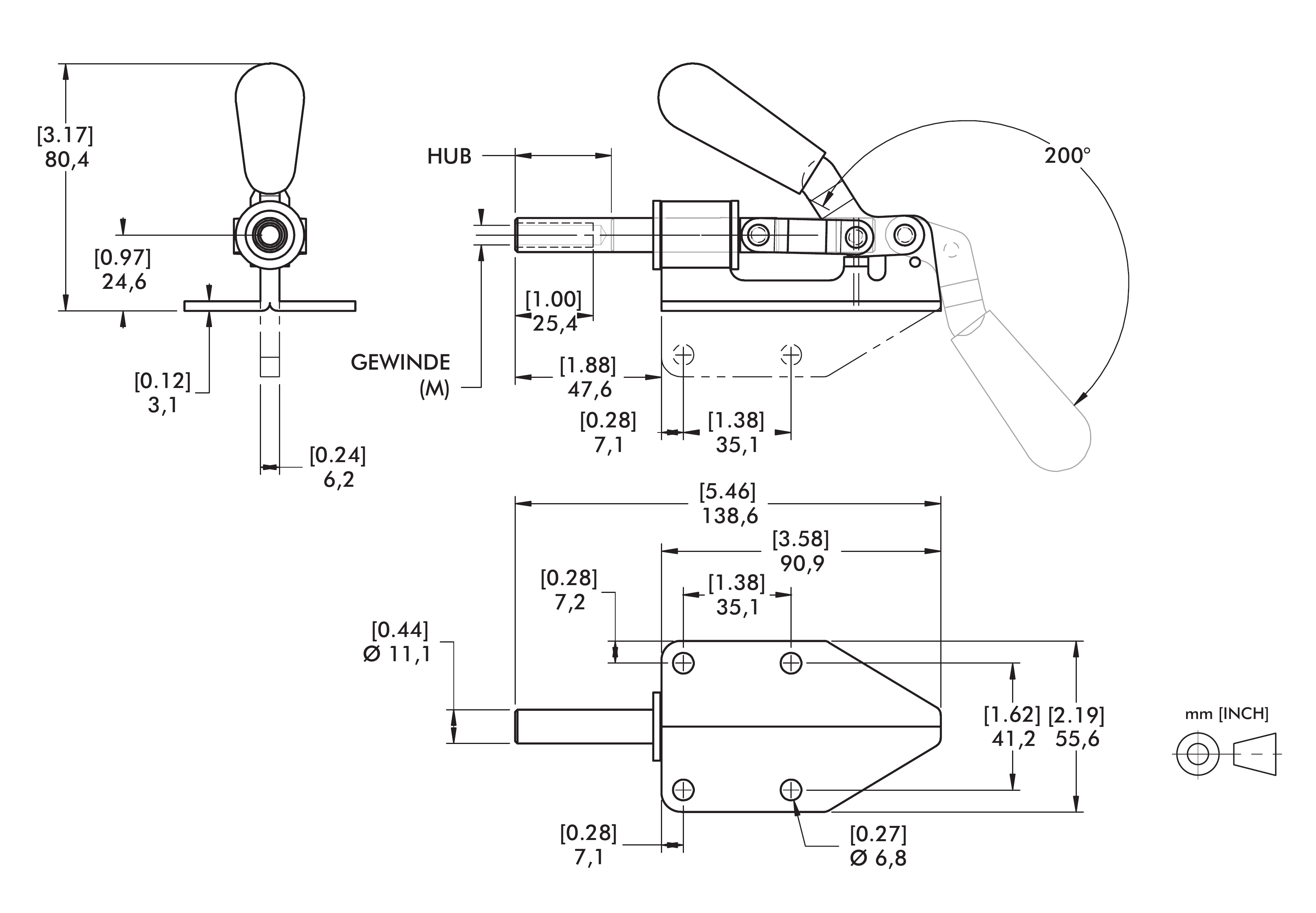

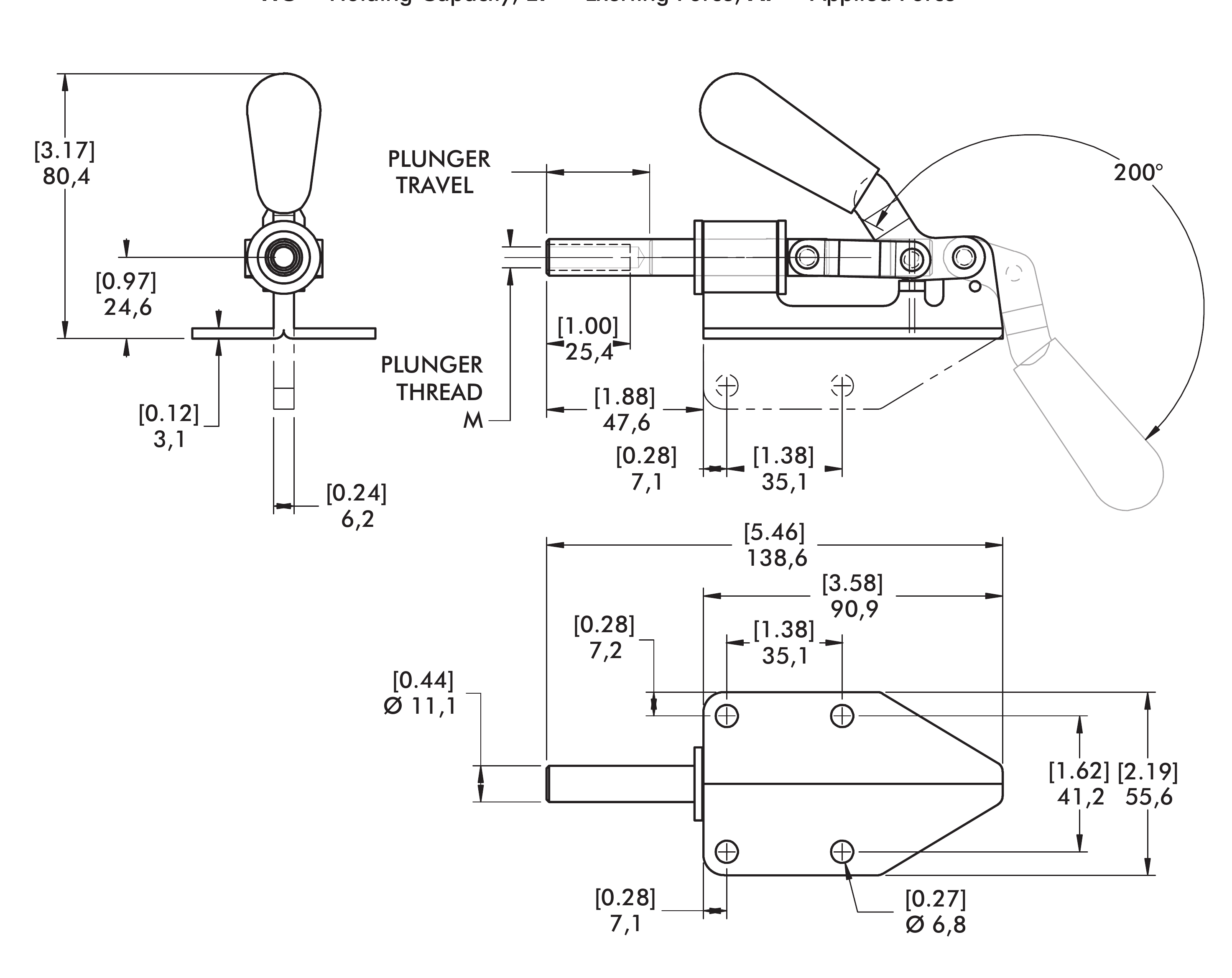

Overall Height3.17 in
Height Under Arm0.97 in
Base Mounting Centers1.38 in x 1.63 in
Handle OrientationHorizontal
Plunger Diameter0.440 in (11.2 mm)
