The Destaco 605-M is in our catalogue: Plunger Travel 1.25 inch (31.8 mm), Maximum Holding Capacity 300 lbf (1330 N), Mechanical Advantage - Pushing 45:1.

ChatMRO can make mistakes, so double check it

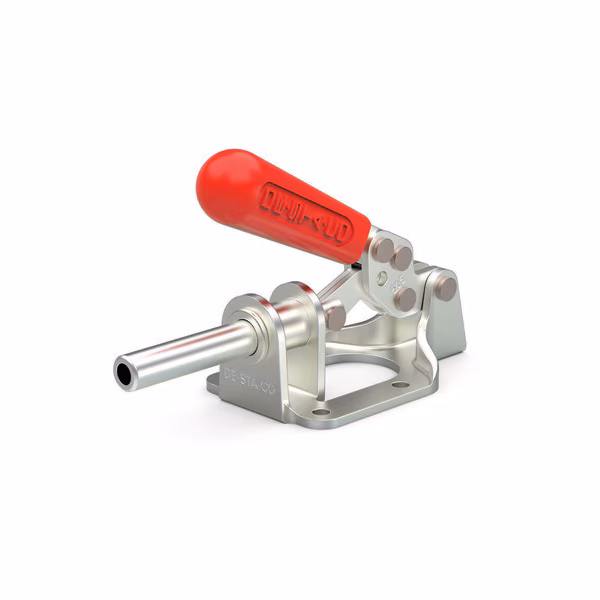

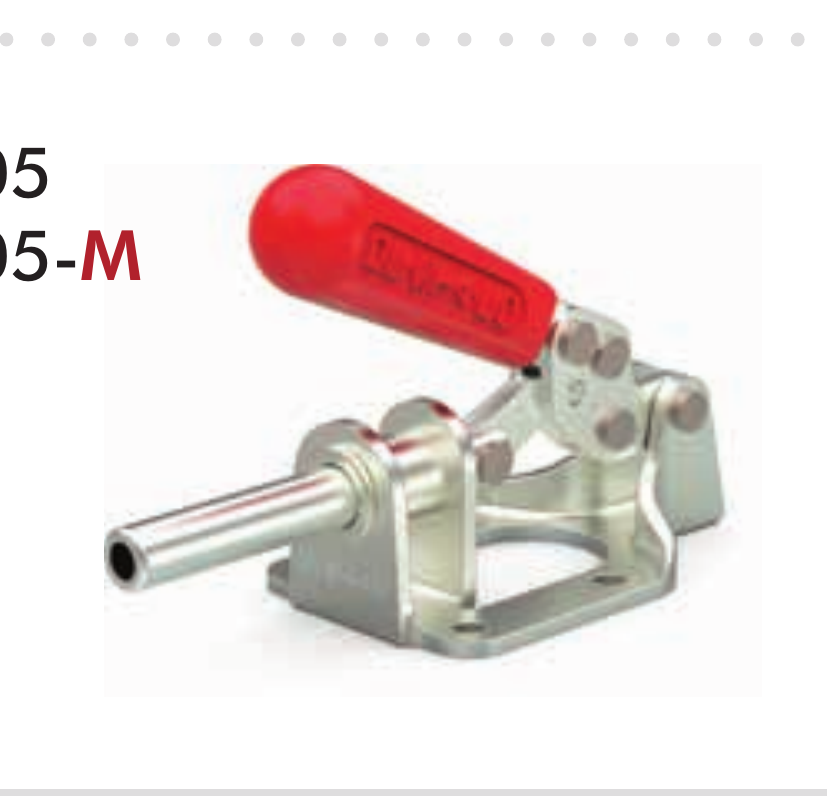

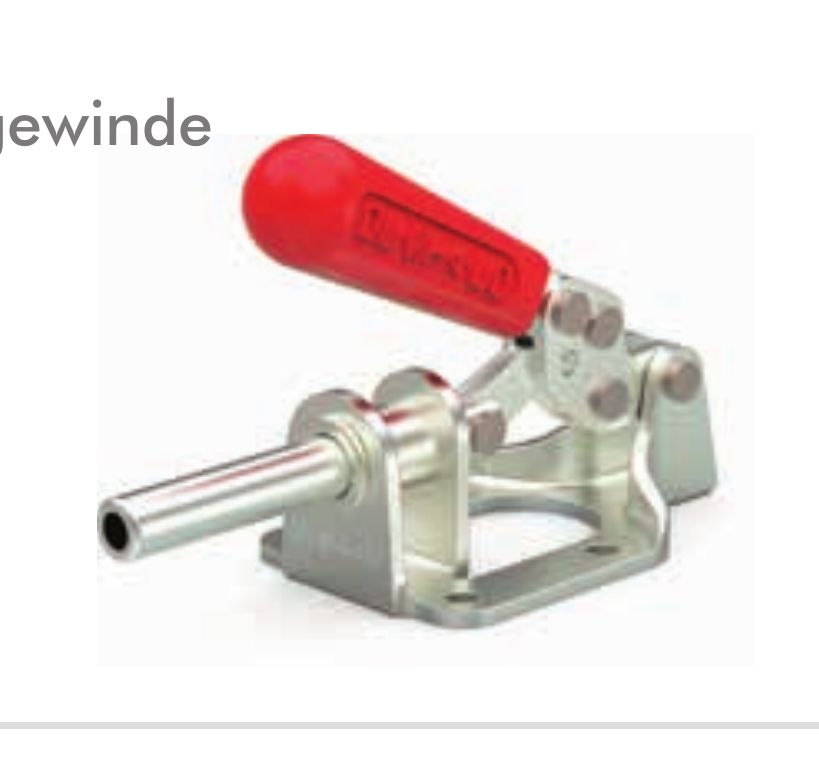

In stockStraight Line Action Clamp with M8 Plunger Thread and 300 lbf Holding Capacity
Destaco · 605-M

Straight Line Action Clamp with M8 Plunger Thread and 300 lbf Holding Capacity

$ 54.94per unit · ex. VAT

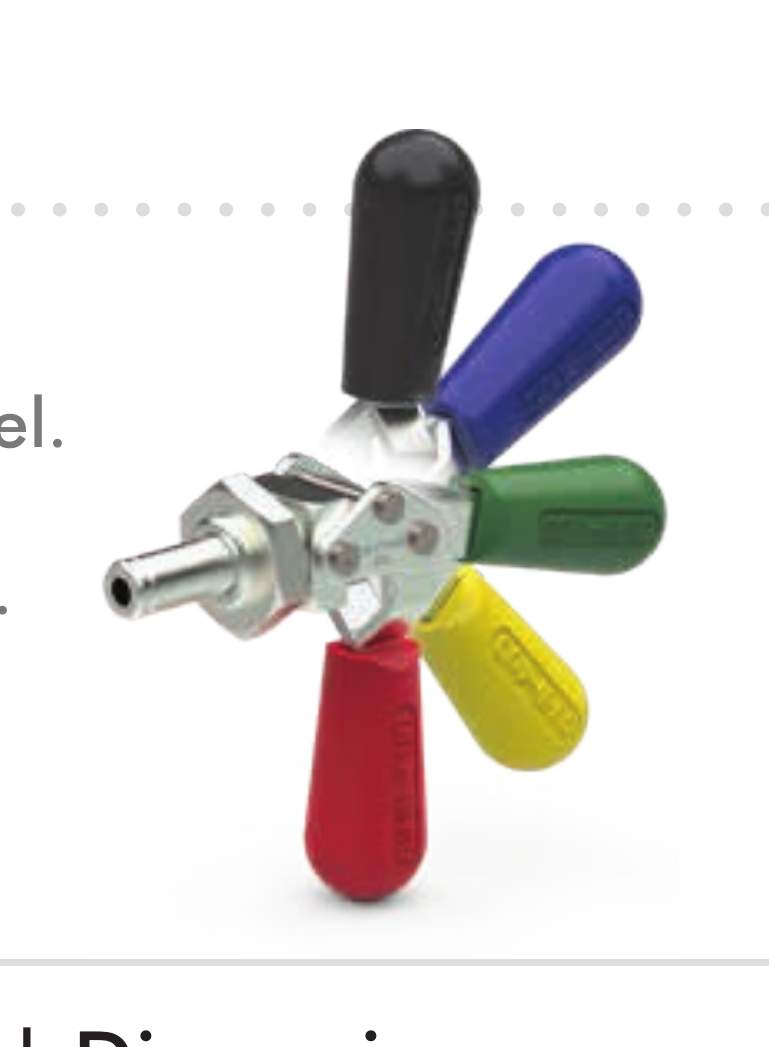

DESTACO 605-M Straight Line Action Clamp designed for push/pull clamping in metalworking, welding, and light machining applications. Features a flanged base, M8 internal plunger thread, and 300 lbf maximum holding capacity. Constructed with steel body and red steel handle with plastic cover.
Weight
0.69 lb (0.31 kg)
Plunger Travel
1.25 inch (31.8 mm)

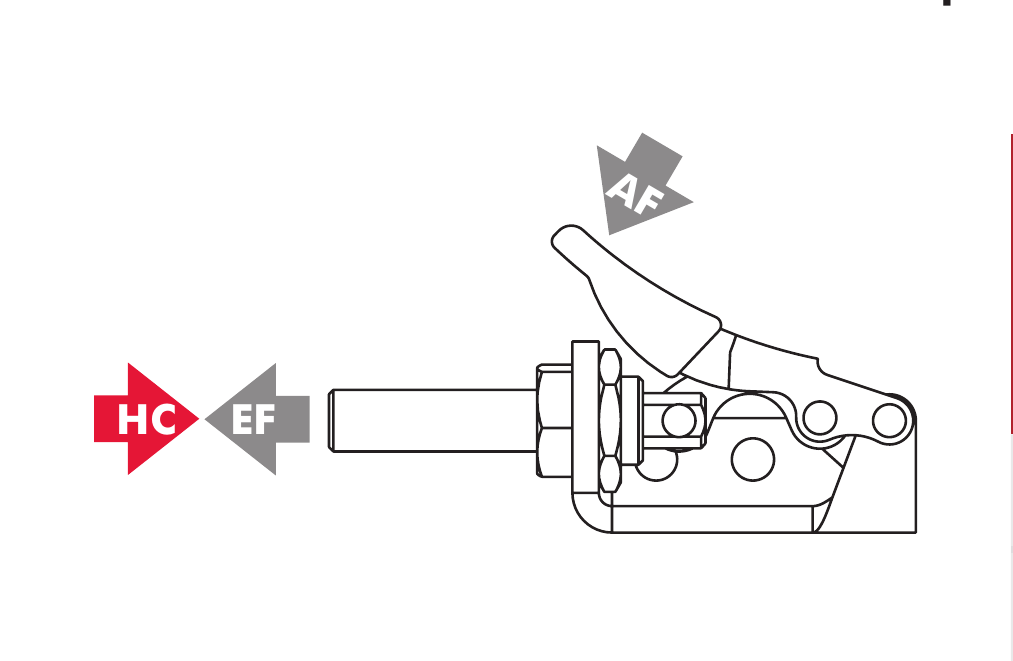

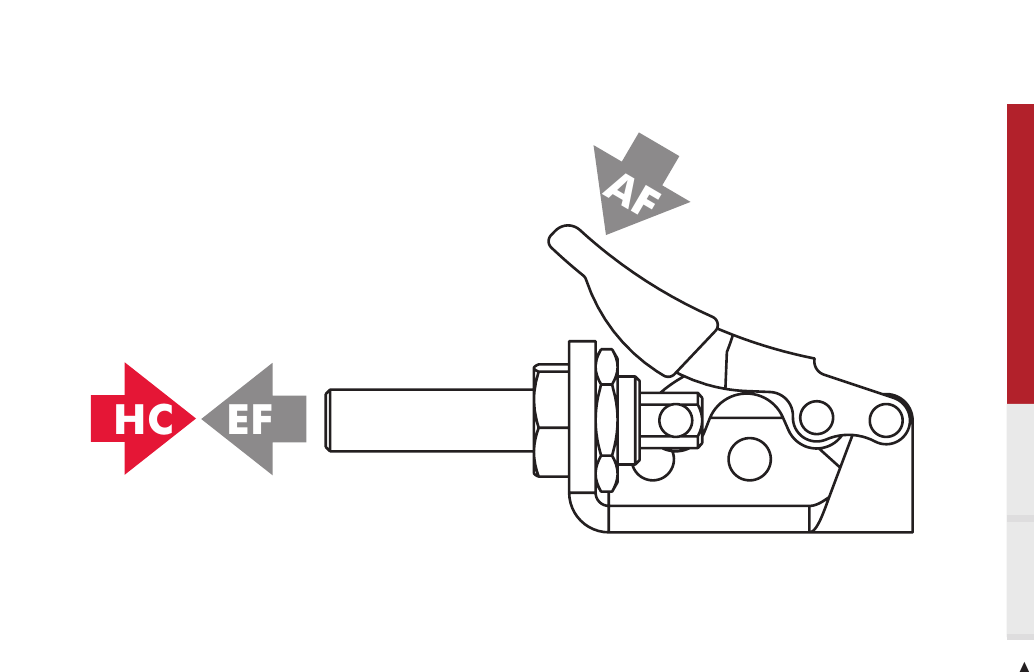

Maximum Holding Capacity
300 lbf (1330 N)
Mechanical Advantage - Pushing
45:1
Mechanical Advantage - Pulling
40:1
Plunger Travel1.25 inch (31.8 mm)
Maximum Holding Capacity300 lbf (1330 N)
Mechanical Advantage - Pushing45:1
Mechanical Advantage - Pulling40:1

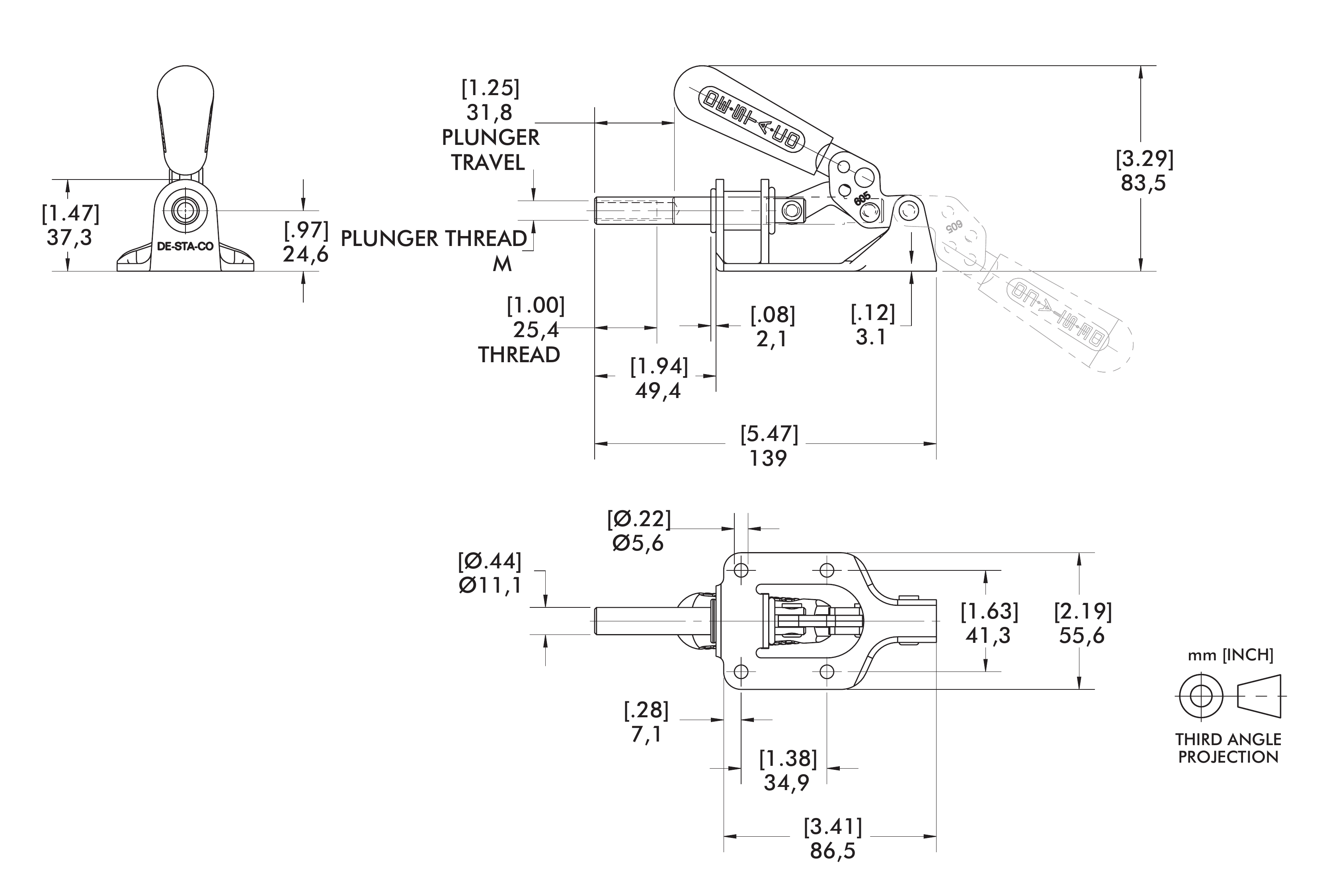

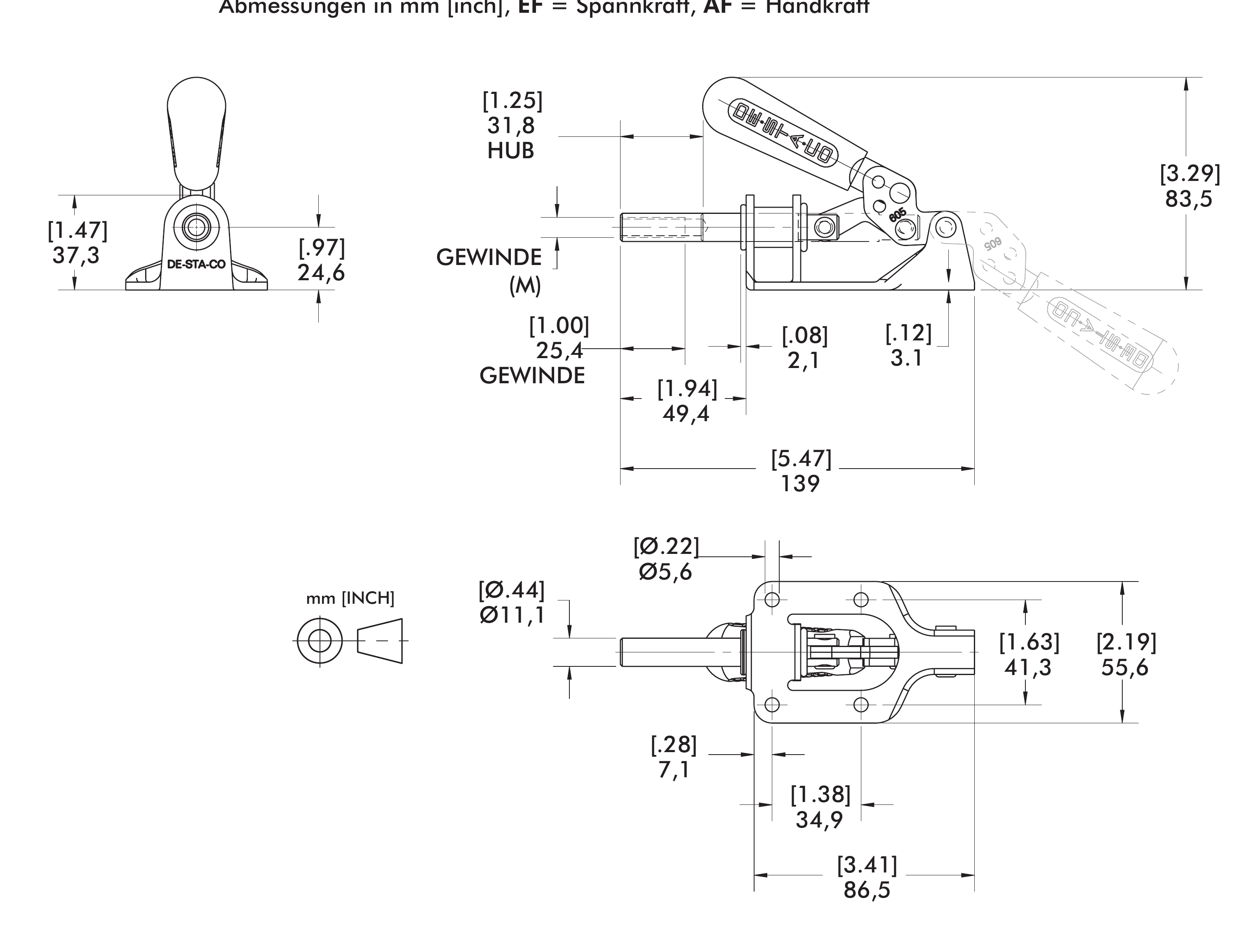

Overall Width2.19 inch
Overall Depth3.29 inch
Overall Height4.29 inch
Base Length3.41 inch
Base Width2.19 inch
Arm Length1.94 inch
Height Under Arm0.97 inch
Plunger ShapeRound
